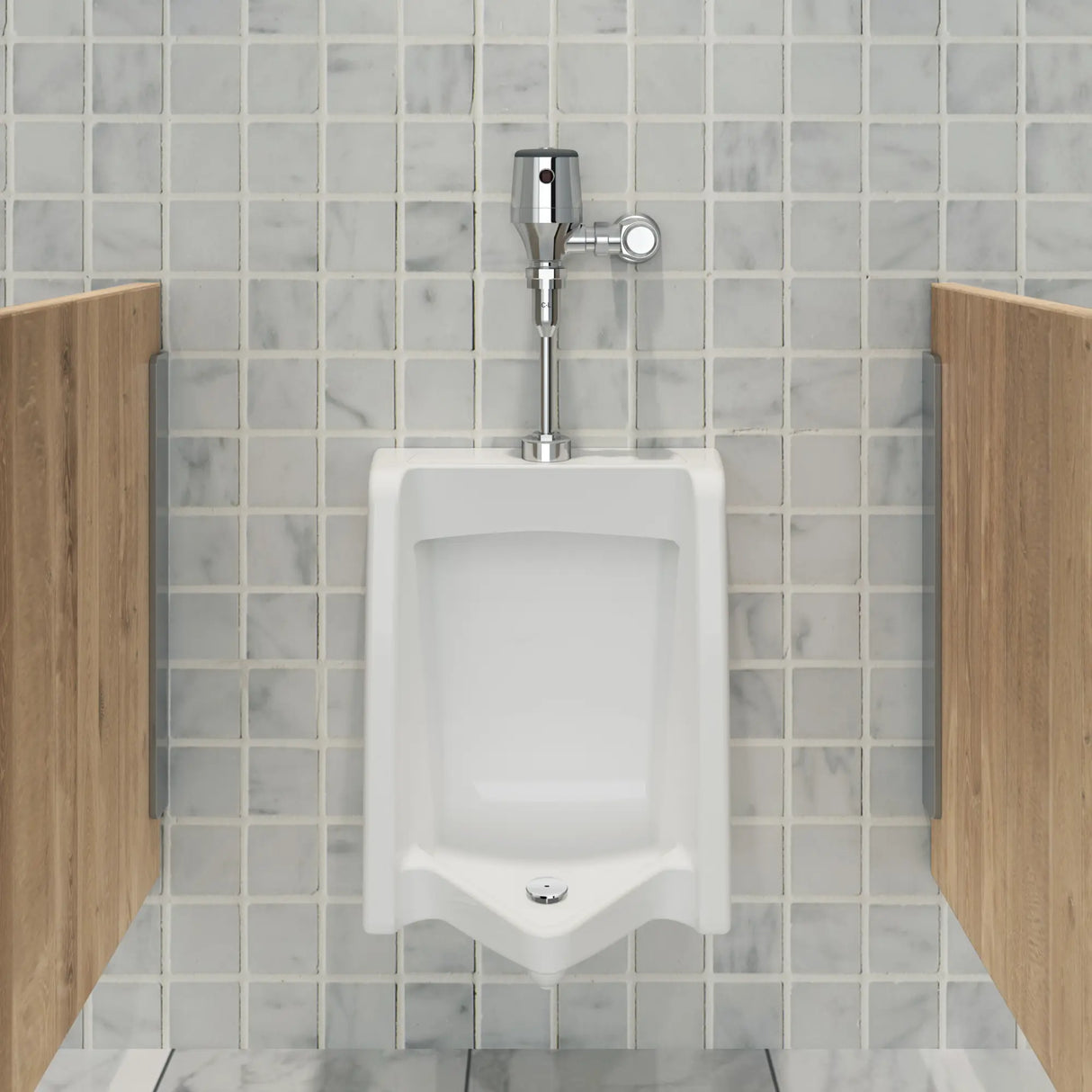

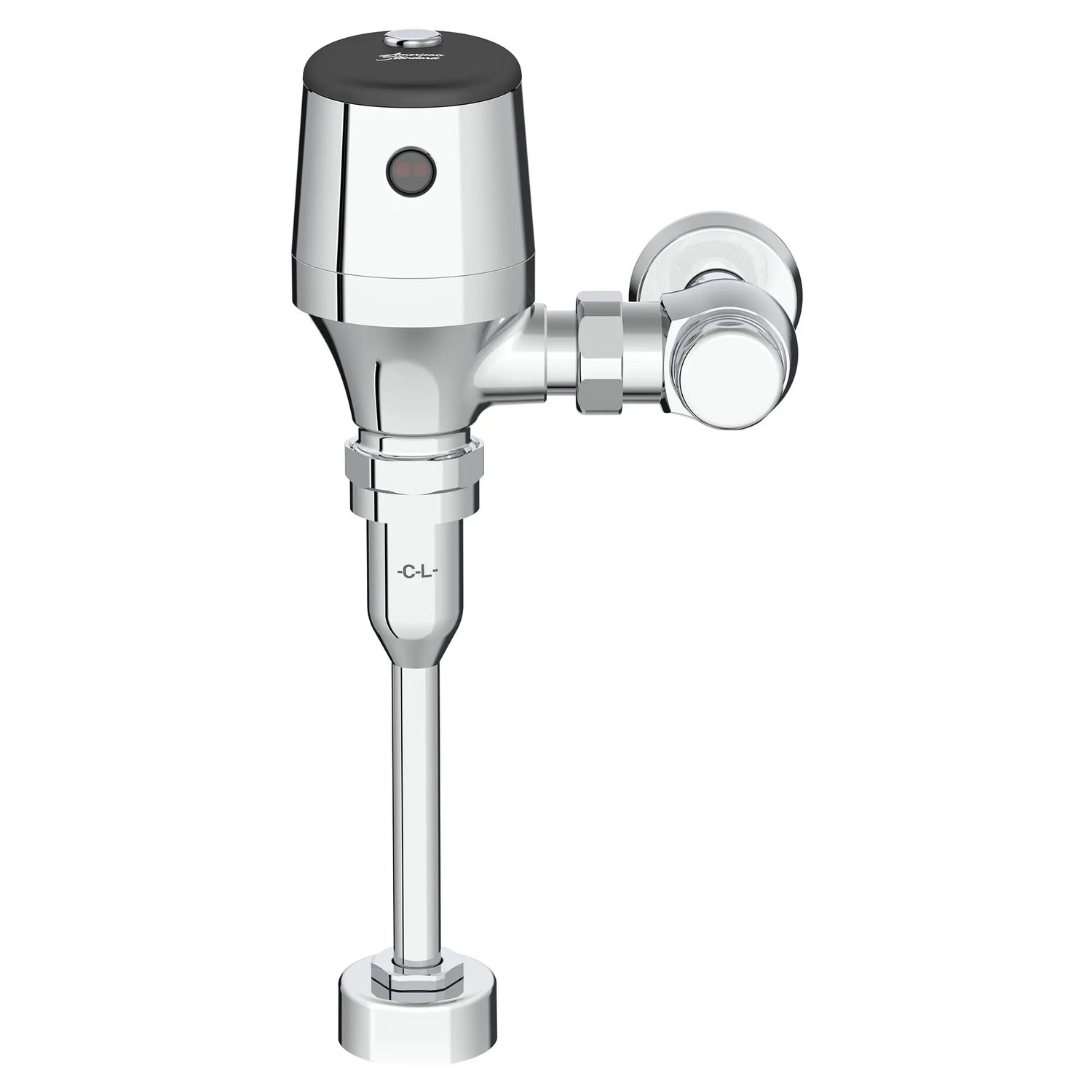

Ultima® Selectronic® Exposed Urinal Flush Valve, Diaphragm Type, Battery, 1.0 gpf/3.8 Lpf

Ultima® Selectronic® Touchless Diaphragm Flush Valves from American Standard combine superior reliability and performance with a clean, streamlined design. Equipped with advanced technology including a programmable Selectronic infrared sensor for reliable hands-free operation, the clog-resistant DynaClean wiper spring to reduce valve run-on and save water, and the premium, chemical-resistant EvoLast diaphragm material for long life. Ultima Selectronic Diaphragm Flush Valves promise to exceed expectations and help control costs. The DynaClean and EvoLast features save money and reduces maintenance by greatly increasing the life of the diaphragm assembly. Designed to accommodate most applications, these ADA compliant flush valves will fit under a grab bar without modification for use in ADA and non-ADA stalls. Long-life battery lasts 5 years at 4,000 uses per month. Available in multiple high-efficiency flush volumes with battery or AC power options to meet the requirements of every project.

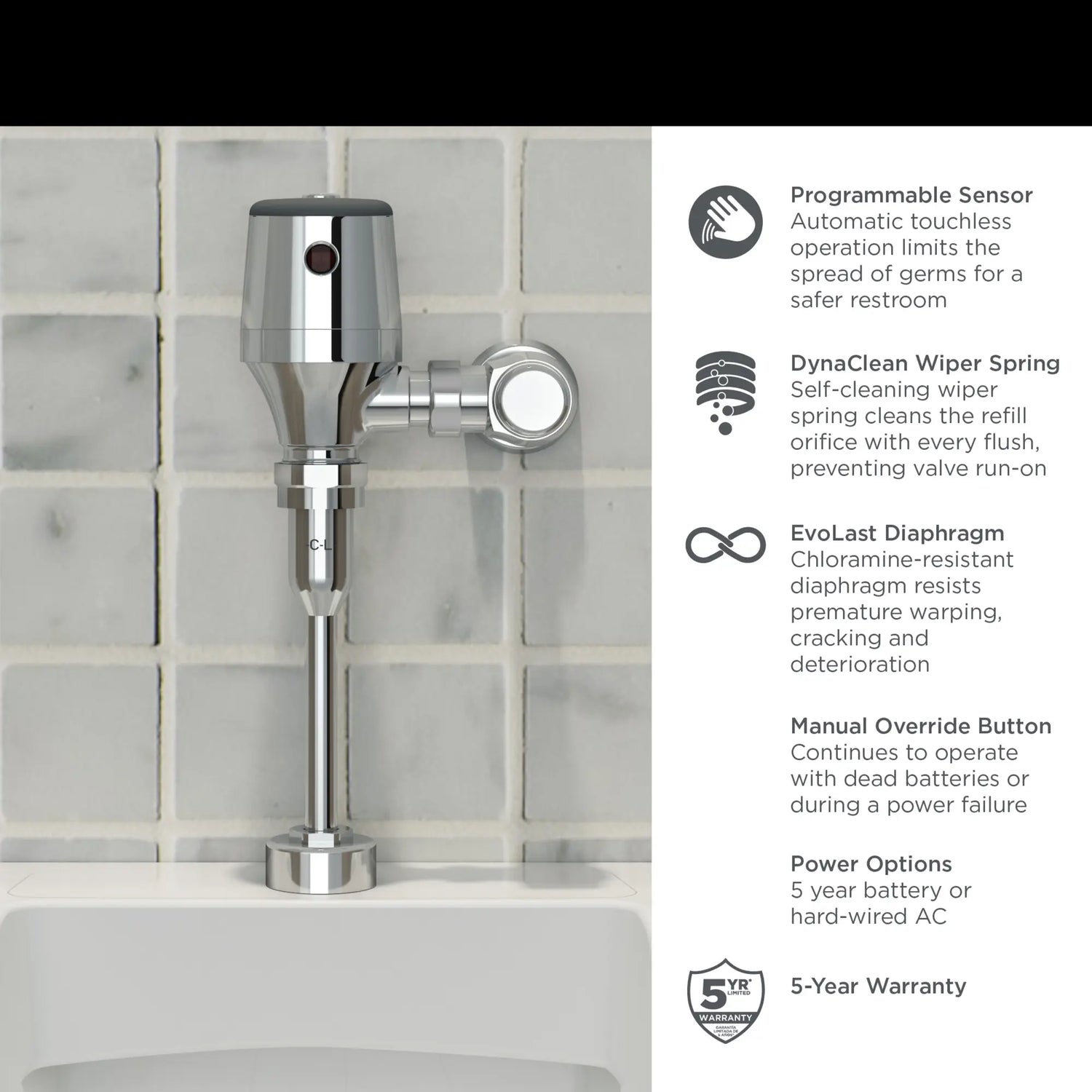

Features

• For urinals with 3/4" (19 mm) exposed top spud
• Includes CR-P2 lithium battery with 5 year life (assuming 4,000 uses per month)
• Automatic touchless operation limits the spread of germs for a safer restroom
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• EvoLast® premium chlorine- and chloramine-resistant diaphragm material resists premature deterioration and failure
• Fully mechanical manual override button can flush the valve without power
• Proprietary brass alloy resists dezincification
• Detection range can be adjusted manually or with optional remote control
• Adjustable tailpiece for rough-in flexibility. Can be installed left- or right-handed
• For urinals with 3/4" (19 mm) exposed top spud
• Includes CR-P2 lithium battery with 5 year life (assuming 4,000 uses per month)
• Automatic touchless operation limits the spread of germs for a safer restroom
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• EvoLast® premium chlorine- and chloramine-resistant diaphragm material resists premature deterioration and failure
• Fully mechanical manual override button can flush the valve without power
• Proprietary brass alloy resists dezincification
• Detection range can be adjusted manually or with optional remote control
• Adjustable tailpiece for rough-in flexibility. Can be installed left- or right-handed

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Batteries Included: Yes
• Batteries Required: Yes
• Brand: American Standard
• Category: Flush Valves and Sanitary Items
• Color / Finish: Chrome
• Flush Value: Exposed
• Department of Energy Certified: Yes
• Collections: Selectronic Diaphragm FV
• Fitting Connection Size Input: 3/4
• Fitting Material: Brass
• Fixture or Fitting Material: Brass
• Gallons Per Flush (min-max): 1 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Height: 16
• Residential or Commercial: Commercial
• Rough In Size: 11.5
• Subcategory: Sensor Flush Valve and Sanitary Items
• Valve Input Diameter: 3/4
• Valve Output Diameter: 3/4
• Warranty: 5 Year Limited Warranty
