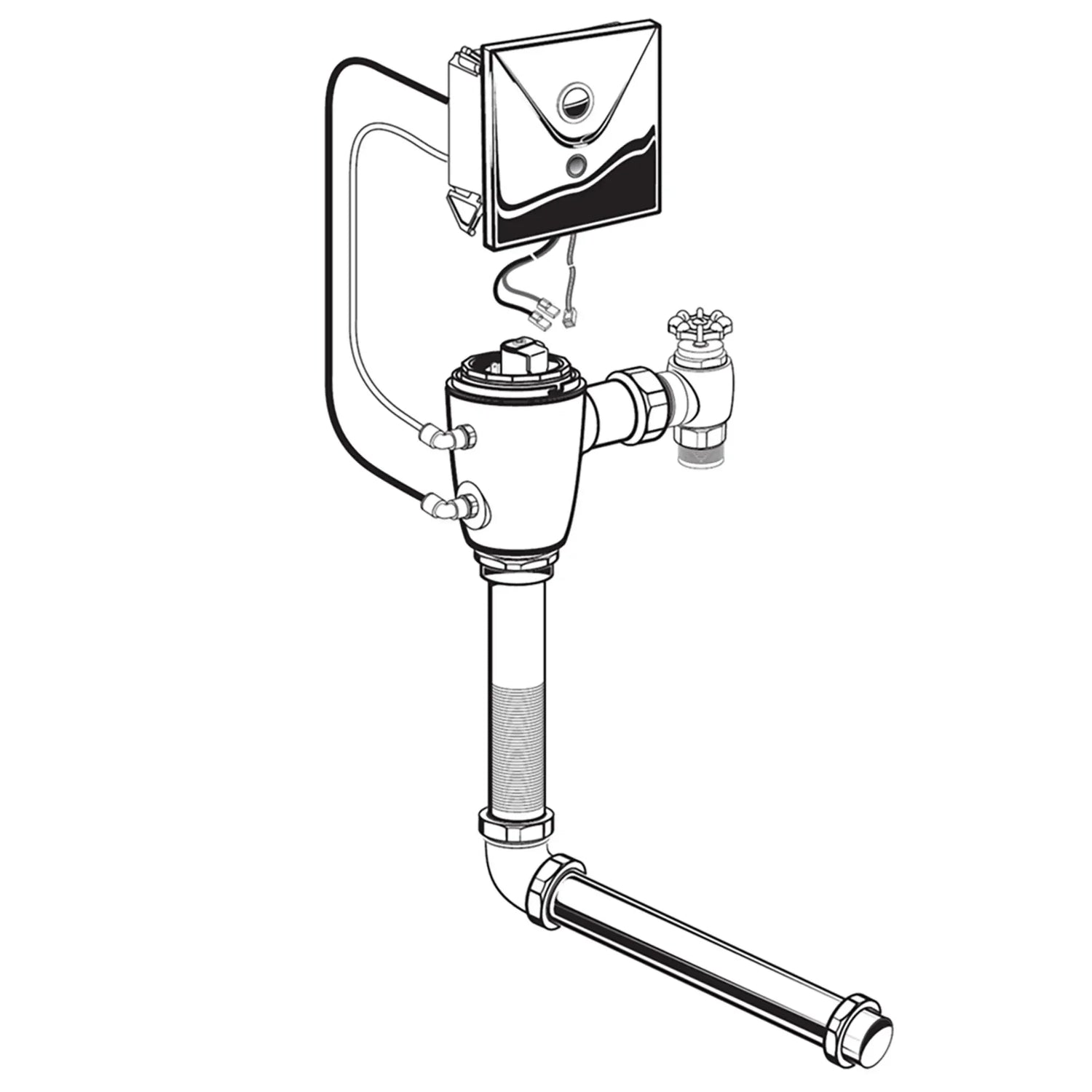

Ultima Selectronic Concealed Toilet Flush Valve, Base Model, Piston-Type, 1.6 gpf/6.0 Lpf

Self-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenance• Selectronic® Proximity System with universal sensor provides hygienic, "hands free" operation• State-of-the-Art Electronics prevent ghost flushing• Dezincification Resistant semi-red brass alloy• Fully Mechanical Manual Override Button can flush the valve without power• Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset• Adjustable Sanitary Flush cleans the fixture & maintains the trap seal.• Chemical resistant EPDM Seals for extended life• Adjustable tailpiece for rough-in flexibility• Can be installed left or right handed• All exposed parts are chrome-plated

Features

• For wall-hung flushometer bowls with 1-1/2" (38mm) back spud
• POWER KIT MUST BE PURCHASED SEPARATELY
• FOR INSTALLATIONS WITH REAR ACCESS
• Includes 6" x 6" (152 x 152 mm) chrome cover plate
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Proprietary brass alloy resists dezincification
• 1.6 gpf/6.0 Lpf
• For wall-hung flushometer bowls with 1-1/2" (38mm) back spud
• POWER KIT MUST BE PURCHASED SEPARATELY
• FOR INSTALLATIONS WITH REAR ACCESS
• Includes 6" x 6" (152 x 152 mm) chrome cover plate
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Proprietary brass alloy resists dezincification
• 1.6 gpf/6.0 Lpf

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Brand: American Standard
• Category: Flush Valves and Sanitary Items
• Color / Finish: No Finish
• Collections: Selectronic
• Touchless: Touchless
• Gallons Per Flush (min-max): 1.6 GPF
• Number of Output Valves: 1
• Height: 684
• Length: 366
• Width: 326
• Residential or Commercial: Commercial
• Subcategory: Sensor Flush Valve and Sanitary Items
