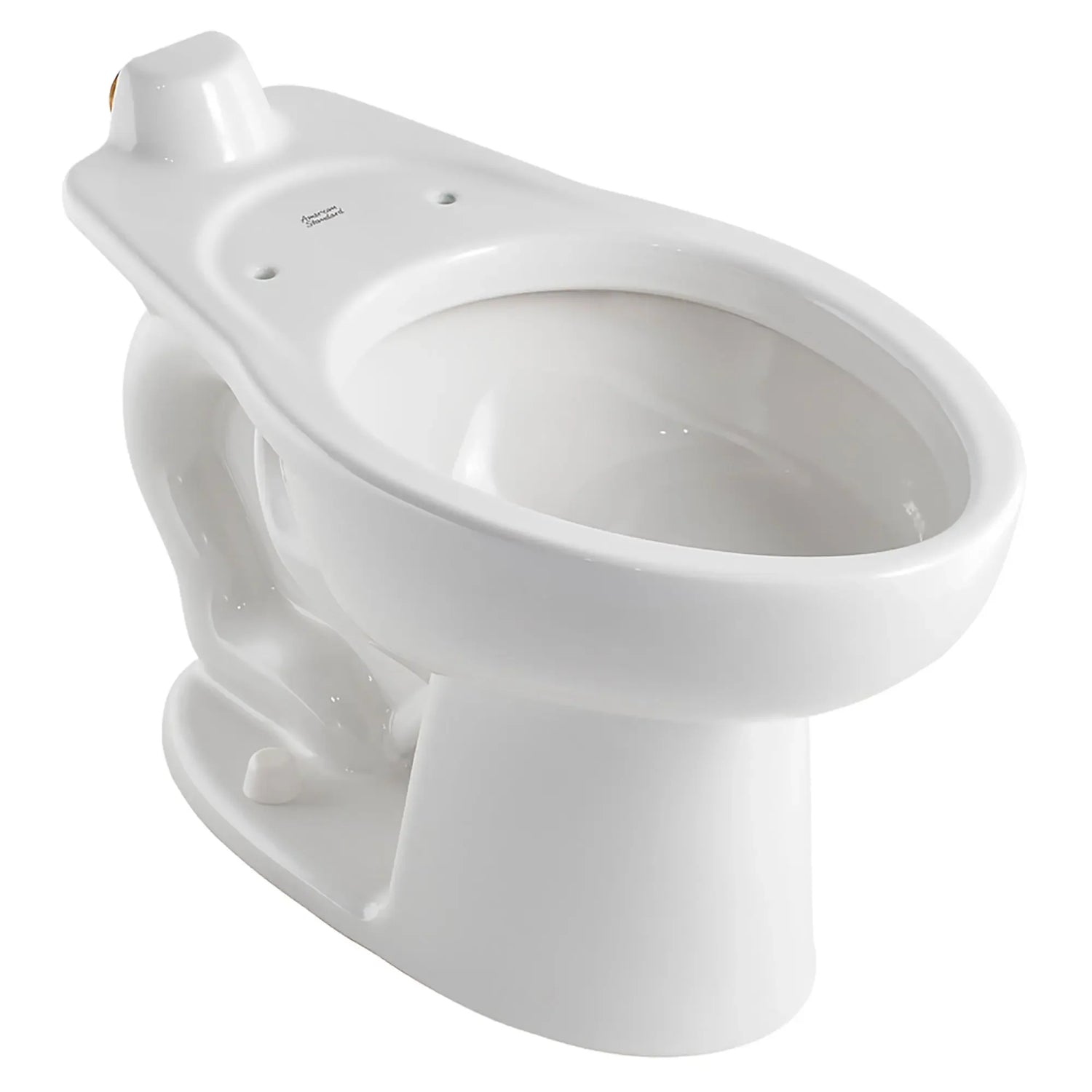

Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Chair Height Back Spud Elongated EverClean® Bowl

The Madera Back Spud Elongated Toilet bowl operates as a high efficiency toilet to save water when used with an American Standard flush valve with a 1.1 – 1.6 gpf flush rate. Receiving a 1,000 grams MaP score, the toilet is low consumption without sacrificing performance. Featuring the EverClean® antimicrobial surface to protect against mold, mildew, odor- and stain-causing bacteria, the floor mounted toilet is ideal for high traffic commercial installations.

Features

• Floor-mount, elongated flushometer bowl, less seat
• High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
• Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
• Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
• 16-1/2" (419 mm) Chair Height for accessible applications
• Static weight load of 2,500 lbs (1,134 kg)
• 2-1/8" (54 mm) fully-glazed trapway
• Condensation channel
• Powerful direct-fed siphon jet action
• 1-1/2" (38 mm) inlet spud
• Floor-mount, elongated flushometer bowl, less seat
• High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
• Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
• EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
• 16-1/2" (419 mm) Chair Height for accessible applications
• Static weight load of 2,500 lbs (1,134 kg)
• 2-1/8" (54 mm) fully-glazed trapway
• Condensation channel
• Powerful direct-fed siphon jet action
• 1-1/2" (38 mm) inlet spud

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Front to Back Length: 16-1/2
• Bowl Shape: Elongated
• Brand: American Standard
• Cal Green: Yes
• Category: Commercial Toilet
• Chair Height: Standard
• Color / Finish: White
• Collections: Madera
• WaterSense: Yes
• Everclean: Yes
• Fixture Material: Vitreous China
• Fixture or Fitting Material: Vitreous China
• Flush Technology: Flushometer
• Gallons Per Flush (min-max): 1.1 - 1.6 GPF
• MAP Performance Rating: 1000
• Height: 18-15/16
• Length: 26-7/16
• Width: 14
• Residential or Commercial: Commercial
• Subcategory: Floor Standing Commercial Toilet
• Toilet Mount Type: Floor Mount
• Trapway Diameter: 2-1/8
• Toilet Type: Floor_Standing_Toilet_Bowl
• Warranty: 1 Year Limited Warranty
