Madera 1.0 – 1.6 gpf (3.8 – 6.0 Lpf) Chair Height Top Spud Elongated EverClean® Bowl Less Seat

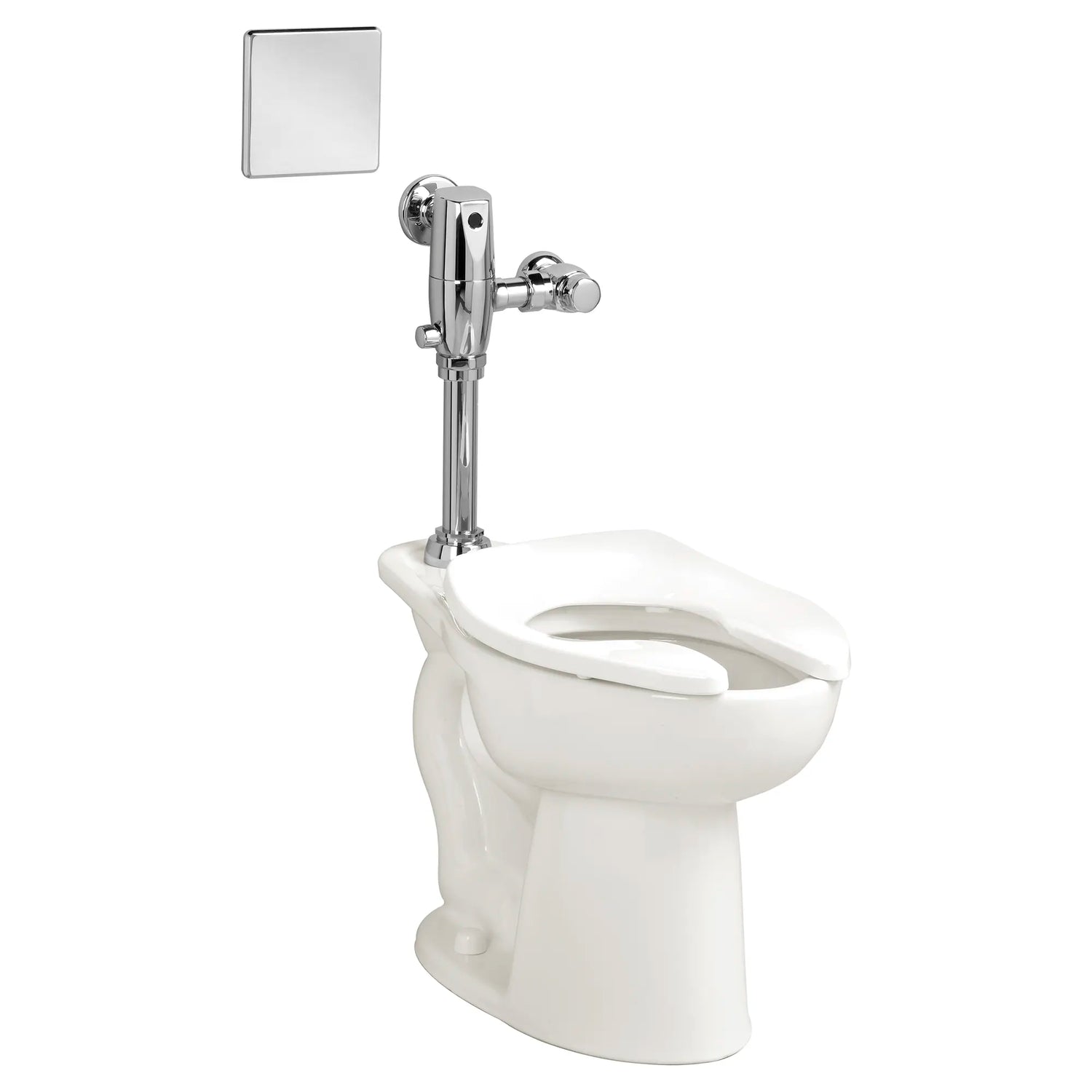

The Madera Elongated Floor-Mount Toilet from American Standard withstands the rigors of constant use while ensuring a powerful flush at a lower flush volume to conserve water when combined with the Ultima Selectronic Flush Valve. This chair-height toilet enhances comfort and accessibility, and features EverClean® antimicrobial surface to protect against mold, mildew, odor- and stain-causing bacteria.

Features

• Compatibility: Works with the American Standard Ultima Selectronic Exposed Toilet Flush Valve 1.0 gpf-1.6 gpf/3.8 Lpf-6.0 Lpf, sold separately
• Highest Maximum Performance (MaP) score: Achieves highest score of 1,000 grams when combined with 1.1 – 1.6 gpf; achieves impressive score of 800 grams when combined with 1.0 gpf
• Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
• Powerful flush: Direct-fed siphon jet flush action
• Chair height: 16 ½” (419 mm) rim height enhances accessibility and comfort when sitting and standing
• Fully glazed trapway: 2-1/8" (54 mm); 2" (51 mm) minimum ballpass
• Inlet spud: 1-1/2" (38 mm)
• Rough-in: Available in 10" (254 mm) or 12" (305 mm)
• Floor-mount, elongated flushometer bowl, less seat
• High Efficiency Toilet (HET) operates in the range of 1.0 gpf – 1.6 gpf (3.8 Lpf – 6.0 Lpf)
• Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
• EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
• 16-1/2" (419 mm) Chair Height for accessible applications
• Static weight load of 2,500 lbs (1,134 kg)
• 2-1/8" (54 mm) fully-glazed trapway
• Condensation channel
• Powerful direct-fed siphon jet action
• 1-1/2" (38 mm) inlet spud

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Front to Back Length: 16-1/2
• Bowl Shape: Elongated
• Brand: American Standard
• Cal Green: Yes
• Category: Commercial Toilet
• Chair Height: Standard
• Color / Finish: White
• Collections: Madera
• WaterSense: Yes
• Everclean: Yes
• Fixture Material: Vitreous China
• Fixture or Fitting Material: Vitreous China
• Flush Technology: Flushometer
• Gallons Per Flush (min-max): 1.1 - 1.6 GPF
• MAP Performance Rating: 1000
• Height: 16-7/8
• Length: 27-1/4
• Width: 14
• Residential or Commercial: Commercial
• Subcategory: Floor Standing Commercial Toilet
• Toilet Mount Type: Floor Mount
• Trapway Diameter: 2-1/8
• Toilet Type: Floor_Standing_Toilet_Bowl
• USMCA Compliant: Yes
• Warranty: 1 Year Limited Warranty
