Type P (Pressure Balance) Shower

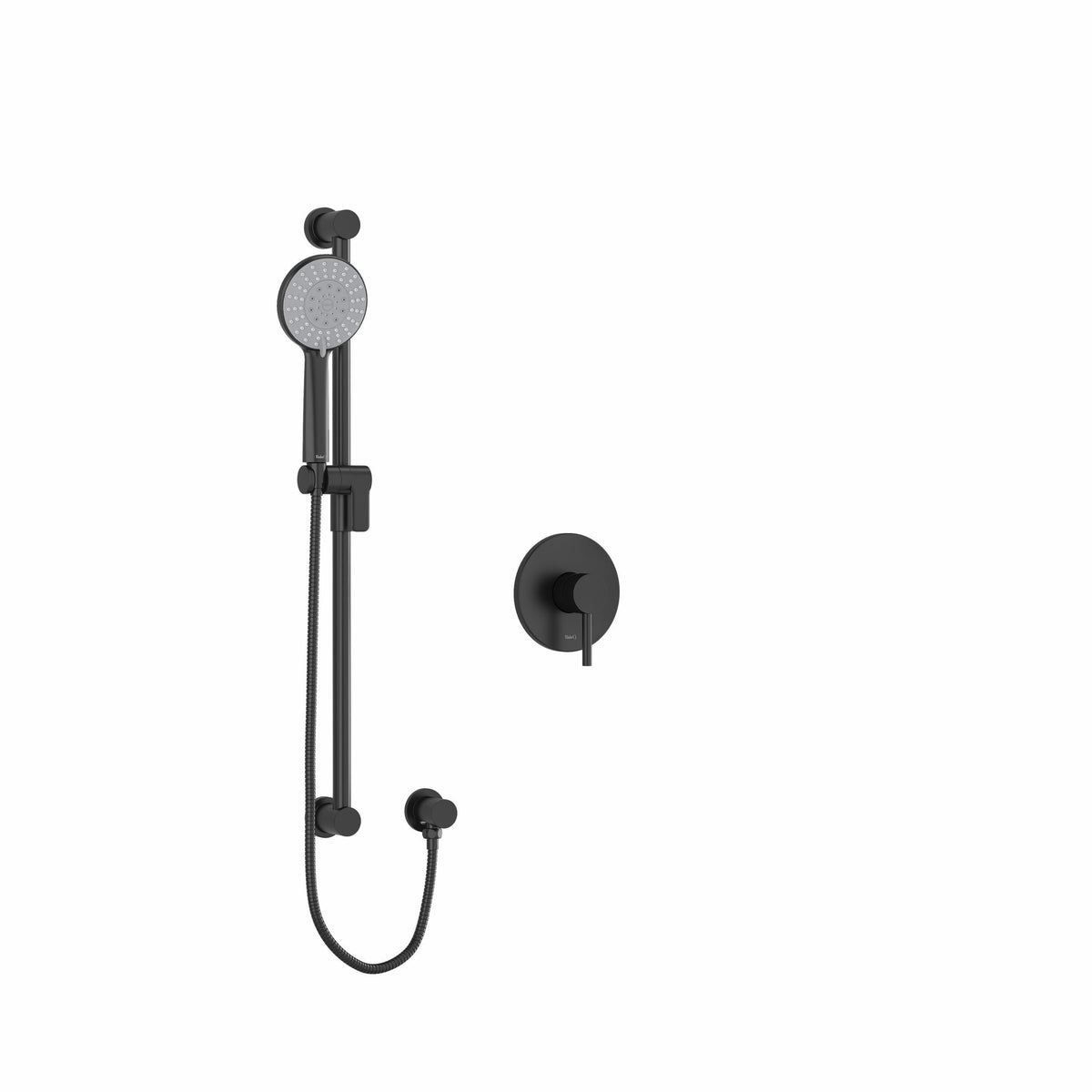

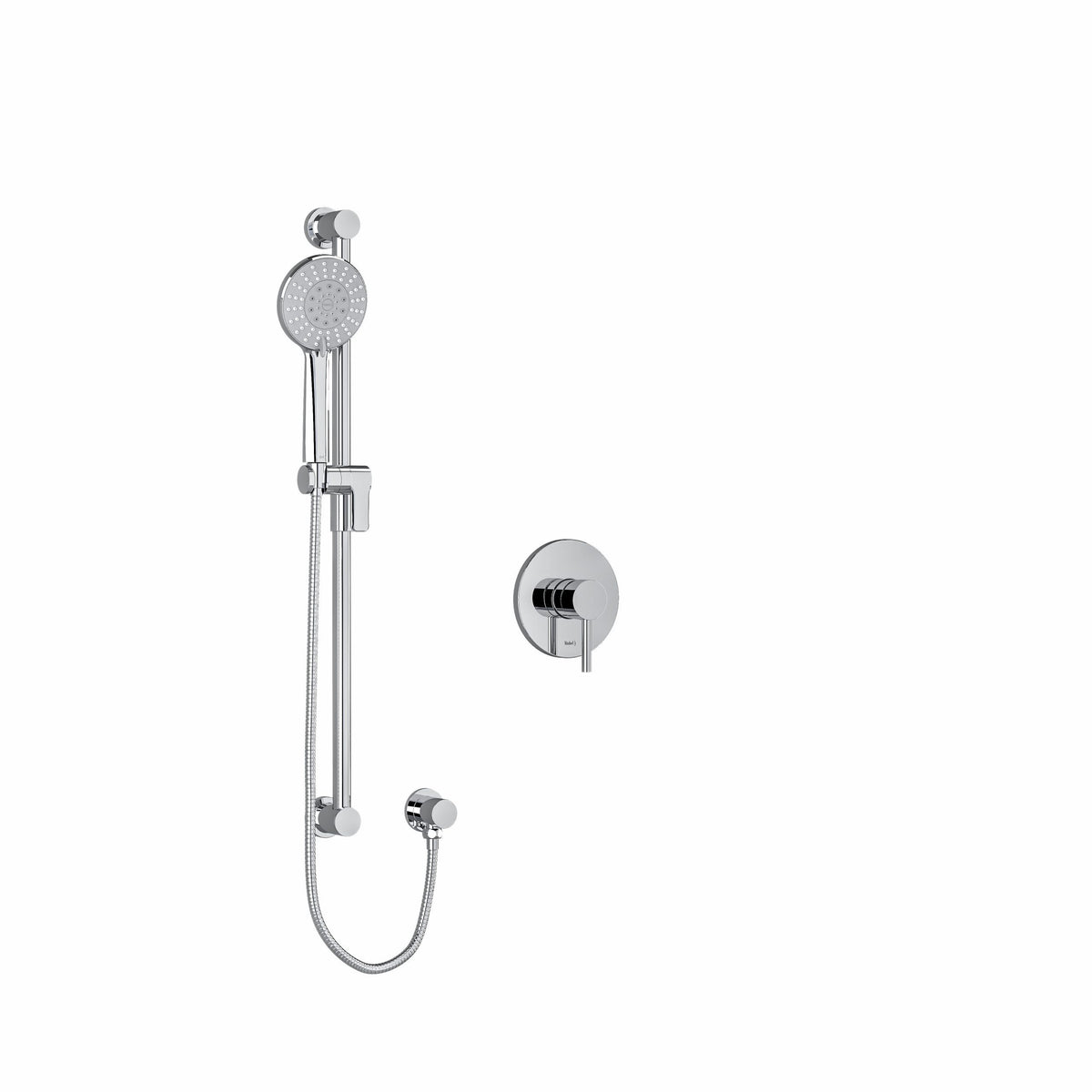

The Riobel GS Type P (pressure balance) shower, model GS74, is offered in Chrome and Black. In Chrome (GS74C), it is made up of the TGS71C Type P (pressure balance) valve trim, the R51 Type P (pressure balance) rough, the 5063C hand shower rail and the 775C elbow supply. The Chrome shower carries CSA B125.1, ASME A112.18.1, ASSE 1016 and CMR248 Approval certifications.

Features

• TGS71C valve trim (Chrome): trim only, with a ceramic cartridge and balancing spool with check valves and double action flow and temperature control
• R51 rough (Chrome shower): rough only, with ½" inlet and ½" outlet (male NPT or sweat), service valves and a test cap
• 5063C hand shower rail (Chrome shower): scale-free; 4363 3-jet hand shower with pause; Ø22 mm (7/8") slide bar; Easy-Glide left cursor; 150 cm (59") double interlock flexible hose, swivel and 2 check valves
• 775C elbow supply (Chrome shower): adjustable depth, ½" female NPT inlet and ½" male outlet
• Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts, guaranteed from the initial purchase date against all manufacturing defects; all other finishes, including plastic components, are guaranteed for one year.
• Sizes, models and finishes may differ from those presented.

Specifications

• Collection: GS
• Model: GS74
• Valve type: Type P (pressure balance)
• Valve trim flow (TGS71C, Chrome): 22 L/min, 5.8 gpm (US) 60psi
• Hand shower rail flow (5063C, Chrome): 7.6 L/min, 2.0 gpm (US) 60psi
• Available finishes: Chrome, Black
