Type P (Pressure Balance) Shower

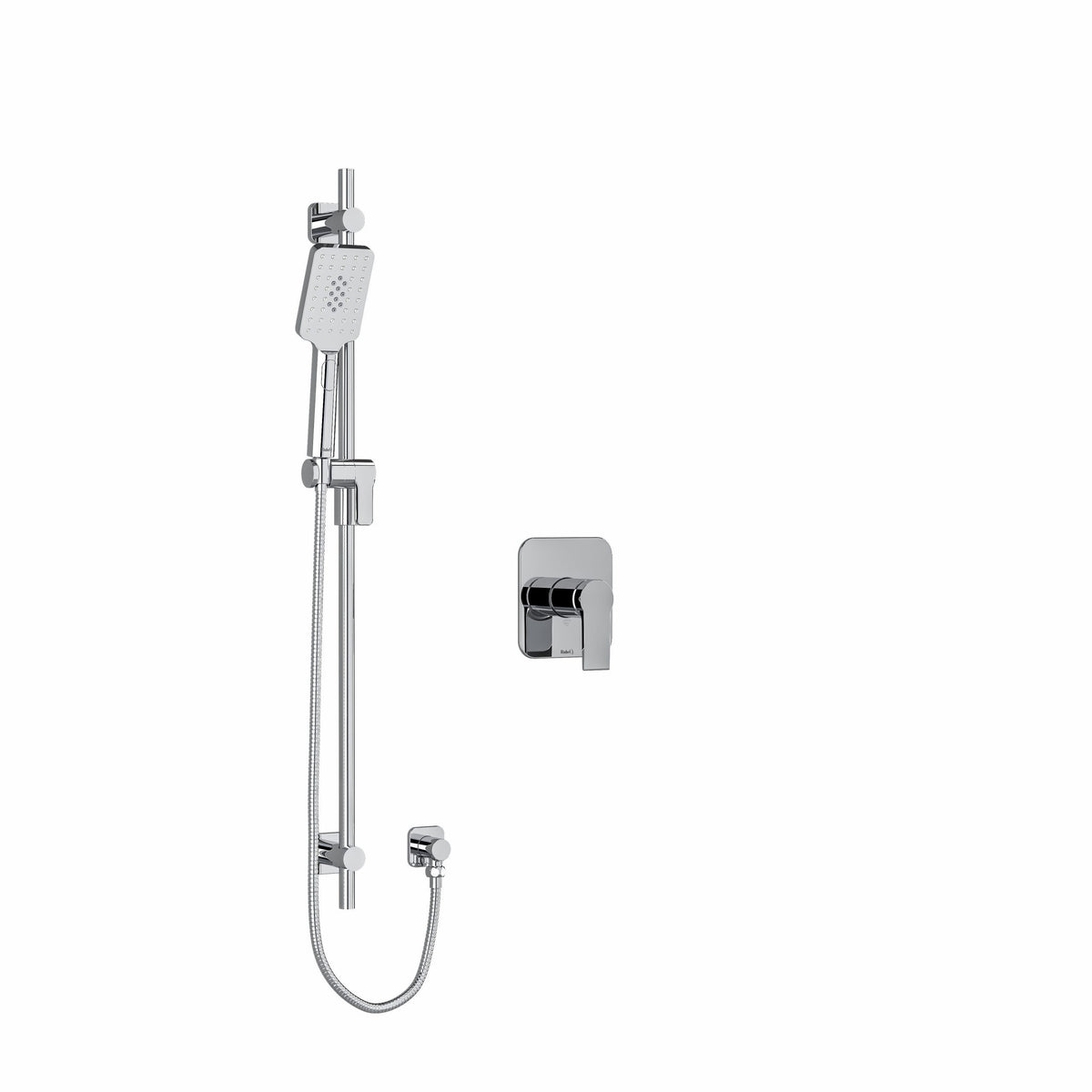

The Riobel Fresk Type P (pressure balance) shower FR54 is a modern, wall-mounted shower set. The set is made up of the TFR51 Type P (pressure balance) valve trim, the R51 Type P (pressure balance) rough, the 4835 hand shower rail and the 772 elbow supply. It meets CSA B125.1, ASME A112.18.1 and ASSE 1016 standards and carries CMR248 Approval.

Features

• Valve trim: ceramic cartridge and balancing spool with check valves
• Valve trim: double action, flow and temperature control
• Rough: ½" inlet and ½" outlet, male NPT or sweat, with service valves and test cap
• Hand shower rail: scale-free 2-jet hand shower with an Easy-Glide left cursor
• Hand shower rail: Ø19 mm (¾") slide bar and 150 cm (59") double interlock flexible hose, swivel and 2 check valves
• Hand shower rail flow: 7.6 L/min, 2.0 gpm (US) at 60psi
• Elbow supply: adjustable depth, ½" male outlet and ½" female NPT inlet

Specifications

• Model: FR54
• Collection: Fresk
• Product type: Pressure balance shower
• Style: Modern
• Shape: Rectangular
• Mounting: Wall
• Material: Brass
• Components: TFR51 valve trim, R51 rough, 4835 hand shower rail, 772 elbow supply
• Hand shower flow rate: 7.6 L/min, 2.0 gpm (US) 60psi
• Hose: 150 cm (59") double interlock flexible hose
• Slide bar: Ø19 mm (¾")
• Standards: CSA B125.1, ASME A112.18.1, ASSE 1016, CMR248 Approval

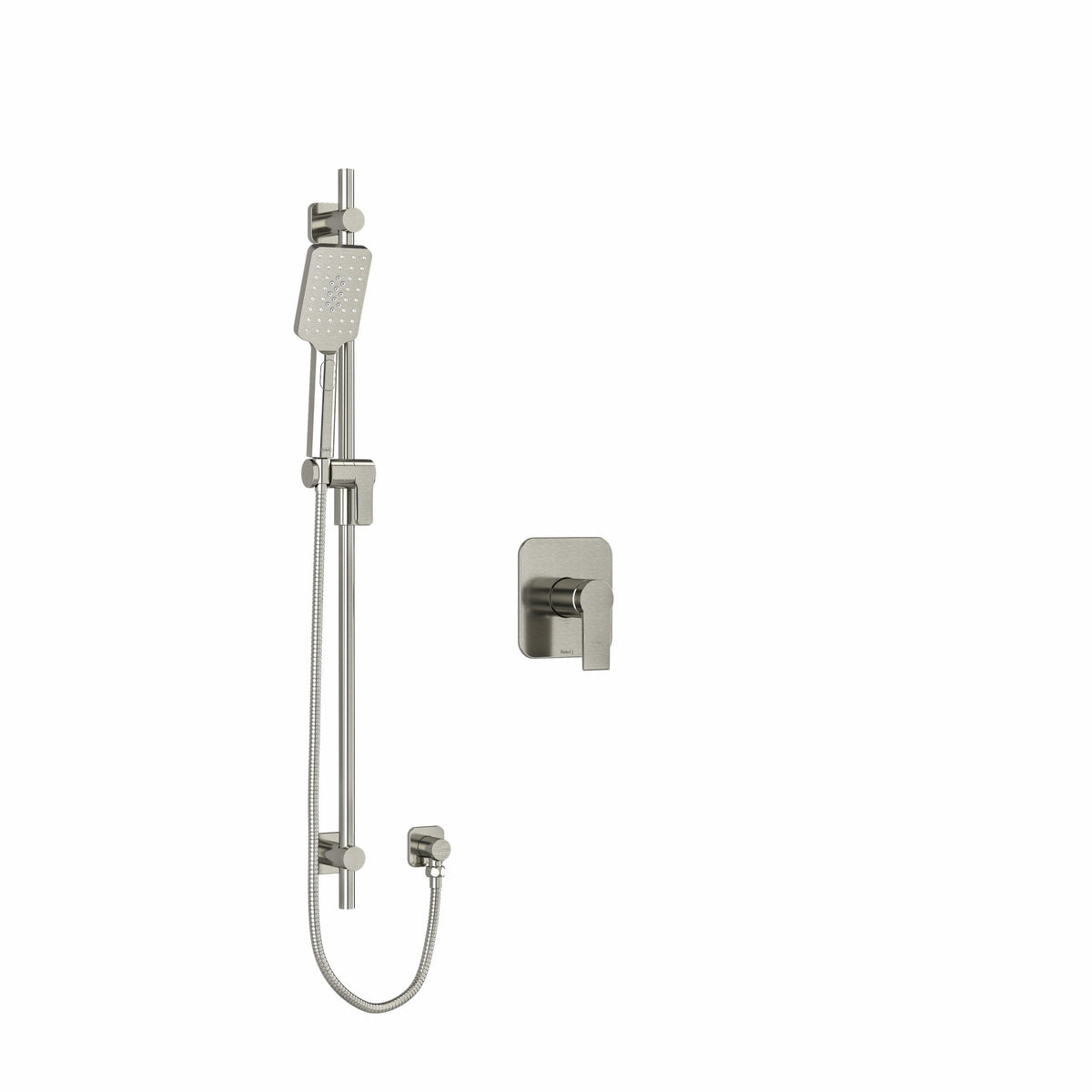

• Available finishes: Chrome, Brushed Nickel, Black
• Warranty (Chrome, FR54C): Limited Lifetime Warranty
• Country of origin (Chrome, FR54C): China
