TKIT#1723 trim

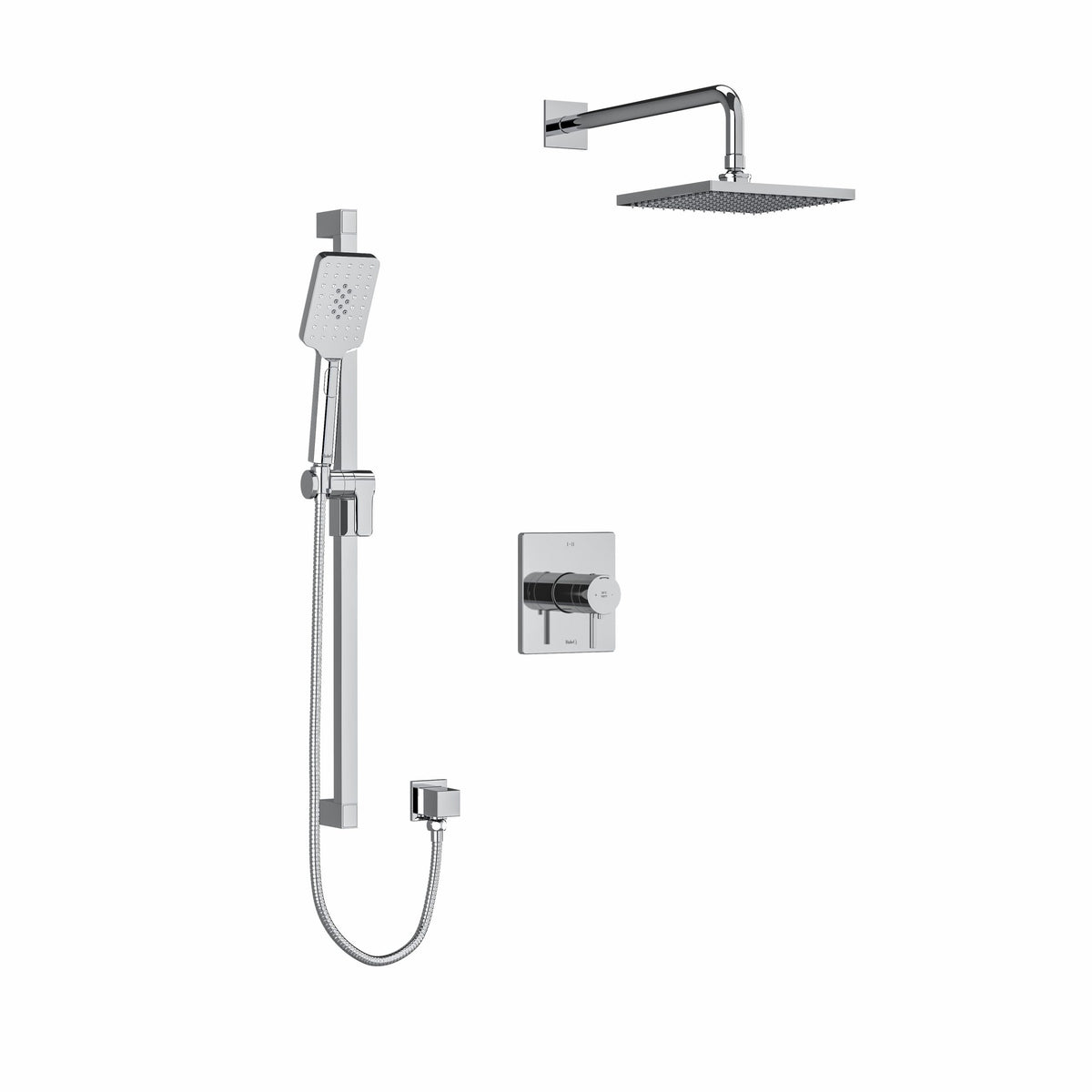

The Riobel Premium TKIT#1723 trim is a Type T/P (thermostatic/pressure balance) ½" coaxial 2-way shower system trim with hand shower and shower head, part of Riobel's Premium collection. It is made up of the TPXTQ23 2-way Type T/P (thermostatic/pressure balance) coaxial valve trim, 4665 hand shower rail, 458 20 cm (8") shower head, 560 40 cm (16") shower arm and 774 elbow supply. The valve trim is trim only, and an R23, R23-SPEX or R23-EX rough is required to complete it.

Features

• TPXTQ23 valve trim with 4 shared positions (OFF, 1, 1 and 2, 2) and a thermostatic/pressure balance coaxial cartridge with check valves
• 4665 hand shower rail: Ø22 mm (7/8") slide bar, Easy-Glide left cursor, scale-free, 2-jet hand shower, and 150 cm (59") double interlock flexible hose, swivel and 2 check valves
• 458 shower head: 20 cm (8"), easy clean, G½" female inlet, swivel
• 560 shower arm: 40 cm (16"), ½" male NPT inlet, square flange with set screw
• 774 elbow supply: adjustable depth, 1/2 female NPT inlet, 1/2 male outlet

Specifications

• Collection: Premium
• Model: TKIT#1723 series
• Kit standards: ASME A112.18.1 / CSA B125.1; ASSE 1016
• Valve trim (TPXTQ23) flow: 24 L/min, 6.3 gpm (US) 60psi
• Hand shower rail (4665) flow: 7.6 L/min, 2.0 gpm (US) 60psi
• Shower head (458) flow: 7.6 L/min, 2.0 gpm (US) 60psi
