Shower Kit 3545

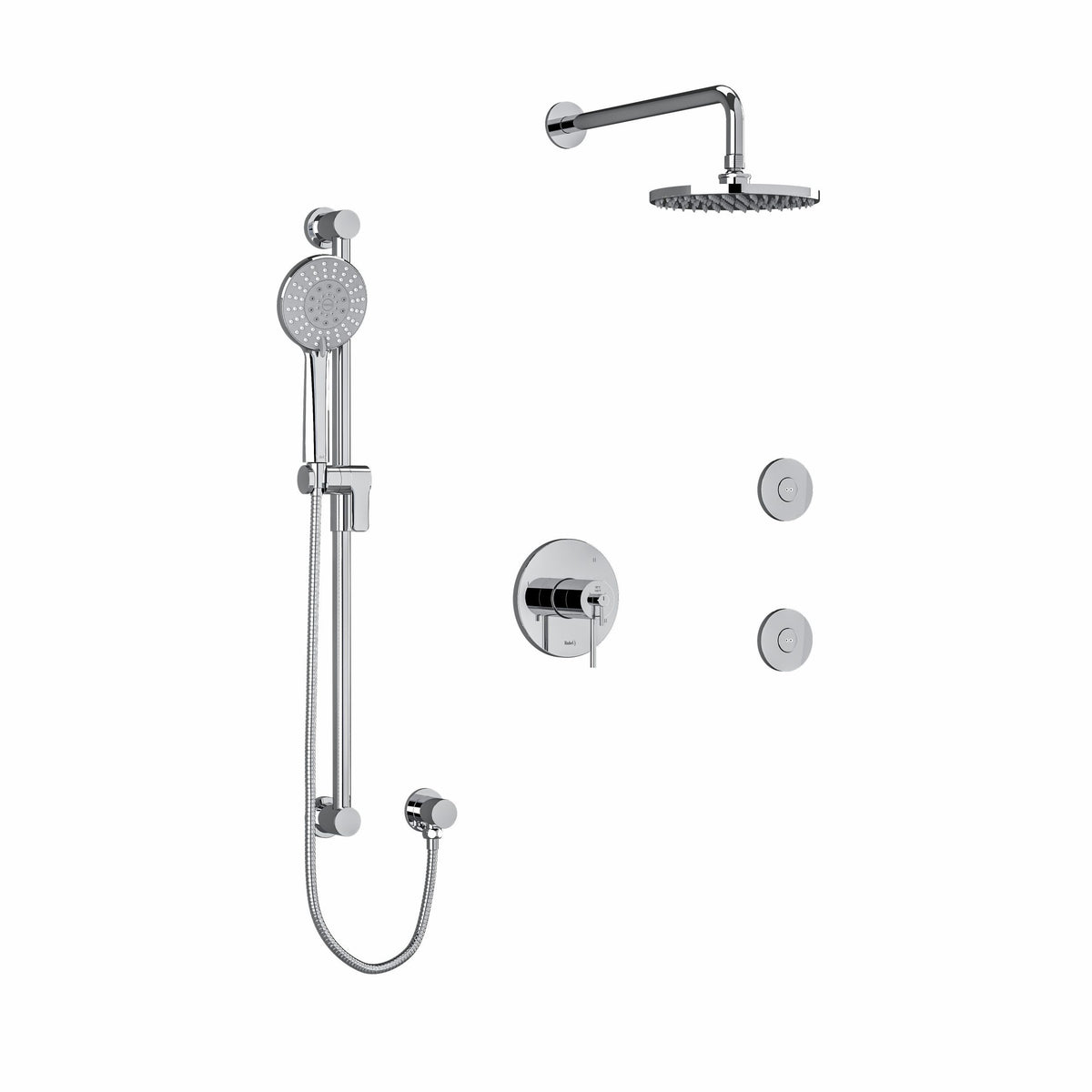

The Riobel GS Shower Kit 3545 (KIT#3545GS) is a Type T/P ½" coaxial 3-way shower system with hand shower rail, elbow supply, shower head and 2 body jets, finished in Chrome. The kit is made up of the TGS45C 3-way Type T/P coaxial valve trim, the R45 3-way Type T/P coaxial valve rough, the 5063C hand shower rail, the 468C 20 cm (8") shower head, the 503C 40 cm (16") shower arm, the 369C Spin tile body jet and the 775C elbow supply.

Features

• TGS45C valve trim: thermostatic/pressure balance coaxial cartridge with check valves and 6 shared positions (OFF, 1, 1 and 2, 2, 2 and 3, 3)
• TGS45C valve trim flow: 23 L/min, 6.0 gpm (US) at 60psi
• R45 valve rough: ½" inlet male NPT or sweat, three ½" outlets male NPT or sweat, service valves and test cap
• 5063C hand shower rail: 4363 3-jet hand shower with pause, Ø22 mm (7/8") slide bar, Easy-Glide left cursor and 150 cm (59") double interlock flexible hose, swivel and 2 check valves; scale-free
• 468C shower head: 20 cm (8"), G½" female inlet, swivel and scale-free
• 503C shower arm: 40 cm (16") with ½" male NPT inlet and round flange
• 369C Spin tile body jet: rotating jets, ½" male NPT inlet, comes with a special rough; flow of 3.7 L/min, 1 gpm (US) at 60psi
• 775C elbow supply: adjustable depth, ½" male outlet and ½" female NPT inlet

Specifications

• Model: KIT#3545GS
• Finish: Chrome
• Certifications: CSA B125.1, ASME A112.18.1, ASSE 1016, CMR248 Approval
• Warranty: Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts against all manufacturing defects, from the initial purchase date; all other finishes, including plastic components, are guaranteed for one year
• Note: Sizes, models and finishes may differ from those presented
