KIT#323 trim

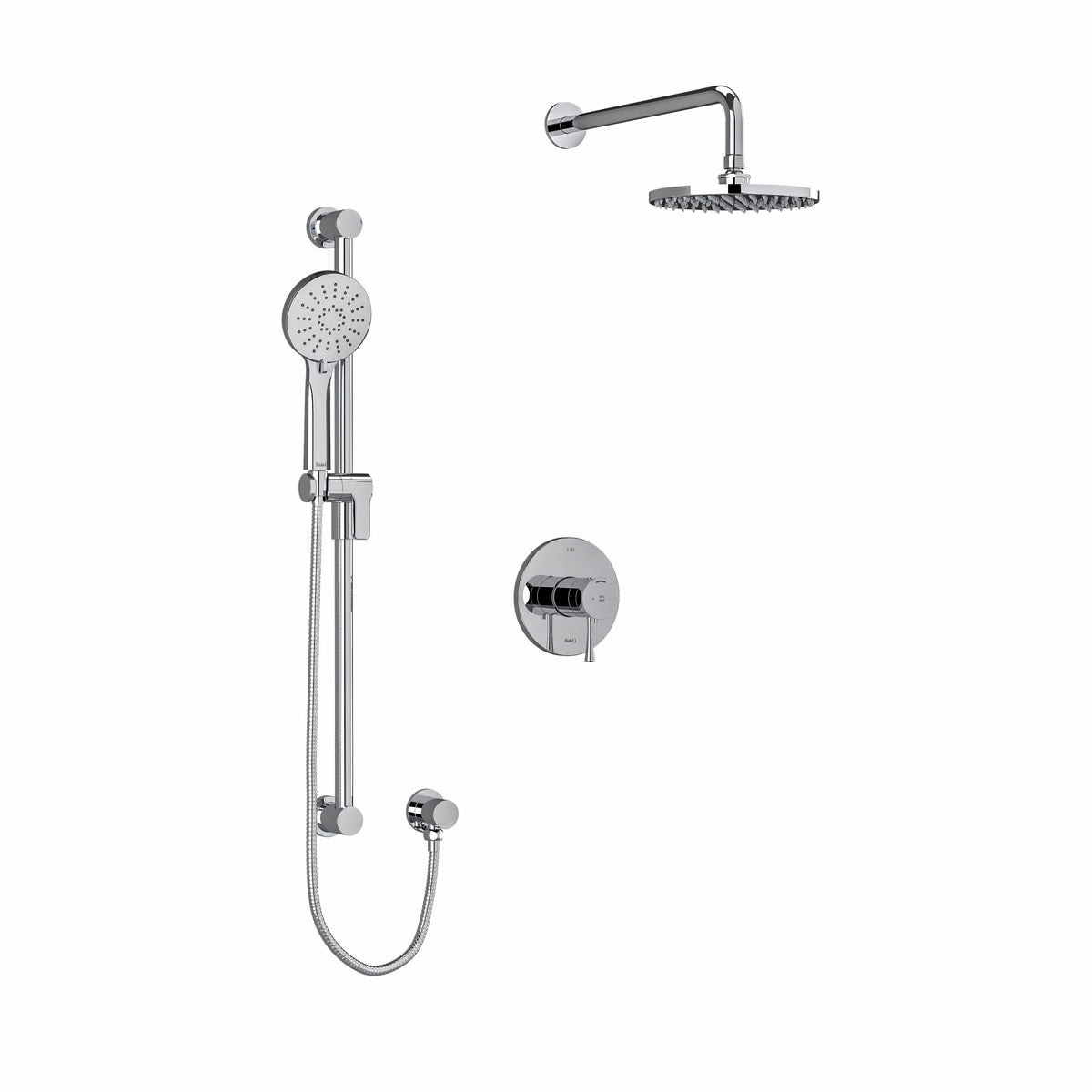

The Riobel Edge KIT#323 trim is a Type T/P ½” coaxial 2-way shower system trim kit with a hand shower and shower head. The kit includes full trim: a TEDTM23 2-way Type T/P coaxial valve trim, a 5055 hand shower rail, a 468 20 cm (8”) shower head, a 503 40 cm (16”) shower arm and a 775 elbow supply. It is offered in Black, Brushed Nickel and Chrome.

Features

• Valve trim: 4 shared positions (OFF, 1, 1 and 2, 2)
• Hand shower rail: scale-free 3-jet hand shower with an Easy-Glide left cursor on a Ø22 mm (7/8”) slide bar
• Hand shower hose: 150 cm (59”) double interlock flexible hose with swivel and 2 check valves
• Hand shower flow (5055): 6.7 L/min, 1.8 gpm (US) at 60psi
• Shower head (468): easy clean and swivel, with a G½” female inlet
• Shower arm (503): ½” male NPT inlet and round flange
• Elbow supply (775): G1/2” female inlet, G1/2” male outlet and adjustable depth, with a G1/2” shank supplied
• Installation requirement: an R23, R23-SPEX or R23-EX rough is required to complete the system

Specifications

• Collection: Edge
• Kit model: TKIT#323EDTM
• System: Type T/P ½” coaxial 2-way
• Product type: Thermostatic & pressure balance shower
• Shower head size: 20 cm (8”)
• Shower arm length: 40 cm (16”)
• Standards: CSA B125.1; ASME A112.18.1; ASSE 1016; CMR248 Approval
• Available finishes: Black, Brushed Nickel, Chrome
