Kit#323 Trim

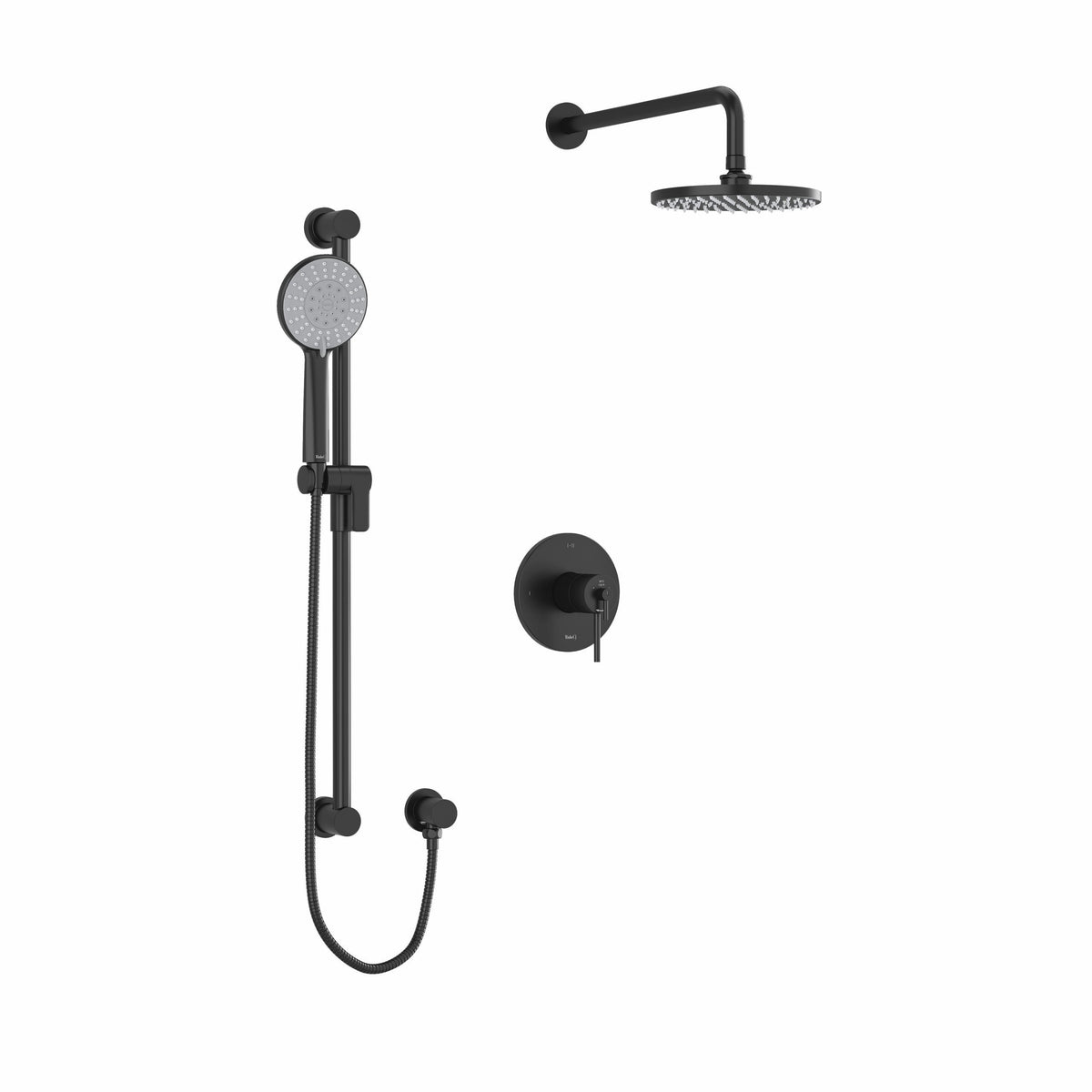

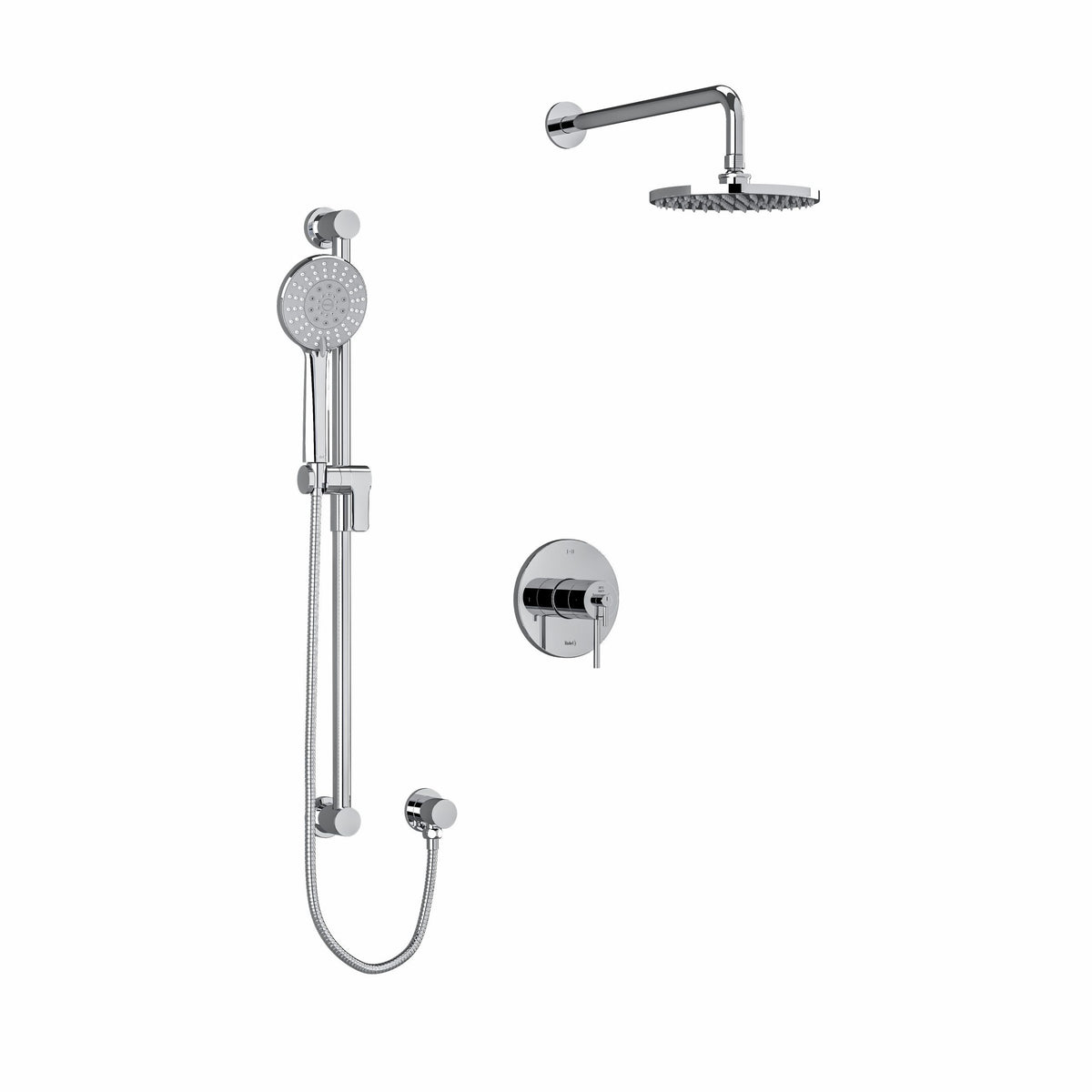

The Riobel GS KIT#323 trim supplies the visible trim that completes a GS shower valve, offered in Chrome and Black. In Chrome, the kit is composed of a TGS23C 2-way Type T/P coaxial valve trim, a 5063C hand shower on rail, a 503C 40 cm (16") shower arm, a 468C 20 cm (8") shower head and a 775C elbow supply.

Features

• TGS23C valve trim with 4 shared positions (OFF, 1, 1 and 2, 2)
• TGS23C coaxial thermostatic/pressure balance cartridge with check valves; trim only, completed with an R23, R23-SPEX or R23-EX rough
• 5063C hand shower on rail: 4363 3-jet hand shower with pause, Ø22 mm (7/8") bar, Easy-Glide slider on the left, anti-limescale
• 5063C hose: 150 cm (59") double-interlock flexible hose with swivel nut and 2 check valves
• 503C 40 cm (16") shower arm with ½" male NPT water inlet and round flange
• 468C 20 cm (8") shower head: anti-limescale, G½" female water inlet, ball joint

Specifications

• Collection: GS
• Model: TKIT#323GS
• Valve trim flow (TGS23C): 24 L/min, 6.3 gpm (US) at 60psi
• Certifications (Chrome): CSA B125.1, ASME A112.18.1, ASSE 1016, CMR248 approval
• Material (Chrome): Brass
• Mounting (Chrome): Wall
• Style: Transitional
• Country of origin (Chrome): China
• Available finishes: Chrome, Black
• Note: Sizes, models and finishes shown may differ
