KIT#323 trim

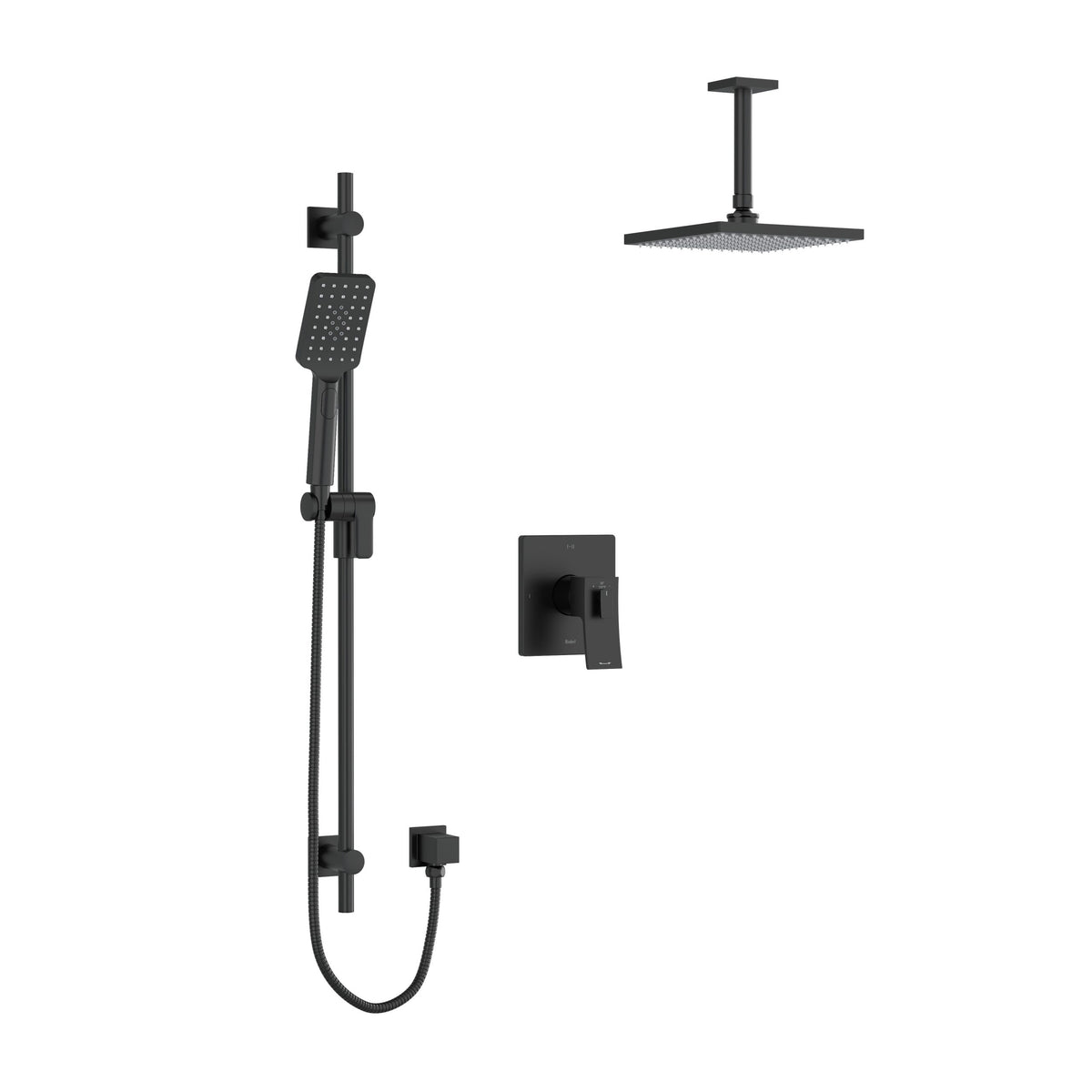

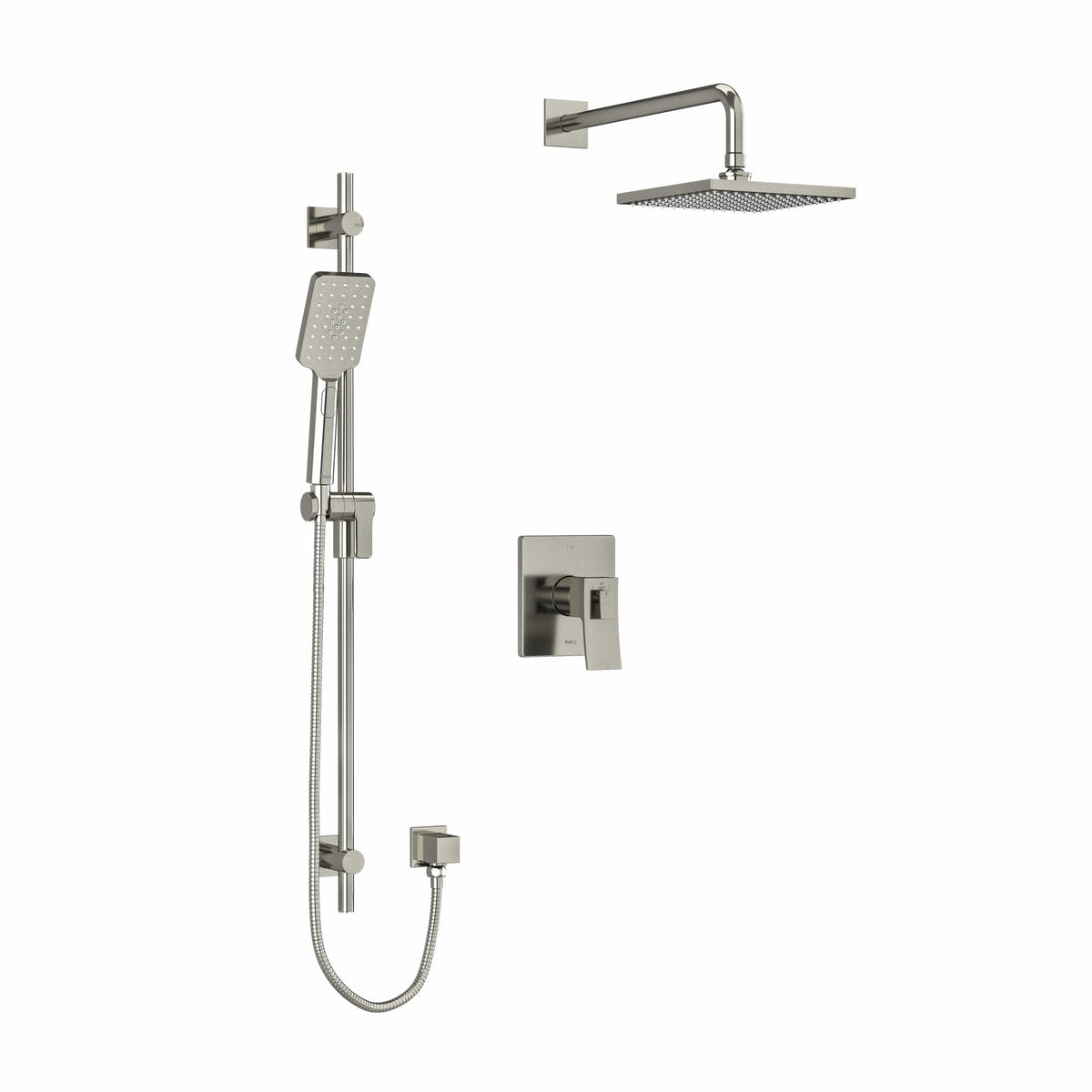

The Riobel Zendo KIT#323 trim (TKIT#323ZOTQ-6) is a Type T/P (thermostatic/pressure balance) ½" coaxial 2-way shower system trim with hand shower and shower head. It is made up of the TZOTQ23 2-way Type T/P coaxial valve trim, 4825 hand shower rail, 488 20 cm (8") shower head, 518 15 cm (6") vertical shower arm and 774 elbow supply. The kit is offered in Black, Brushed Nickel and Chrome.

Features

• TZOTQ23 valve trim with 4 shared positions (OFF, 1, 1 and 2, 2) and a thermostatic/pressure balance coaxial cartridge with check valves
• The TZOTQ23 valve trim is trim only; an R23, R23-SPEX or R23-EX rough is required to complete it
• 4825 hand shower rail: Ø19 mm (¾") slide bar, Easy-Glide left cursor, scale-free, 4365 2-jet hand shower, and 150 cm (59") double interlock flexible hose, swivel and 2 check valves
• 488 shower head: 20 cm (8"), G½ female inlet, swivel, scale-free
• 518 vertical shower arm: 15 cm (6"), ½ NPT male inlet, square flange with set screw
• 774 elbow supply: adjustable depth, ½ male outlet, ½ NPT female inlet

Specifications

• Collection: Zendo
• Model: TKIT#323ZOTQ-6
• Kit standards: ASME A112.18.1 / CSA B125.1; ASSE 1016
• Shower head (488) flow: 7.6 L/min, 2.0 gpm (US) 60psi
• Available finishes: Black, Brushed Nickel, Chrome
