KIT#323 trim

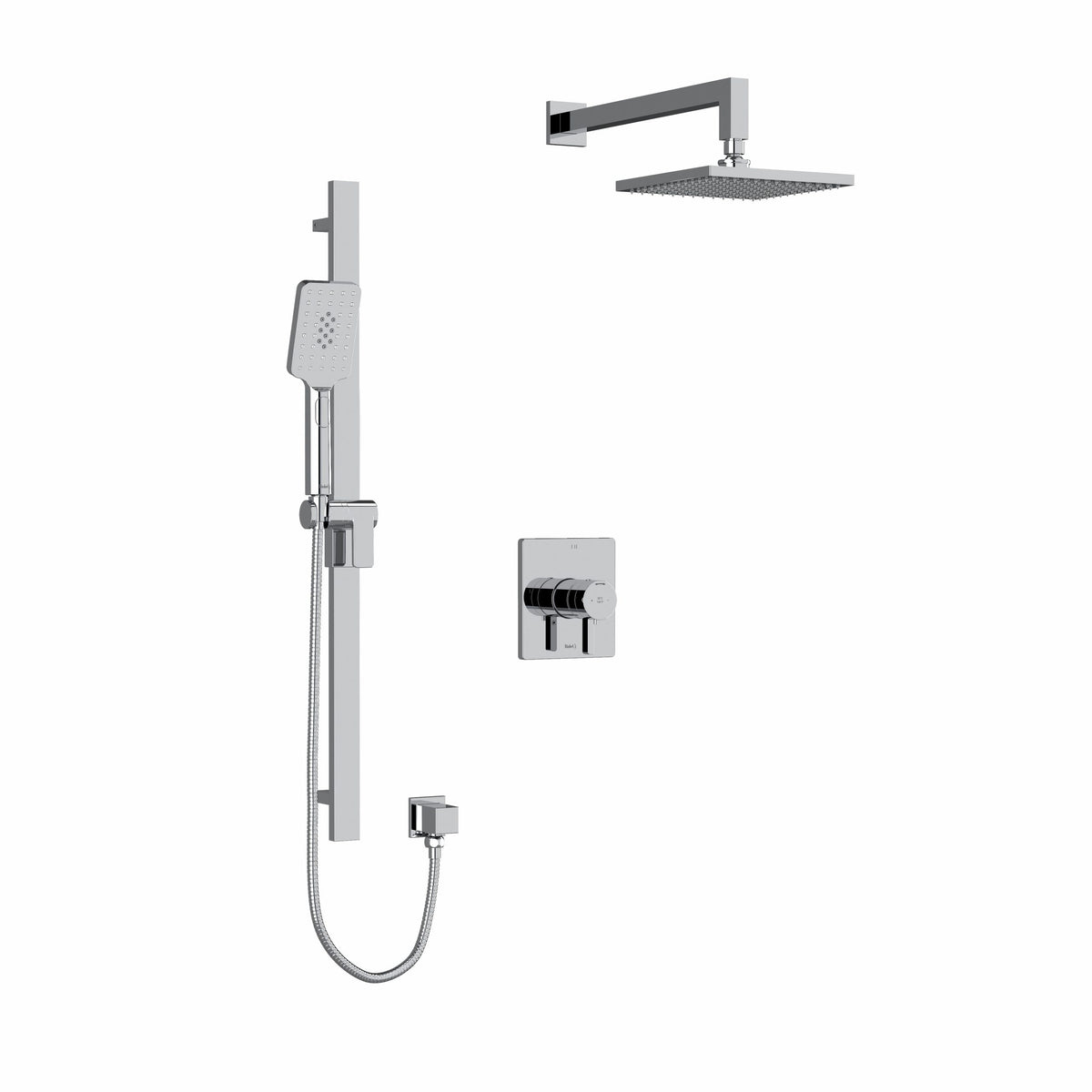

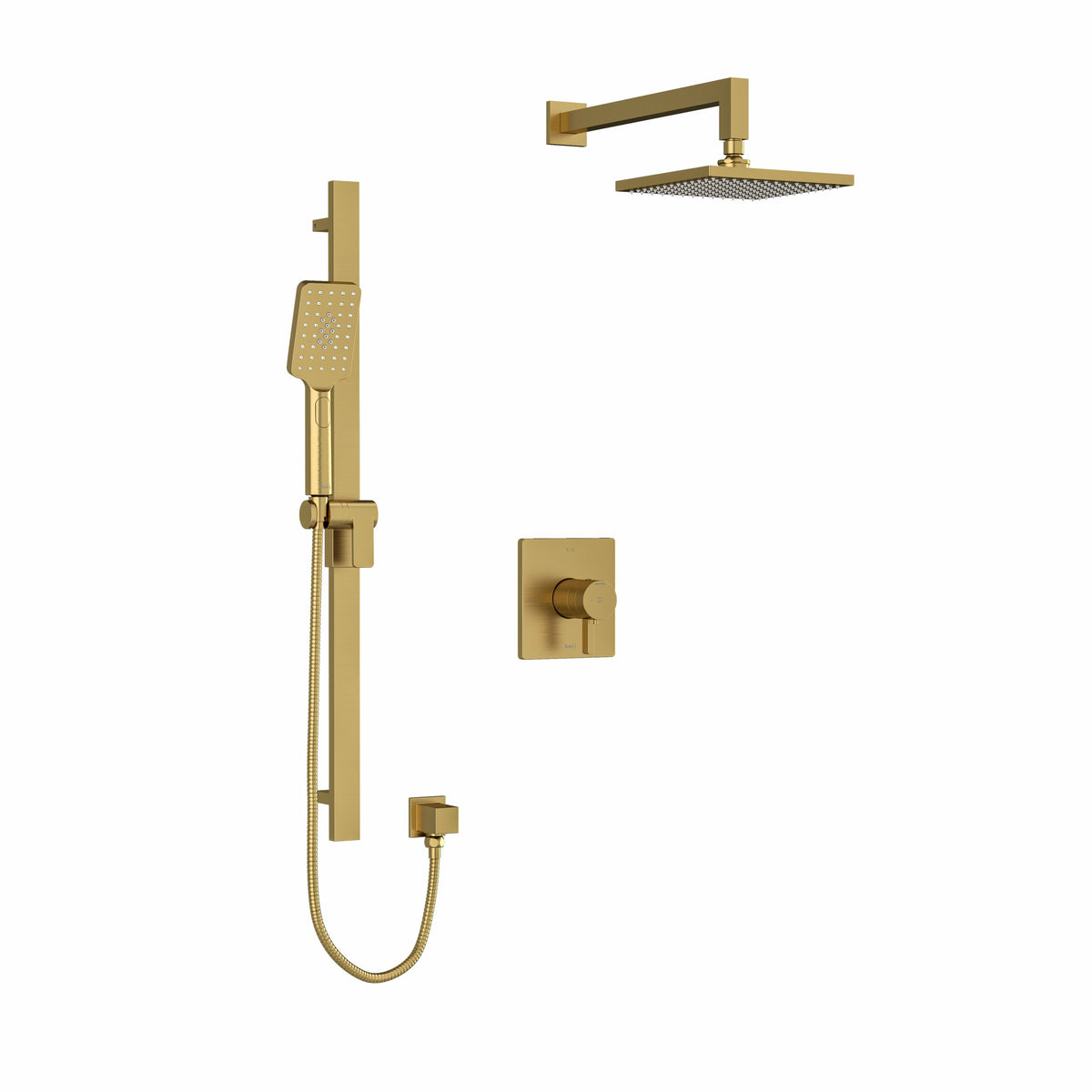

The Riobel Paradox KIT#323 trim is a Type T/P (thermostatic/pressure balance) ½” coaxial 2-way system with hand shower and shower head. It is made up of the TPXTQ23 2-way Type T/P coaxial valve trim, 4845 hand shower rail, 488 20 cm (8”) shower head, 548 15 cm (6”) vertical shower arm and 774 elbow supply. The kit is offered in Brushed Gold, Black and Chrome.

Features

• TPXTQ23 valve trim with 4 shared positions (OFF, 1, 1 and 2, 2)
• TPXTQ23 thermostatic/pressure balance coaxial cartridge with check valves
• The TPXTQ23 valve trim is trim only; an R23, R23-SPEX or R23-EX rough is required to complete it
• 4845 hand shower rail: rectangular slide bar, Easy-Glide left cursor, scale-free, 4365 2-jet hand shower, and 150 cm (59”) double interlock flexible hose, swivel and 2 check valves
• 488 shower head: 20 cm (8”), G½ female inlet, swivel, scale-free
• 548 vertical square shower arm: 15 cm (6”), ½ NPT male inlet, square flange with set screw
• 774 elbow supply: adjustable depth, ½ male outlet, ½ NPT female inlet

Specifications

• Collection: Paradox
• Model: TKIT#323PXTQ-6
• Kit standards: ASME A112.18.1 / CSA B125.1; ASSE 1016
• Valve trim (TPXTQ23) flow: 24 L/min, 6.3 gpm (US) 60psi
• Available finishes: Brushed Gold, Black, Chrome
