KIT#323 trim

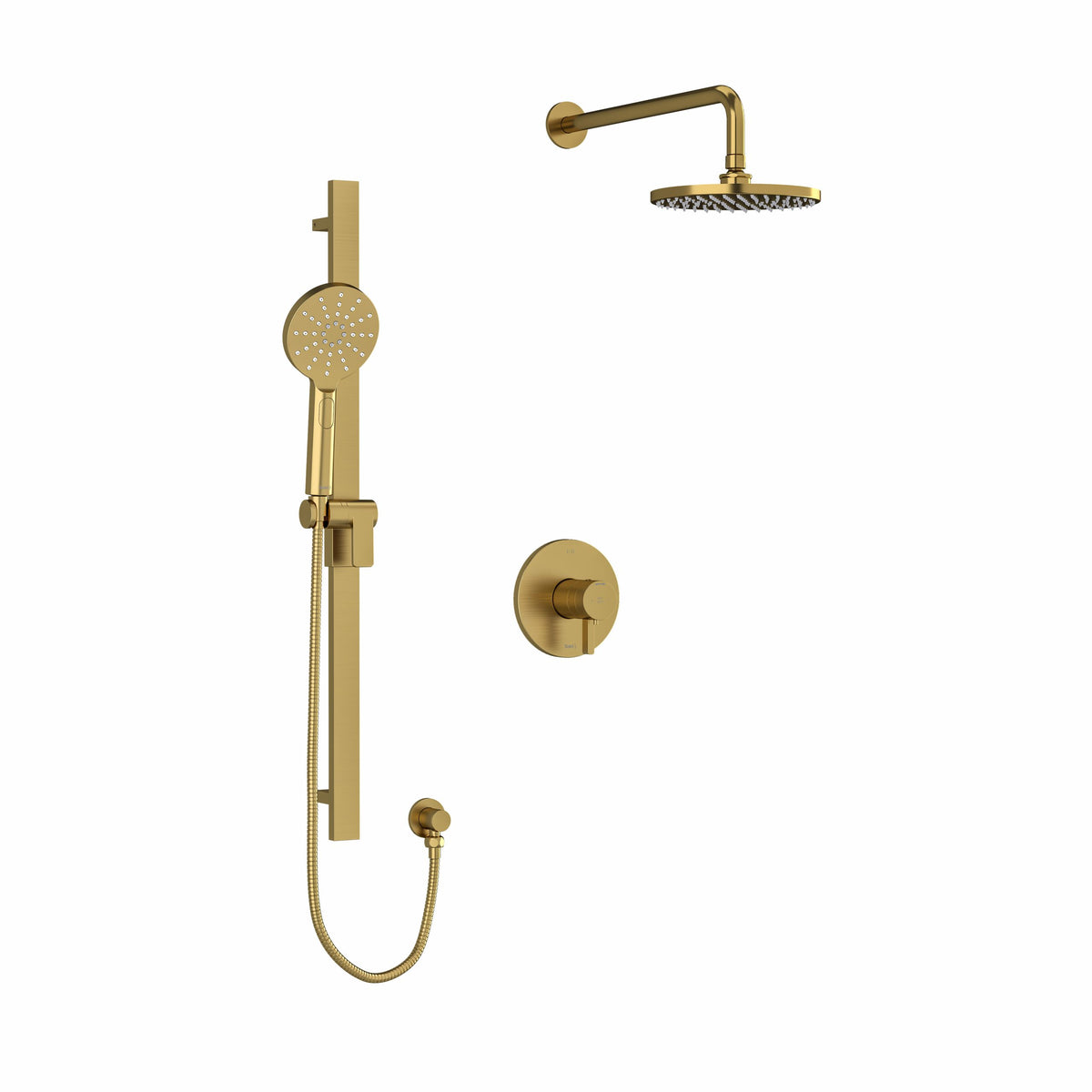

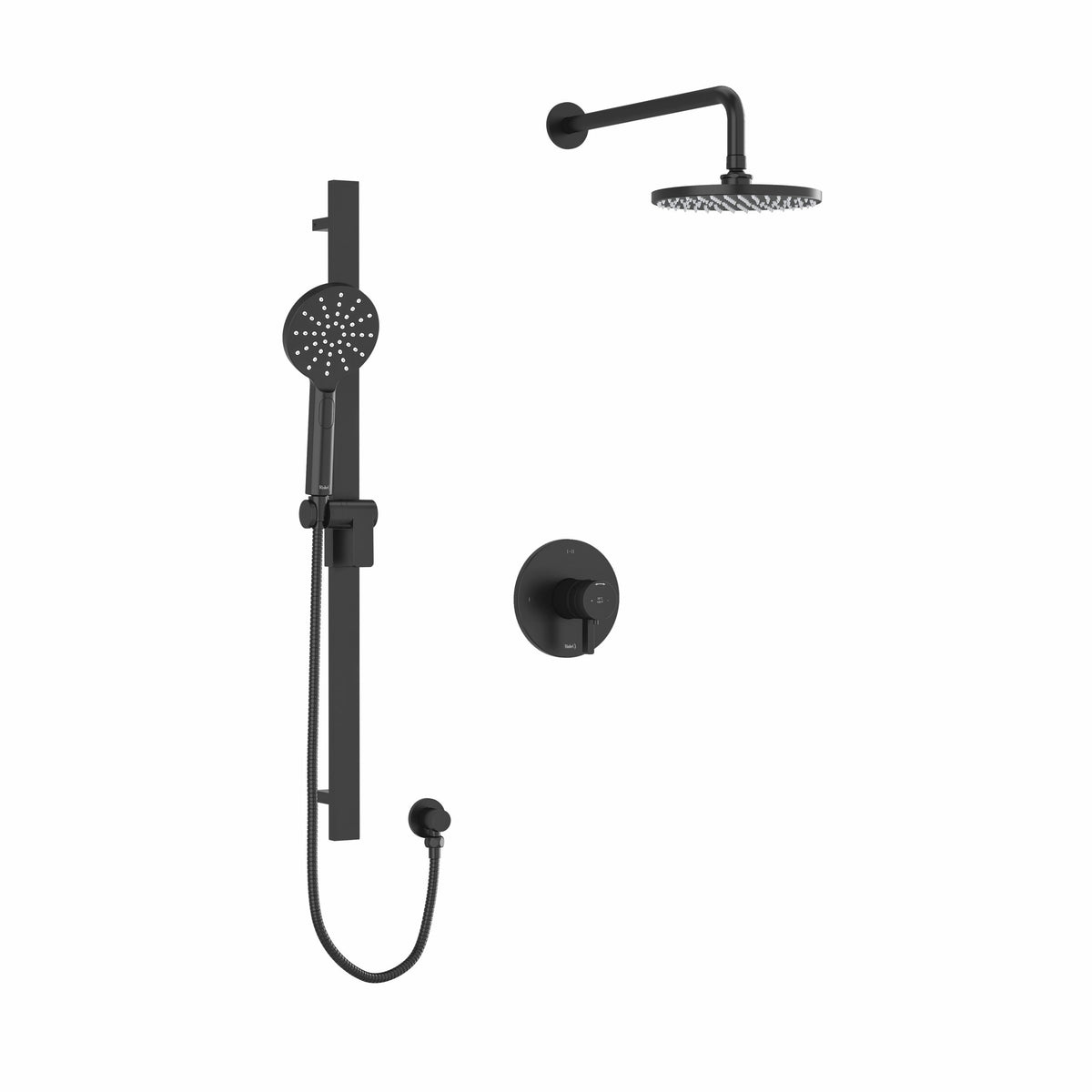

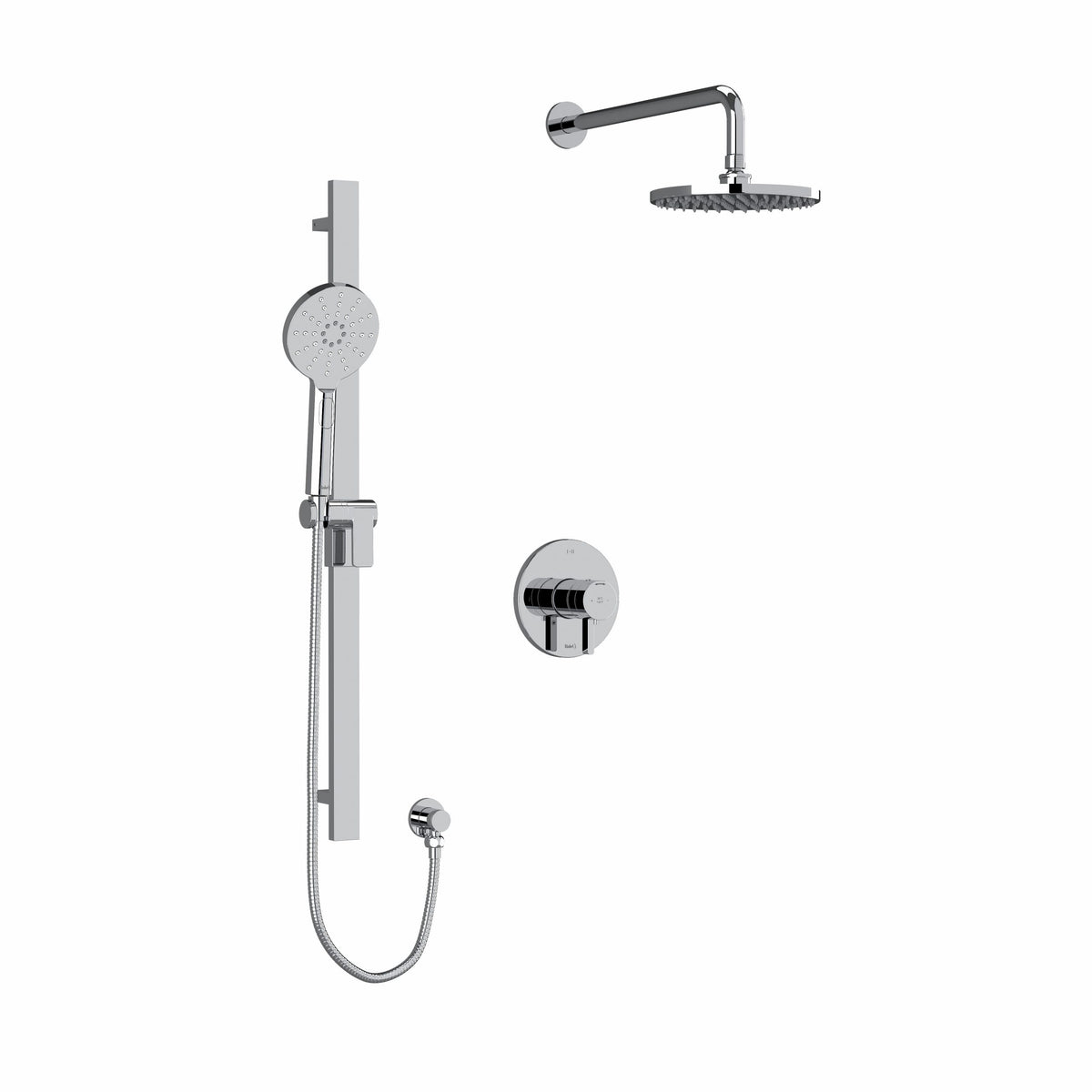

The Riobel Paradox KIT#323 trim is the shower trim kit for a Type T/P (thermostatic/pressure balance) ½" coaxial 2-way system with hand shower and shower head. It is made up of a TPXTM23 2-way Type T/P coaxial valve trim, a 4844 hand shower rail, a 468 20 cm (8") shower head, a 508 15 cm (6") vertical shower arm and a 710 elbow supply.

Features

• Valve trim with 4 shared positions (OFF, 1, 1 and 2, 2)
• Thermostatic/pressure balance coaxial cartridge with check valves
• Trim only: an R23, R23-SPEX or R23-EX rough is required to complete the installation
• Hand shower rail: rectangular slide bar, Easy-Glide left cursor, scale-free, 4364 2-jet hand shower
• 150 cm (59") double interlock flexible hose with swivel and 2 check valves
• Shower head: G½ female inlet, swivel, scale-free
• Shower arm with ½ NPT male inlet and round flange
• Elbow supply with adjustable depth, ½ male outlet and ½ NPT female inlet

Specifications

• Collection: Paradox
• Model: TKIT#323PXTM-6
• Valve trim flow: 24 L/min, 6.3 gpm (US) at 60psi
• Standards: ASME A112.18.1 / CSA B125.1; ASSE 1016
• Available finishes: Brushed Gold, Black, Chrome
