KIT#323 trim

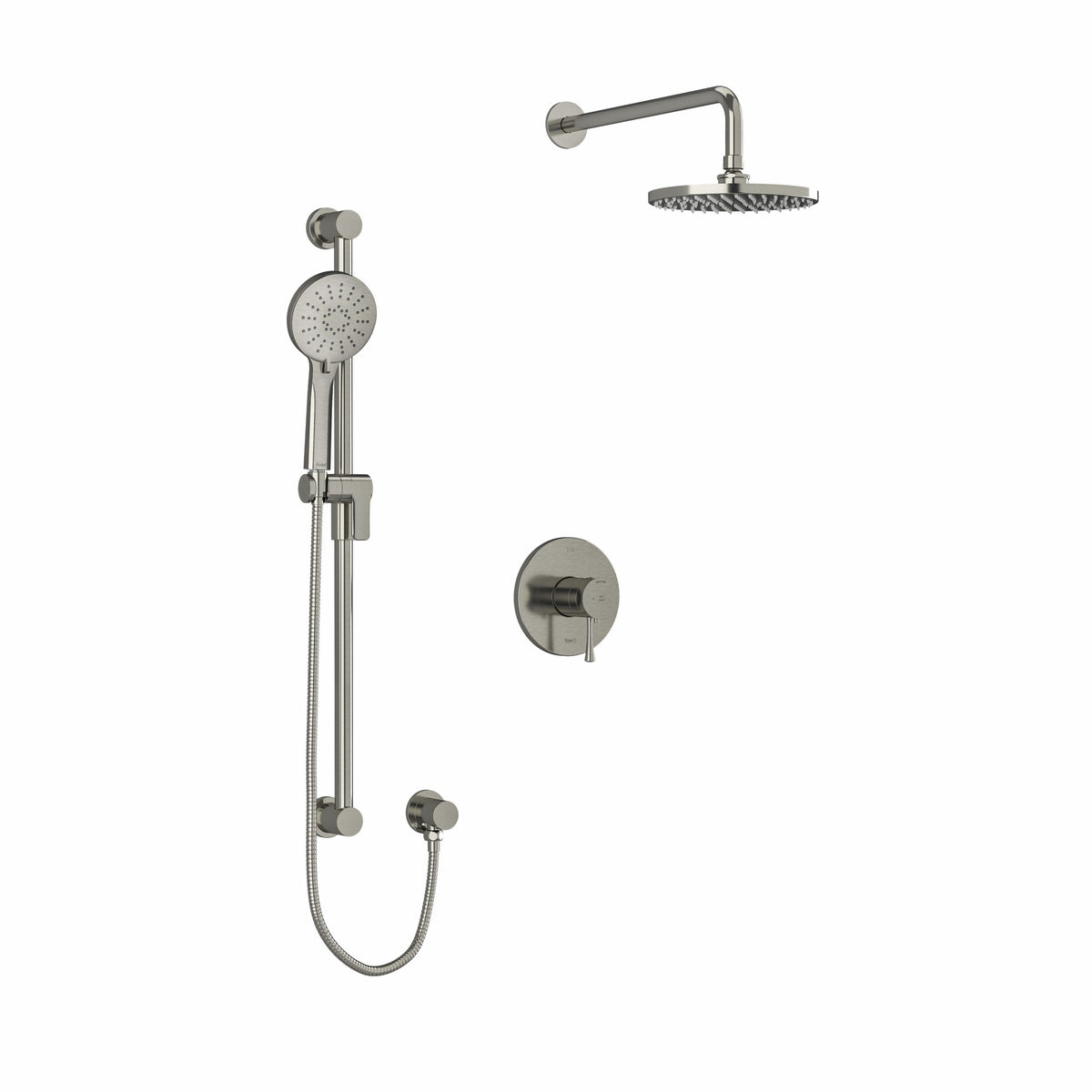

The Riobel Edge KIT#323 trim (TKIT#323EDTM-6) is a Type T/P (thermostatic/pressure balance) ½" coaxial 2-way shower system trim with hand shower and shower head. It is made up of the TEDTM23 2-way Type T/P coaxial valve trim, 5055 hand shower rail, 468 20 cm (8") shower head, 508 15 cm (6") vertical shower arm and 775 elbow supply. The kit is offered in Black, Brushed Nickel and Chrome.

Features

• TEDTM23 valve trim with 4 shared positions (OFF, 1, 1 and 2, 2) and a thermostatic/pressure balance coaxial cartridge with check valves
• The TEDTM23 valve trim is trim only; an R23, R23-SPEX or R23-EX rough is required to complete it
• 5055 hand shower rail: Ø22 mm (7/8") slide bar, Easy-Glide left cursor, scale-free, 3-jet hand shower, and 150 cm (59") double interlock flexible hose, swivel and 2 check valves
• 468 shower head: 20 cm (8"), G½ female inlet, swivel, scale-free
• 508 vertical shower arm: 15 cm (6"), ½ NPT male inlet, round flange
• 775 elbow supply: adjustable depth, ½ male outlet, ½ NPT female inlet

Specifications

• Collection: Edge
• Model: TKIT#323EDTM-6
• Kit standards: ASME A112.18.1 / CSA B125.1; ASSE 1016
• Valve trim (TEDTM23) flow: 24 L/min, 6.3 gpm (US) 60psi
• Hand shower rail (5055) flow: 6.7 L/min, 1.8 gpm (US) 60psi
• Shower head (468) flow: 7.6 L/min, 2.0 gpm (US) 60psi
• Available finishes: Black, Brushed Nickel, Chrome
