KIT#1345 trim

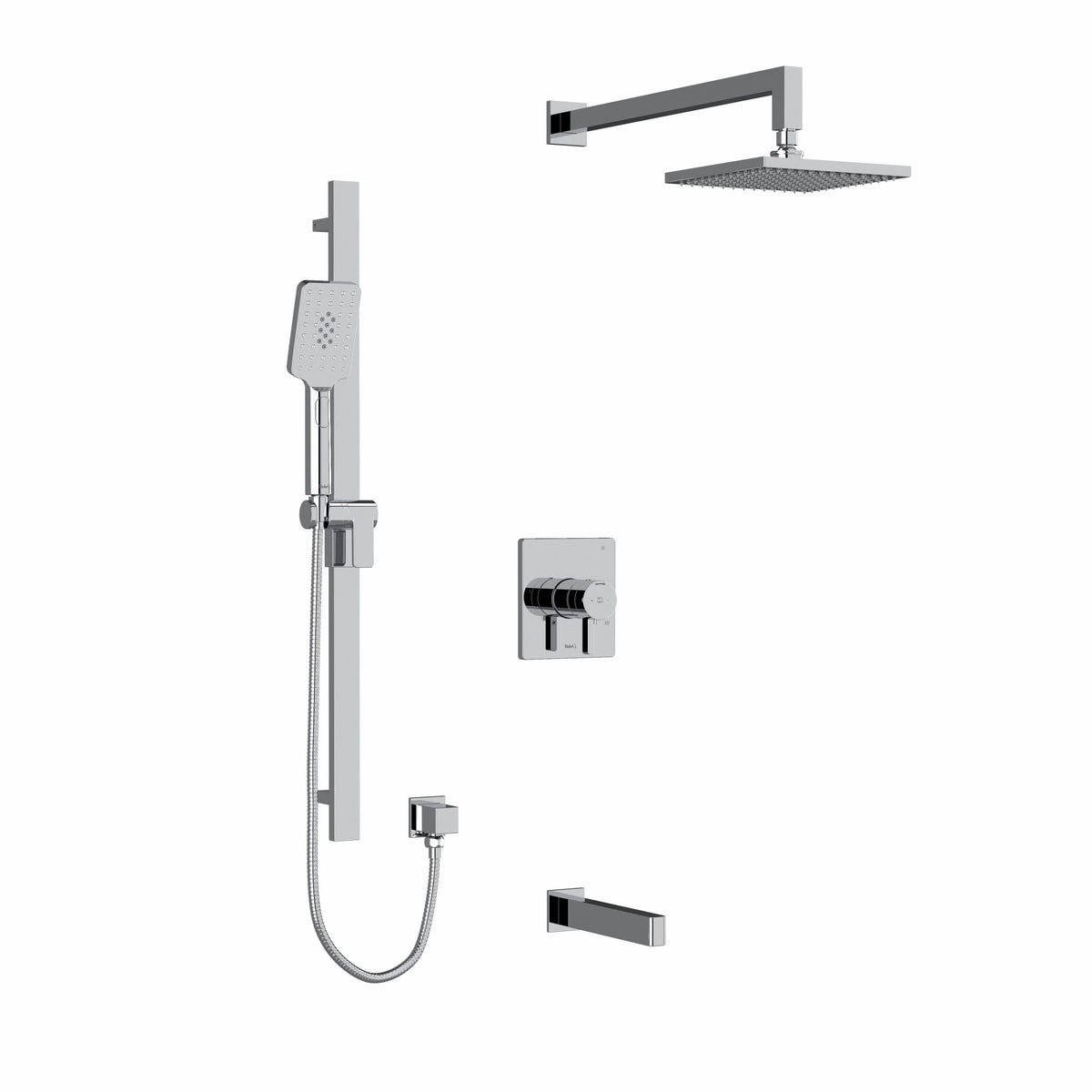

The Riobel Paradox KIT#1345 trim (model TKIT#1345PXTQ-6) is a Type T/P (thermostatic/pressure balance) ½” coaxial 3-way shower system trim kit with hand shower rail, shower head and spout. The kit is made up of the TPXTQ45 3-way Type T/P coaxial valve trim, the 4845 hand shower rail, the 488 20 cm (8”) shower head, the 548 15 cm (6”) vertical shower arm, the 774 elbow supply and the PXTQ80 wall-mount tub spout. The valve trim is trim only; an R45, R45-SPEX or R45-EX rough is required to complete it.

Features

• Valve trim (TPXTQ45): 6 positions (OFF, 1, 1 and 2, 2, 2 and 3, 3), shared, with a thermostatic/pressure balance coaxial cartridge with check valves.
• Hand shower rail (4845): 4365 2-jet hand shower, rectangular slide bar and Easy-Glide left cursor; scale-free.
• Hand shower hose: 150 cm (59”) double interlock flexible hose, swivel and 2 check valves.
• Flow: 7.6 L/min, 2.0 gpm (US) at 60psi for both the hand shower rail and the shower head.
• Shower head (488): G½ inlet female, swivel, scale-free.
• Shower arm (548): 15 cm (6”) vertical square shower arm with ½ NPT inlet male and square flange with set screw.
• Elbow supply (774): adjustable depth, ½ outlet male and ½ NPT inlet female.
• Wall-mount tub spout (PXTQ80): ½” copper slip fit inlet; brass.

Specifications

• Model: TKIT#1345PXTQ-6
• Collection: Paradox
• Standards: ASME A112.18.1 / CSA B125.1; ASSE 1016
• Available finishes: Brushed Gold, Black, Chrome
