KIT#1345 trim

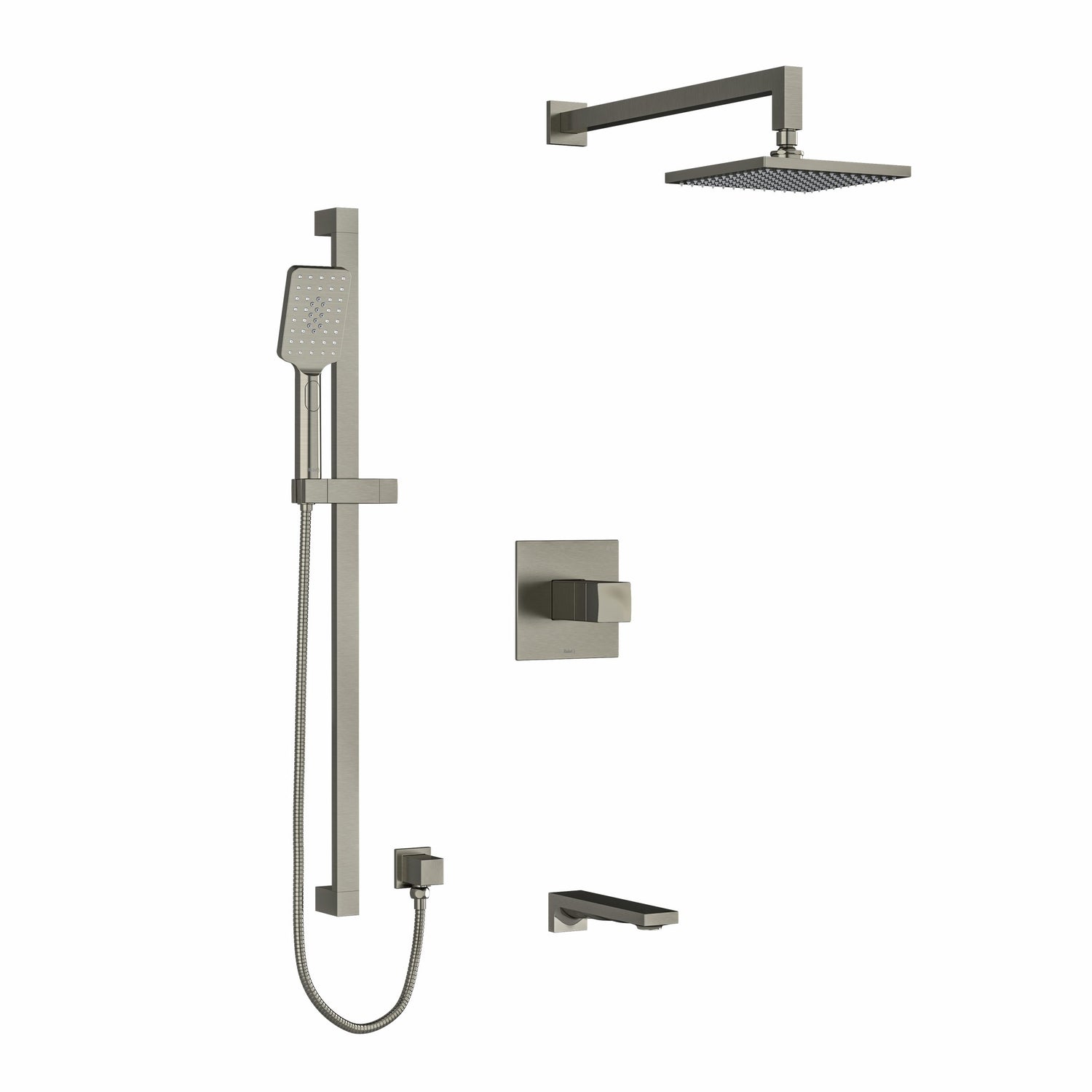

The Riobel Reflet KIT#1345 trim is the trim kit for a Type T/P (thermostatic/pressure balance) ½" coaxial 3-way shower system with hand shower rail, shower head and tub spout. It is made up of a TRF45 3-way Type T/P coaxial valve trim, a 4865 hand shower rail, a 488 20 cm (8") shower head, a 548 15 cm (6") vertical shower arm, a 774 elbow supply and an RF80 wall-mount tub spout.

Features

• Valve trim with 6 shared positions (OFF, 1, 1 and 2, 2, 2 and 3, 3)
• Thermostatic/pressure balance coaxial cartridge with check valves
• Trim only: an R45, R45-SPEX or R45-EX rough is required to complete the installation
• Hand shower rail: square slide bar, reversible cursor, scale-free, 4365 2-jet hand shower
• 150 cm (59") double interlock flexible hose with swivel and 2 check valves
• Shower head: G½ female inlet, swivel, scale-free
• Vertical square shower arm with ½ NPT male inlet and square flange with set screw
• Elbow supply with adjustable depth, ½ male outlet and ½ NPT female inlet

Specifications

• Collection: Reflet
• Model: TKIT#1345RF-6
• Product type: Thermostatic & pressure balance shower
• Standards: ASME A112.18.1 / CSA B125.1; ASSE 1016
• Available finishes: Brushed Chrome, Brushed Gold, Brushed Nickel, Chrome
