KIT#1345 trim

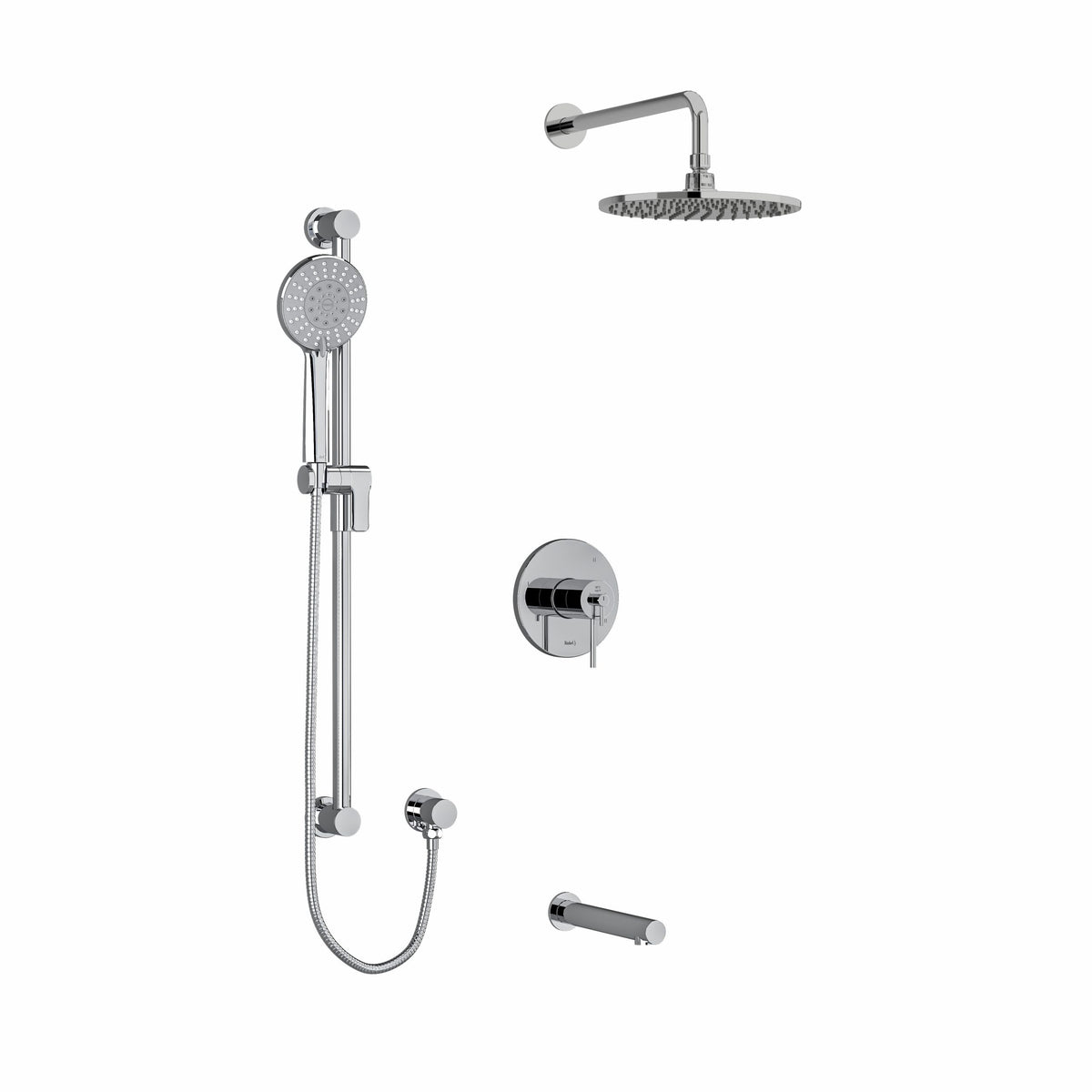

The Riobel Premium KIT#1345 trim (model TKIT#1345) is a coordinating trim set designed to complete a Premium-series Riobel shower system, in Chrome. The set is made up of the TCSTM45 3-way Type T/P coaxial valve trim, the 5063 hand shower rail, the 503 40 cm (16") shower arm, the 430 25 cm (10") plastic shower head, the 867 wall-mount tub spout and the 775 elbow supply. The valve trim is trim only; as an installation requirement, an R45, R45-SPEX or R45-EX rough is required to complete it.

Features

• Valve trim (TCSTM45): 6 positions (OFF, 1, 1 and 2, 2, 2 and 3, 3), shared, with a thermostatic/pressure balance coaxial cartridge with check valves.
• Hand shower rail (5063): 4363 3-jet hand shower with pause, Ø22 mm (7/8") slide bar and Easy-Glide left cursor; scale-free.
• Hand shower hose: 150 cm (59") double interlock flexible hose, swivel and 2 check valves.
• Shower head (430): ½" female NPT inlet, swivel, scale-free.
• Shower arm (503): ½" male NPT inlet and round flange.
• Wall-mount tub spout (867): brass, with a ½" copper slip fit inlet and a 25mm drilling hole diameter.
• Elbow supply (775): ½" male outlet, adjustable depth and ½" female NPT inlet.
• Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts, guaranteed from the initial purchase date against all manufacturing defects; all other finishes, including plastic components, are guaranteed for one year

Specifications

• Collection: Premium
• Finish: Chrome
• Certifications: CSA B125.1, ASME A112.18.1, ASSE 1016
• Valve trim flow (TCSTM45): 23 L/min, 6.0 gpm (US) at 60psi
• Note: Sizes, models and finishes may differ from those presented
