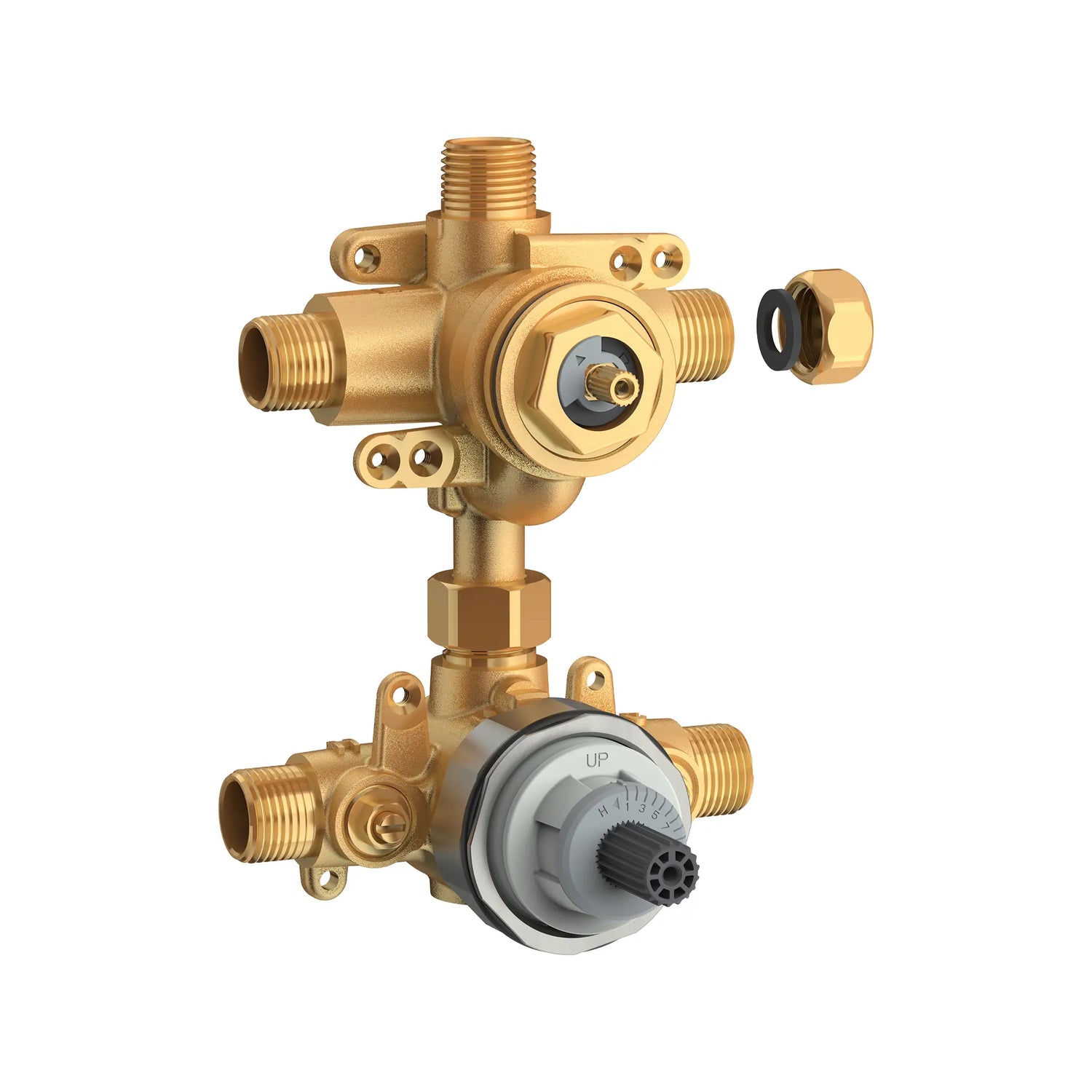

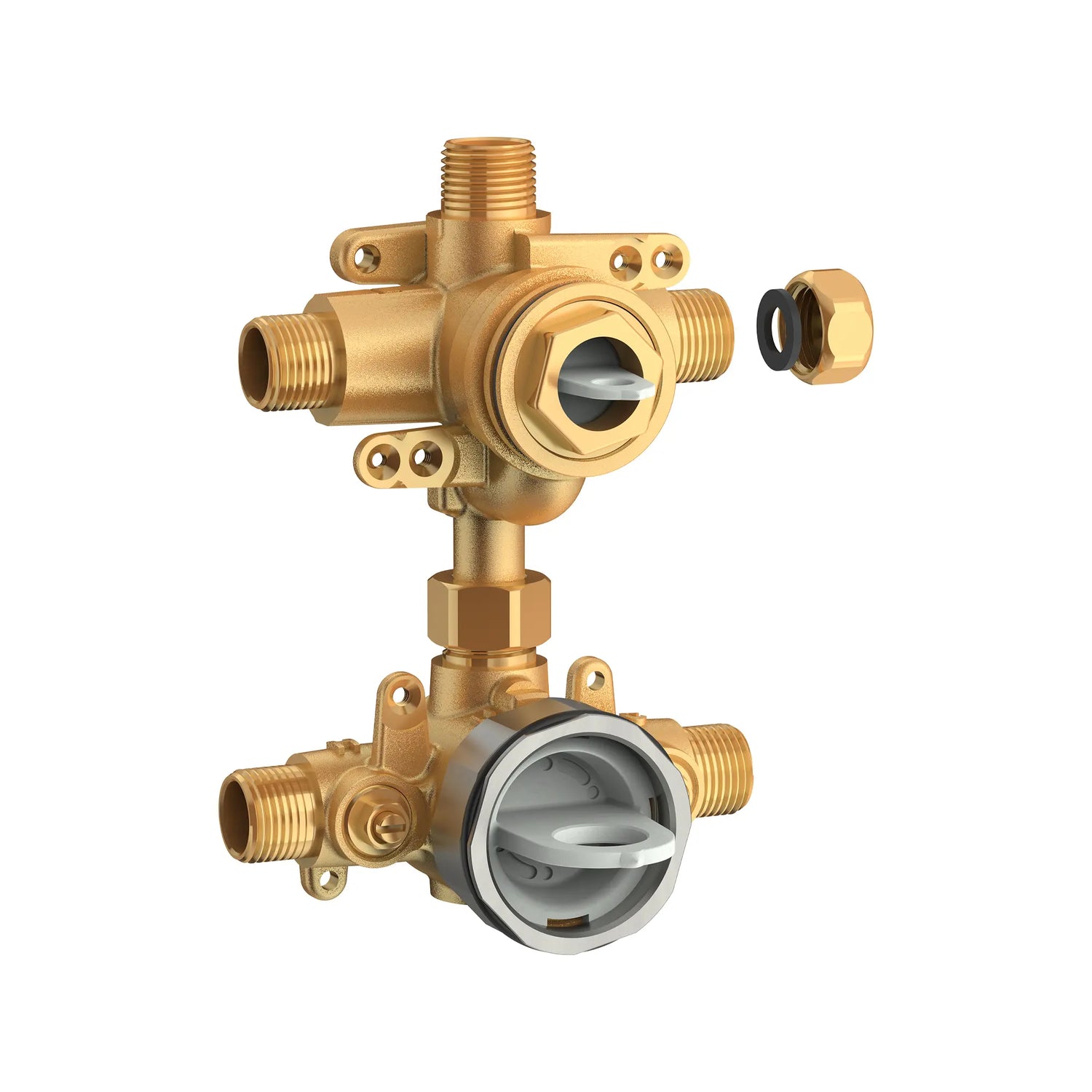

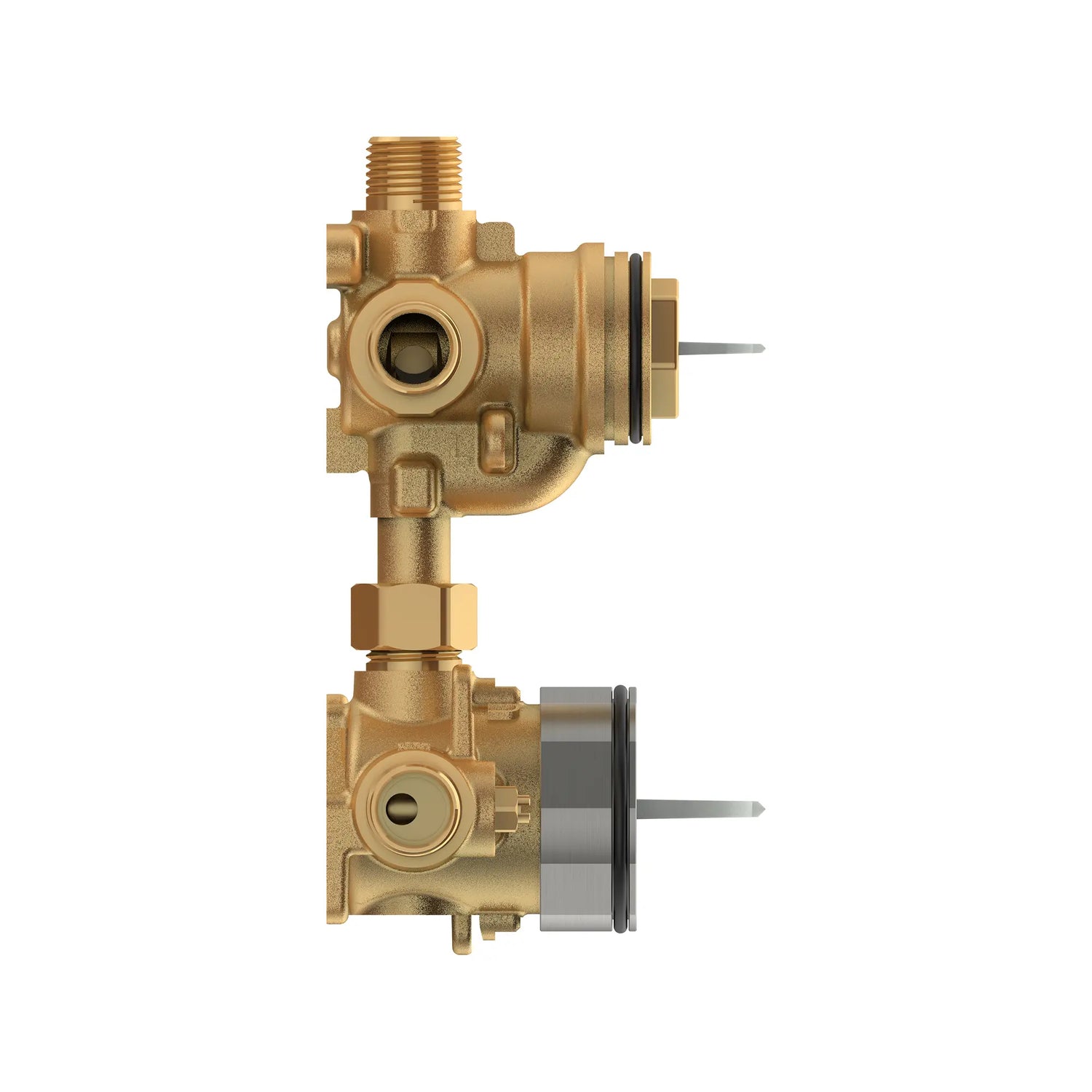

Flash® Pressure Balance Valve Rough-In with Integrated Diverter

The Aspirations Flash® 2-Way or 3-Way Integrated Shower Diverter Rough-In Valve is an innovative design developed by American Standard to make installation easier and showering more enjoyable. Featuring a flat back for flush mounting on the cross brace, and a compact body to accommodate tight spaces, this Flash Integrated Diverter Rough-In Valve delivers unmatched convenience and versatility by providing 2 or 3-way discrete functionality with the option for simultaneous functionality with shared diverter, sold separately.

Features

• VERSATILE INSTALLATON: Compact body and flat back for easy and solid installation
• 2-WAY OR 3-WAY DISCRETE FUNCTIONALITY: Provides the ability to alternate water flow between 2 or 3 separate outlets with cartridge M970787-0070, included with Aspirations trim
• OPTIONAL SHARED CAPABILITY: Provides the ability to share water flow simultaneously from up to 3 outlets with the addition of shared cartridge, M970789-0070, sold separately
• NO SOLDERING REQUIRED: Solid brass inlet connections for fast installation without adaptors, reducing leak points

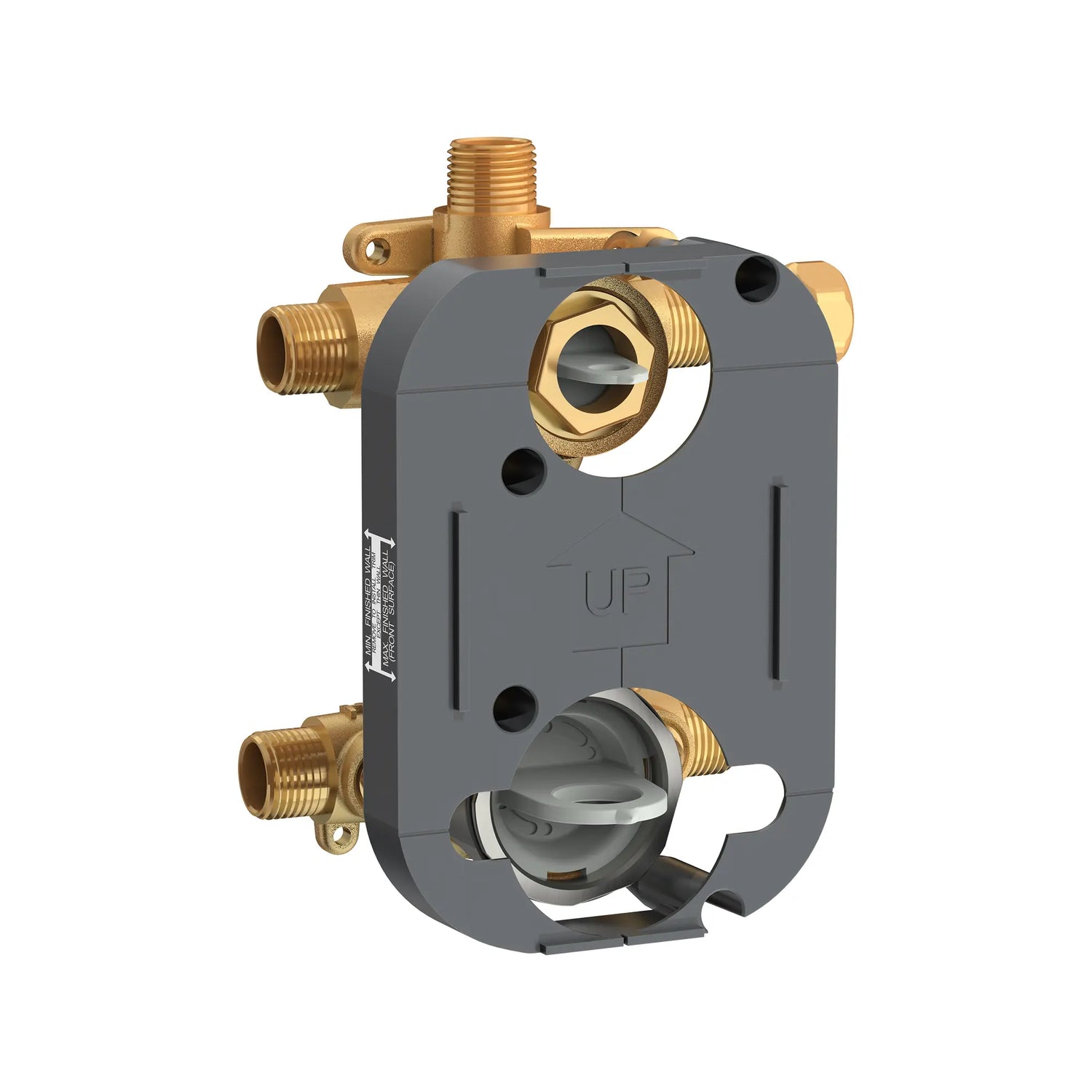

• EXCLUSIVE PLASTER GUARD: Protects valve and acts as a guide during installation; can serve as mounting support for thin-wall installations
• SELF-ALIGNING SCREW HOLES: Screw holes are easy to find; simplifies reattaching plaster guard to valve body
• EASY SERVICING: Screwdriver stops for servicing at the valve
• COMPATIBLE TRIMS: Designed for use with Aspirations trim, sold separately
• Made of casted DZR brass to resist corrosion
• For use with Flash® 2-Handle Integrated Shower Diverter Trim
• 1/2” NPT Inlets/Outlets
• 2 or 3-Way Shared functionality cartridge RP# M970789-0070A, sold separately
• Compatible with all American Standard 2-Handle trim kits
• Trim sold separately, discrete cartridge ships with trim

Specifications

• Brand: American Standard
• Category: Rough-ins Concealed Bodies
• Color / Finish: No Finish
• Collections: Universal
• Fitting Connection Size Input: 1/2
• Fitting Material: Brass,Metal/Plastic
• Fixture or Fitting Material: BrassMetal/Plastic
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Number of Input Valves: 2
• Number of Output Valves: 3
• Output Connection Type: NPT (National Pipe Tapered Threads)
• Height: 177
• Length: 95
• Width: 123
• Residential or Commercial: Residential
• Subcategory: Pressure Balance Valve Rough in
• Temperature Control: Yes
• Valve Input Diameter: 14
• Valve Output Diameter: 14
