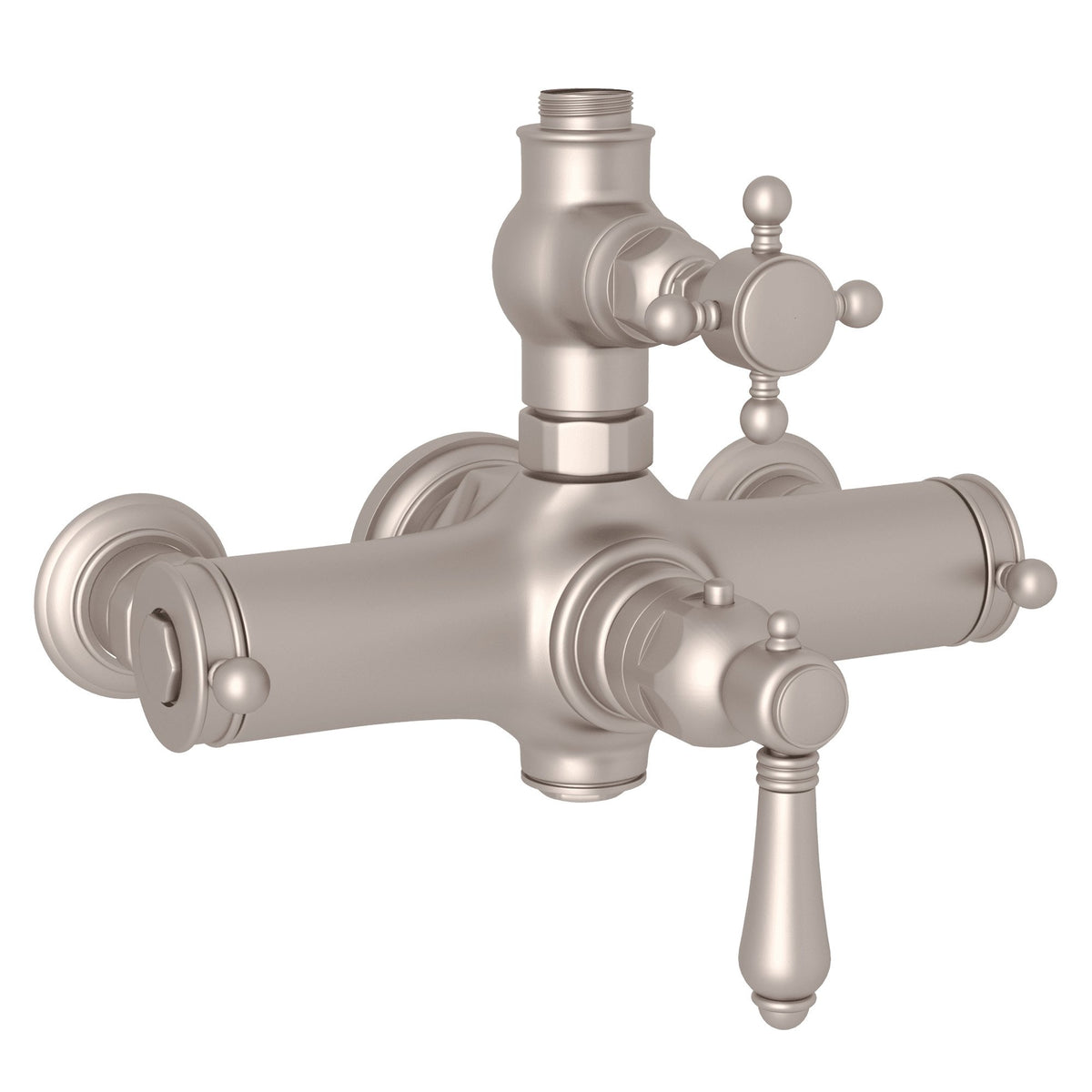

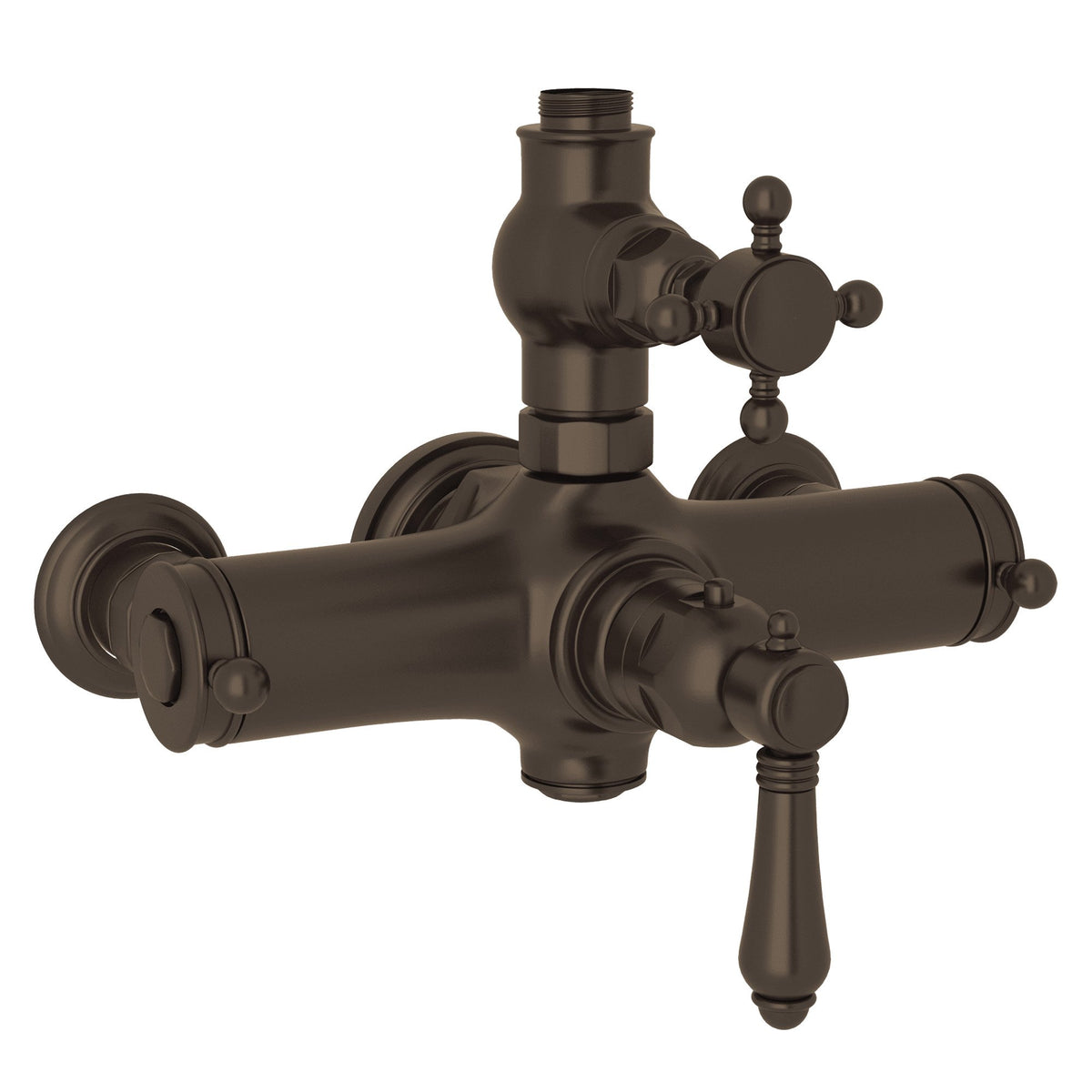

Exposed Therm Valve With Volume and Temperature Control A4917XM

The ROHL A4917XM exposed thermostatic valve provides temperature and volume control in a traditional, wall-mounted design. Flow is rated at 16 GPM/60.5 LPM at 45 PSI, and the valve is made of brass.

Features

• Temperature and volume control
• Cross handle on the volume control and metal lever on the temperature control
• Installation note: a 1560 riser must be ordered to connect to the outlet
• Polished Chrome, Polished Nickel, Satin Nickel and Tuscan Brass versions: 3/4" female NPT inlets at 8" center-to-center
• Polished Chrome, Polished Nickel, Satin Nickel and Tuscan Brass versions: integrated service stops with screens included
• Installation note (Polished Chrome, Polished Nickel, Satin Nickel and Tuscan Brass versions): if PEX is used, oversize the supply line to 1" for full flow capacity

Specifications

• Product type: Thermostatic shower valve
• Flow rate: 16 GPM/60.5 LPM at 45 PSI
• Handles: Cross handle (volume), metal lever (temperature)
• Mounting: Wall
• Hole configuration: 2
• Material: Brass
• Style: Traditional
• Inlets (Polished Chrome, Polished Nickel, Satin Nickel and Tuscan Brass versions): 3/4" female NPT, 8" center-to-center
• Codes (Polished Chrome, A4917XMAPC): CSA B125.1, ASME A112.18.1
• Country of origin (Polished Chrome, A4917XMAPC): Italy
• Available finishes: Polished Chrome, Italian Brass, Polished Nickel, Satin Nickel, Tuscan Brass
