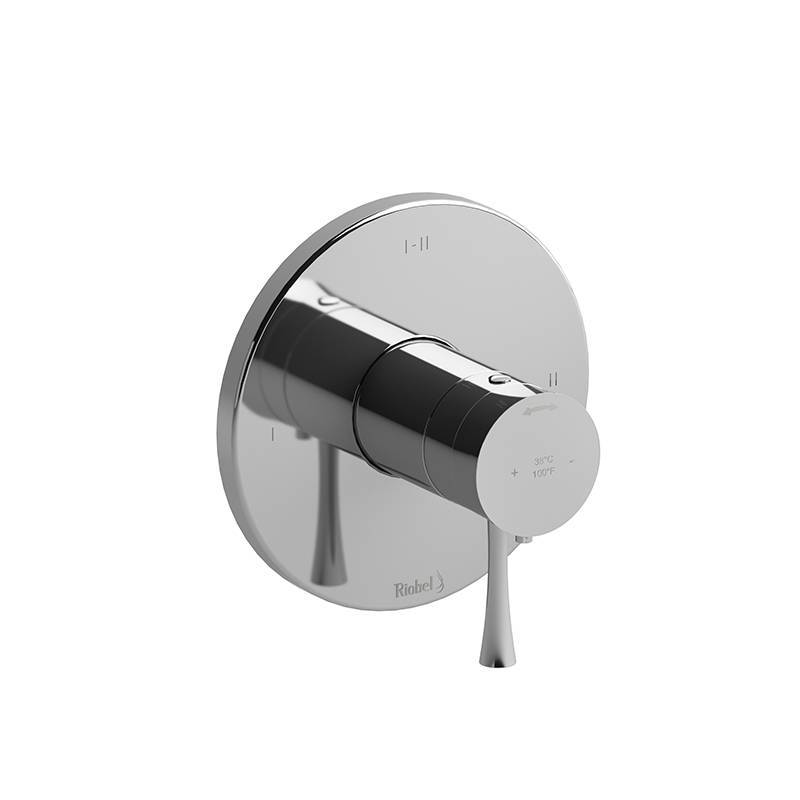

Edge 2-way Type T/p (Thermostatic/pressure Balance) Coaxial Valve Trim

The Riobel Edge 2-way Type T/P (thermostatic/pressure balance) coaxial valve trim is a thermostatic and pressure balance shower trim built around a coaxial cartridge with check valves. It has 4 shared positions (OFF, 1, 1 and 2, 2) and a flow of 24 L/min, 6.3 gpm (US) at 60psi. It is offered in Polished Nickel, Black, Brushed Nickel (PVD) and Chrome.

Features

• Thermostatic/pressure balance coaxial cartridge with check valves
• 4 shared positions: OFF, 1, 1 and 2, 2
• Trim only; installation requirement: an R23, R23-SPEX or R23-EX rough is required to complete
• Brass construction
• Transitional style
• Polished Nickel version (TEDTM23PN): Limited Lifetime Warranty

Specifications

• Model: TEDTM23
• Type: 2-way Type T/P (thermostatic/pressure balance) coaxial valve trim
• Positions: 4 (OFF, 1, 1 and 2, 2), shared
• Flow rate: 24 L/min, 6.3 gpm (US) 60psi
• Standards: ASME A112.18.1; ASSE 1016
• Material: Brass
• Rough required (installation requirement): R23, R23-SPEX or R23-EX
• Warranty (Polished Nickel, TEDTM23PN): Limited Lifetime Warranty

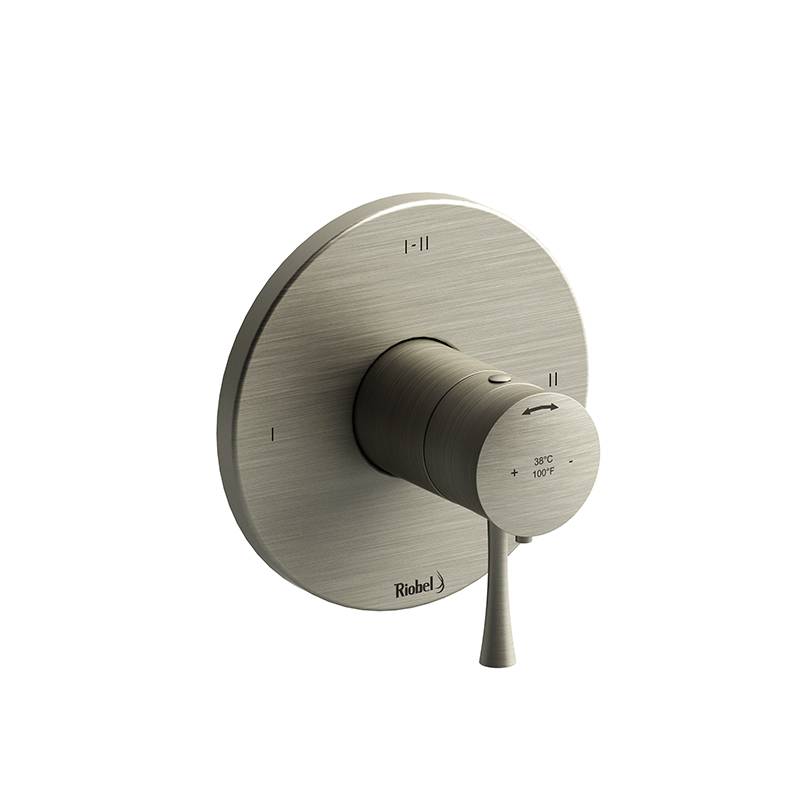

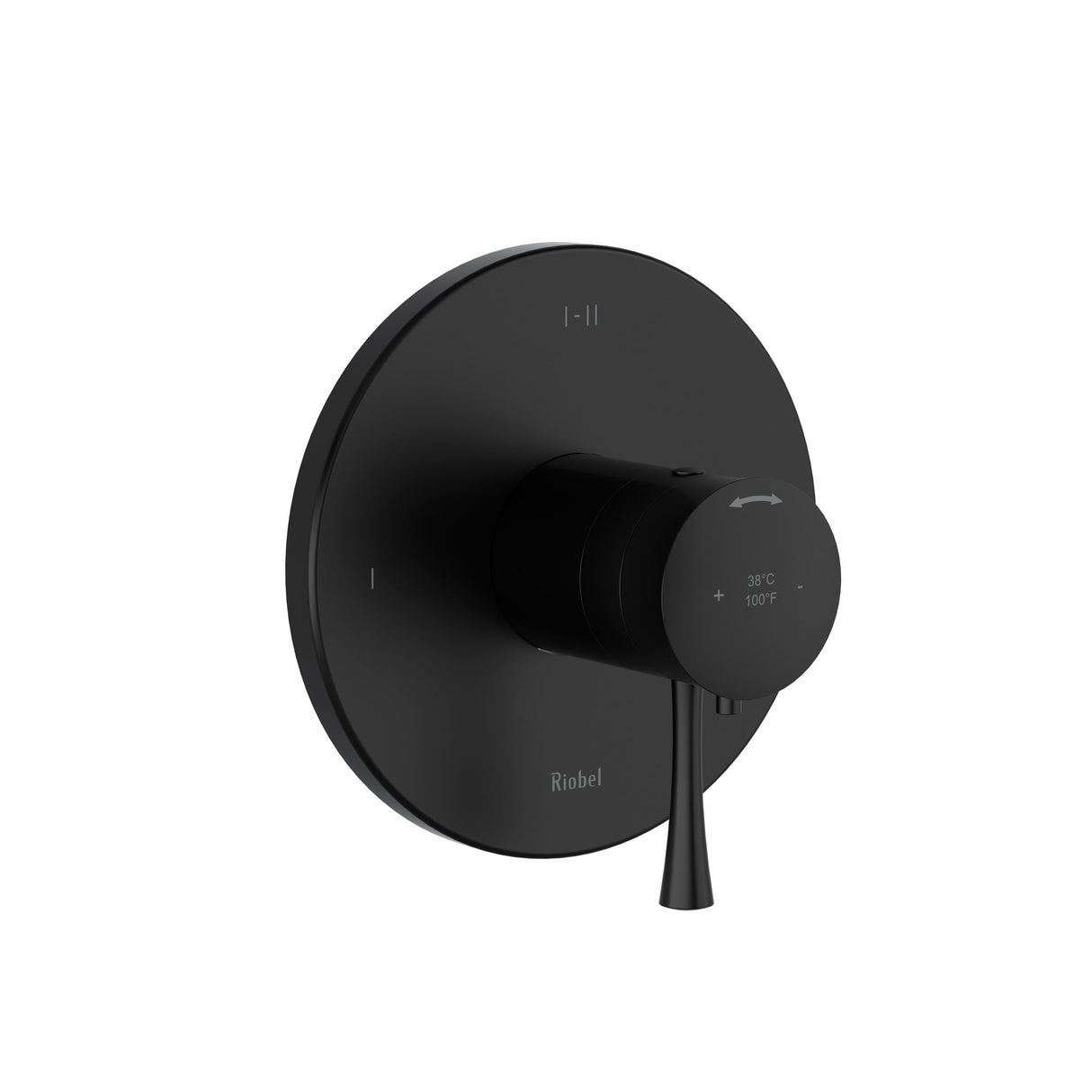

• Available finishes: Polished Nickel, Black, Brushed Nickel (PVD), Chrome
