TKIT323 - U.TKIT323EW

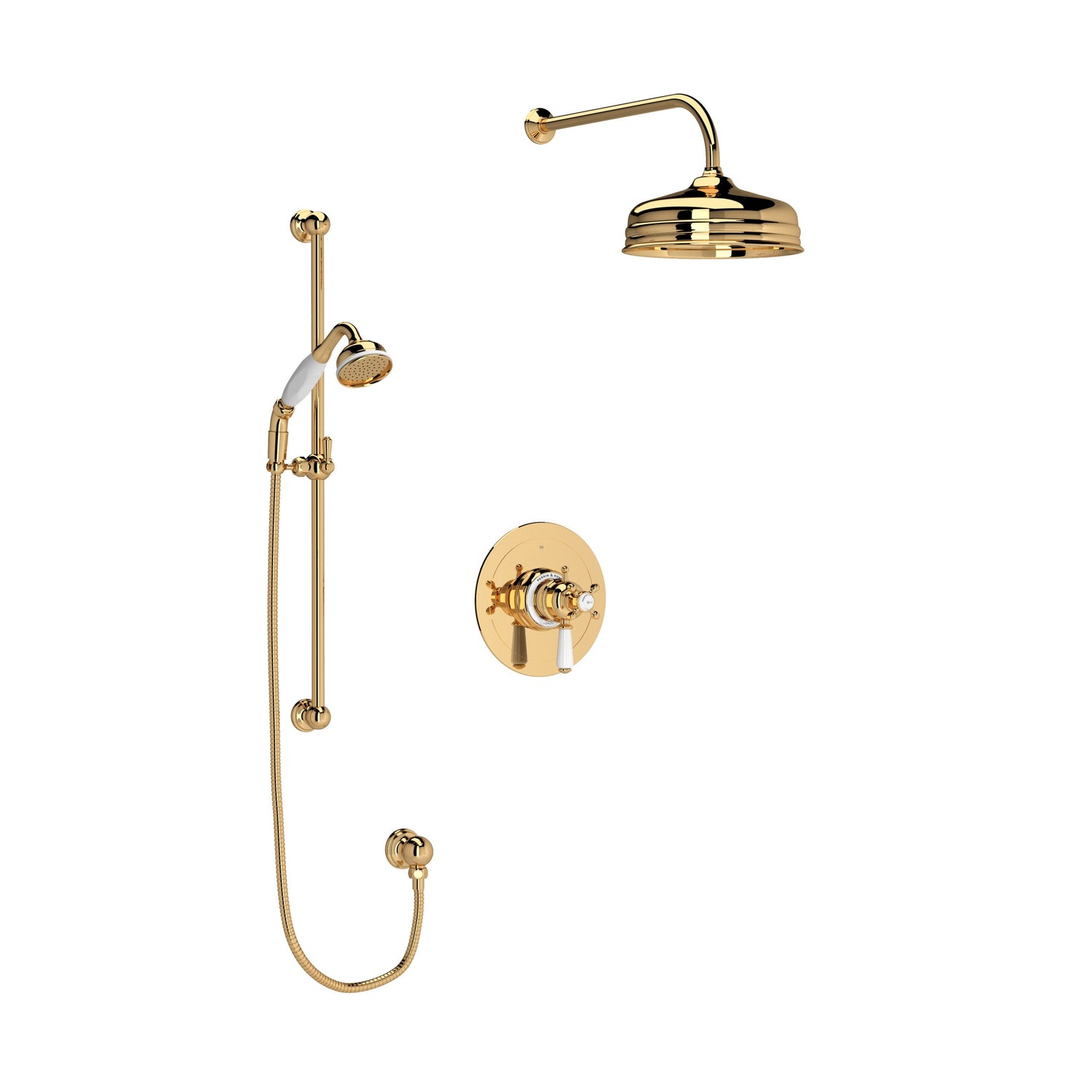

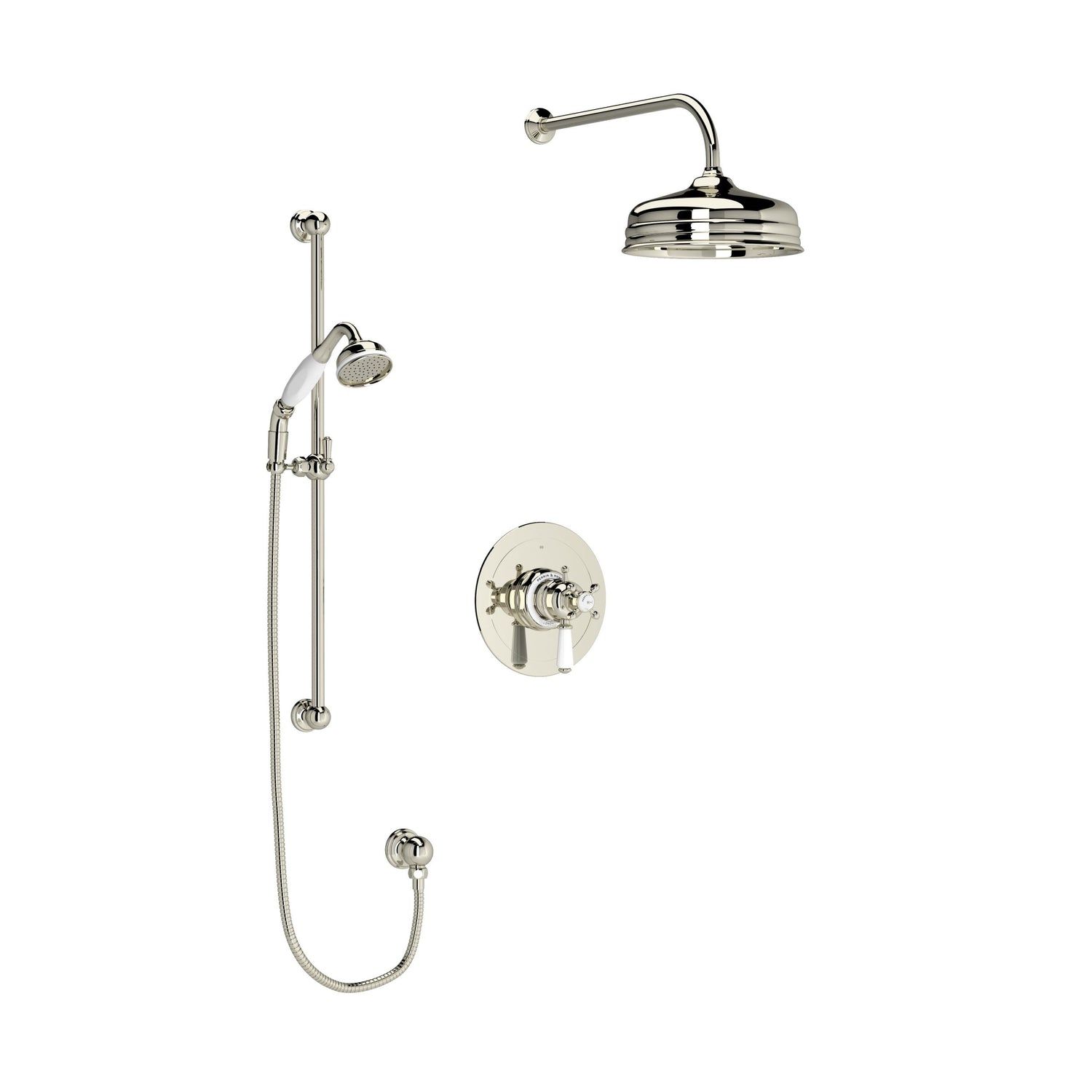

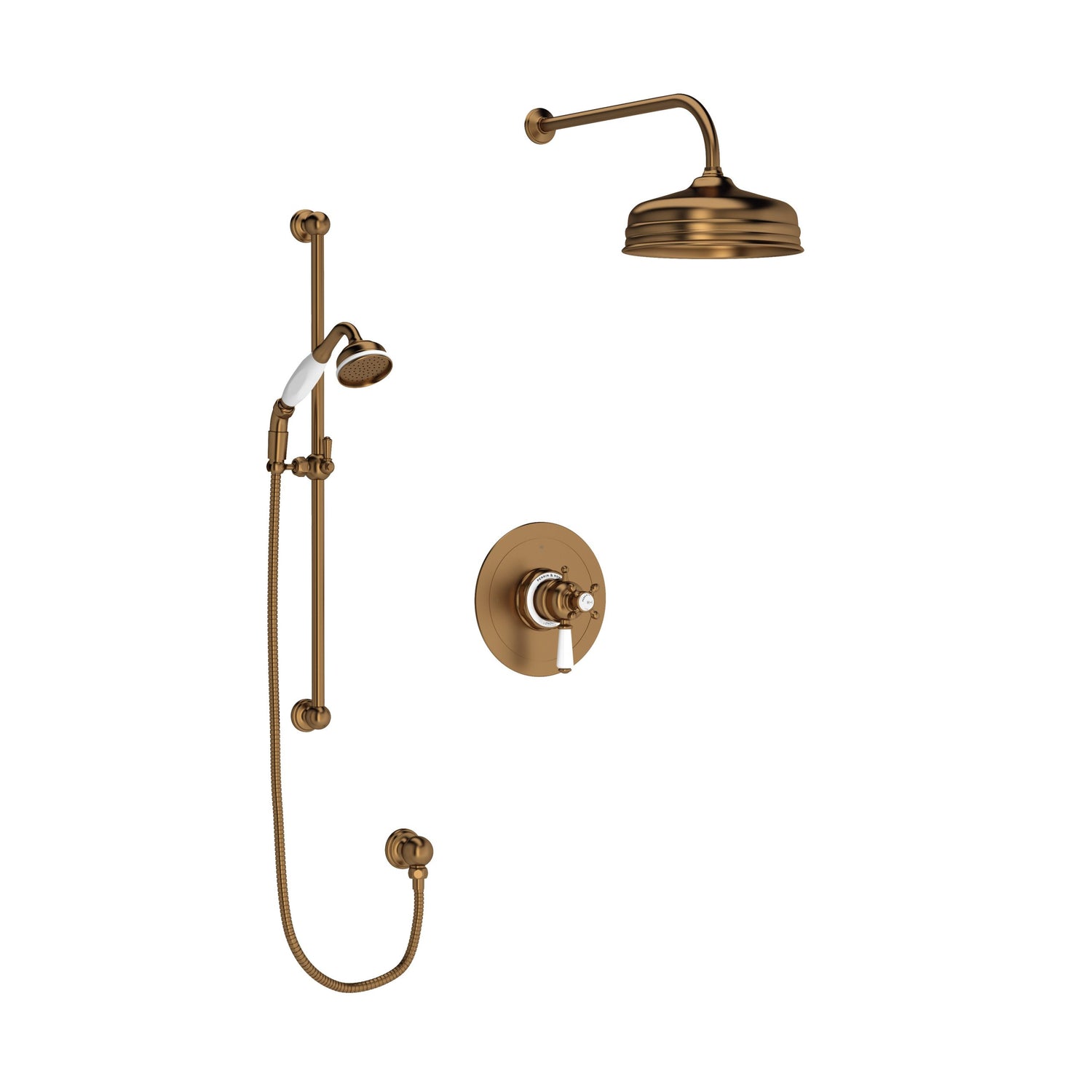

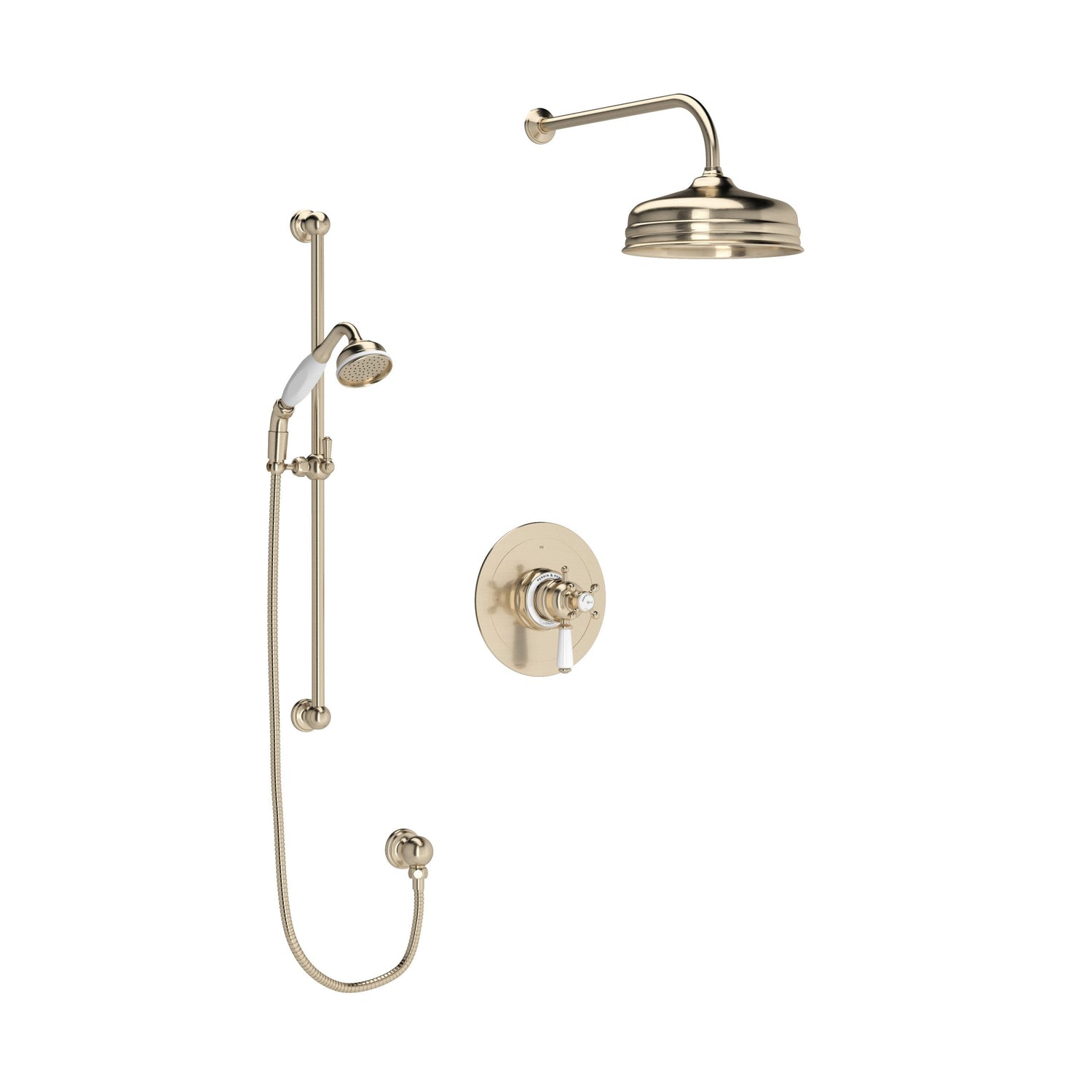

The Perrin & Rowe Edwardian TKIT323 (U.TKIT323EW) is a 2-way system type thermostatic and pressure balance shower trim kit. It brings together an Edwardian™ 1/2” therm & pressure balance trim with 3 functions (shared), a 24” sliding rail, an inclined handshower and hose, an 8” rain showerhead, a 15” reach wall mounted shower arm and a wall outlet for handshower. The trim offers temperature and volume control with diverter, with 2 dedicated functions and 1 shared function; the rough-in valve is sold separately.

Features

• Trim combines both thermostatic and pressure balance technologies with “set it and forget it” temperature control
• Solid brass sliding rail, adjustable with lever handle; handshower holder adjustable ± 45°; 23 5/8” centers
• Inclined handshower with a 60” hose and 1/2”F NPSM connection
• Single function 8” rain showerhead with 3/4” NPSM connection, 1.8 GPM at 60 PSI (CEC compliant)
• Shower arm with 15” reach, solid brass construction, sliding escutcheon, 1/2” male NPT inlet and 3/4” NPSM outlet
• Solid brass wall outlet for handshower with 1/2” female NPT inlet

Specifications

• Available finishes: Polished Chrome, English Bronze, English Gold, Polished Nickel, Satin Nickel
• Standards: CSA B125.1, ASME A112.18.1, ASSE 1016
• Cartridge: 0-925 (included)
• Rough-in valve: R23 therm & pressure balance rough-in valve, sold separately
• Showerhead flow: 1.8 GPM at 60 PSI (CEC compliant)
• Country of origin (U.TKIT323EWAPC): Great Britain
