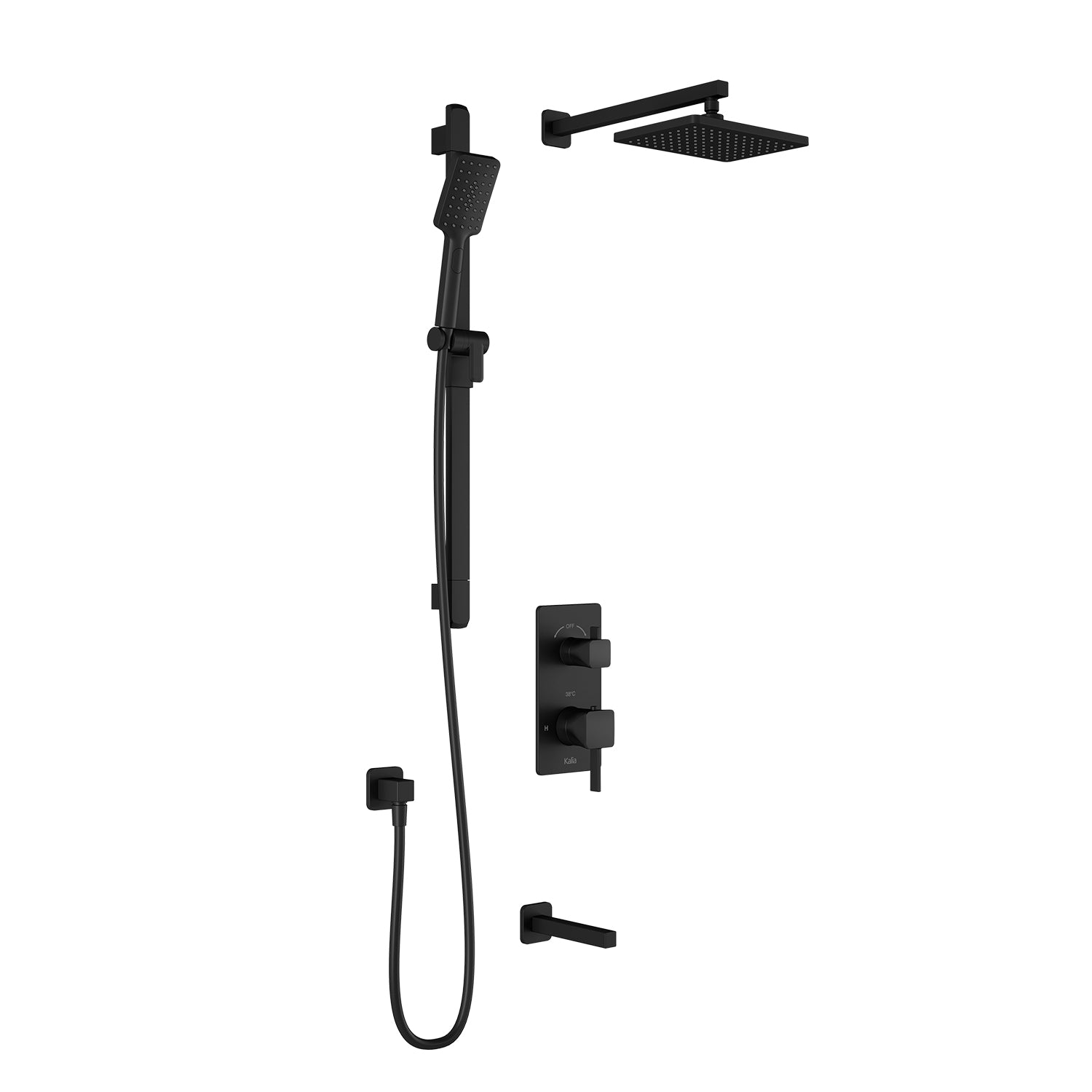

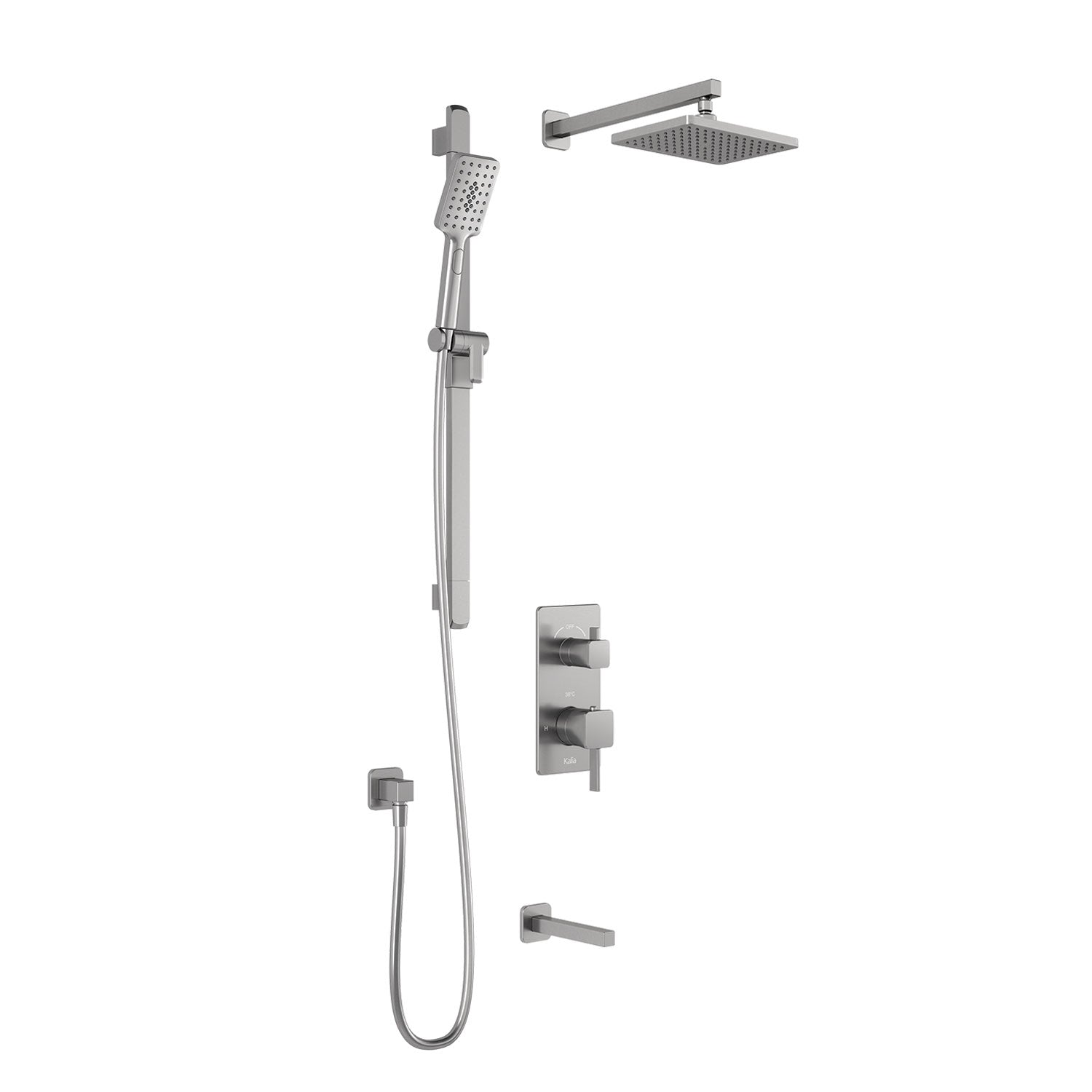

SquareOne TD3 (Valve Not Included) : AQUATONIK T/P with Diverter Shower System with Wallarm

The Kalia SquareOne TD3 (Valve Not Included) AQUATONIK T/P with Diverter Shower System with Wallarm is a thermostatic shower system supplied without the valve. It includes the decorative trim for a 3-way AQUATONIK type T/P 1/2" valve with diverter, a rainhead with 90° wall arm, a 2-jet handshower, a wallbar, a 60" flexible and soft PVC hose, a wall outlet and a tub spout.

Features

• Square decorative trim of solid brass construction with a total adjustment of 30 mm (1 3/16")
• Rainhead with soft tips for easy cleaning of limescale, an adjustable orientation swivel and a solid brass arm with a plastic rainhead
• Handshower with 2 direct functions and 1 shared function
• The handshower meets or exceeds ADA, CSA B125.1 and ASME A112.18.1 standards
• Wallbar with an easy-to-use gliding system and a locking system
• Solid brass tub spout with a regular water jet and high water flow
• Wall outlet with a connector adjustable in depth
• Guaranteed free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details
• Dimensions are approximate and subject to change

Specifications

• Rainhead and handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi each
• Rainhead dimensions: 260 mm x 188 mm x 16 mm (10 1/4" x 7 3/8" x 5/8")
• Wallbar total height: 775 mm (30 1/2")
• Tub spout inlet: 1/2" copper "slip fit" inlet or male 1/2NPT water inlet, with 76 mm (3") adjustment
• Valve: Not included
• Available finishes: Chrome, Pure Nickel, Matte Black
