SquareOne TD3 : AQUATONIK T/P with Diverter Shower System with Vertical Ceiling Arm

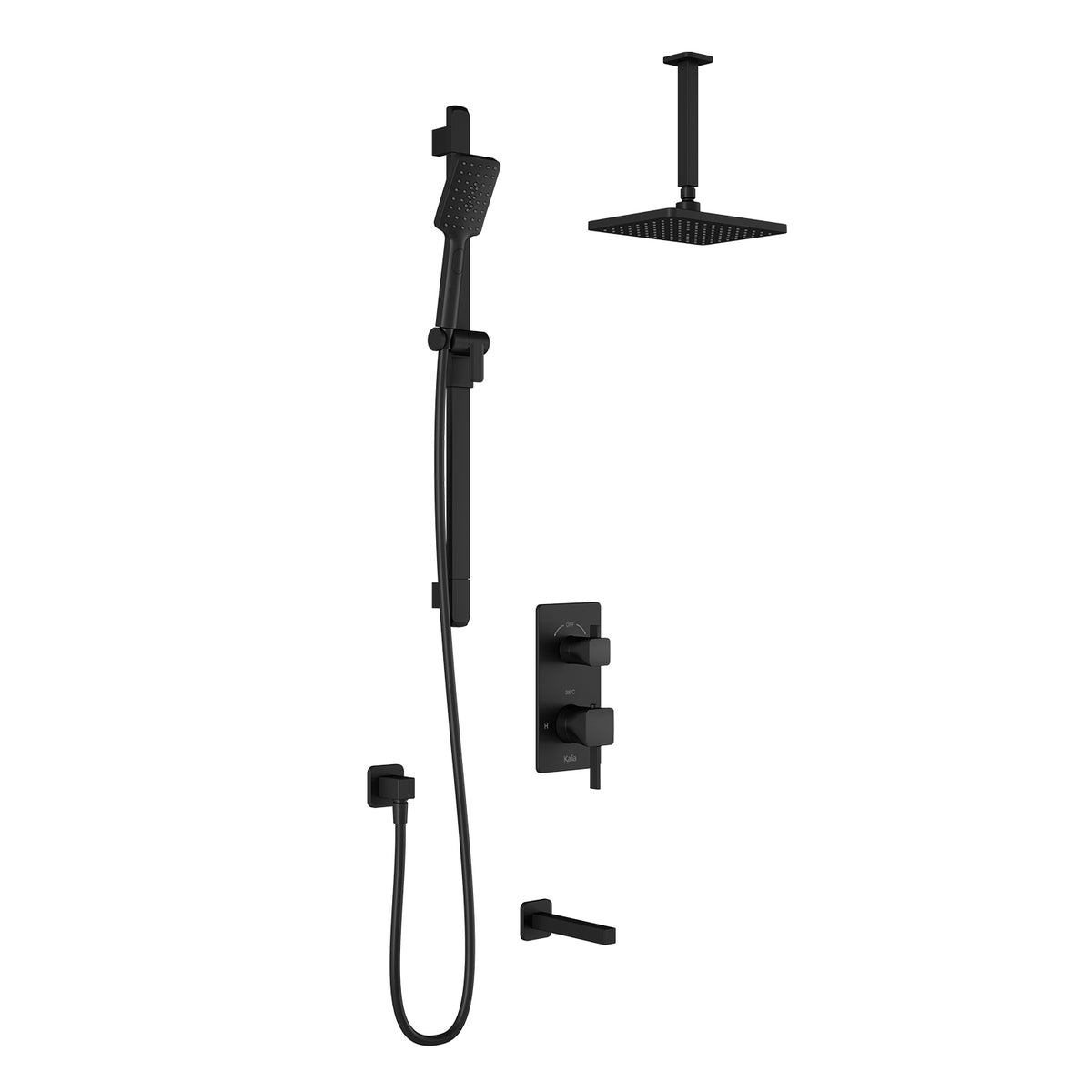

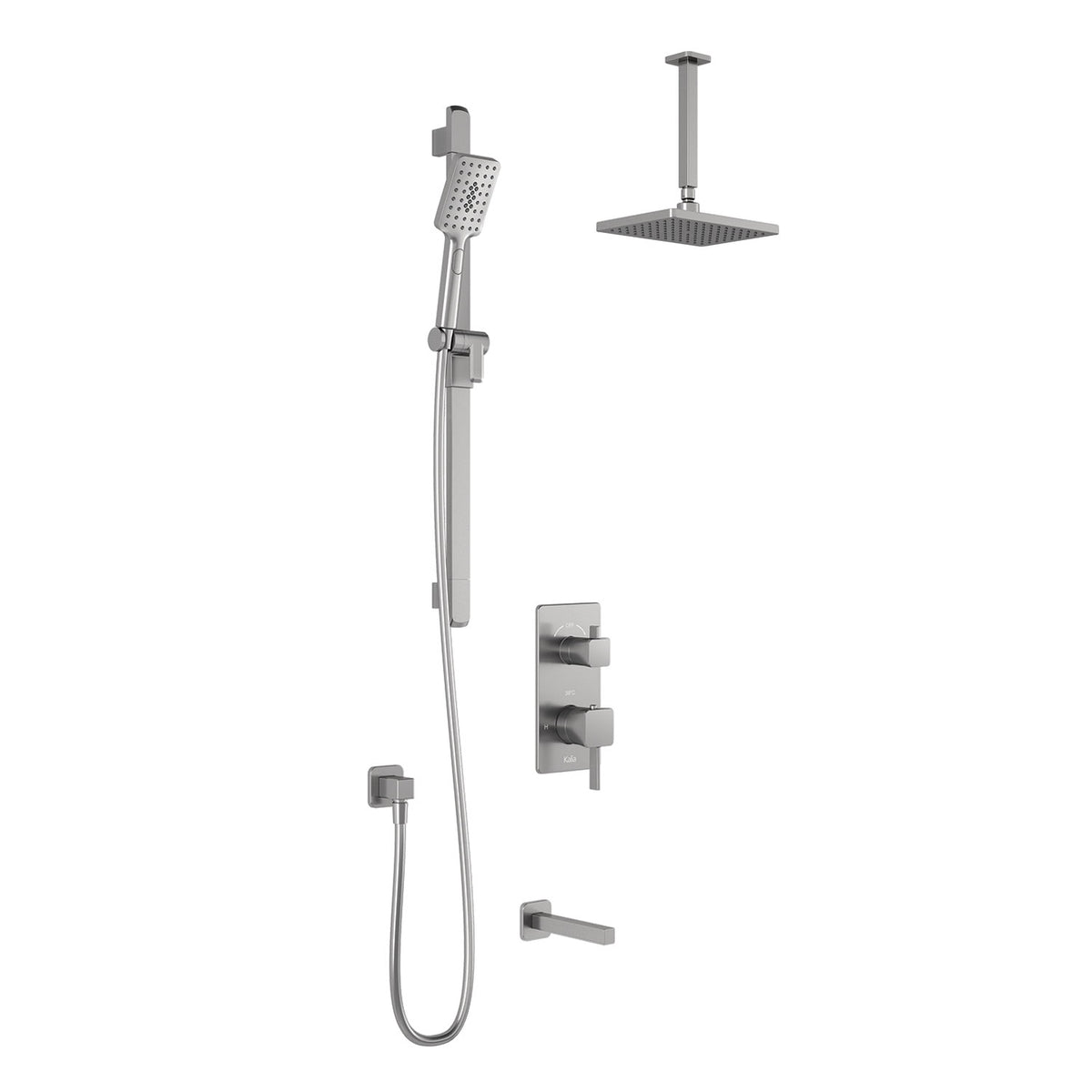

The Kalia SquareOne TD3 AQUATONIK T/P with Diverter Shower System with Vertical Ceiling Arm is a thermostatic shower system pairing a rainhead with vertical ceiling arm with a 2-jet handshower on a wallbar and a tub spout. It includes a 3-way AQUATONIK type T/P 1/2" valve with diverter and decorative trim that operates 1 or 2 components at a time, a 60" flexible and soft PVC hose and a wall outlet. The system meets or exceeds ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Solid brass valve with 2 male 1/2NPT water inlets and 3 male 1/2NPT water outlets, threaded or welded
• Valve can be installed back to back; a support is included for better stability during installation
• Rainhead with soft tips for easy cleaning of limescale, an adjustable orientation swivel and a solid brass arm with a plastic rainhead
• Male 1/2NPT water inlet on the vertical arm and female G1/2 water inlet on the rainhead
• Handshower with 2 direct functions and 1 shared function
• Wallbar with an easy-to-use gliding system and a locking system
• Solid brass tub spout with a regular water jet and high water flow
• Guaranteed free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details
• Dimensions are approximate and subject to change

Specifications

• Valve maximum flow rate: 1 outlet: 22 L/min (5.9 gpm) at 60 psi; 2 outlets: 23.5 L/min (6.21 gpm) at 60 psi
• Rainhead and handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi each
• Valve standards: CSA B125.1, ASME A112.18.1, ICC A117.1
• Rainhead dimensions: 260 mm x 188 mm x 16 mm (10 1/4" x 7 3/8" x 5/8")
• Wallbar total height: 775 mm (30 1/2")
• Available finishes: Chrome, Pure Nickel, Matte Black
