SquareOne TD2 : AQUATONIK T/P with Diverter Shower System with Wallarm

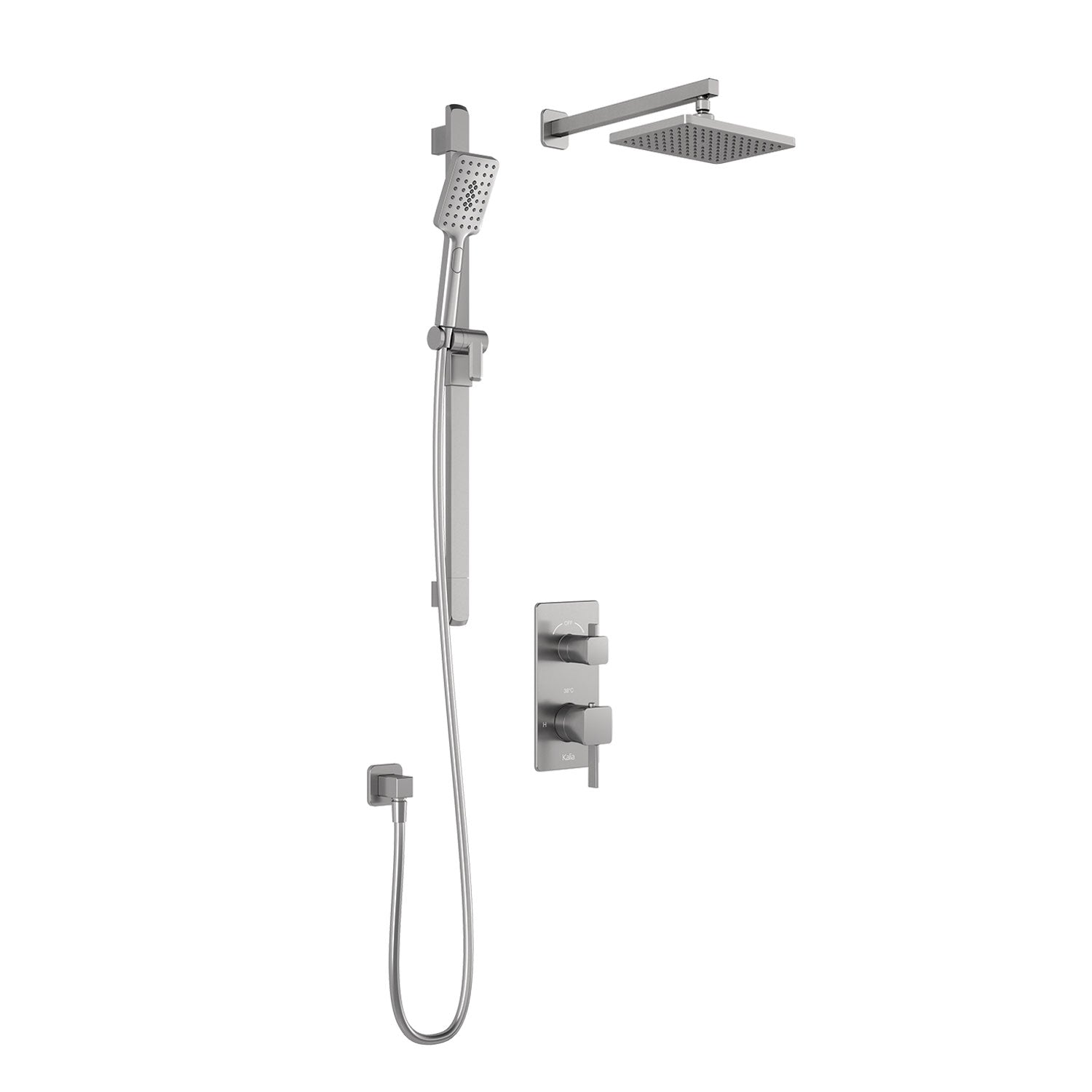

The Kalia SquareOne TD2 is an AQUATONIK T/P thermostatic shower system with diverter, pairing a rainhead on a 90° wall arm with a 2-jet handshower on a wallbar. It includes a 2-way AQUATONIK type T/P 1/2" valve with diverter and decorative trim that operates 1 or 2 components at a time, a 60" PVC hose and a wall outlet. The system meets or exceeds ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Solid brass valve with 2 male 1/2NPT water inlets and 2 male 1/2NPT water outlets, threaded or welded
• Valve can be installed back to back, has a total adjustment of 32 mm (1 1/4") and includes a support for better stability during installation
• Rainhead with soft tips for easy limescale cleaning, adjustable orientation swivel, and solid brass arm with plastic rainhead
• Handshower with 2 direct functions and 1 shared function
• Wallbar with an easy-to-use gliding system and a locking system
• Guaranteed free of defects in material and workmanship for normal residential use; see the warranty included with the Kalia products for details
• Dimensions are approximate and subject to change

Specifications

• Valve maximum flow rate: 1 outlet: 22 L/min (5.9 gpm) at 60 psi; 2 outlets: 23.5 L/min (6.21 gpm) at 60 psi
• Rainhead/handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi each
• Valve standards: CSA B125.1, ASME A112.18.1, ICC A117.1
• Rainhead dimensions: 260 mm x 188 mm x 16 mm (10 1/4" x 7 3/8" x 5/8")
• Wallbar total height: 775 mm (30 1/2")

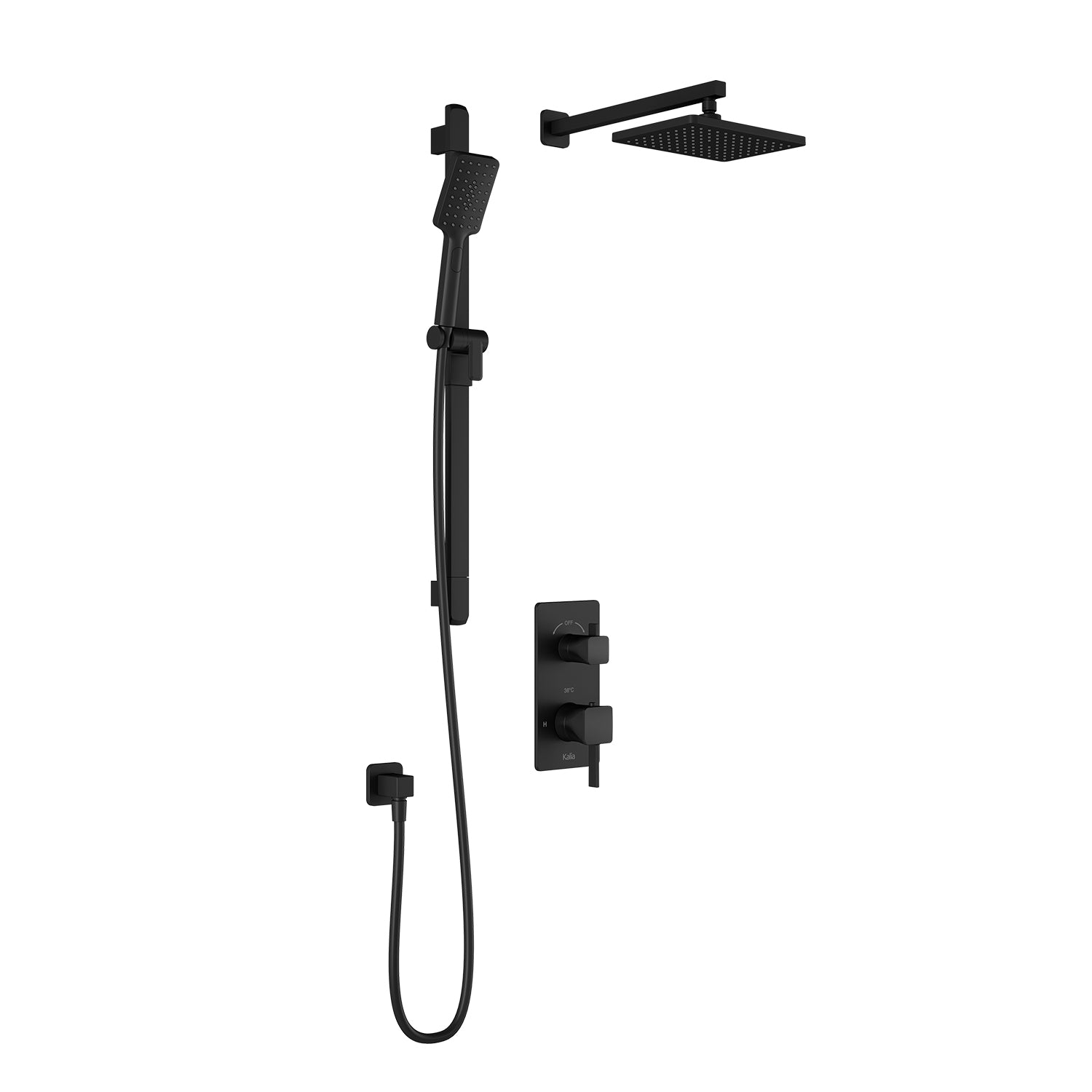

• Available finishes: Chrome, Pure Nickel, Matte Black
