SquareOne TCD1 : AQUATONIK T/P Coaxial Shower System with Wallarm

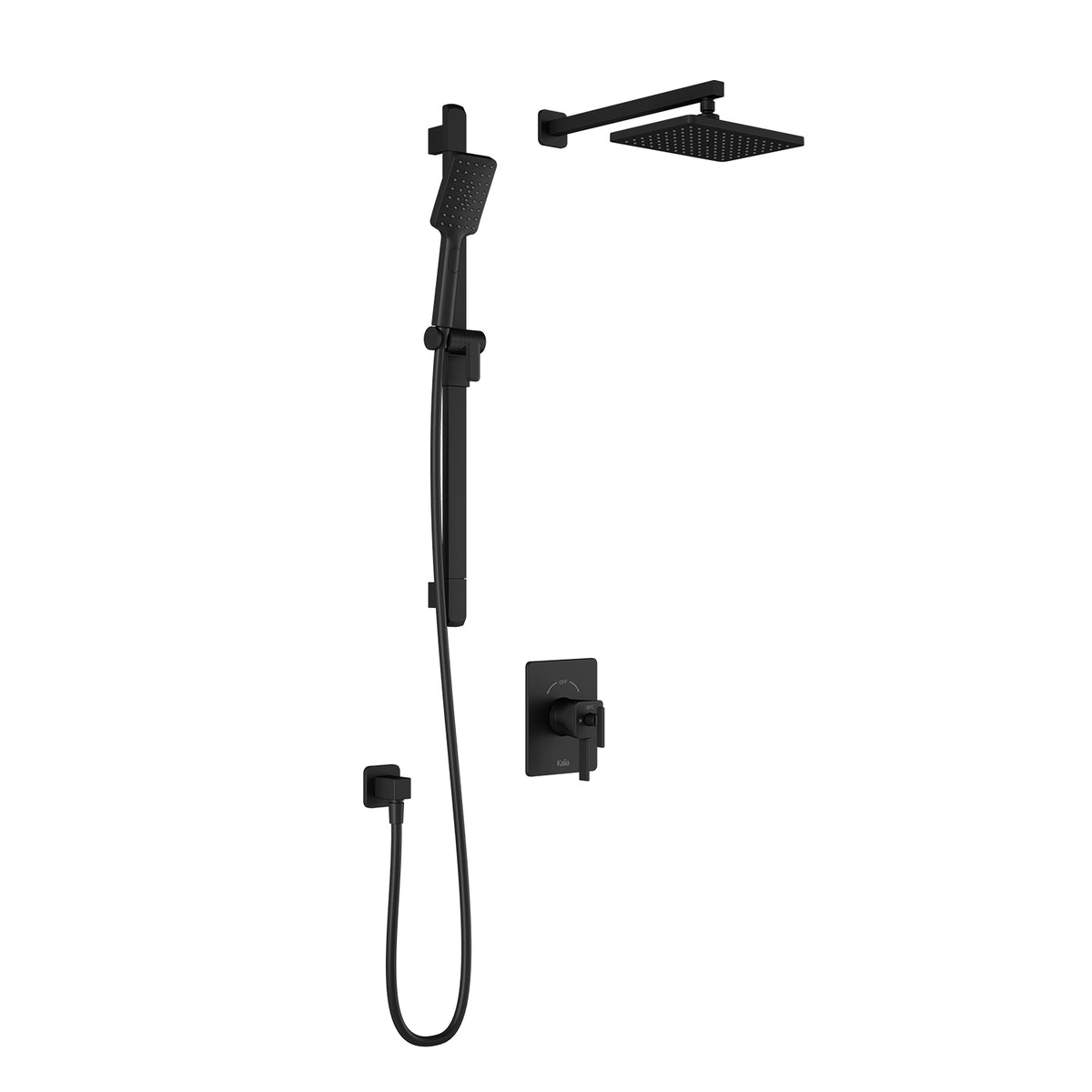

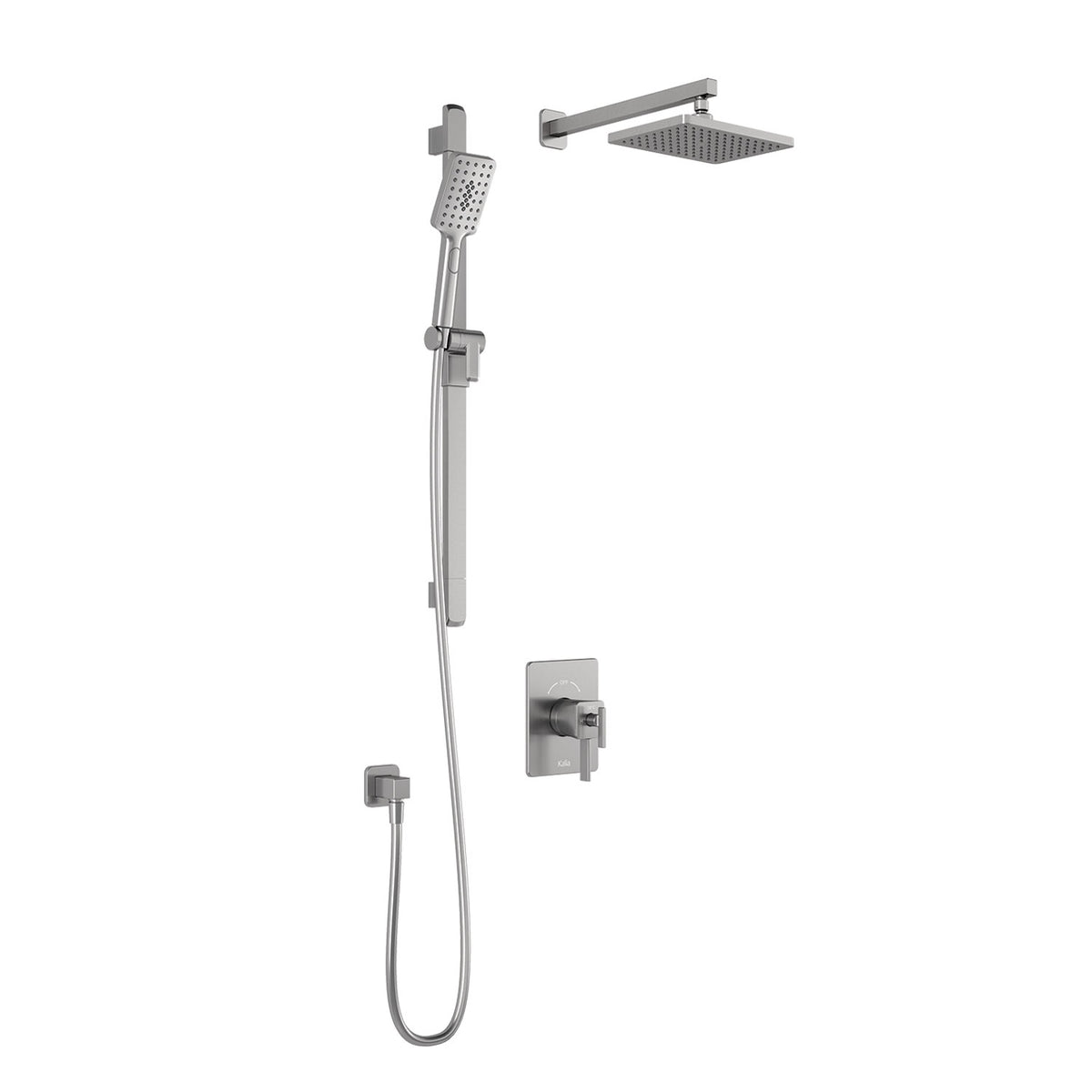

The Kalia SquareOne TCD1 AQUATONIK T/P Coaxial Shower System with Wallarm is a thermostatic coaxial shower system offered in Chrome, Pure Nickel and Matte Black. Components included are a 2-way AQUATONIK type T/P 1/2" coaxial valve with diverter and decorative trim, a rainhead with 90° wall arm, a 2-jet handshower, a wallbar, a 60" flexible and soft PVC hose and a wall outlet. The system meets or exceeds the ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• The coaxial valve is of solid brass construction and operates 1 or 2 components at a time
• The valve has 2 male water inlets and 2 male water outlets, 1/2NPT threaded or welded, and can be installed back to back
• A support for better stability during installation is included with the valve
• The rainhead has a solid brass arm and plastic rainhead construction, soft tips for easy cleaning of limescale and an adjustable orientation swivel
• The 2-jet handshower has 2 direct functions and 1 shared function, soft tips for easy cleaning of limescale and a male water inlet G1/2
• The wallbar for the handshower has an easy-to-use gliding system and a locking system
• The wall outlet has a female water inlet 1/2NPT, a male water outlet G1/2 and a connector adjustable in depth

Specifications

• Collection: SquareOne
• Available finishes: Chrome, Pure Nickel, Matte Black
• Valve maximum flow rate: 25 L/min (6.6 gpm) at 60 psi with 1 outlet; 29 L/min (7.7 gpm) at 60 psi with 2 outlets
• Rainhead maximum flow rate: 7.6 L/min (2 gpm) at 80 psi
• Handshower maximum flow rate: 7.6 L/min. (2 gpm) at 80 psi
• Valve total adjustment: 32 mm (1 1/4")
• Rainhead dimensions: 260 mm x 188 mm x 16 mm (10 1/4" x 7 3/8" x 5/8"), approximate and subject to change
• Handshower dimensions: 80 mm (3 1/8") x 110 (4 3/8"), approximate and subject to change
• Wallbar total height: 775 mm (30 1/2"), approximate and subject to change
• Warranty: Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with Kalia products for details
