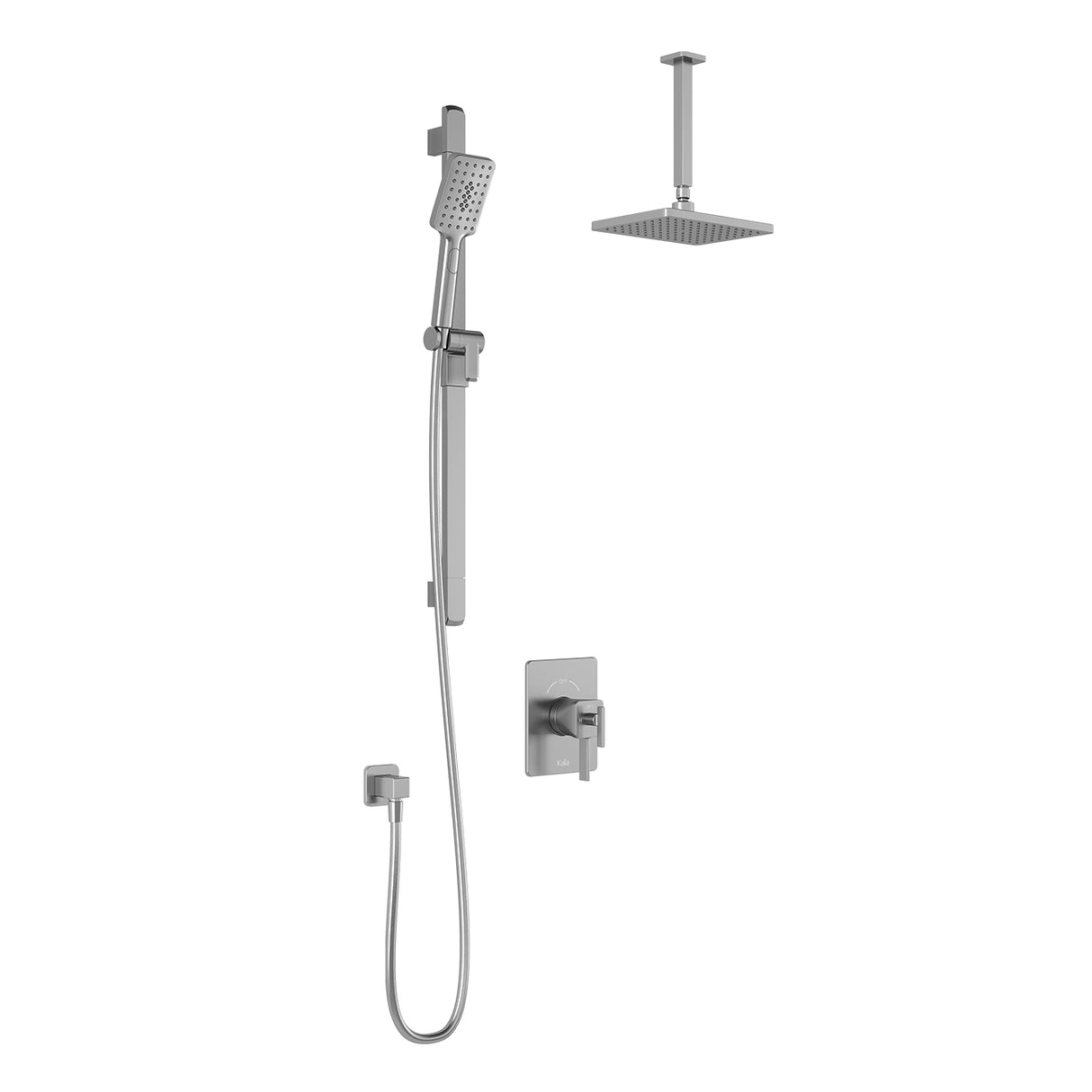

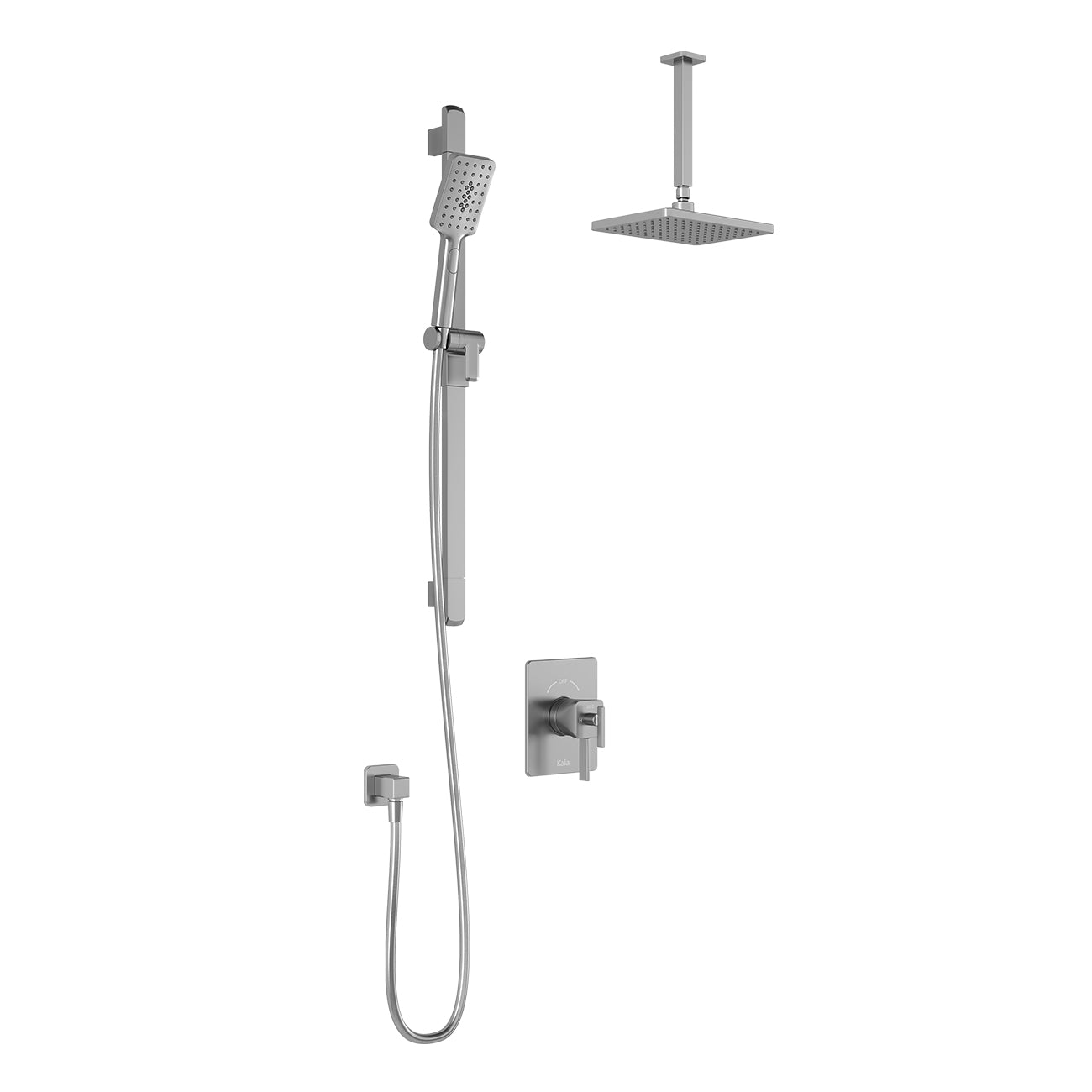

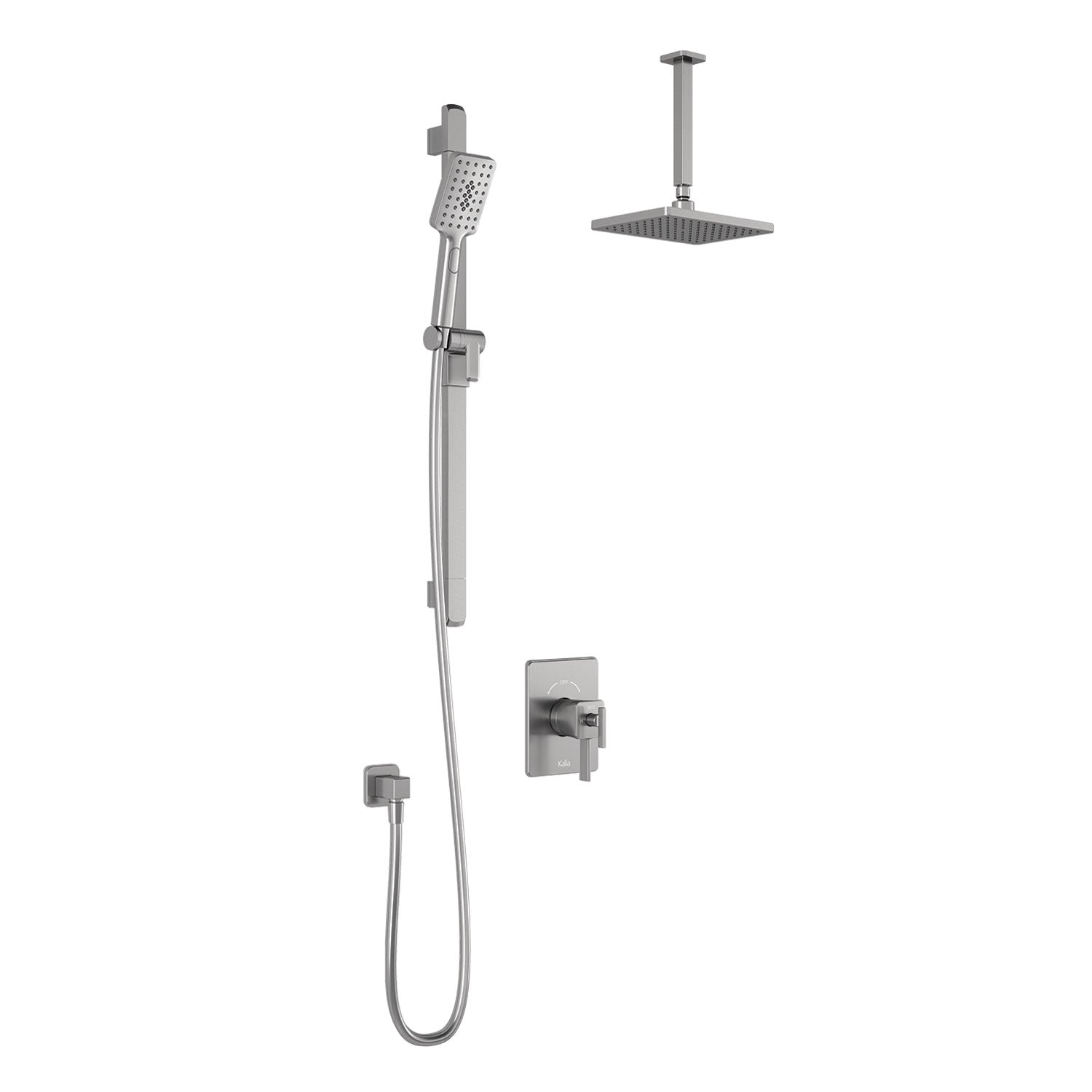

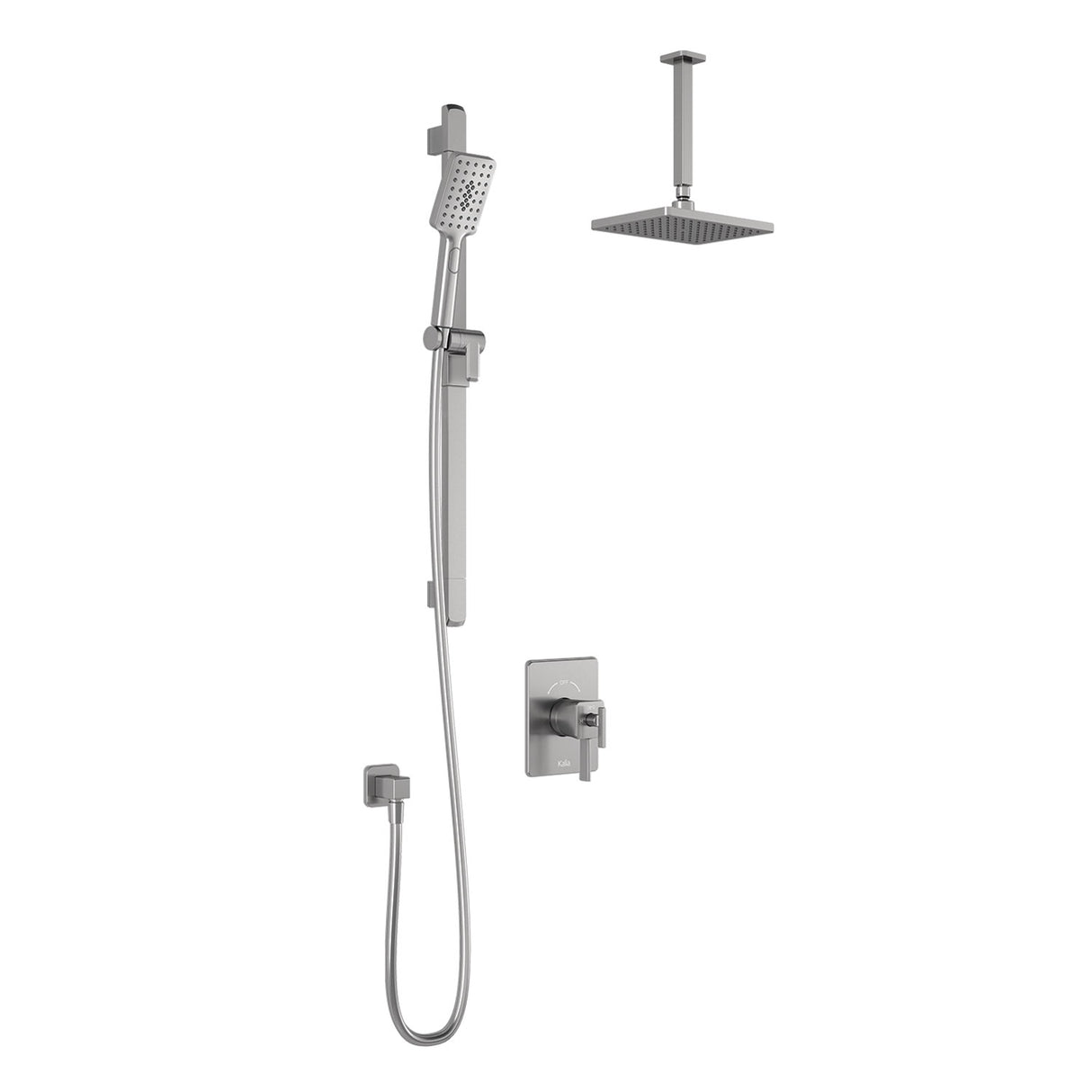

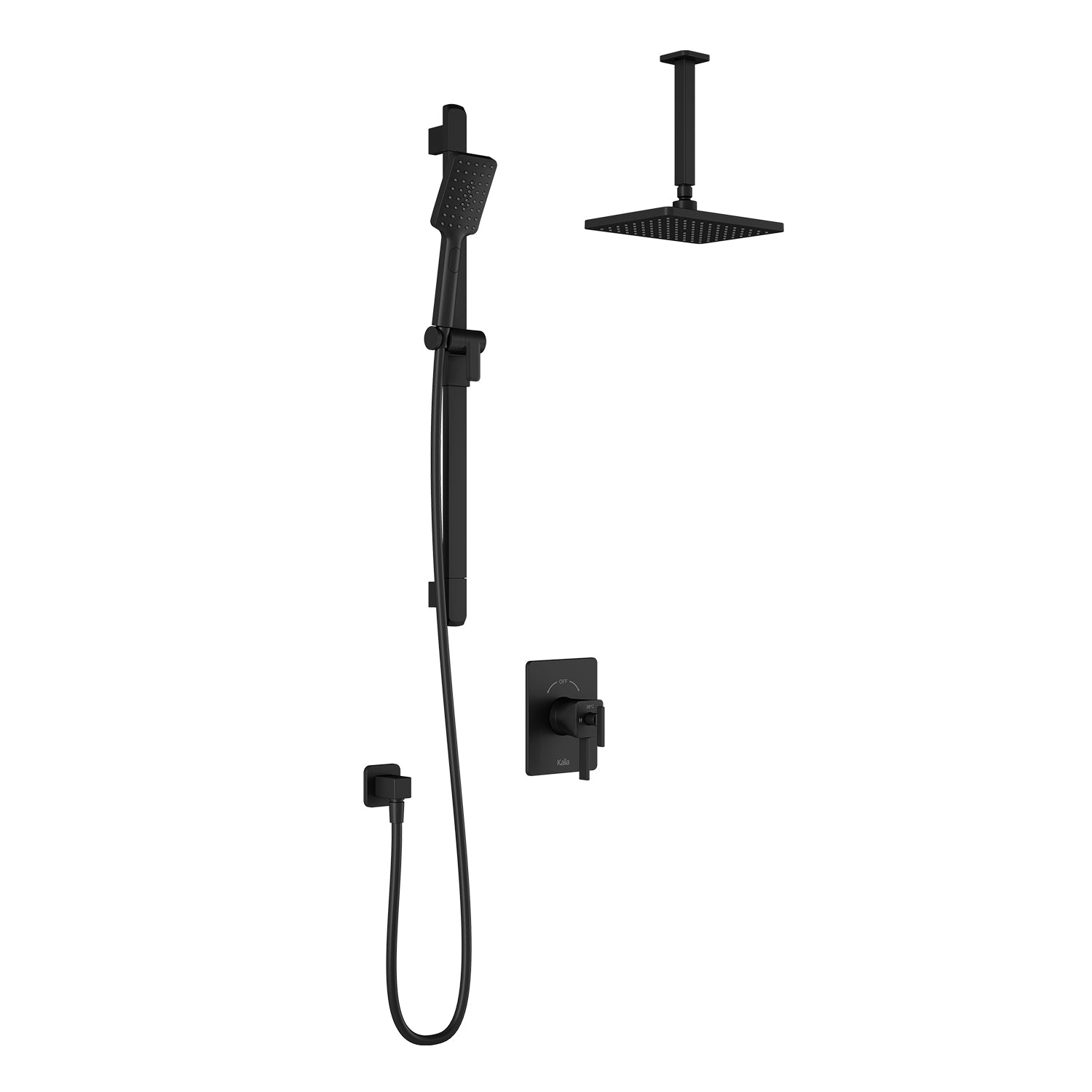

SquareOne TCD1 : AQUATONIK T/P Coaxial Shower System with Vertical Ceiling Arm

The Kalia SquareOne TCD1 AQUATONIK T/P Coaxial Shower System with Vertical Ceiling Arm is a thermostatic coaxial shower system offered in Chrome, Pure Nickel and Matte Black. Components included are a 2-way AQUATONIK™ type T/P 1/2" coaxial valve with diverter and decorative trim, a rainhead with vertical ceiling arm, a 2-jet handshower, a wallbar, a 60" flexible and soft PVC hose and a wall outlet. The system meets or exceeds the ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Solid brass coaxial valve that operates 1 or 2 components at a time and can be installed back to back
• A support is included with the valve for better stability during installation
• Rainhead with solid brass arm and plastic rainhead construction and an adjustable orientation swivel
• Soft tips on the rainhead and the handshower for easy cleaning of limescale
• 2-jet handshower with 2 direct functions and 1 shared function
• Wallbar with an easy-to-use gliding system and a locking system
• Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.

Specifications

• Available finishes: Chrome, Pure Nickel, Matte Black
• Valve maximum flow rate: 1 outlet: 25 L/min (6.6 gpm) at 60 psi; 2 outlets: 29 L/min (7.7 gpm) at 60 psi
• Rainhead and handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi each
• Valve certifications: CSA B125.1, ASME A112.18.1, ICC A117.1
• Valve total adjustment: 32 mm (1 1/4")
• Rainhead dimensions: 260 mm x 188 mm x 16 mm (10 1/4" x 7 3/8" x 5/8")
• Wallbar total height: 775 mm (30 1/2")
• Note: All dimensions, including the valve total adjustment, are approximated and are subject to changes
