Shower kit 1244 trim

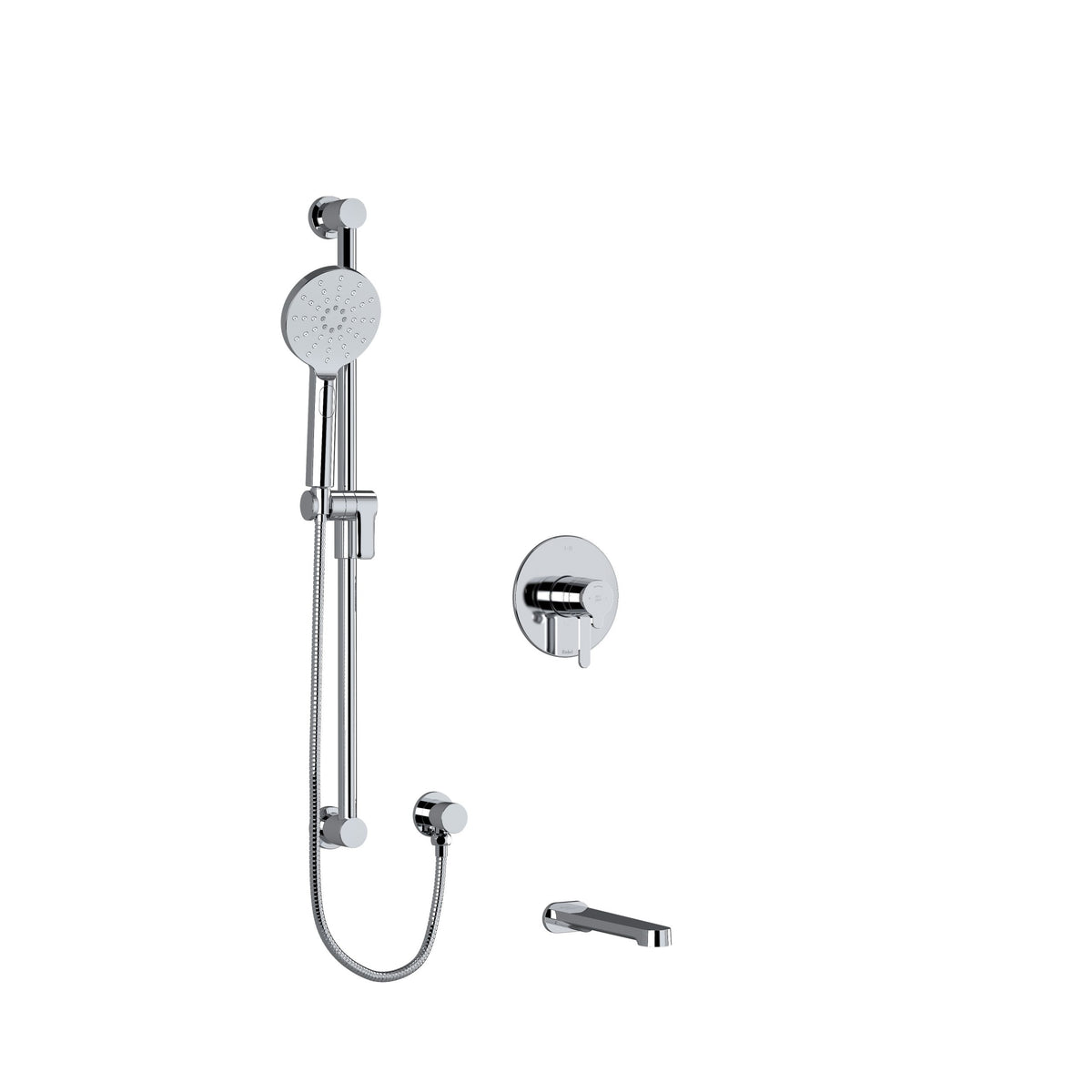

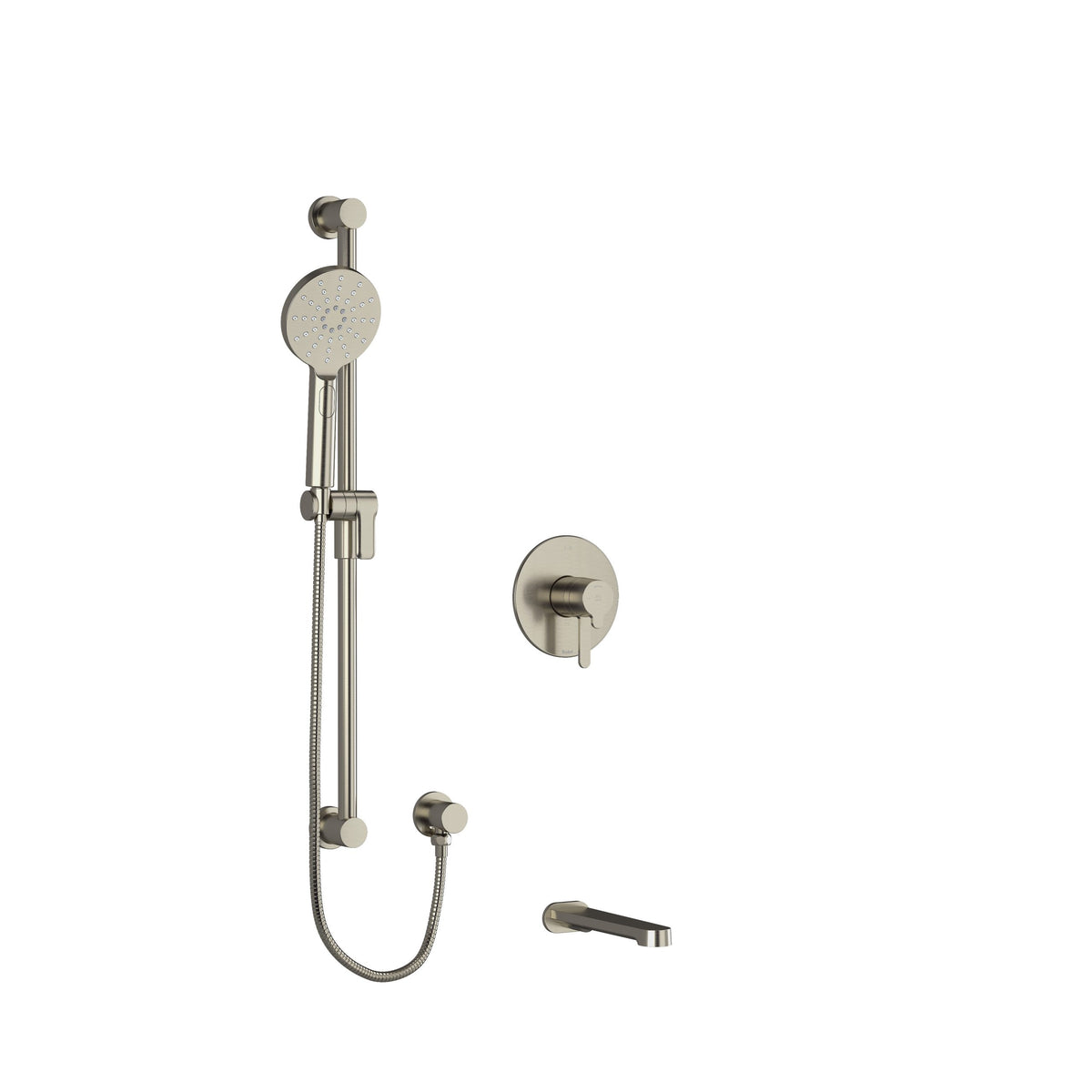

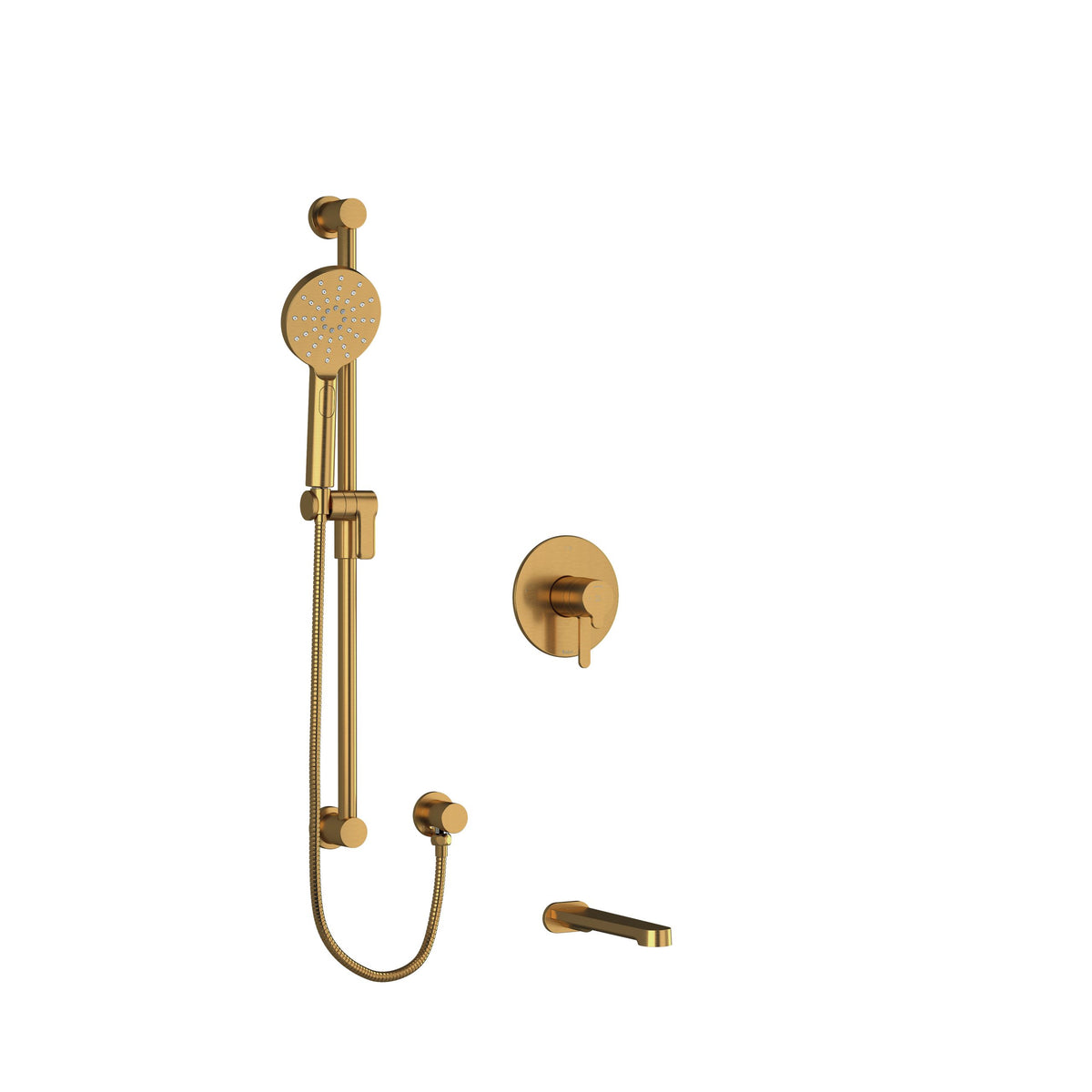

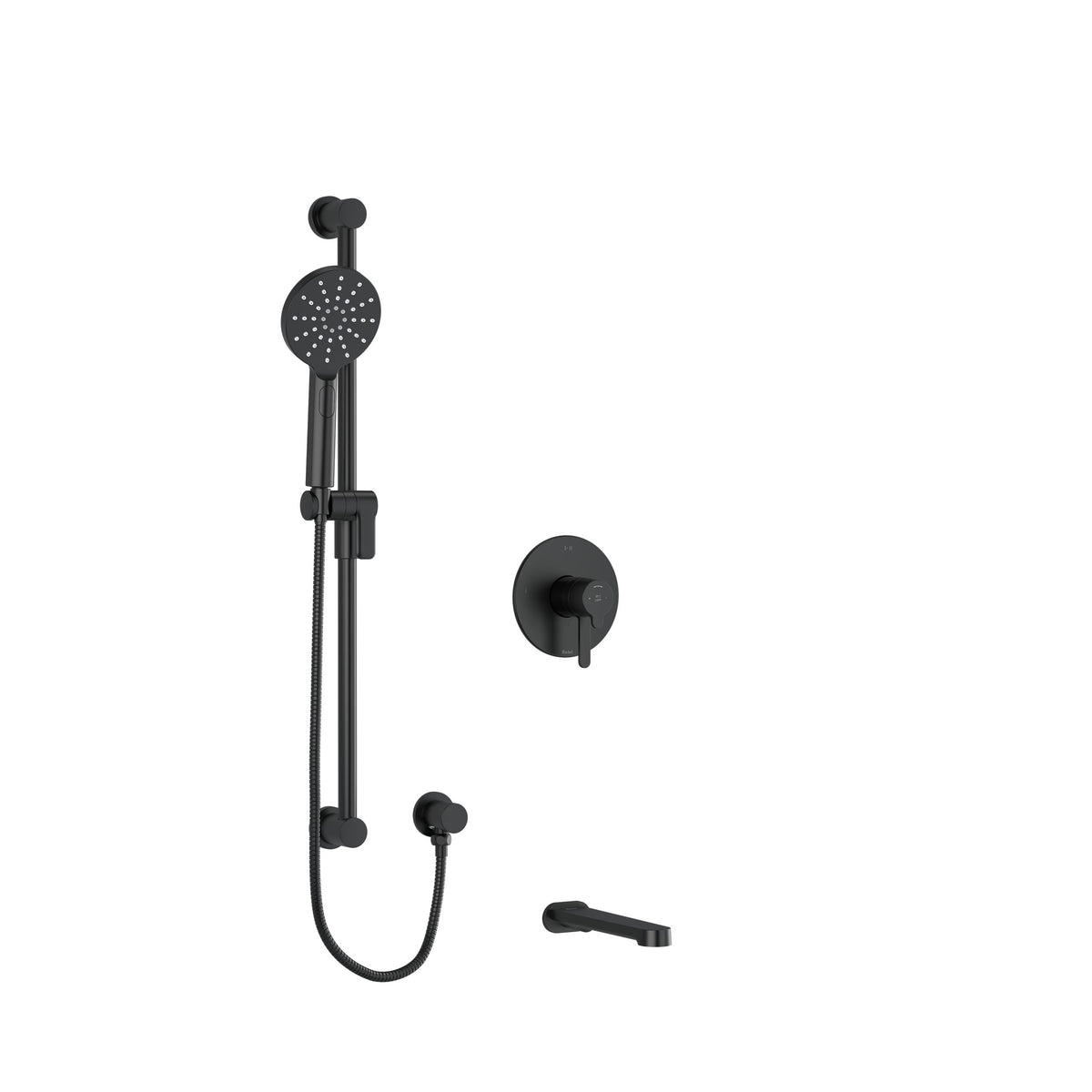

The Riobel Nibi shower kit 1244 trim is a ½" 2-way Type T/P (thermostatic/pressure balance) coaxial system with spout and hand shower rail. Its components are the TNB44 2-way no share Type T/P coaxial valve trim, the 4664 hand shower rail, the 775 elbow supply and the NB80 wall-mount tub spout. The kit meets CSA B125.1, ASME A112.18.1 and ASSE 1016.

Features

• Valve trim: 3 positions (OFF, 1, 2) no share
• Valve trim: thermostatic / pressure balance coaxial cartridge with check valves
• Valve trim is trim only; installation requirement: R23, R23-SPEX or R23-EX rough required to complete
• Valve trim: Type TP, for use with shower heads rated at 7L/min (1.8 gpm) or higher
• Hand shower rail: scale-free 2-jet hand shower with Easy-Glide left cursor
• Hand shower rail: 150 cm (59") double interlock flexible hose, swivel and 2 check valves, on a Ø22 mm (7/8") slide bar
• Tub spout: brass, with a ½" copper slip fit inlet
• Elbow supply: G1/2" female inlet, G1/2" shank supplied, G1/2" outlet male and adjustable depth

Specifications

• Installation type: Wall
• Material: Brass
• Standards: CSA B125.1, ASME A112.18.1, ASSE 1016
• Available finishes: Brushed Gold, Black, Brushed Nickel, Chrome
• Warranty (Brushed Gold, TKIT1244NBBG): Limited Lifetime Warranty
• Country of origin (Brushed Gold, TKIT1244NBBG): China
