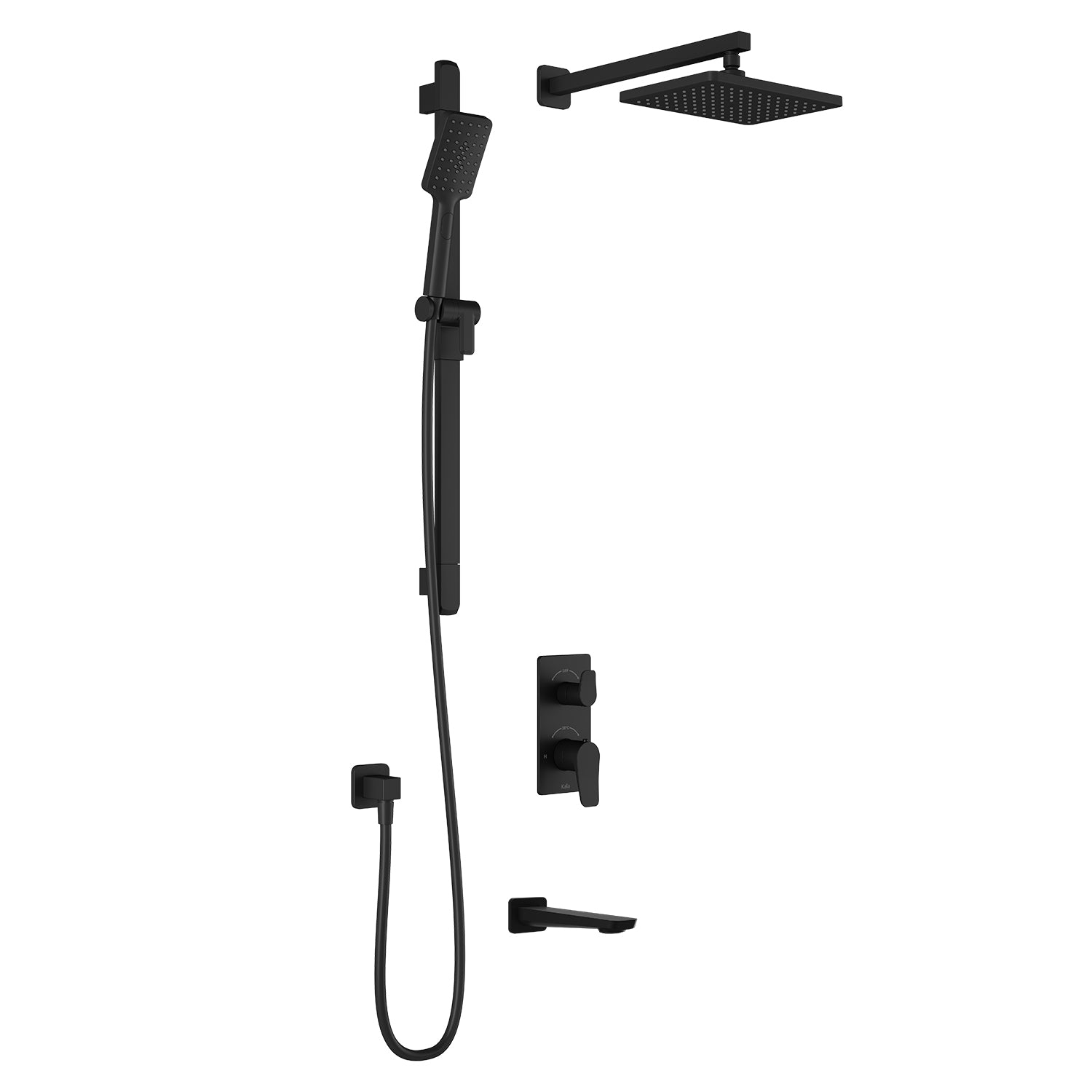

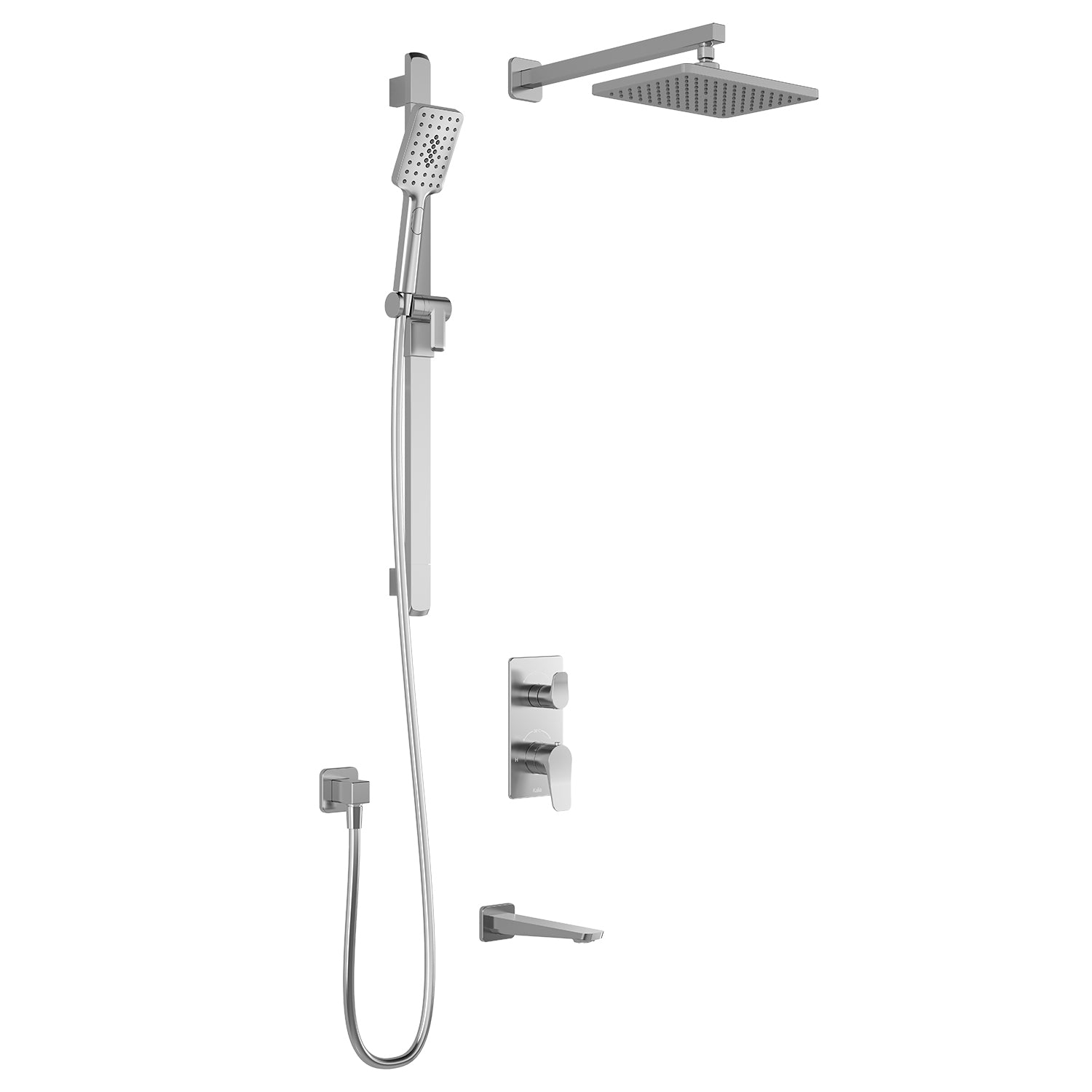

MOROKA TD3 : AQUATONIK T/P with Diverter Shower System with Wallarm

The Kalia MOROKA™ TD3 is a thermostatic shower system with wall arm, built around a 3-way AQUATONIK™ type T/P 1/2" valve with diverter and decorative trim. Components included are the valve with trim, a rainhead with 90° wall arm, a 2-jet handshower, a wallbar, a 60'' flexible and soft PVC hose, a wall outlet and a tub spout. The system meets or exceeds CSA B125.1, ASME A112.18.1 and ICC A117.1.

Features

• Solid brass valve with 2 male water inlets and 3 male water outlets, 1/2NPT threaded or welded
• Diverter operates 1 or 2 components at a time
• Valve offers a total adjustment of 32 mm (1 1/4") and can be installed back to back; a support is included for better stability during installation
• Rainhead with solid brass arm and plastic rainhead construction, an adjustable orientation swivel and soft tips for easy cleaning of limescale
• Handshower with 2 direct functions and 1 shared function
• Wallbar with an easy-to-use gliding system and locking system
• Solid brass tub spout with a regular water jet and high water flow

Specifications

• Valve maximum flow rate (1 outlet): 22 L/min (5.9 gpm) at 60 psi
• Valve maximum flow rate (2 outlets): 23.5 L/min (6.21 gpm) at 60 psi
• Rainhead dimensions: 260 mm x 188 mm x 16 mm (10 1/4" x 7 3/8" x 5/8")
• Rainhead and handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi
• Wallbar total height: 775 mm (30 1/2")
• Tub spout inlet: 1/2" copper "slip fit" inlet or 1/2NPT male water inlet, with 70 mm (2 3/4") adjustment
• Available finishes: Chrome, Matte Black
• Note: Dimensions are approximated and are subject to changes
