MOROKA TD2 : AQUATONIK T/P with Diverter Shower System with Wallarm Matte Black

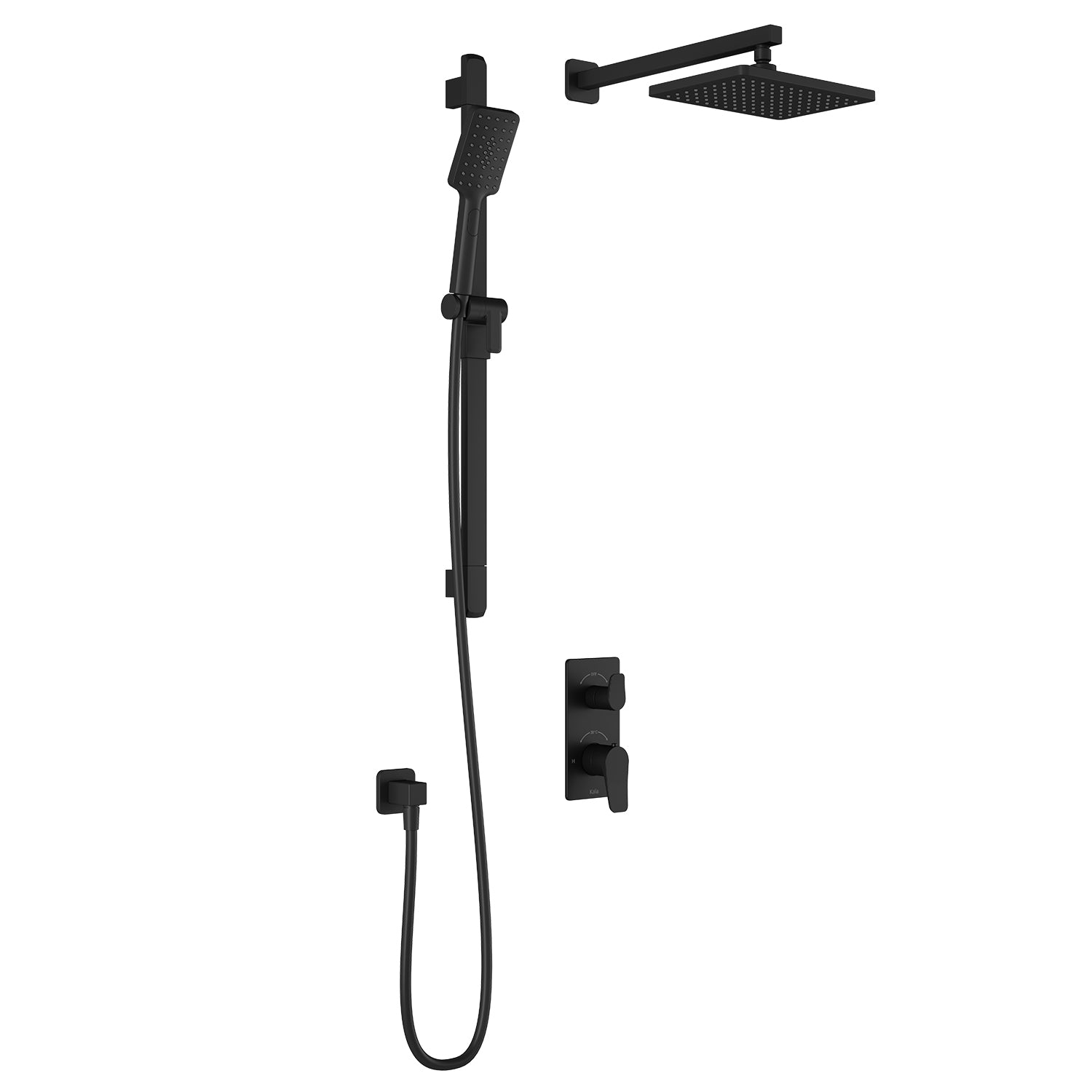

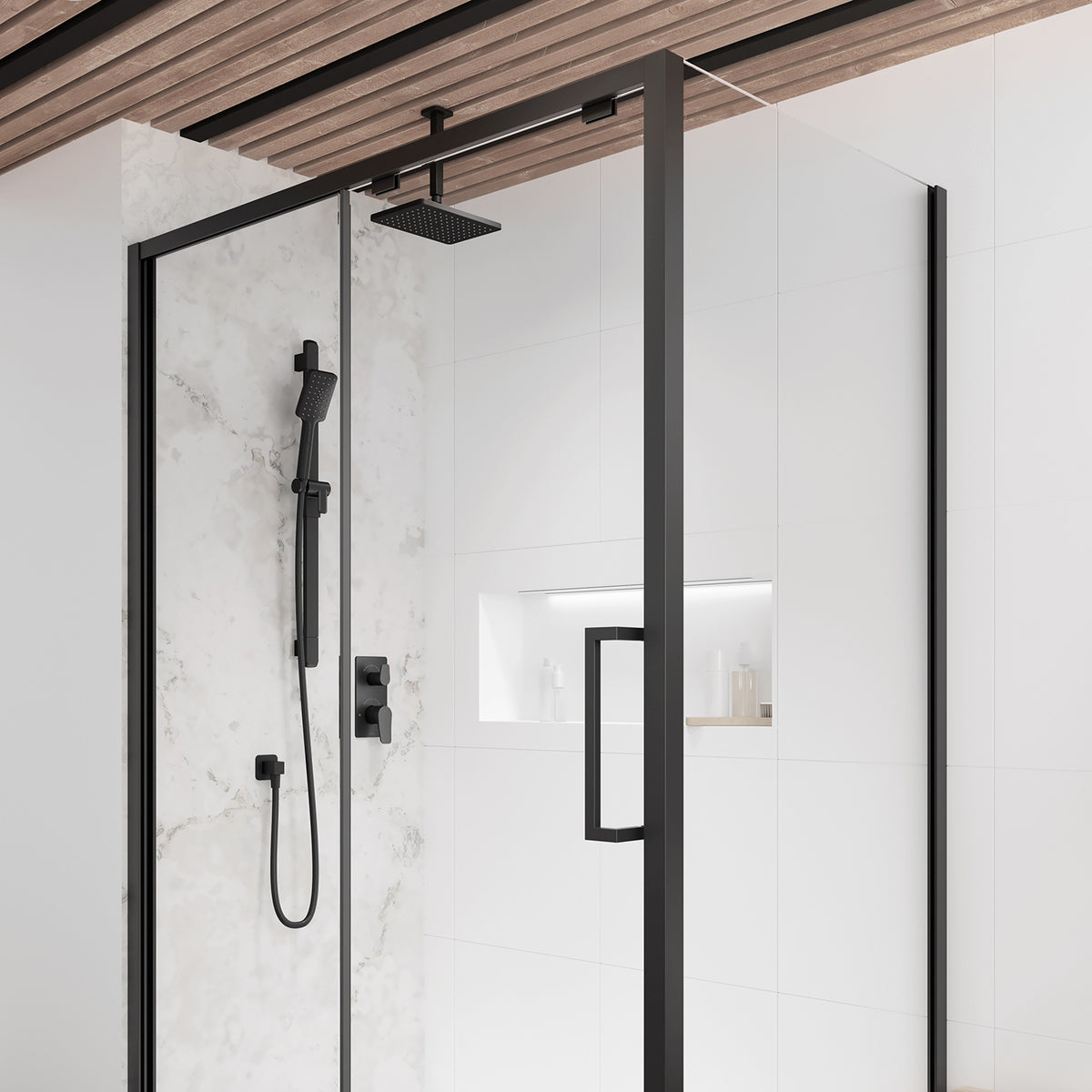

The Kalia MOROKA TD2 is a thermostatic shower system in Matte Black. Components included are a 2-way AQUATONIK type T/P 1/2” valve with diverter and decorative trim, a rainhead with 90° wall arm, a 2-jet handshower, a wallbar, a 60’’ flexible and soft PVC hose and a wall outlet. The valve operates 1 or 2 components at a time.

Features

• Valve: solid brass construction, 2 male water inlets and 2 male water outlets (1/2NPT threaded or welded), total adjustment of 32 mm (1 1/4”) and can be installed back to back; a support is included for better stability during installation
• Rainhead with 90° wall arm: solid brass arm and plastic rainhead construction, soft tips for easy cleaning of limescale, adjustable orientation swivel and a maximum flow rate of 7.6 L/min (2 gpm) at 80 psi
• 2-jet handshower: 2 direct functions and 1 shared function, dimension 80 mm (3 1/8’’) x 110 (4 3/8’’), G1/2 male water inlet, soft tips for easy cleaning of limescale and a maximum flow rate of 7.6 L/min (2 gpm) at 80 psi
• Wallbar for handshower: total height of 775 mm (30 1/2’’), easy-to-use gliding system and locking system
• Wall outlet: 1/2NPT female water inlet, G1/2 male water outlet and connector adjustable in depth
• Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.

Specifications

• Finish: Matte Black
• Valve maximum flow rate: 1 outlet: 22 L/min (5.9 gpm) at 60 psi; 2 outlets: 23.5 L/min (6.21 gpm) at 60 psi
• Rainhead dimensions: 260 mm x 188 mm x 16 mm (10 1/4’’ x 7 3/8” x 5/8”)
• System certifications: CSA B125.1, ASME A112.18.1, ICC A117.1
• Note: Dimensions are approximate and subject to change; refer to the installation instructions.
