MOROKA TD2 : AQUATONIK T/P with Diverter Shower System with Wallarm Chrome

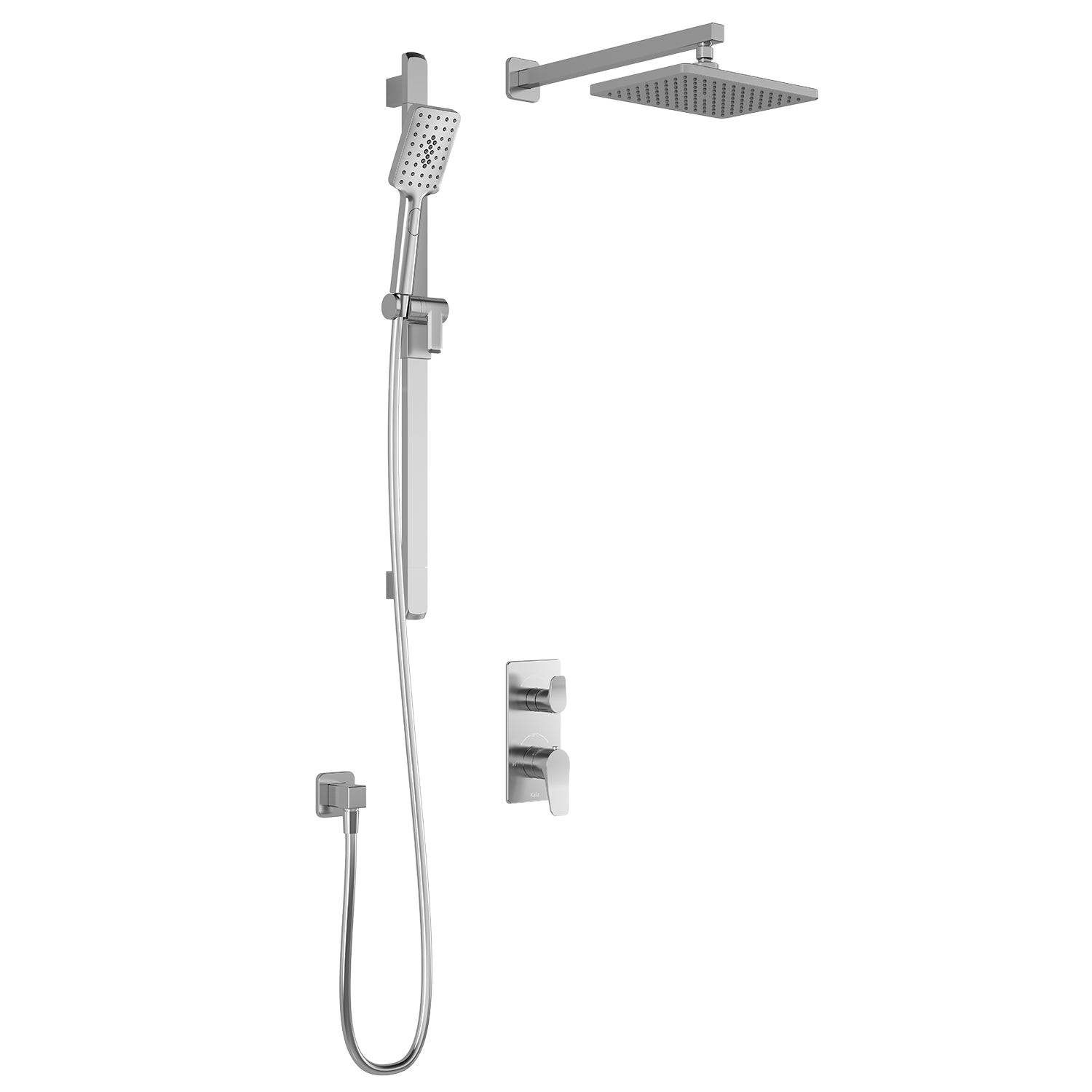

The Kalia MOROKA TD2 AQUATONIK T/P with Diverter Shower System with Wallarm (BF1922-110) is a TD2 thermostatic shower system in Chrome. Components included are a 2-way AQUATONIK type T/P 1/2” valve with diverter and decorative trim, a rainhead with 90° wall arm, a 2-jet handshower, a wallbar, a 60’’ flexible and soft PVC hose and a wall outlet. The system meets or exceeds the CSA B125.1, ASME A112.18.1 and ICC A117.1 standards.

Features

• Valve with diverter: solid brass, operates 1 or 2 components at a time, can be installed back to back, total adjustment of 32 mm (1 1/4”).
• The valve has 2 male water inlets and 2 male water outlets, 1/2NPT threaded or welded; a support for better stability during installation is included.
• Rainhead: 260 mm x 188 mm x 16 mm (10 1/4’’ x 7 3/8” x 5/8”), soft tips for easy cleaning of limescale, adjustable orientation swivel, solid brass arm and plastic rainhead.
• Handshower: 80 mm (3 1/8’’) x 110 (4 3/8’’), 2 direct functions and 1 shared function, soft tips for easy cleaning of limescale; it meets or exceeds the ADA, CSA B125.1 and ASME A112.18.1 standards.
• Wallbar: total height of 775 mm (30 1/2’’), easy-to-use gliding system and locking system.
• Wall outlet: female water inlet 1/2NPT, male water outlet G1/2, connector adjustable in depth.

Specifications

• Finish: Chrome
• Valve maximum flow rate: 1 outlet: 22 L/min (5.9 gpm) at 60 psi; 2 outlets: 23.5 L/min (6.21 gpm) at 60 psi
• Rainhead and handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi each
• Warranty: Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use
• Note: Dimensions are approximated and are subject to changes; refer to the installation instructions.
