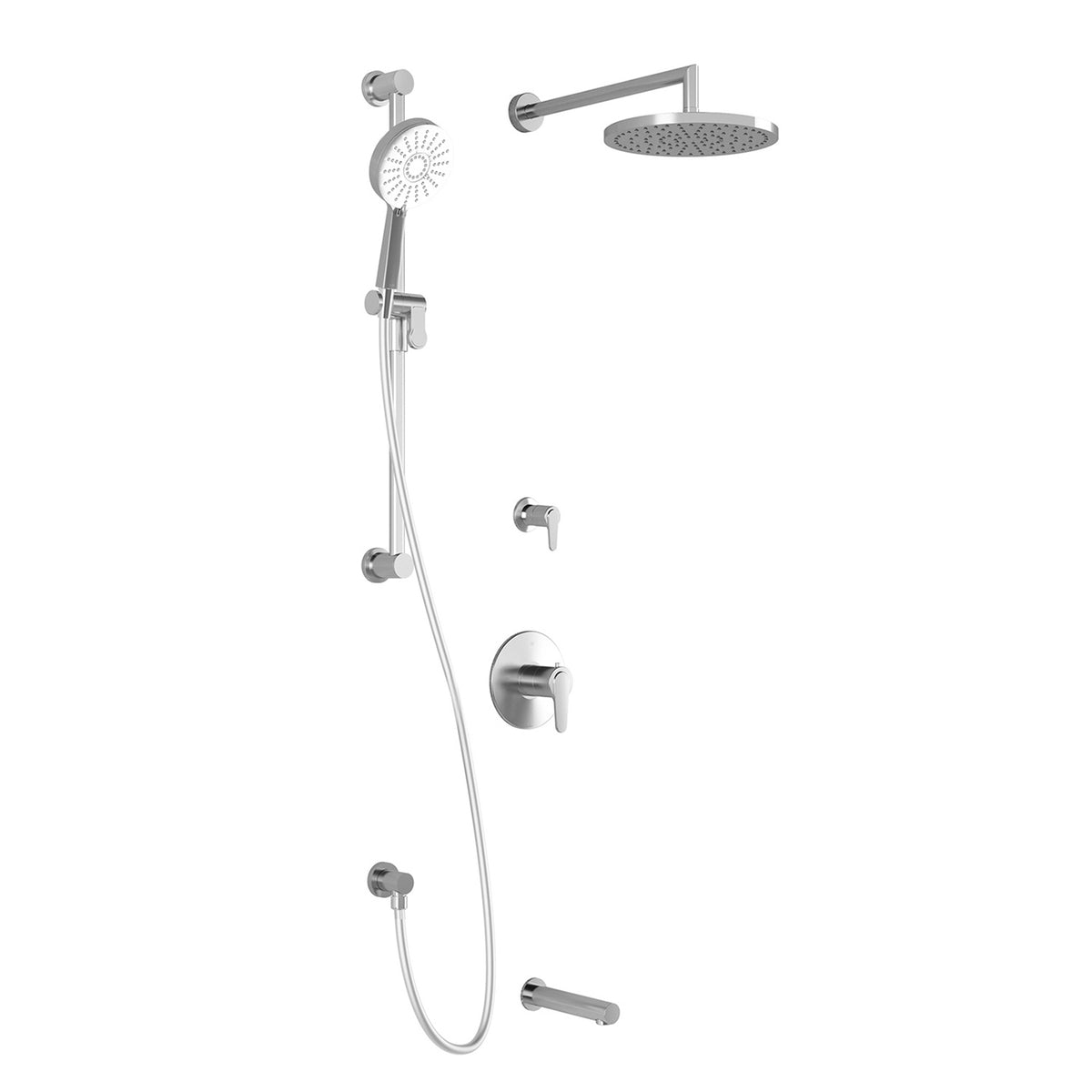

KONTOUR TD3 PLUS : AQUATONIK T/P Shower System with Wallarm

The Kalia KONTOUR TD3 PLUS AQUATONIK T/P shower system with wallarm in Chrome is a TD3 thermostatic shower system with a rainhead on a 90° wall arm, a 2-jet handshower on a wallbar, a tub spout and a 3-way diverter. Also included are an AQUATONIK type T/P 1/2" valve and decorative trim, a wall outlet and a 60" (1524 mm) flexible and soft PVC hose with G1/2 female connection and integrated check valve. The system meets or exceeds the ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• AQUATONIK valve: solid brass construction, no visible screw, integrated service stops with check valve, male water inlet 1/2NPT threaded or welded; can be installed back-to-back.
• 3-way diverter: solid brass construction, no visible screw, operates 1 or 2 components at a time and support for better stability during installation included.
• Rainhead: 254 mm (10") diameter, solid brass arm and plastic rainhead construction, anti-scale system with soft sprays and adjustable orientation swivel.
• 2-jet handshower: plastic construction, diameter of 121mm (4 3/4"), anti-scale system with soft sprays, G1/2 male water inlet, and 2 direct positions and 1 shared position.
• Wallbar: plastic construction, easy-to-use gliding system and locking system.
• Wall outlet: solid brass construction and connector adjustable in depth for increased durability.
• Tub spout: solid brass construction with regular water jet and high water flow; 1/2" copper "slip fit" inlet or male water inlet 1/2NPT with 76 mm (3") adjustment.
• Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.
• Installation requirement: the product must be installed following the installation instructions provided.

Specifications

• Finish: Chrome
• Rainhead maximum flow rate: 7.6 L/min (2 gpm) at 80 psi
• Handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi
• AQUATONIK valve maximum flow rate: 30 liters/min. (7.9 gallons/min.) at 60 psi
• Diverter maximum flow rate: 1 outlet: 22.5 liters/min. (6 gallons/min.) at 60 psi; 2 outlets: 23.5 liters/min. (6.7 gallons/min.) at 60 psi
• Wallbar total height: 742 mm; dimensions are approximated and subject to changes
