KONTOUR TD3 PLUS : AQUATONIK T/P Shower System with Vertical Ceiling Arm Chrome

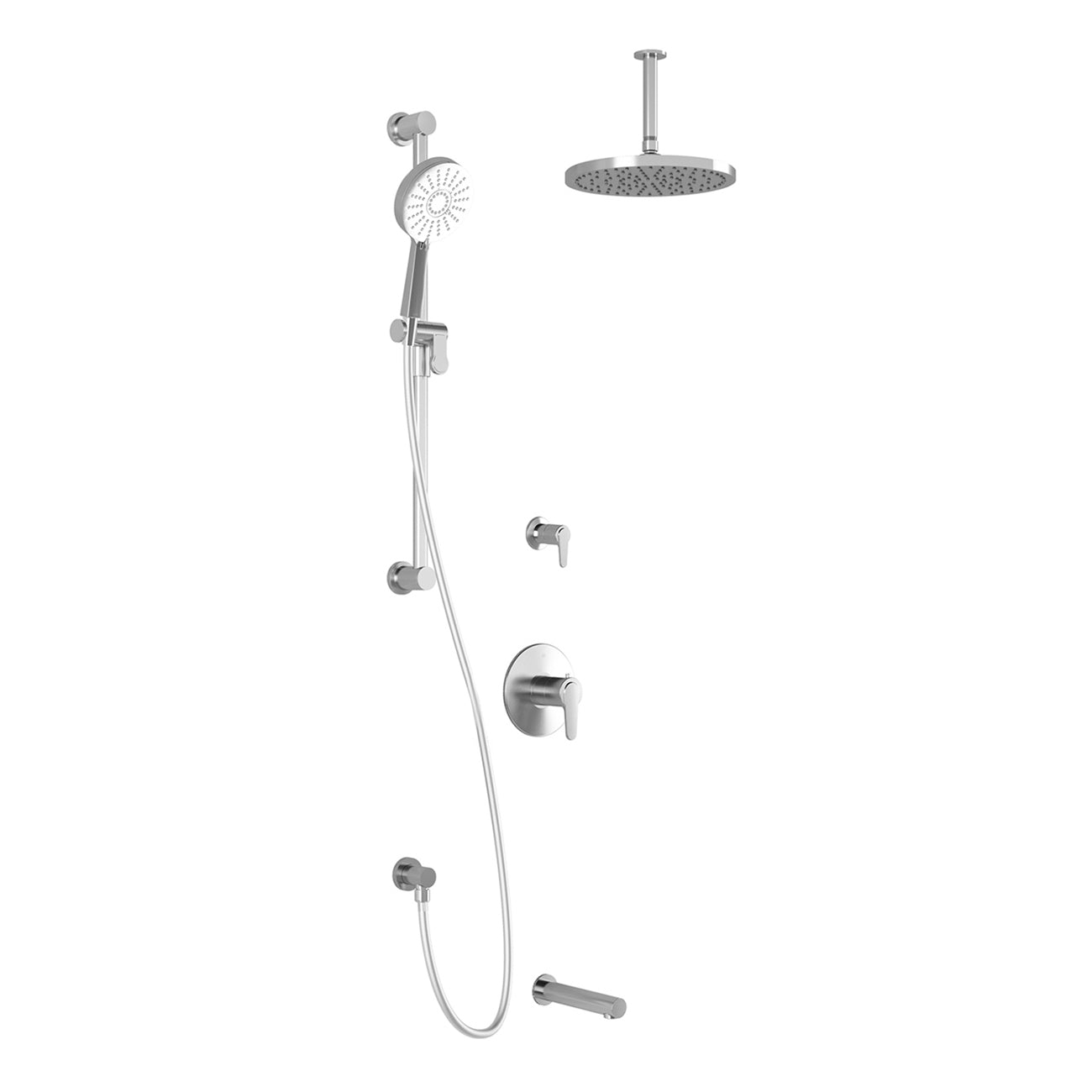

The Kalia KONTOUR PLUS TD3 thermostatic shower system (BF1613-110-101) in Chrome combines an AQUATONIK type T/P 1/2" valve, a 3-way 1/2" diverter, a rainhead on a vertical ceiling arm and a tub spout. A 2-jet handshower, wallbar, wall outlet and 60'' flexible and soft PVC hose are also included. The system meets or exceeds ADA, CSA B125.1 and ASME A112.18.1.

Features

• Valve: solid brass, no visible screw, integrated service stops with check valve, can be installed back-to-back; maximum flow rate 30 liters/min. (7.9 gallons/min.) at 60 psi
• Diverter: solid brass, operates 1 or 2 components at a time; 22.5 liters/min. (6 gallons/min.) at 60 psi with 1 outlet, 23.5 liters/min. (6.7 gallons/min.) at 60 psi with 2 outlets
• Rainhead: 254 mm (10") diameter, anti-scale system with soft sprays, adjustable orientation swivel, solid brass arm and plastic rainhead; 7.6 L/min (2 gpm) at 80 psi
• Handshower: plastic, 121mm (4 3/4'') diameter, anti-scale system with soft sprays, 2 direct positions and 1 shared position; 7.6 L/min (2 gpm) at 80 psi
• Wallbar with easy-to-use gliding system and locking system
• PVC hose with integrated check valve
• Solid brass wall outlet and tub spout; regular water jet tub spout

Specifications

• Collection: KONTOUR
• Finish: Chrome
• Valve inlet: Male water inlet 1/2NPT threaded or welded
• Certifications: ADA, CSA B125.1, ASME A112.18.1
• Warranty: Free of defects in material and workmanship for normal residential use; see the warranty included with the Kalia products for details
• Note: Dimensions are approximated and are subject to changes
