KONTOUR TD3 : AQUATONIK T/P Shower System with Wallarm

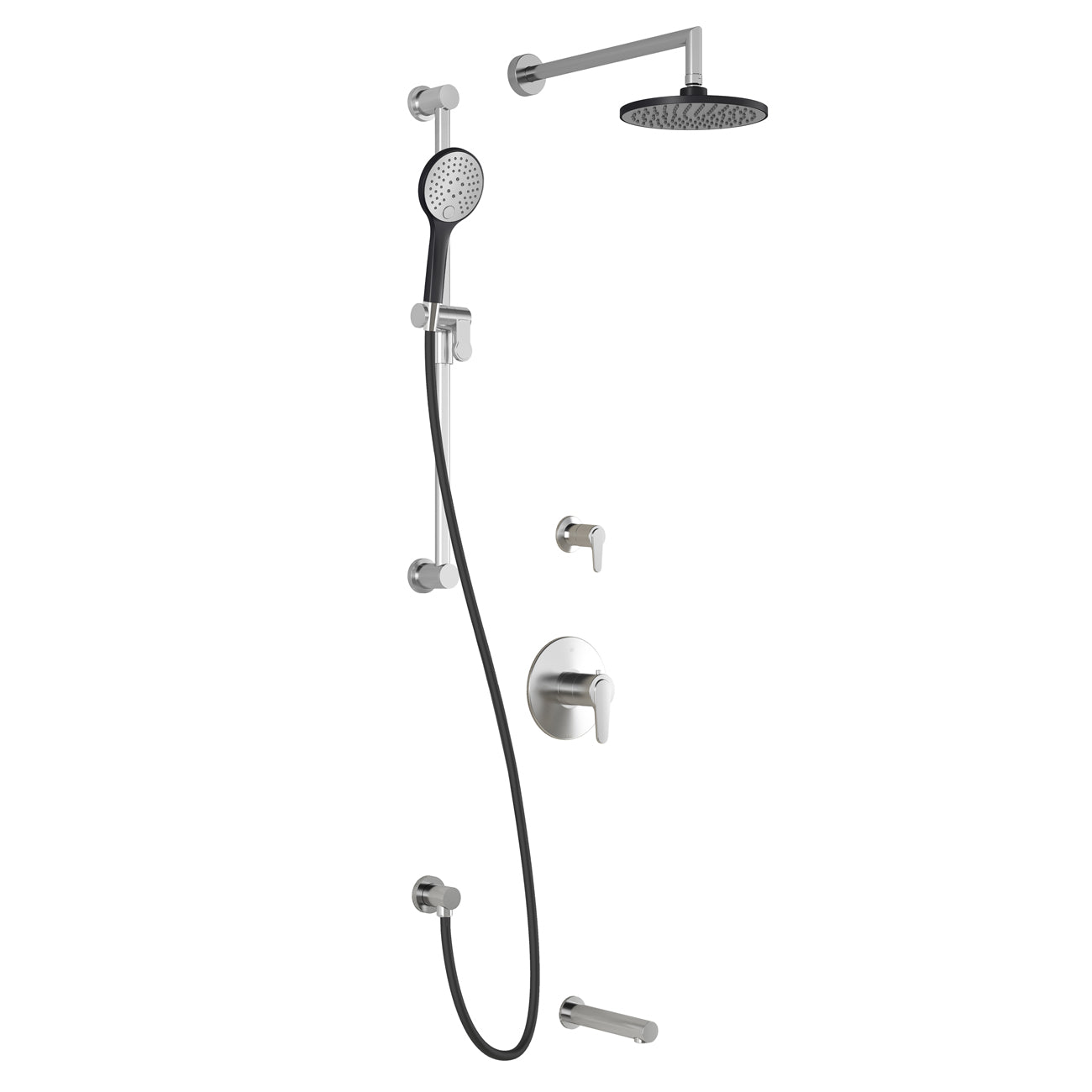

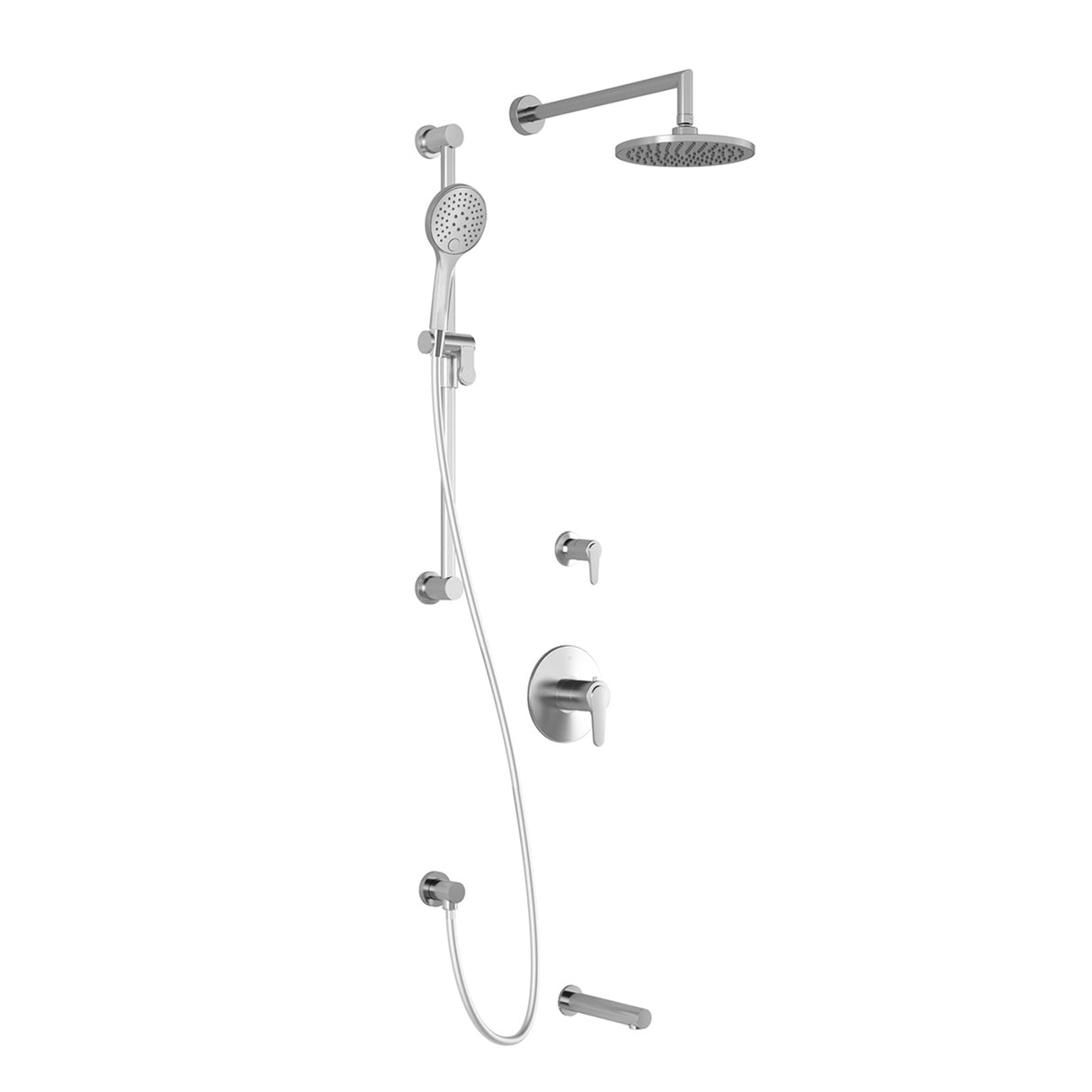

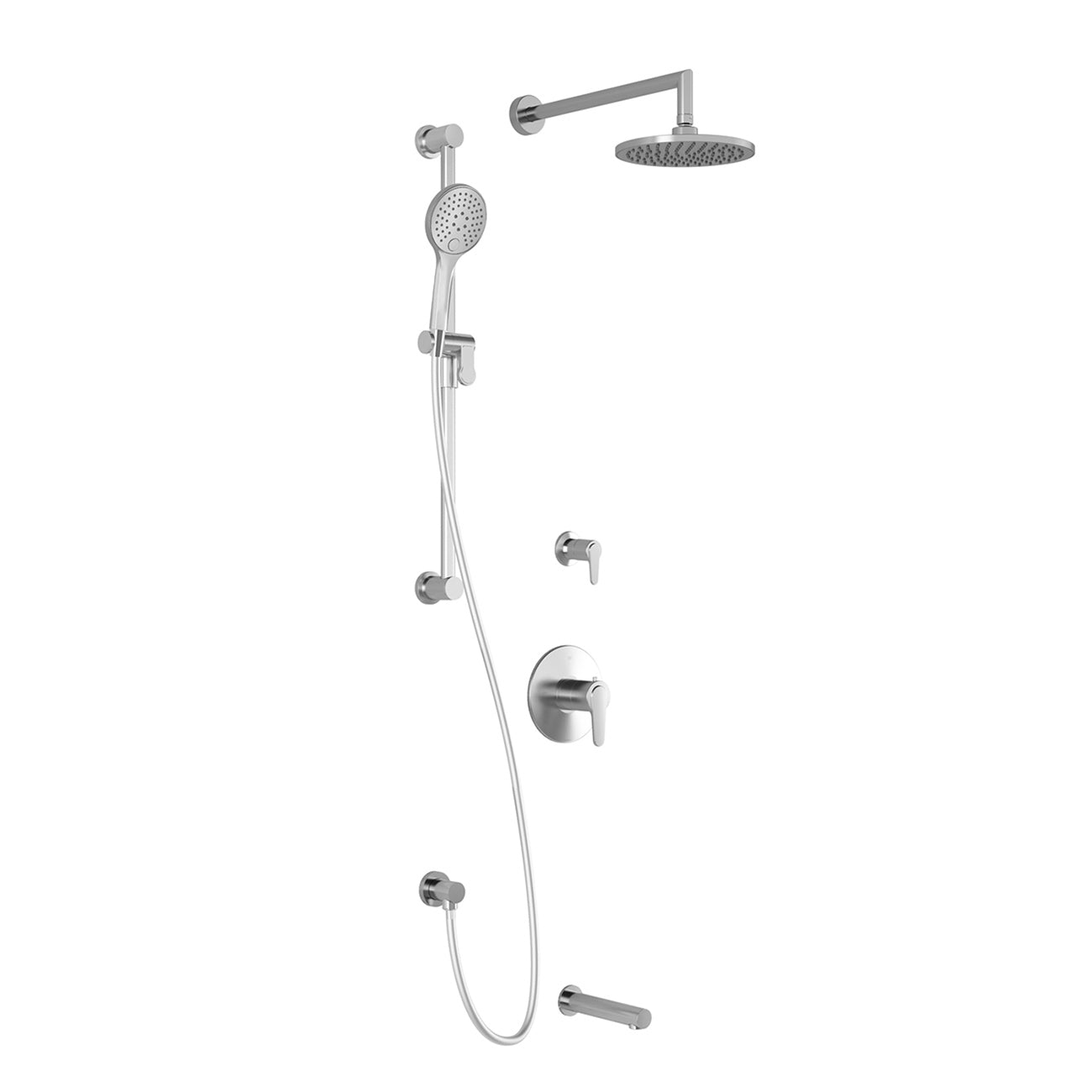

The Kalia KONTOUR BF1613 TD3 is a thermostatic shower system built around an AQUATONIK type T/P 1/2” valve, with a rainhead on a 90° wall arm, a 2-jet handshower on a wallbar and a tub spout. It is offered in Chrome (BF1613-110) or Black and chrome (BF1613-150). The system meets or exceeds ADA, CSA B125.1 and ASME A112.18.1.

Features

• Components included: AQUATONIK type T/P 1/2” valve and decorative trim (BF1300-110), 3-way 1/2” diverter and decorative trim (BF1540-110), rainhead with 90° wall arm (BF1387), 2-jet handshower (104286-110 or 104336-150), wallbar (103577-110), wall outlet (106192-110), 60’’ flexible and soft PVC hose (101620) and tub spout (104337-110).
• Thermostatic valve: solid brass construction, no visible screw and integrated service stops with check valve.
• Valve maximum flow rate of 30 liters/min. (7.9 gallons/min.) at 60 psi.
• 3-way diverter operates 1 or 2 components at a time.
• Rainhead: anti-scale system with soft sprays, adjustable orientation swivel, and solid brass arm with plastic rainhead construction.
• Rainhead maximum flow rate of 7.6 L/min (2 gpm) at 80 psi.
• Handshower with 2 direct functions and 1 shared function and an anti-scale system with soft sprays.
• Wallbar with easy-to-use gliding system and locking system.
• Hose with integrated check valve.

Specifications

• Rainhead diameter: 200 mm (7 7/8’’), approximate
• Handshower dimension: 120 mm (4 3/4’’), approximate
• Hose length: 60’’ (1524 mm)
• Valve connection: Male water inlet 1/2NPT threaded or welded
• Certifications: ADA, CSA B125.1, ASME A112.18.1
• Available finishes: Chrome, Black/Chrome
• Note: Dimensions are approximated and are subject to changes
