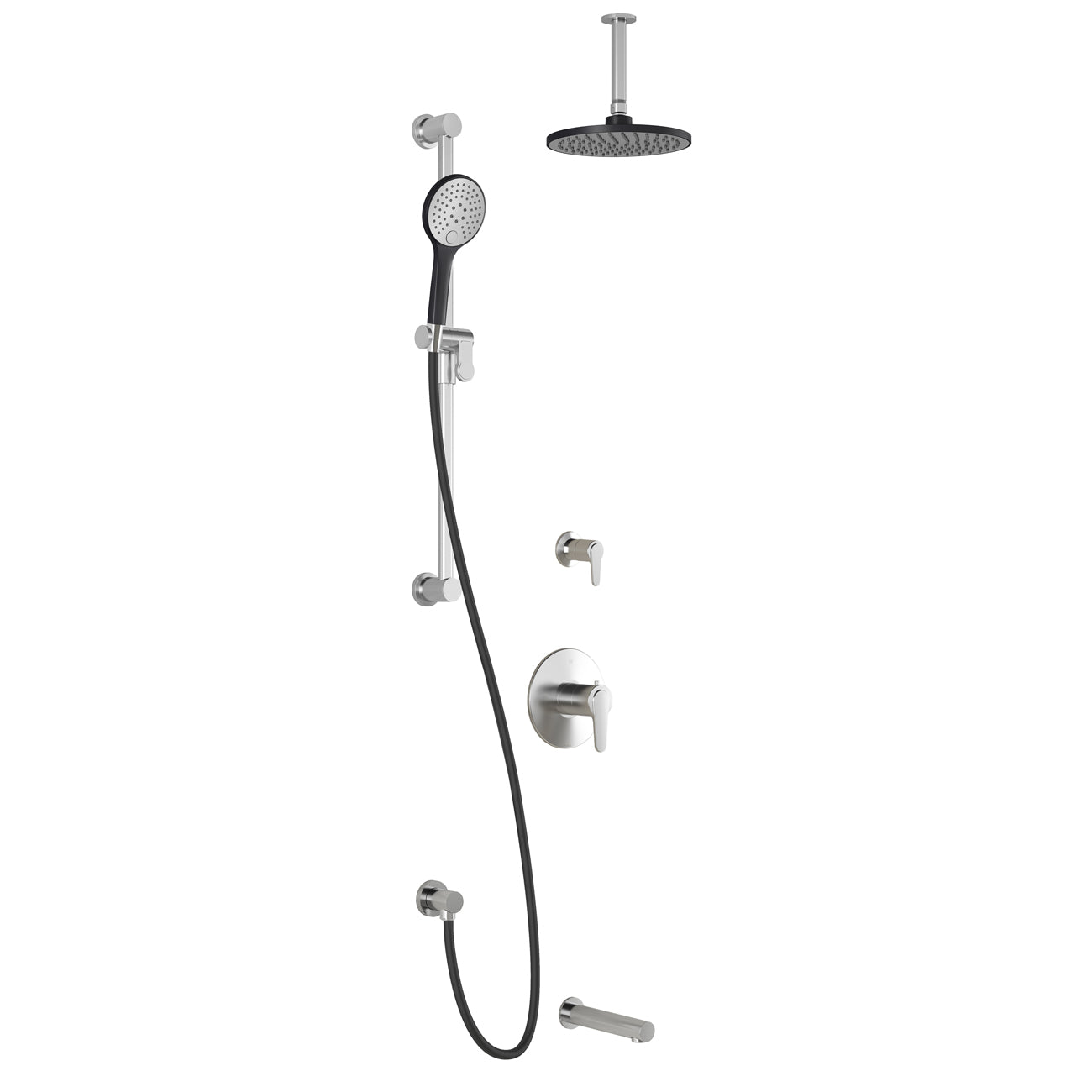

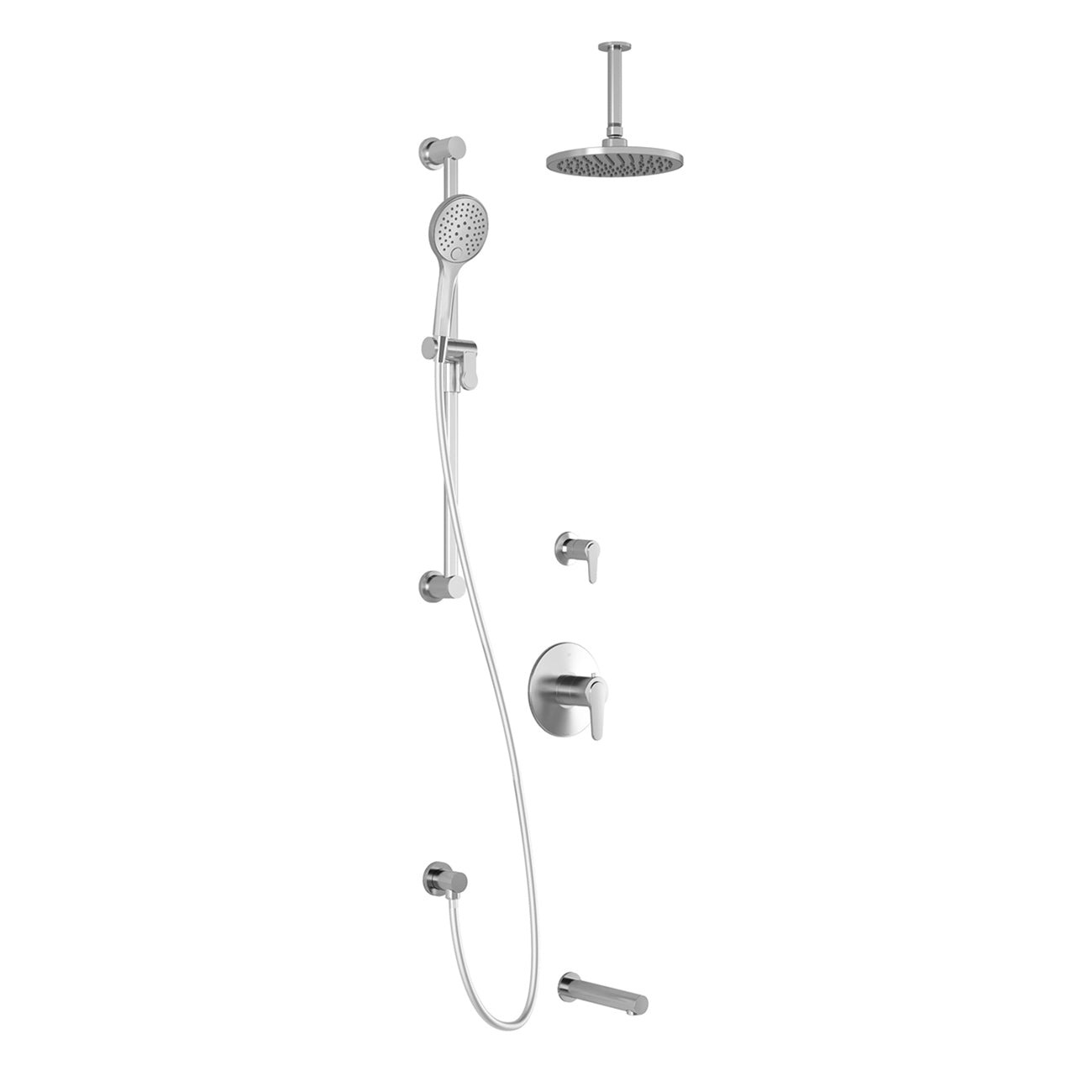

KONTOUR TD3 : AQUATONIK T/P Shower System with Vertical Ceiling Arm

The Kalia KONTOUR TD3 AQUATONIK T/P shower system with vertical ceiling arm is a TD3 thermostatic shower system offered in Chrome and Black/Chrome. It is made up of an AQUATONIK™ type T/P 1/2" valve and decorative trim, a 3-way 1/2" diverter and decorative trim, a rainhead with vertical ceiling arm, a 2-jet handshower (2 direct positions and 1 shared position), a wallbar, a wall outlet, a 60'' flexible and soft PVC hose and a tub spout. The system meets or exceeds ADA, CSA B125.1 and ASME A112.18.1.

Features

• Valve and trim: solid brass construction, no visible screw, integrated service stops with check valve; can be installed back-to-back
• Valve: male water inlet 1/2NPT threaded or welded, total adjustment of 19 mm (3/4"), maximum flow rate of 30 liters/min. (7.9 gallons/min.) at 60 psi
• 3-way diverter: operates 1 or 2 components at a time
• Rainhead with vertical ceiling arm: diameter of 200 mm (7 ⅞"), anti-scale system with soft sprays, adjustable orientation swivel, solid brass arm and plastic rainhead construction; 7.6 L/min (2 gpm) at 80 psi
• 2-jet handshower: 120 mm (4 3/4'') with anti-scale system with soft sprays and male water inlet G1/2
• Wallbar: easy-to-use gliding system and locking system
• Wall outlet: solid brass construction, female water inlet 1/2NPT and male water outlet G1/2
• Hose: 60'' (1524 mm) with G1/2 female connection and integrated check valve
• Tub spout: solid brass construction, regular water jet and high water flow

Specifications

• Available finishes: Chrome, Black/Chrome
• Standards: ADA, CSA B125.1, ASME A112.18.1
• Installation: must be installed following the installation instructions provided
• Note: dimensions are approximated and are subject to changes
