KONTOUR TCD1 PLUS :AQUATONIK T/P Coaxial Shower System with Vertical Ceiling Arm Chrome

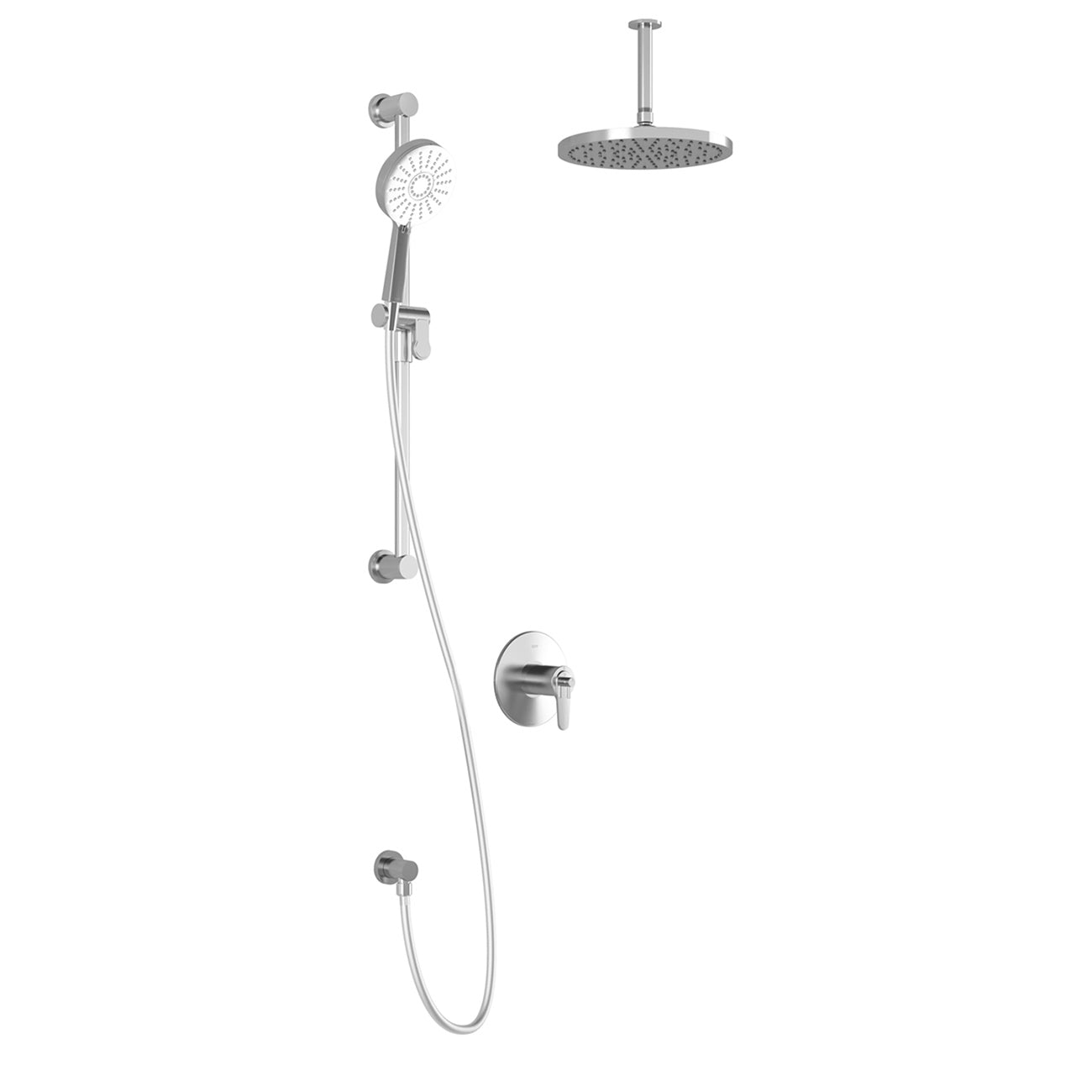

The Kalia KONTOUR TCD1 PLUS is a thermostatic shower system in Chrome with a 2-way AQUATONIK type T/P 1/2'' coaxial valve with diverter and a rainhead with vertical ceiling arm. It is built around Aquatonik thermostatic/pressure-balance technology. Components included are a 2-jet handshower (2 direct positions and 1 shared position), a wallbar, a wall outlet and a 60'' flexible and soft PVC hose.

Features

• Rainhead: solid brass arm and plastic rainhead construction, anti-scale system with soft sprays, adjustable orientation swivel, male water inlet 1/2NPT and maximum flow rate of 7.6 L/min (2 gpm) at 80 psi
• Handshower: plastic construction, anti-scale system with soft sprays, G1/2 male water inlet and maximum flow rate of 7.6 L/min (2 gpm) at 80 psi
• Wallbar: plastic construction, easy-to-use gliding system and locking system
• Valve: solid brass construction, no visible screw and integrated service stops
• Valve: two male water inlets and two male water outlets, 1/2NPT threaded or welded; can be installed back-to-back
• Valve maximum flow rate: 25 L/min (6.6 gpm) at 60 psi with 1 outlet, 29 L/min (7.7 gpm) at 60 psi with 2 outlets
• Wall outlet: solid brass construction, 1/2NPT female water inlet, G1/2 male water outlet and connector adjustable in depth
• Hose: G1/2 female connection and integrated check valve

Specifications

• Finish: Chrome
• Rainhead diameter: 254 mm (10”)
• Handshower diameter: 121mm (4 3/4'')
• Wallbar total height: 742 mm
• Valve total adjustment: 32 mm (1 1/4”)
• Standards (system): Meets or exceeds ADA, CSA B125.1, ASME A112.18.1
• Note: Dimensions are approximate and subject to change; refer to the installation instructions
