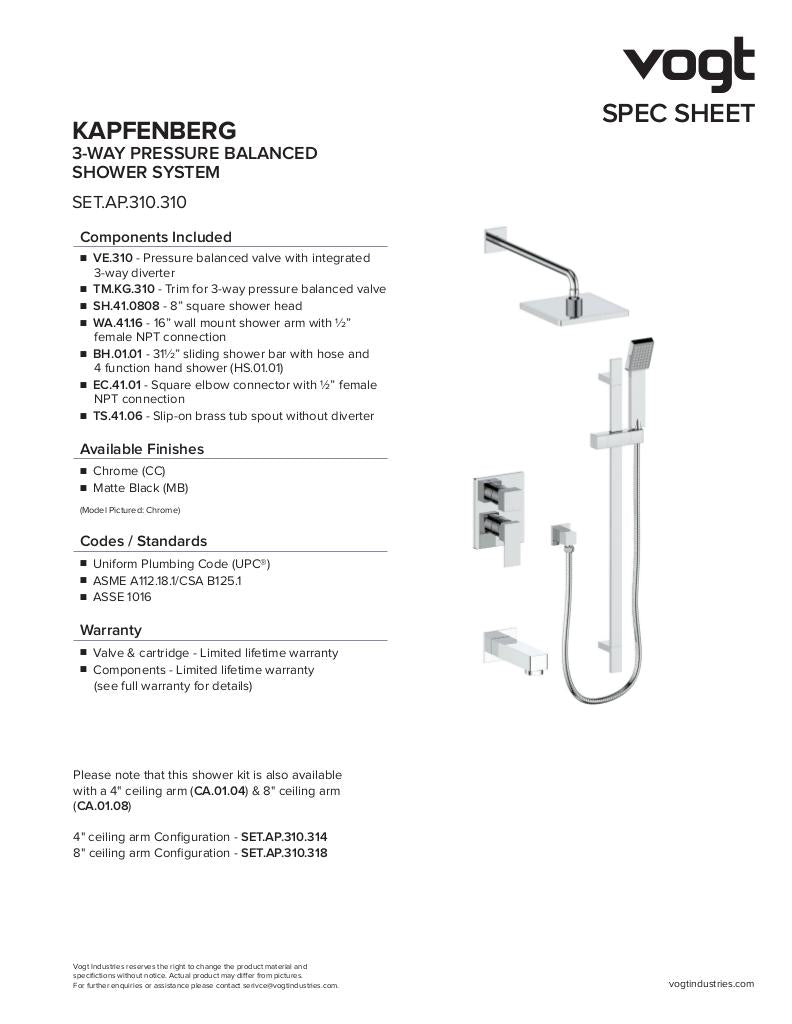

KAPFENBERG 3-WAY PB SHOWER KIT

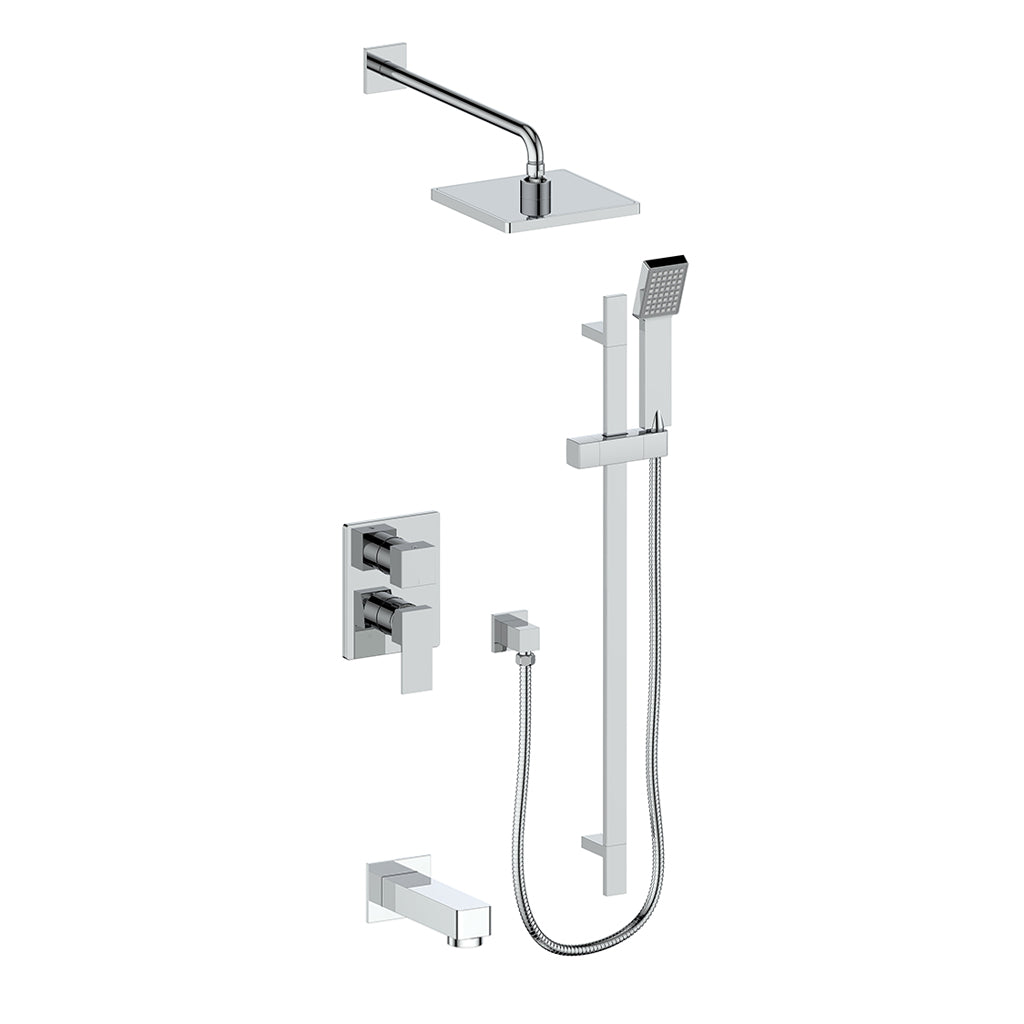

The Vogt Kapfenberg 3-way pressure balanced shower system SET.AP.310.310 is a shower kit built around a pressure balanced valve with an integrated 3-way diverter. The kit includes 3 accessories and comes with an 8” square shower head, a sliding shower bar with hand shower and a slip-on brass tub spout. Accessories 1 and 3 can work simultaneously, plumbing is 1/2", and the system meets UPC, ASME A112.18.1/CSA B125.1 and ASSE 1016.

Features

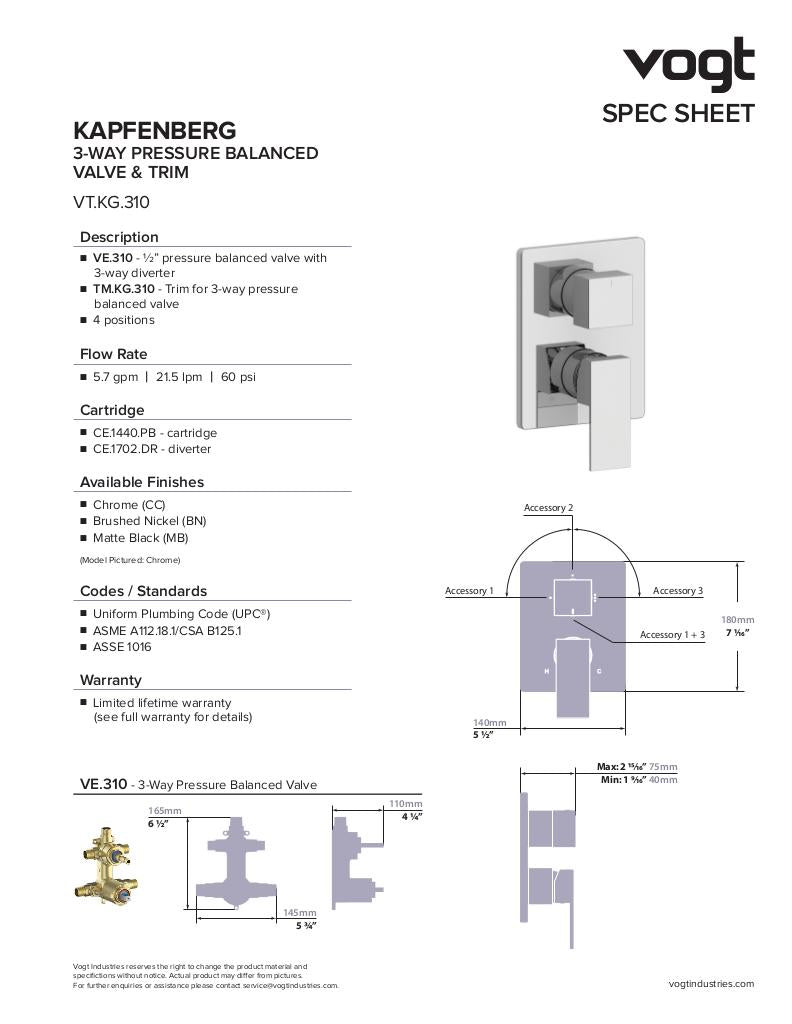

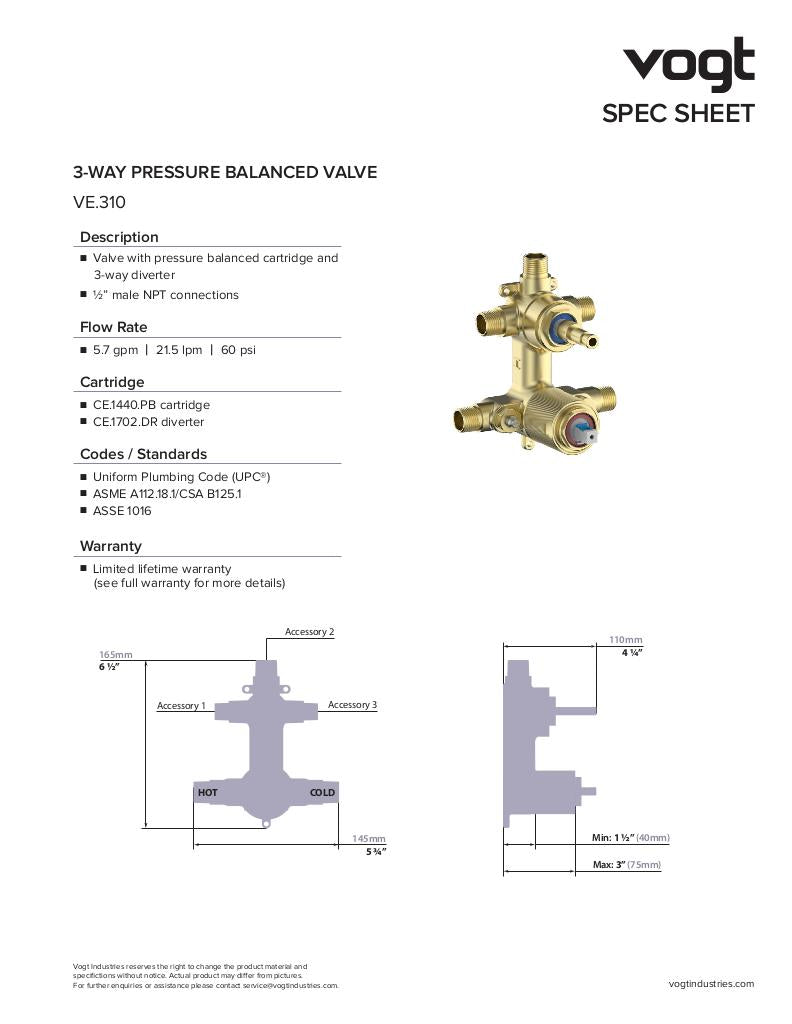

• VE.310 pressure balanced valve with 3-way diverter and 1/2” male NPT connections
• TM.KG.310 trim for the 3-way pressure balanced valve, with 4 positions
• Valve flow rate of 5.7 gpm | 21.5 lpm | 60 psi
• CE.1440.PB pressure balanced cartridge and CE.1702.DR diverter cartridge

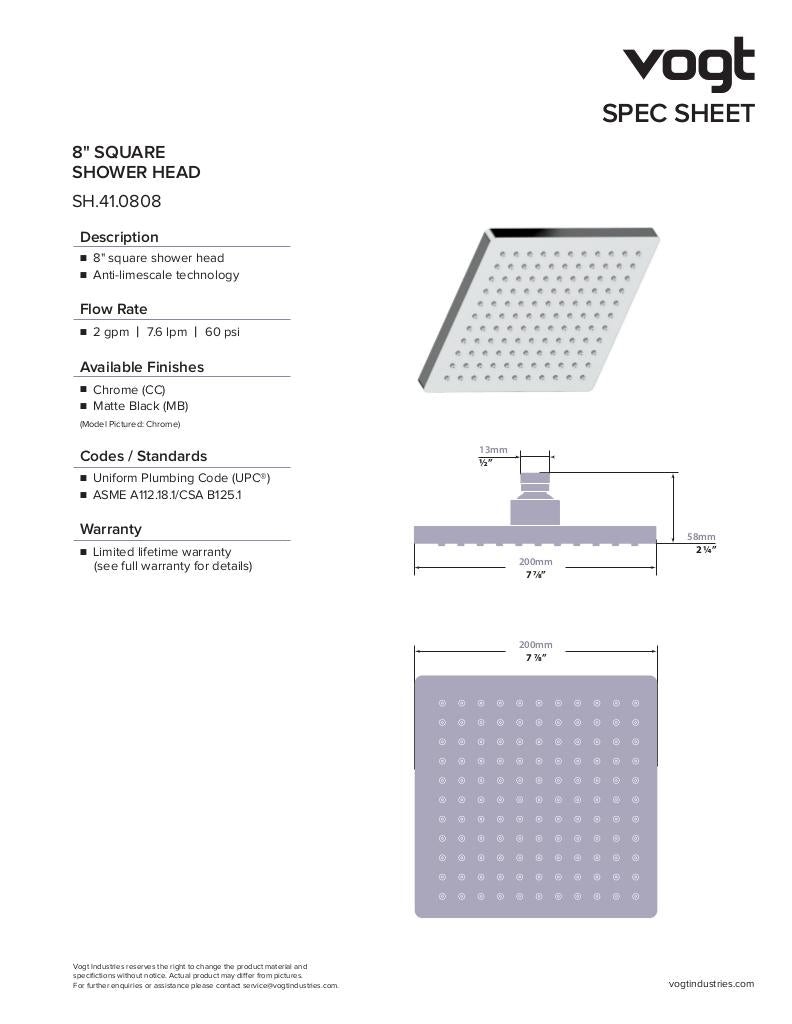

• SH.41.0808 8" square shower head with anti-limescale technology, rated at 2 gpm | 7.6 lpm | 60 psi

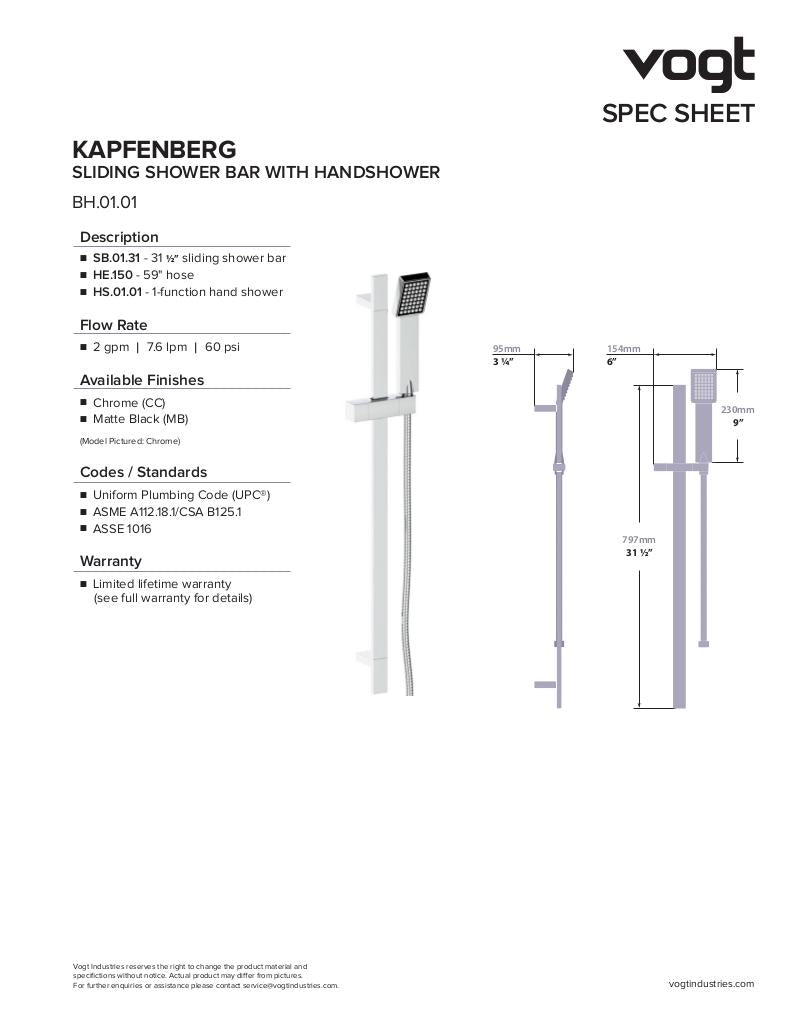

• BH.01.01 sliding shower bar: SB.01.31 31 1/2” bar and 59" hose

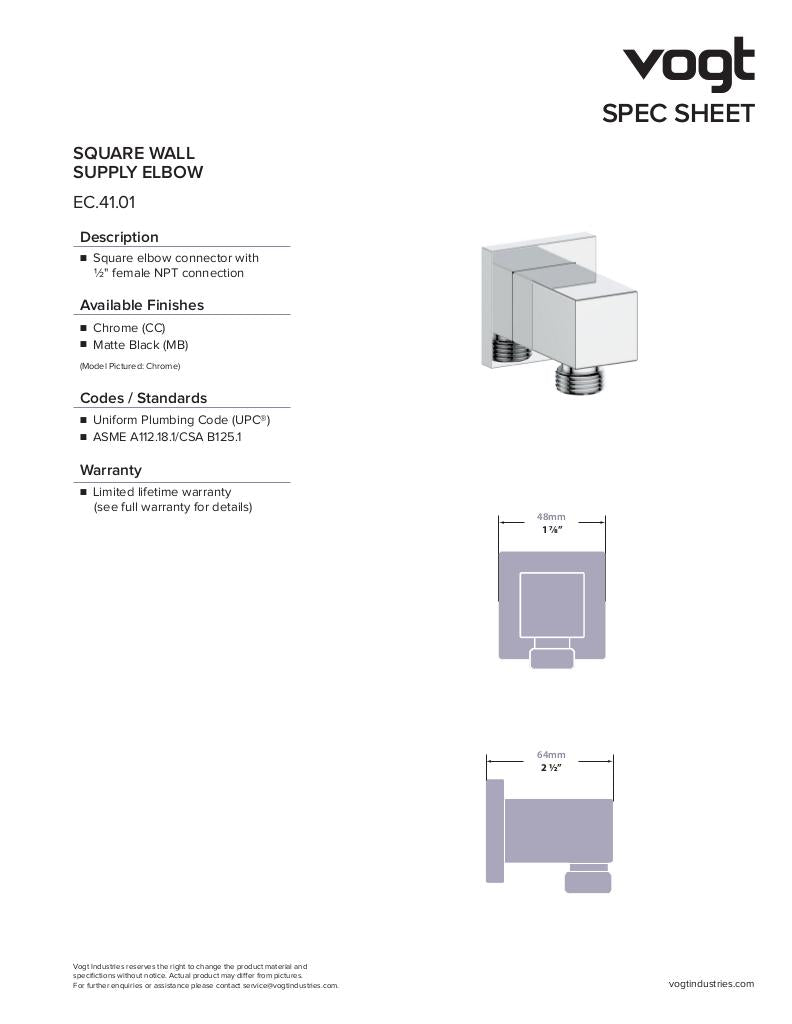

• EC.41.01 square elbow connector with 1/2" female NPT connection

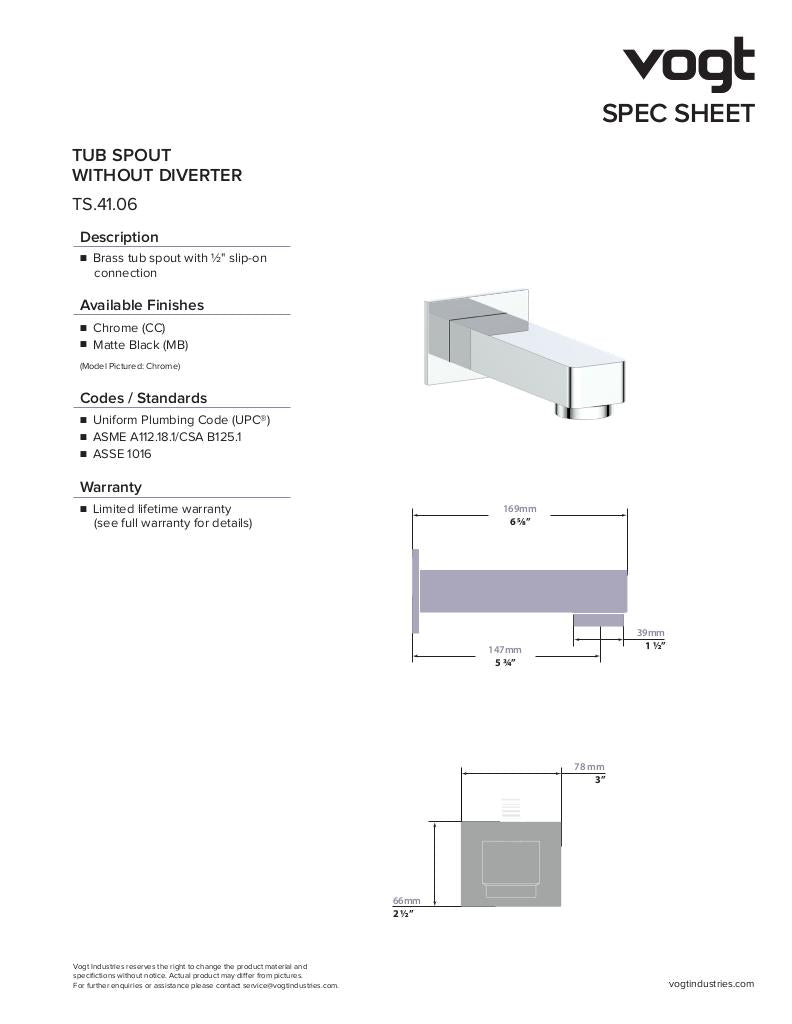

• TS.41.06 brass tub spout without diverter, with 1/2" slip-on connection
• Limited lifetime warranty on the valve and cartridge and on the components (see full warranty for details)

Specifications

• Model: SET.AP.310.310
• Valve: Pressure balanced, with integrated 3-way diverter
• Valve flow rate: 5.7 gpm | 21.5 lpm | 60 psi
• Positions: 4
• Plumbing: 1/2"
• Shower head: 8" square, 2 gpm | 7.6 lpm | 60 psi
• Codes / Standards: UPC, ASME A112.18.1/CSA B125.1, ASSE 1016
• Warranty: Valve & cartridge and components: limited lifetime (see full warranty for details)

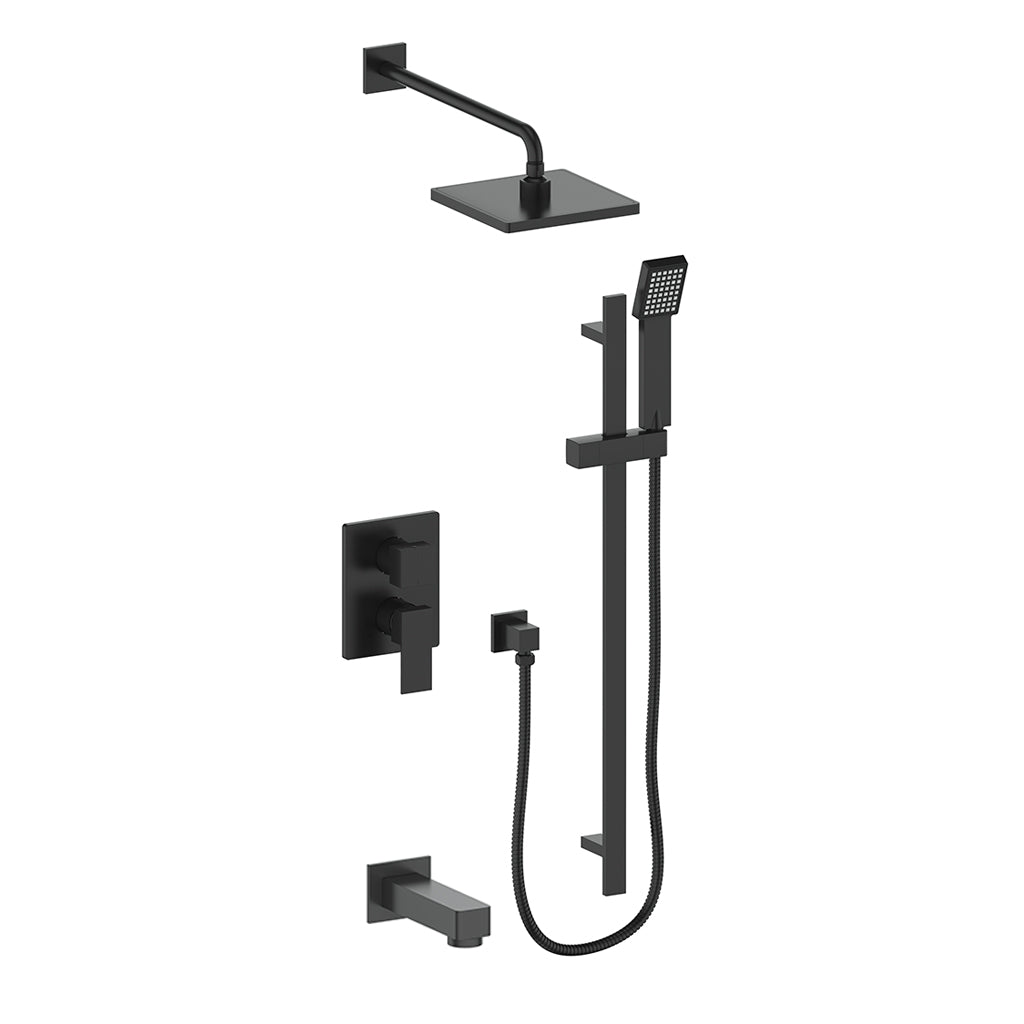

• Available finishes: Chrome, Matte Black
