KAPFENBERG 2-WAY TH SHOWER KIT

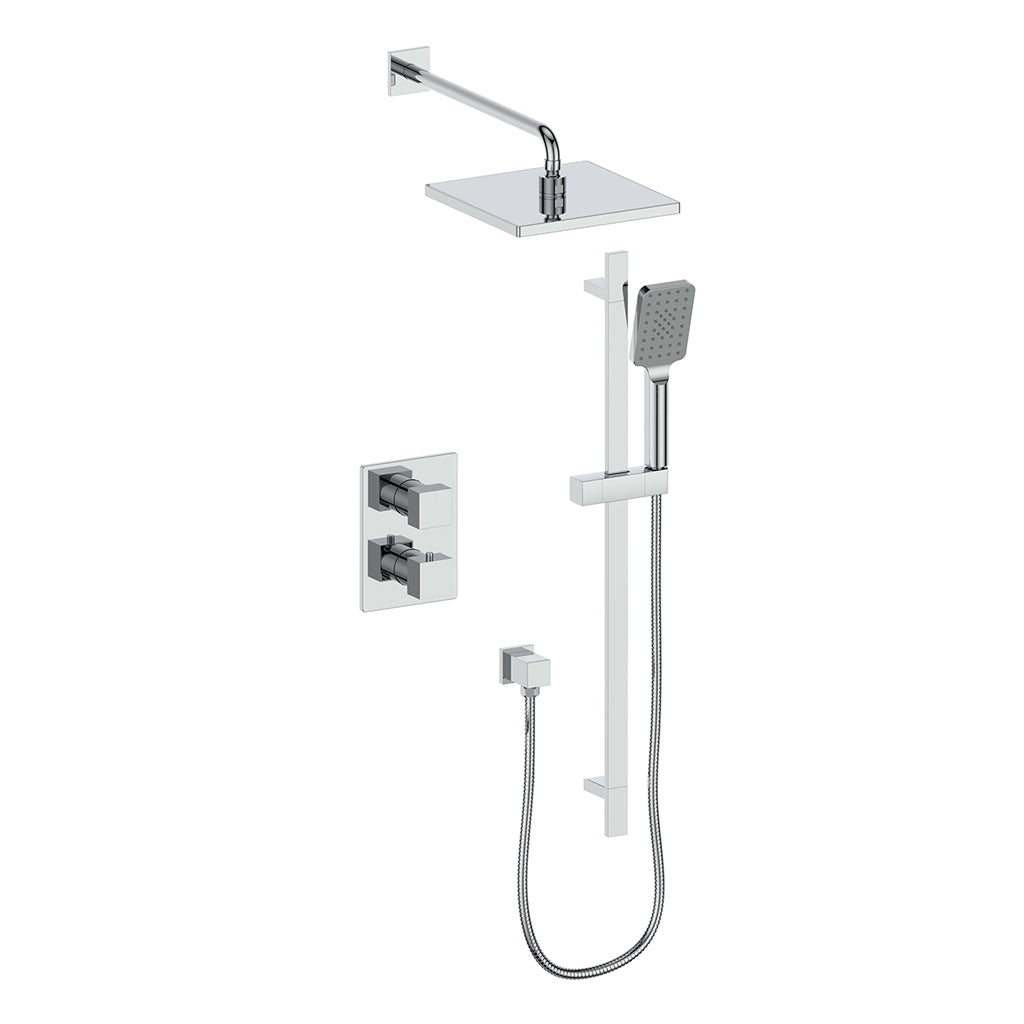

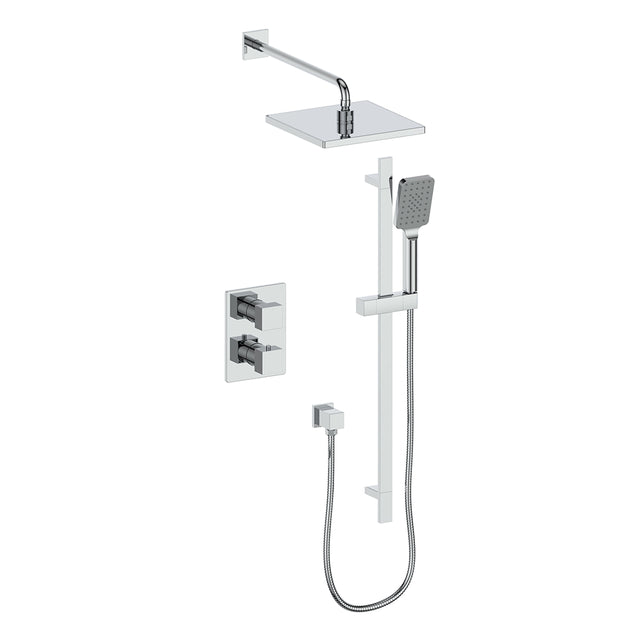

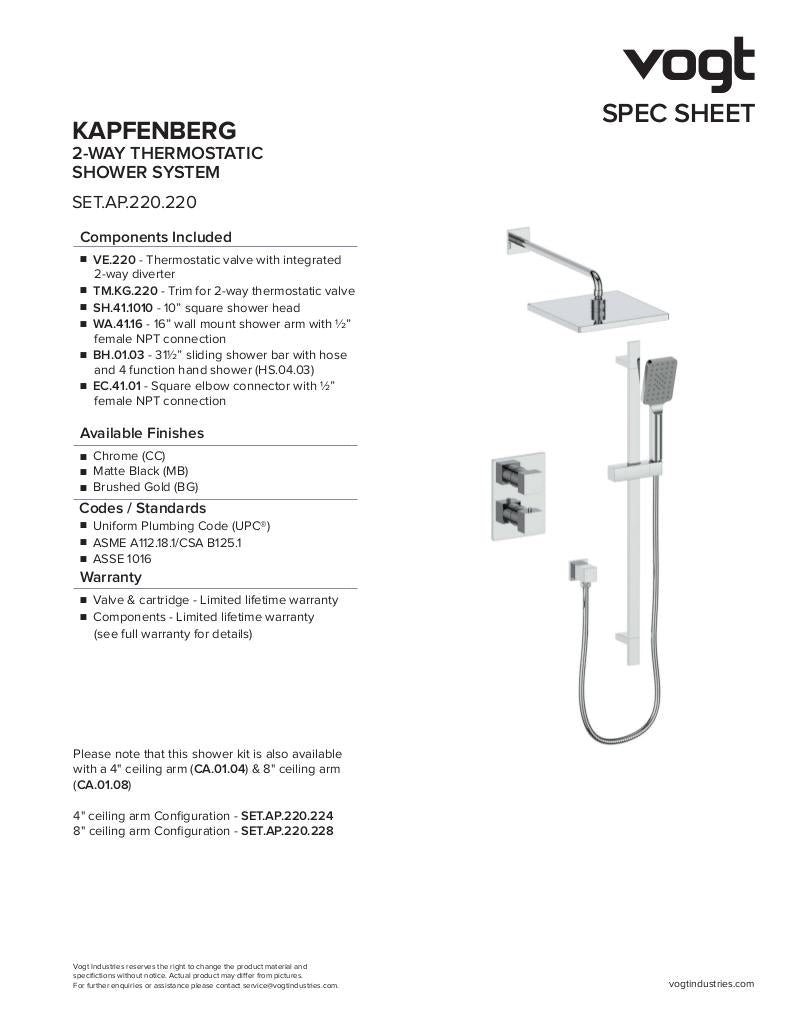

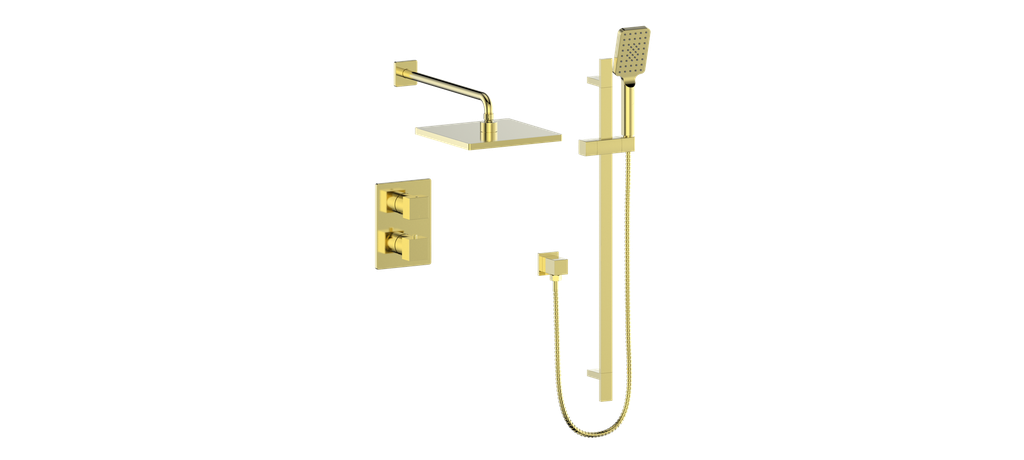

The Vogt Kapfenberg 2-way thermostatic shower system SET.AP.220.220 is a shower kit built around a thermostatic valve with an integrated 2-way diverter. The kit includes 2 accessories and comes with a 10” square shower head and a sliding shower bar with a 4-function hand shower, and accessories 1 and 2 can work simultaneously. Plumbing is 1/2", and the system meets UPC, ASME A112.18.1/CSA B125.1 and ASSE 1016.

Features

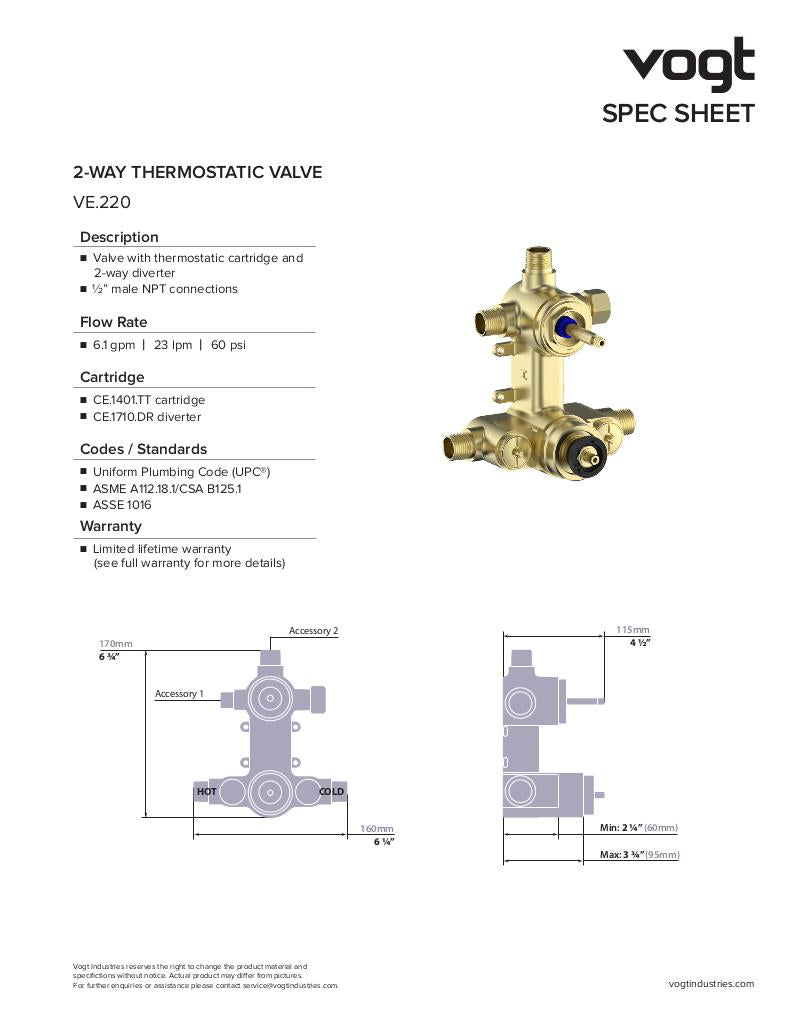

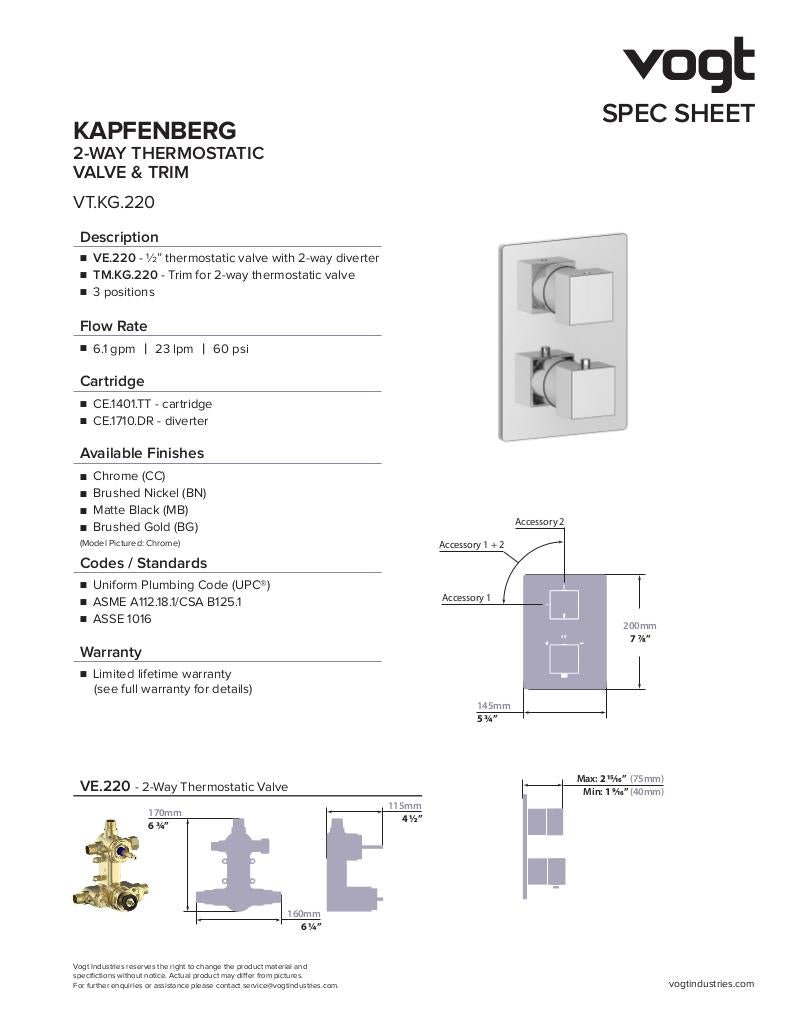

• VE.220 thermostatic valve with 2-way diverter and 1/2” male NPT connections
• TM.KG.220 trim for the 2-way thermostatic valve, with 3 positions
• Valve flow rate of 6.1 gpm | 23 lpm | 60 psi
• CE.1401.TT thermostatic cartridge and CE.1710.DR diverter cartridge

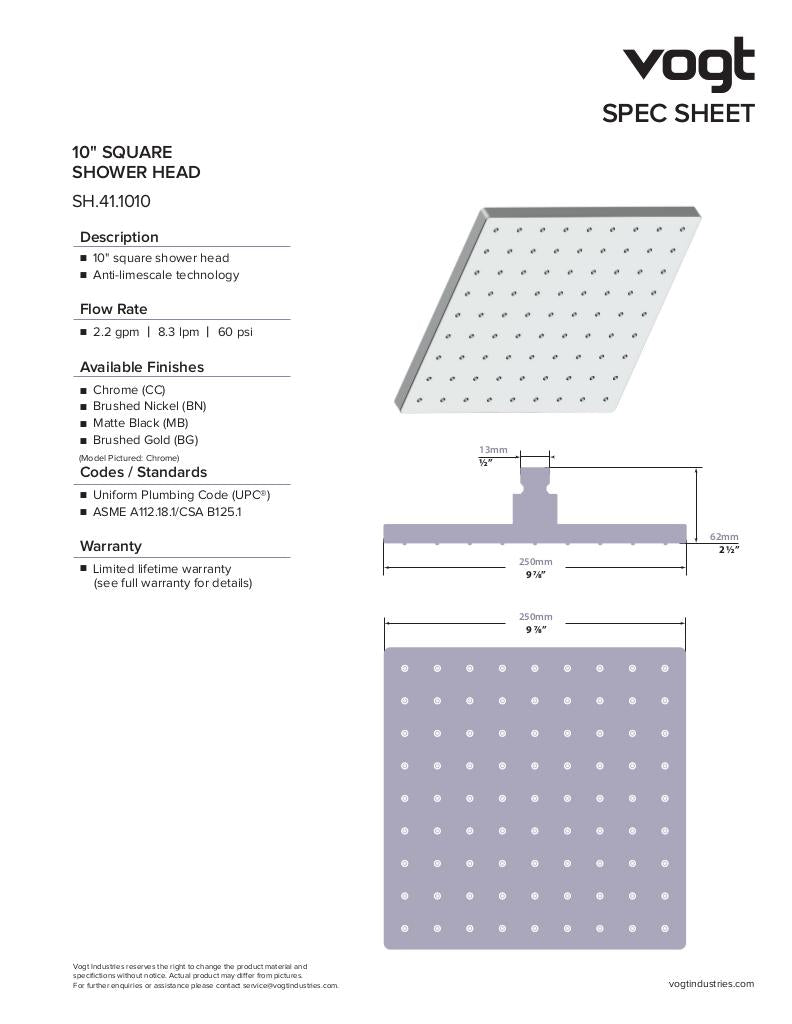

• SH.41.1010 10" square shower head with anti-limescale technology, rated at 2.2 gpm | 8.3 lpm | 60 psi

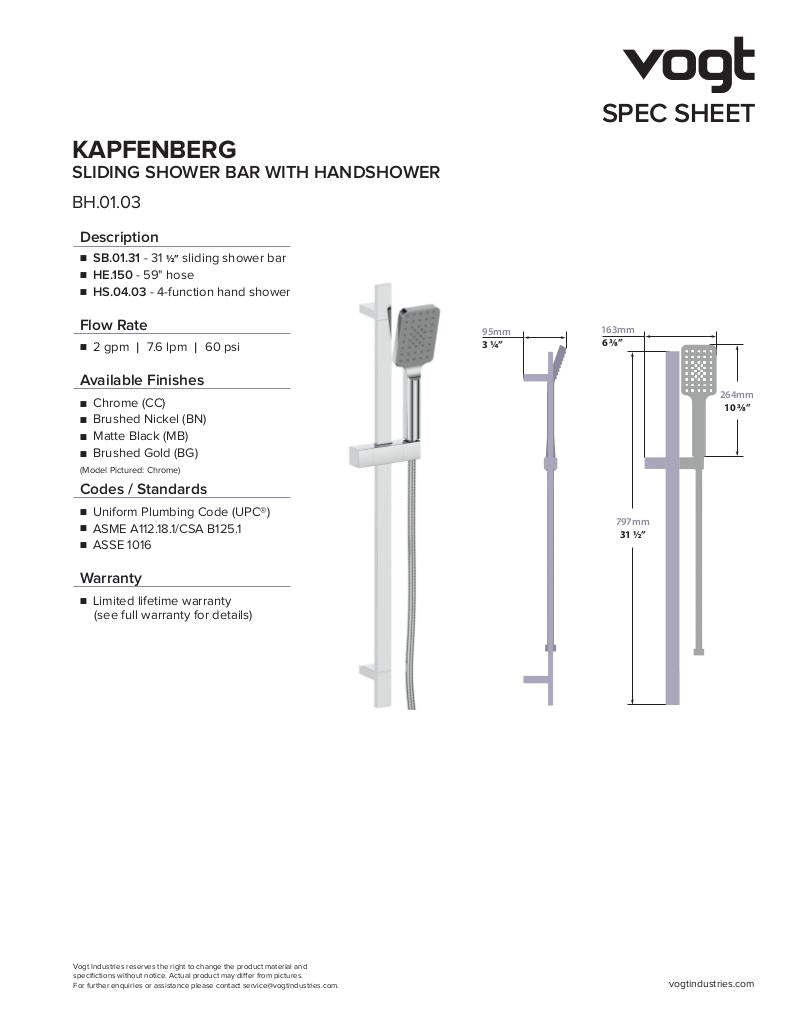

• BH.01.03 sliding shower bar: SB.01.31 31 1/2” bar, 59" hose, hand shower rated at 2 gpm | 7.6 lpm | 60 psi

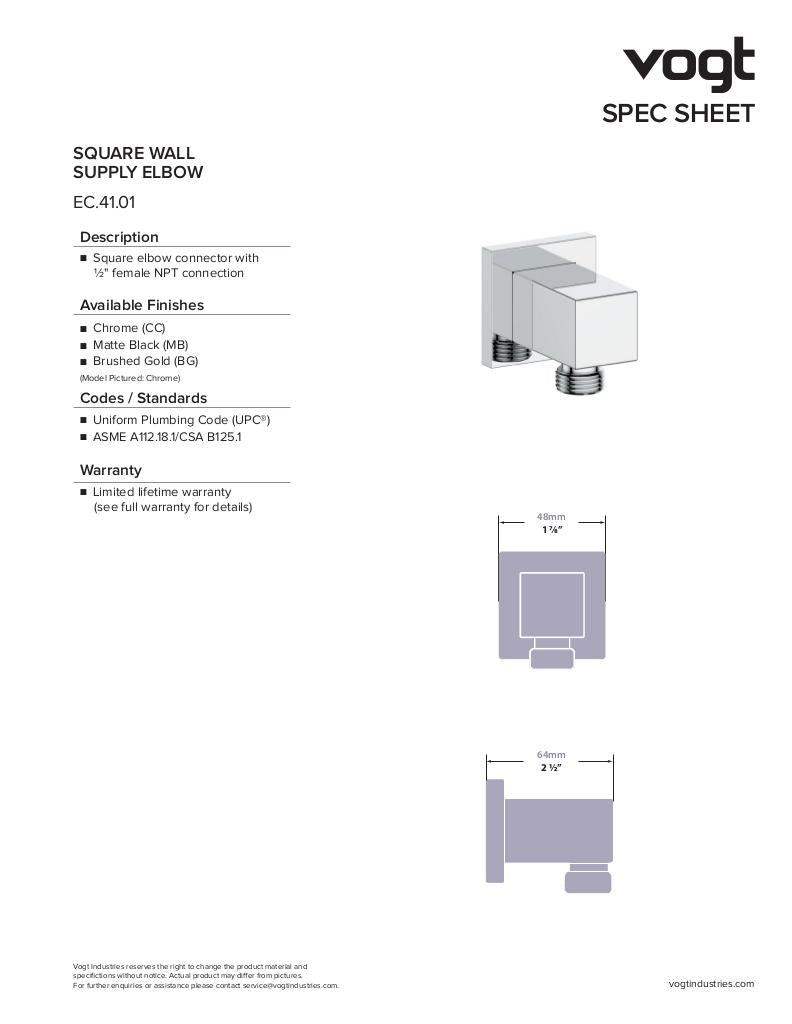

• EC.41.01 square elbow connector with 1/2" female NPT connection
• Limited lifetime warranty on the valve and cartridge and on the components (see full warranty for details)

Specifications

• Model: SET.AP.220.220
• Valve: Thermostatic, with integrated 2-way diverter
• Valve flow rate: 6.1 gpm | 23 lpm | 60 psi
• Positions: 3
• Plumbing: 1/2"
• Shower head: 10" square, 2.2 gpm | 8.3 lpm | 60 psi
• Codes / Standards: UPC, ASME A112.18.1/CSA B125.1, ASSE 1016
• Warranty: Valve & cartridge and components: limited lifetime (see full warranty for details)

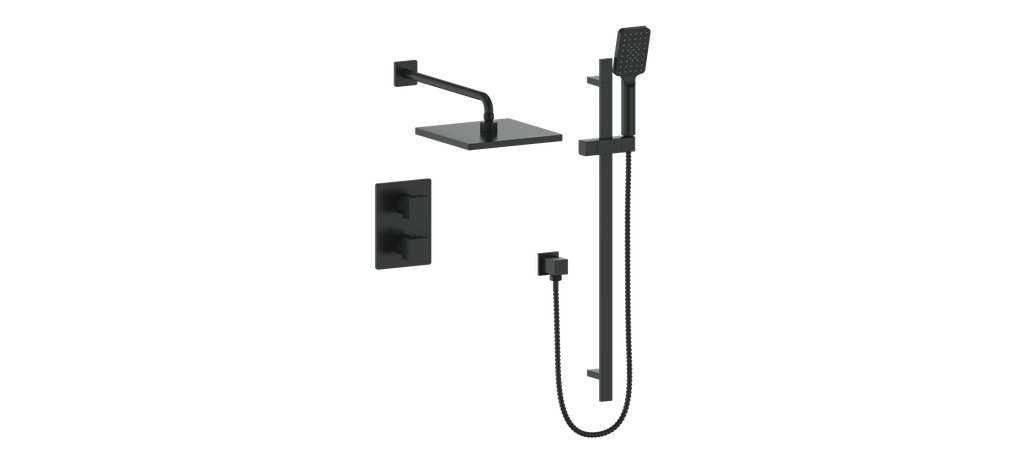

• Available finishes: Chrome, Matte Black, Brushed Gold
