GRAFIK TD3 PREMIA : AQUATONIK T/P Shower System with Wallarm

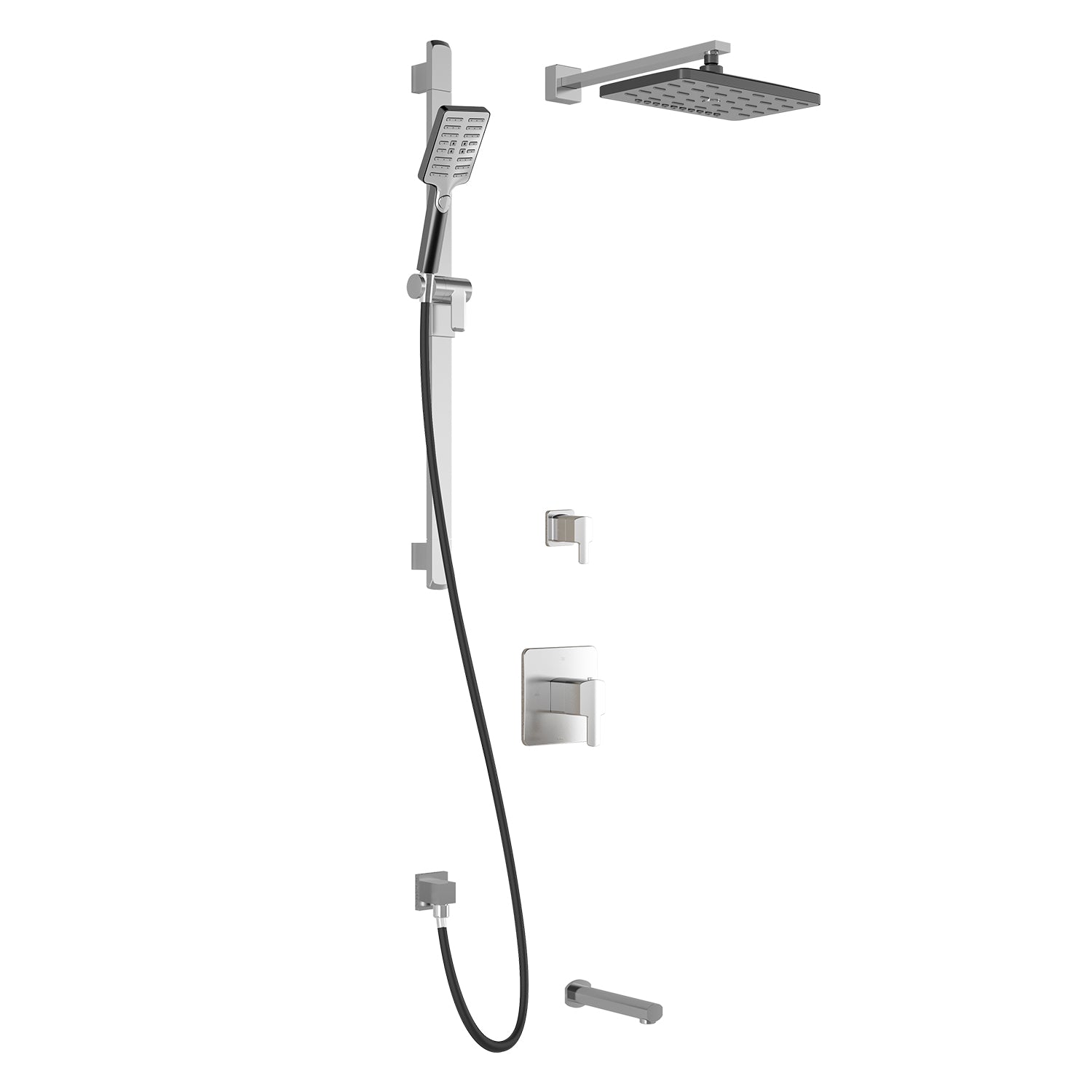

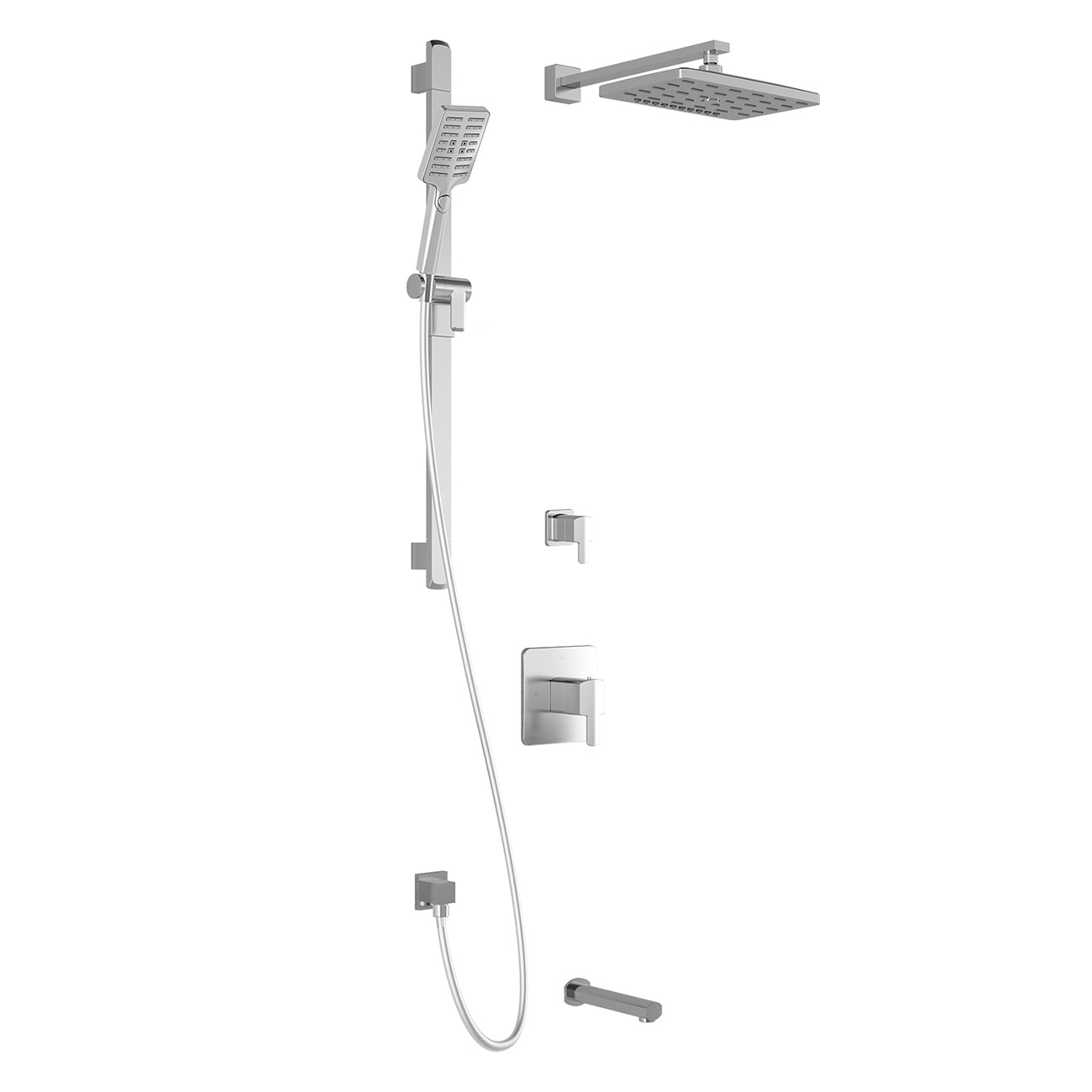

The Kalia GRAFIK TD3 PREMIA AQUATONIK T/P shower system with wallarm is a TD3 Thermostatic Shower System offered in Chrome and Black/Chrome. Components included are an AQUATONIK type T/P 1/2” valve and decorative trim, a 3-way 1/2” diverter and decorative trim, a rainhead with 90° wall arm, a 2-jet handshower (2 direct functions and 1 shared function), a wallbar, a 60’’ flexible and soft PVC hose, a wall outlet and a tub spout. The system meets or exceeds the ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Valve and trim: solid brass construction, no visible screw and integrated service stops with check valve; maximum flow rate of 30 liters/min. (7.9 gallons/min.) at 60 psi.
• 3-way diverter: operates 1 or 2 components at a time; maximum flow rate of 22.5 liters/min. (6 gallons/min.) for 1 outlet and 23.5 liters/min. (6.7 gallons/min.) for 2 outlets, at 60 psi.
• Rainhead with 90° wall arm: rainhead dimension of 200 mm x 319.5 mm (7 ⅞” x 12 ½”), soft tips for easy cleaning of limescale, adjustable orientation swivel, solid brass arm and plastic rainhead construction; maximum flow rate of 7.6 L/min (2 gpm) at 80 psi.
• 2-jet handshower: plastic construction, dimension of 86 mm (3 3/8”), anti-scale system with soft sprays, male water inlet G1/2; maximum flow rate of 7.6 L/min. (2 gpm) at 80 psi.
• Wallbar: total height of 775 mm (30 1/2’’) with an easy-to-use gliding system and locking system.
• Wall outlet with connector adjustable in depth; solid brass tub spout with regular water jet and high water flow.
• Warranty: Kalia Inc. guarantees its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.
• Installation requirement: install following the installation instructions provided; dimensions are approximate and subject to change.

Specifications

• Available finishes: Chrome, Black/Chrome
• System type: PREMIA TD3 Thermostatic Shower System
• Valve standards (meets or exceeds): ASME A112.18.1 / CSA B125.1, ICC A117.1
