GRAFIK TCD1 PREMIA : AQUATONIK T/P Coaxial Shower System with Vertical Ceiling Arm

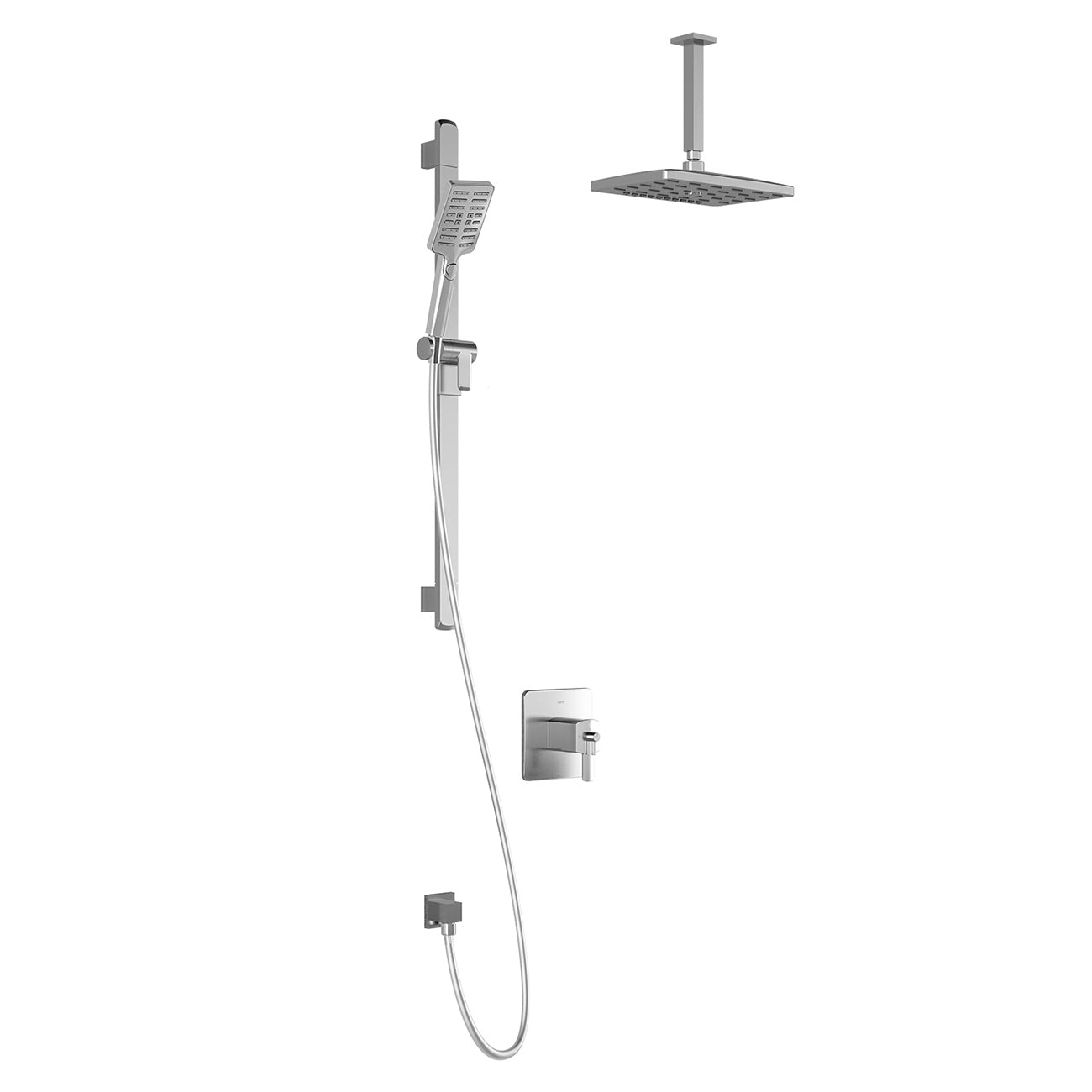

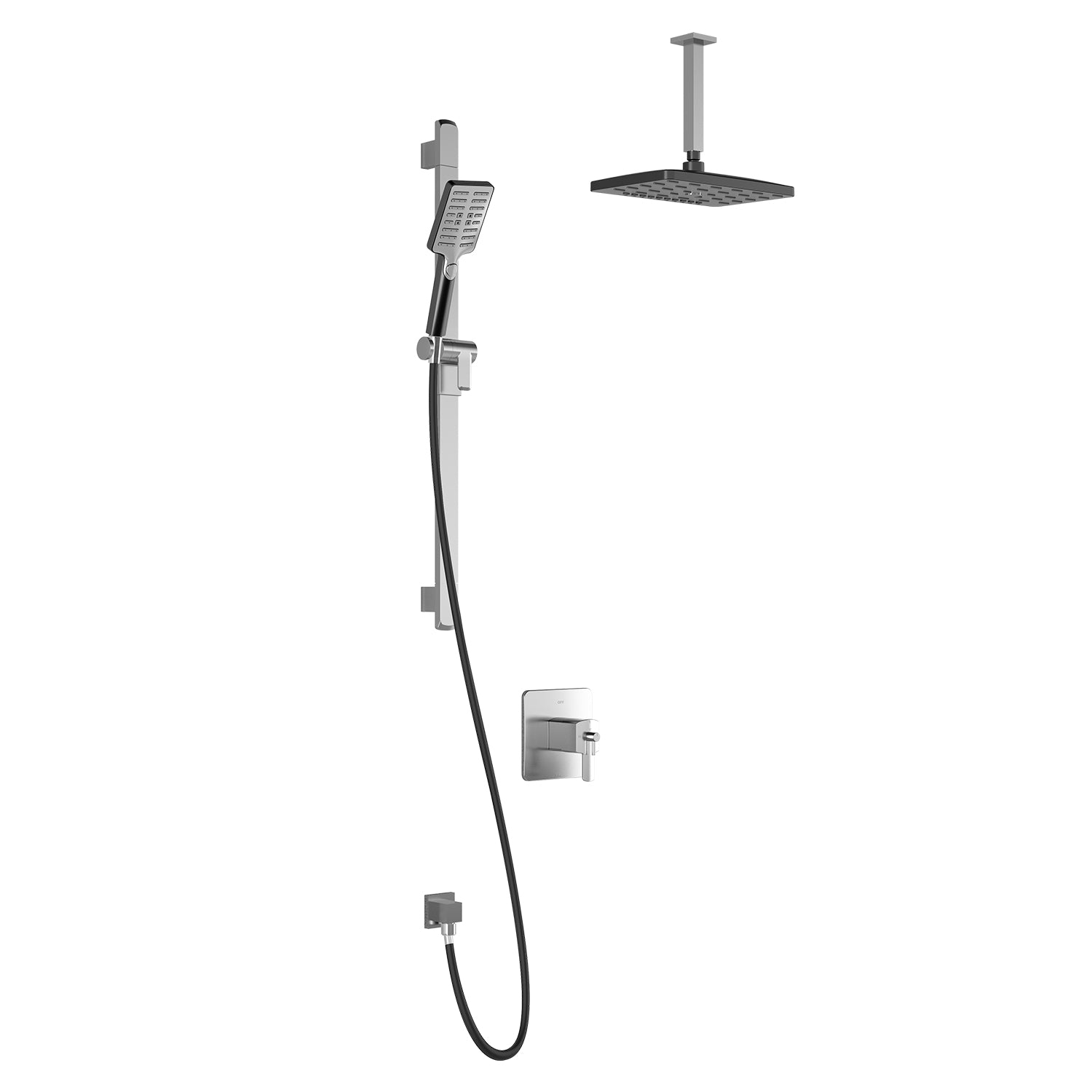

The Kalia GRAFIK TCD1 PREMIA is an AQUATONIK T/P thermostatic coaxial shower system with a rainhead on a vertical ceiling arm. The system includes the rainhead, a 2-jet handshower, a wallbar, a 60" flexible PVC hose, a 2-way AQUATONIK type T/P 1/2" coaxial valve with diverter and a wall outlet. The system meets or exceeds ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Rainhead with 2 direct positions and 1 shared position, an anti-scale system with soft sprays and an adjustable orientation swivel
• 2-jet handshower with 2 direct functions and 1 shared function, anti-scale soft sprays and plastic construction
• Wallbar with an easy-to-use gliding system and a locking system
• Solid brass valve with integrated service stops and no visible screw; it can be installed back-to-back
• Valve inlets and outlets are 1/2NPT, threaded or welded, with a total adjustment of 32 mm (1 1/4")
• Wall outlet with a connector adjustable in depth
• Kalia guarantees its products to be free of defects in material and workmanship for normal residential use

Specifications

• Available finishes: Chrome, Black/Chrome
• Rainhead maximum flow rate: 7.6 L/min (2 gpm) at 80 psi
• Handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi
• Valve maximum flow rate: 1 outlet = 25 L/min (6.6 gpm) at 60 psi; 2 outlets = 29 L/min (7.7 gpm) at 60 psi
• Wallbar total height: 775 mm (30 1/2"); dimensions are approximated and subject to change
