GRAFIK TCD1 PLUS : AQUATONIK T/P Coaxial Shower System with Vertical Ceiling Arm Chrome

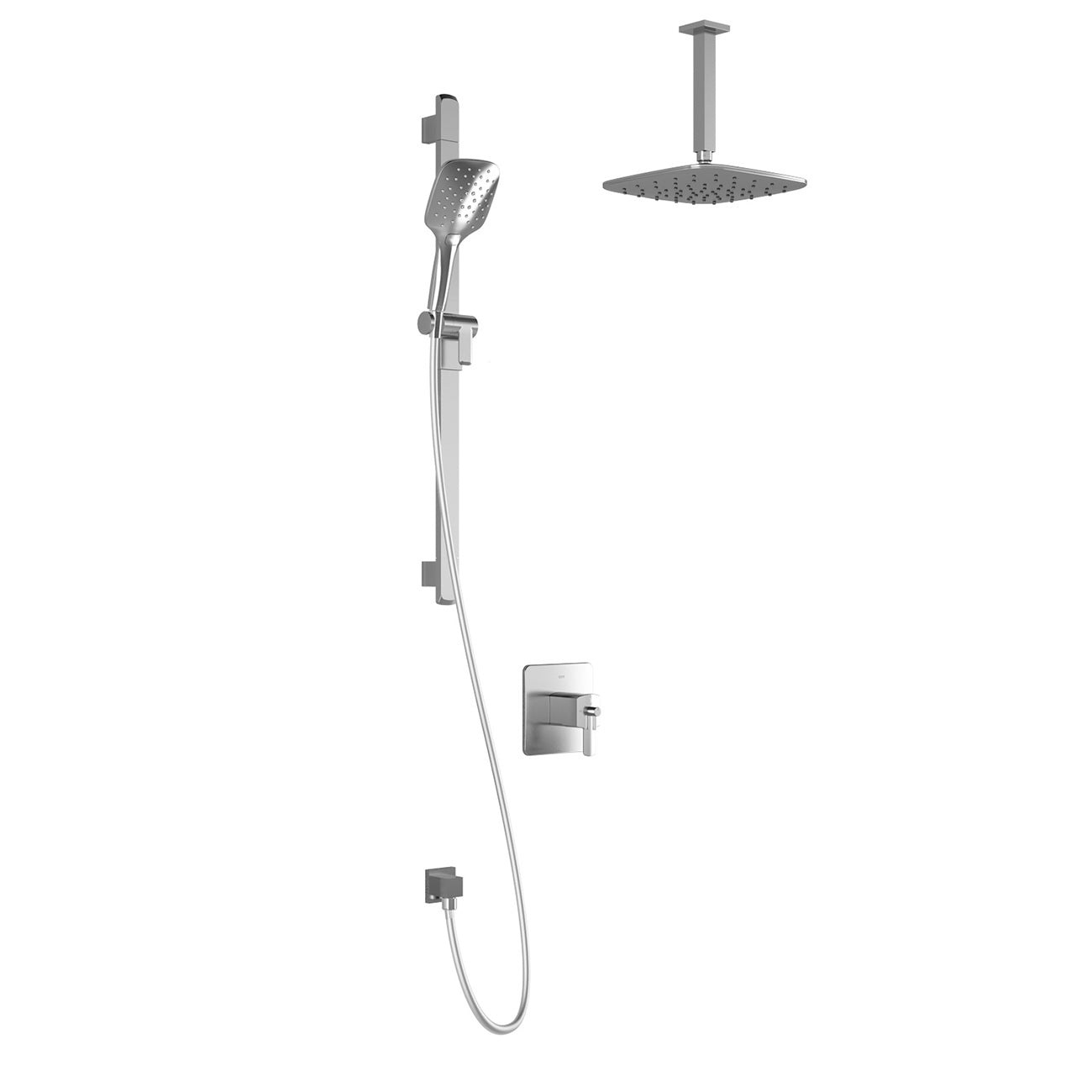

The Kalia GRAFIK TCD1 PLUS is a thermostatic coaxial shower system in Chrome built around a 2-way AQUATONIK type T/P 1/2'' coaxial valve with diverter and a rainhead with vertical ceiling arm. Components included are a 2-jet handshower (2 positions), a wallbar, a 60'' flexible and soft PVC hose and a wall outlet.

Features

• Rainhead: anti-scale system with soft sprays, adjustable orientation swivel, 1/2'' male NPT water inlet and maximum flow rate of 7.6 L/min (2 gpm) at 80 psi
• Handshower: anti-scale system with soft sprays, G1/2 male water inlet and maximum flow rate of 7.6 L/min. (2 gpm) at 80 psi
• Wallbar: easy-to-use gliding system and locking system
• Valve: solid brass construction, no visible screw and integrated service stops
• Valve: two male water inlets and two male water outlets, 1/2NPT threaded or welded; can be installed back-to-back
• Valve maximum flow rate: 25 L/min (6.6 gpm) at 60 psi with 1 outlet, 29 L/min (7.7 gpm) at 60 psi with 2 outlets
• Wall outlet: 1/2NPT female water inlet, G1/2 male water outlet and connector adjustable in depth

Specifications

• Finish: Chrome
• Rainhead dimensions: 251 x 251mm (9 7/8'' x 9 7/8'')
• Handshower dimension: 121 mm (4 3/4'')
• Wallbar total height: 775 mm (30 1/2'')
• Valve total adjustment: 32 mm (1 1/4”)
• Standards (system): Meets or exceeds ADA, CSA B125.1, ASME A112.18.1
• Note: Dimensions are approximate and subject to change; refer to the installation instructions
