GRAFIK TCD1 : AQUATONIK T/P Coaxial Shower System with Wallarm Chrome

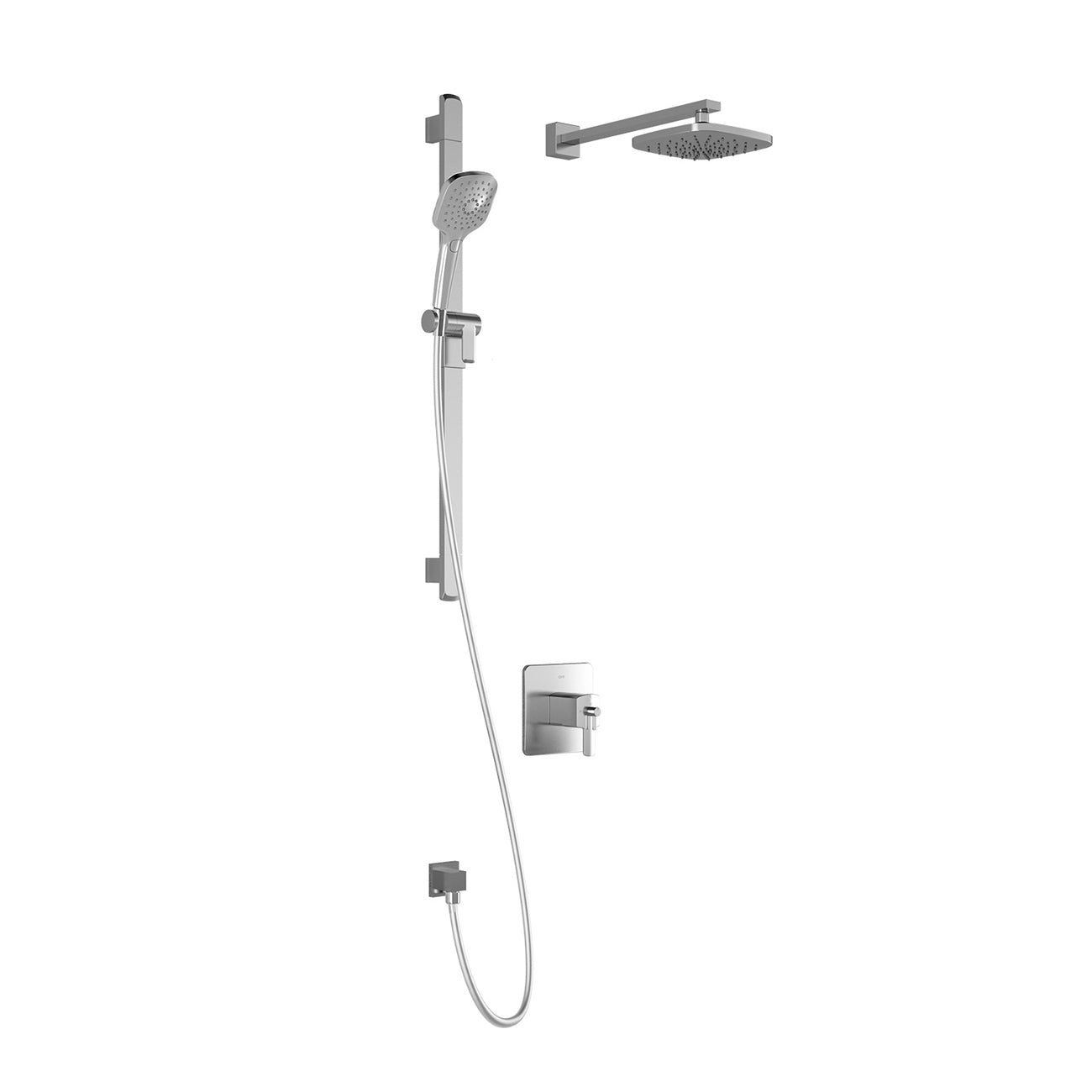

The Kalia Grafik TCD1 is a complete AQUATONIK T/P coaxial thermostatic shower system in a wall-arm layout, finished in Chrome, and the system includes the valve. It includes a 2-way AQUATONIK type T/P 1/2" coaxial valve with diverter, a rainhead with 90° wall arm, a 2-jet handshower (2 direct positions and 1 shared position), a wallbar, a 60" PVC hose and a wall outlet. The system meets or exceeds ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Solid brass valve with no visible screw and integrated service stops
• Valve has two male 1/2NPT water inlets and outlets, threaded or welded, and 32 mm (1 1/4") total adjustment
• Valve can be installed back-to-back, with a support included for better stability during installation
• Rainhead with soft tips for easy limescale cleaning, adjustable orientation swivel, and solid brass arm with plastic rainhead
• Handshower with plastic construction and anti-scale system with soft sprays
• Wallbar with an easy-to-use gliding system and a locking system
• Guaranteed free of defects in material and workmanship for normal residential use; see the warranty included with the Kalia products for details
• Dimensions are approximate and subject to change

Specifications

• Valve maximum flow rate: 1 outlet = 25 L/min (6.6 gpm) at 60 psi; 2 outlets = 29 L/min (7.7 gpm) at 60 psi
• Rainhead/handshower maximum flow rate: 7.6 L/min (2 gpm) at 80 psi each
• Valve standards: ASME A112.18.1 / CSA B125.1, ICC A117.1
• Rainhead dimension: 195 mm (7 11/16")
• Handshower dimension: 106 mm (4 3/16")
• Wallbar total height: 775 mm (30 1/2")
• Finish: Chrome
