DRAVA TRIM FOR 2-WAY TH SHOWER KIT

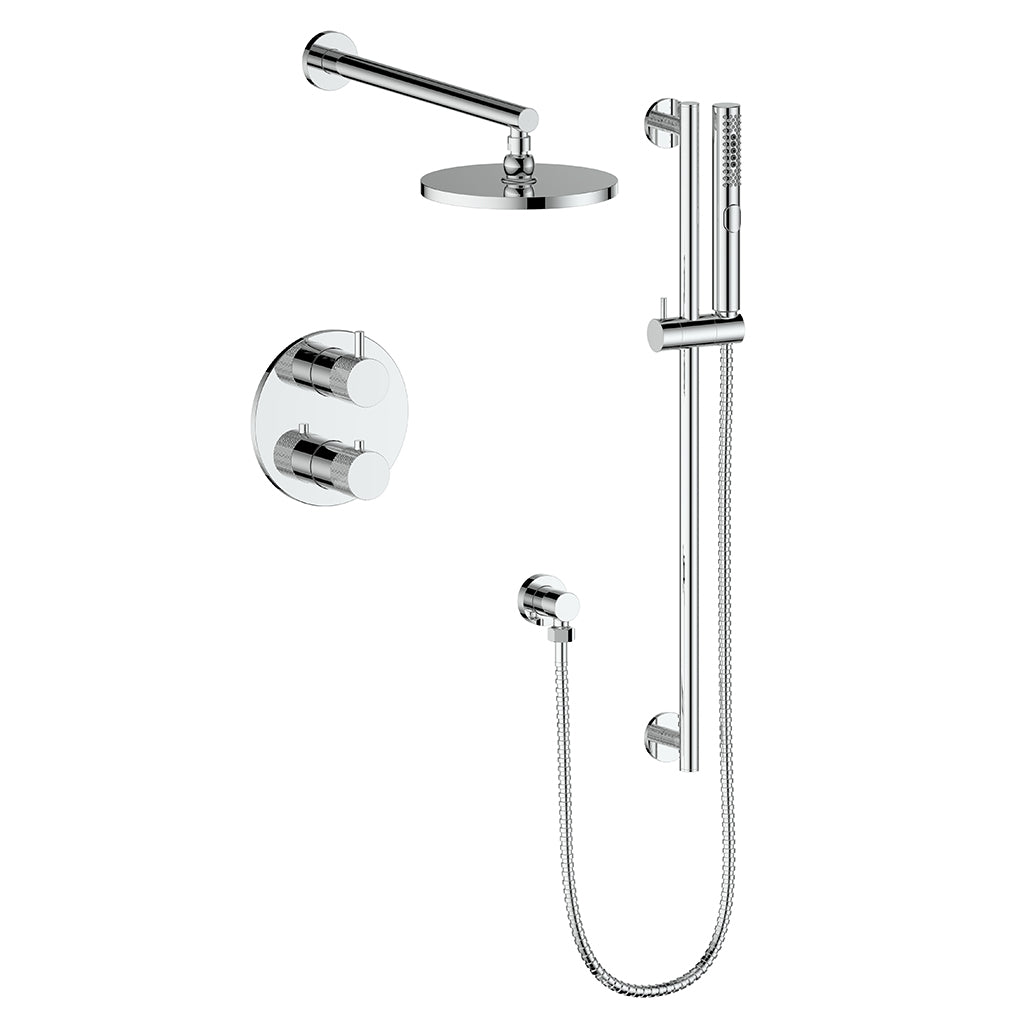

The Vogt Drava TM.DA.220.210 is a 2-way thermostatic shower trim kit with an 8” round shower head, a 16” wall mount shower arm, a 27” sliding shower bar with hand shower and a round brass elbow connector. This product is trim only. The VE.220 valve is required. The kit's codes and standards are UPC, ASME A112.18.1/CSA B125.1 and ASSE 1016.

Features

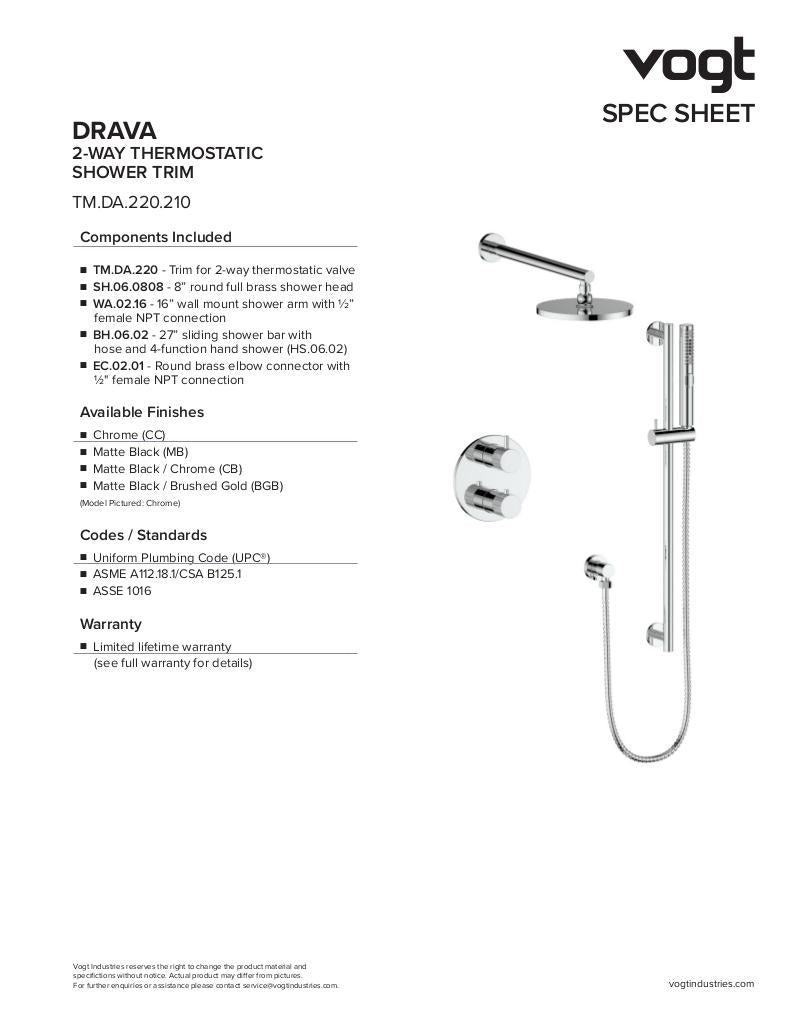

• Components included: TM.DA.220 trim for 2-way thermostatic valve, SH.06.0808 shower head, WA.02.16 wall arm, BH.06.02 sliding shower bar and EC.02.01 elbow connector

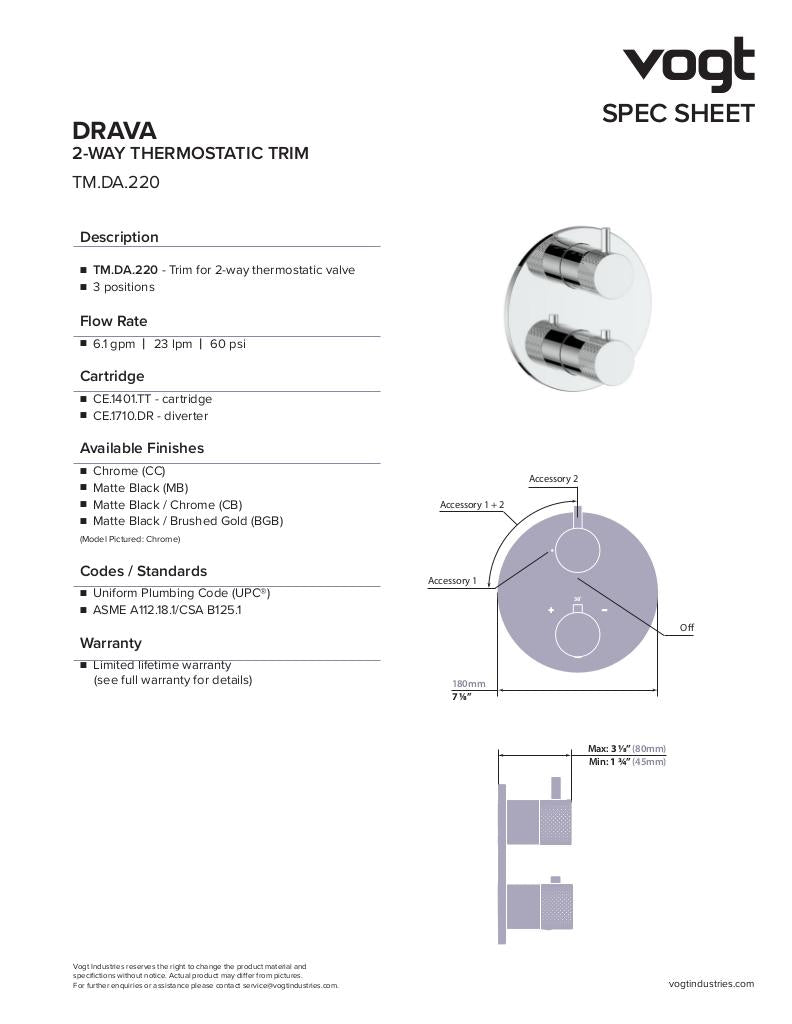

• TM.DA.220 thermostatic trim with 3 positions and a flow rate of 6.1 gpm | 23 lpm | 60 psi

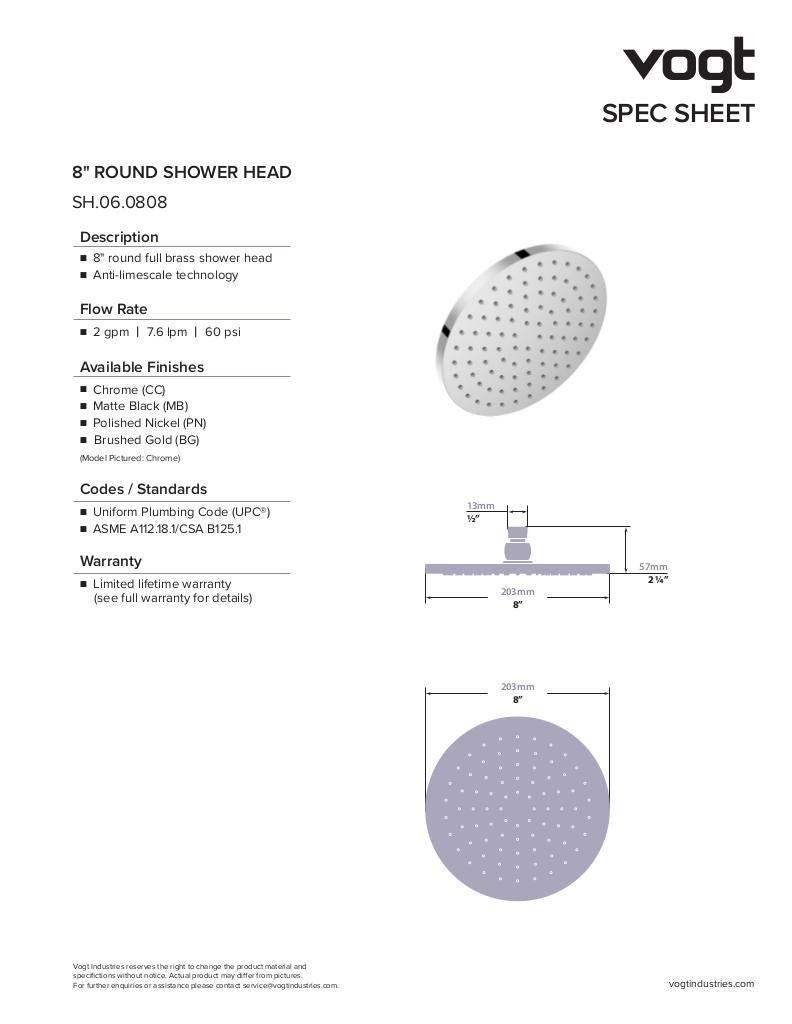

• 8" round full brass shower head with anti-limescale technology, rated 2 gpm | 7.6 lpm | 60 psi

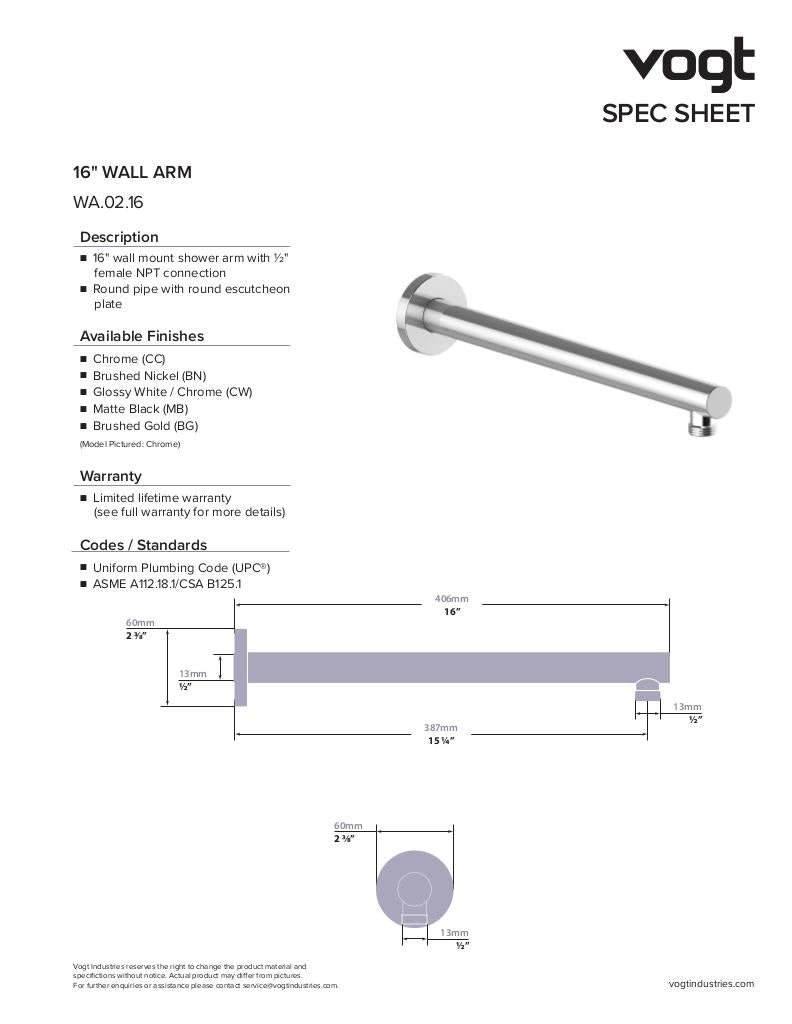

• 16" wall mount shower arm with 1/2" female NPT connection, round pipe and round escutcheon plate

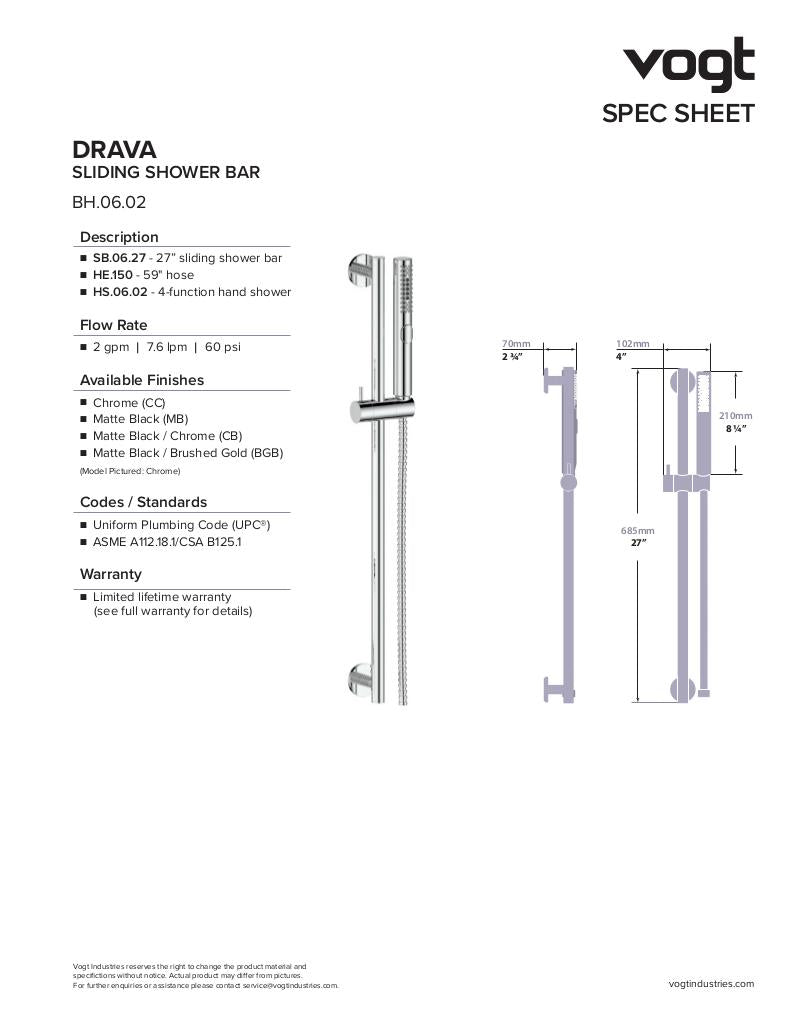

• BH.06.02 sliding shower bar set with a 27” sliding shower bar (SB.06.27), 59" hose (HE.150) and 4-function hand shower (HS.06.02), rated 2 gpm | 7.6 lpm | 60 psi

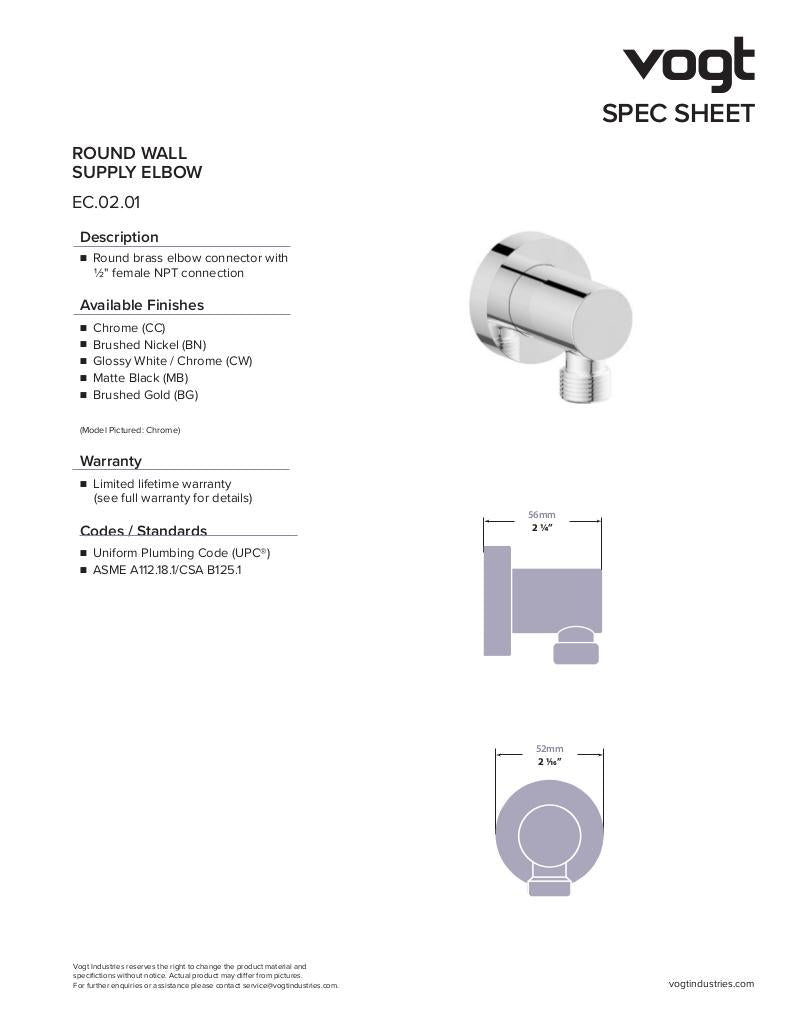

• Round brass elbow connector (EC.02.01) with 1/2" female NPT connection

Specifications

• Model: TM.DA.220.210
• Configuration: Trim only; VE.220 valve required
• Thermostatic trim positions: 3
• Thermostatic trim flow rate: 6.1 gpm | 23 lpm | 60 psi
• Shower head and hand shower flow rate: 2 gpm | 7.6 lpm | 60 psi
• Connections: 1/2" female NPT (wall arm, elbow connector)
• Codes / standards: UPC; ASME A112.18.1/CSA B125.1; ASSE 1016
• Warranty: Limited lifetime warranty (see full warranty for details)

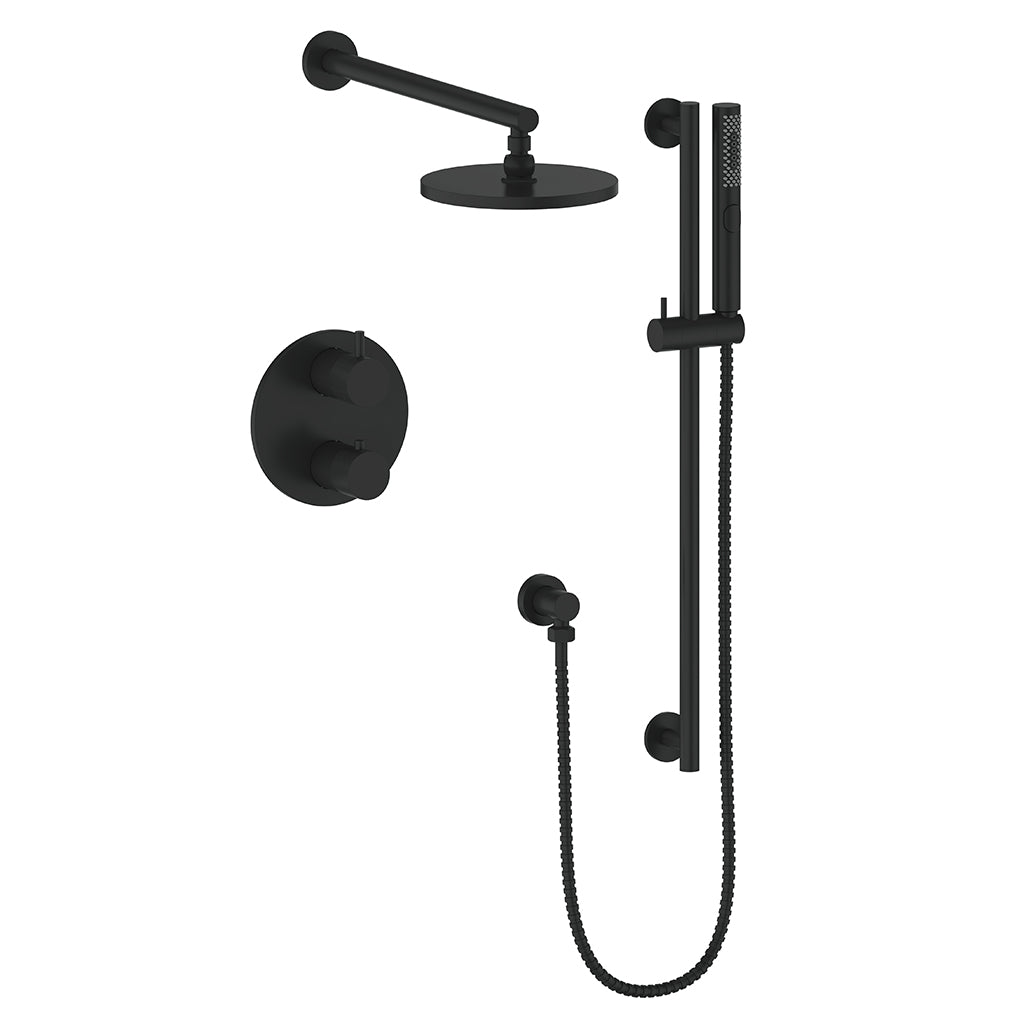

• Available finishes: Chrome, Matte Black, Chrome/Matte Black, Brushed Gold/Matte black
