CIT TD3 PLUS : AQUATONIK T/P Shower System with Wallarm

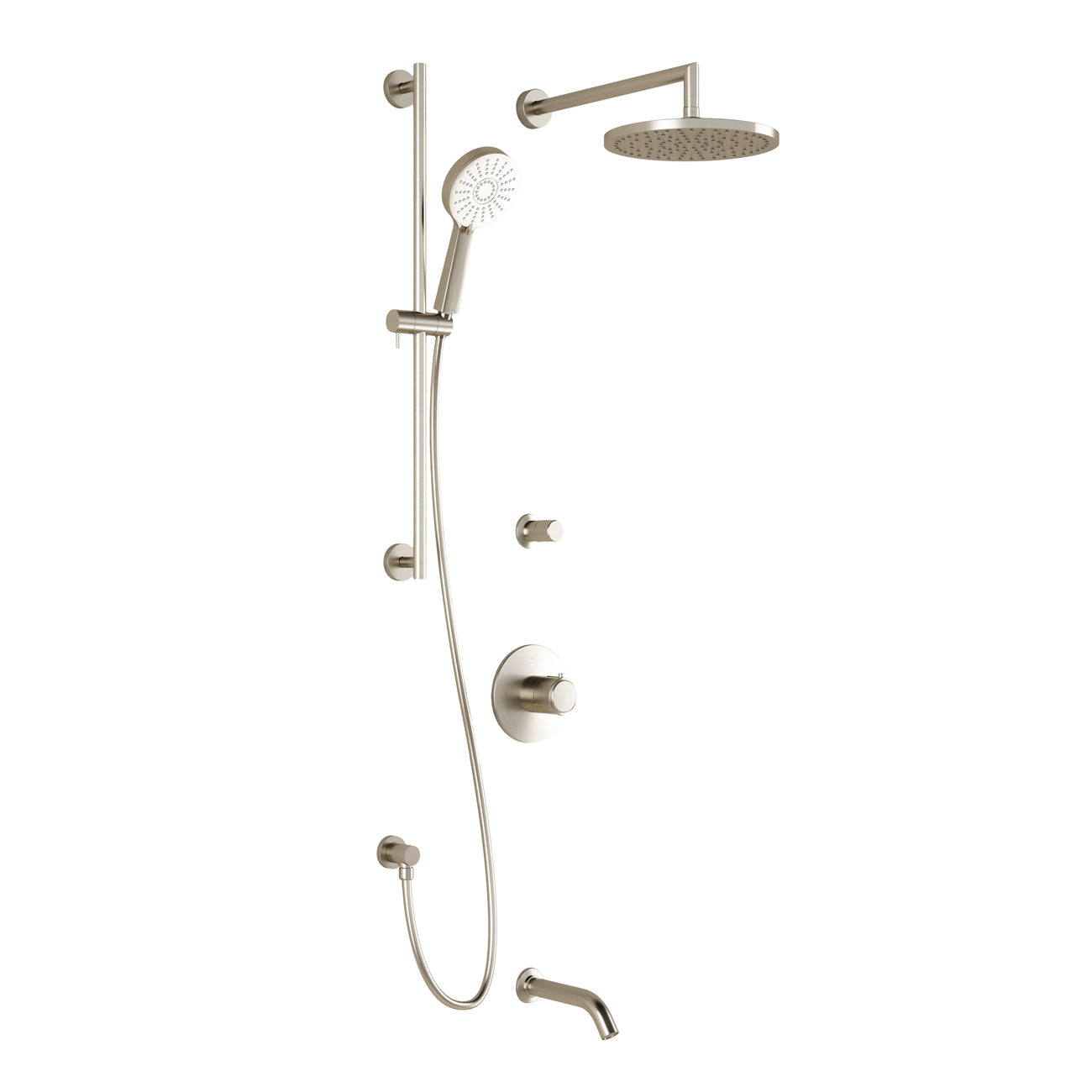

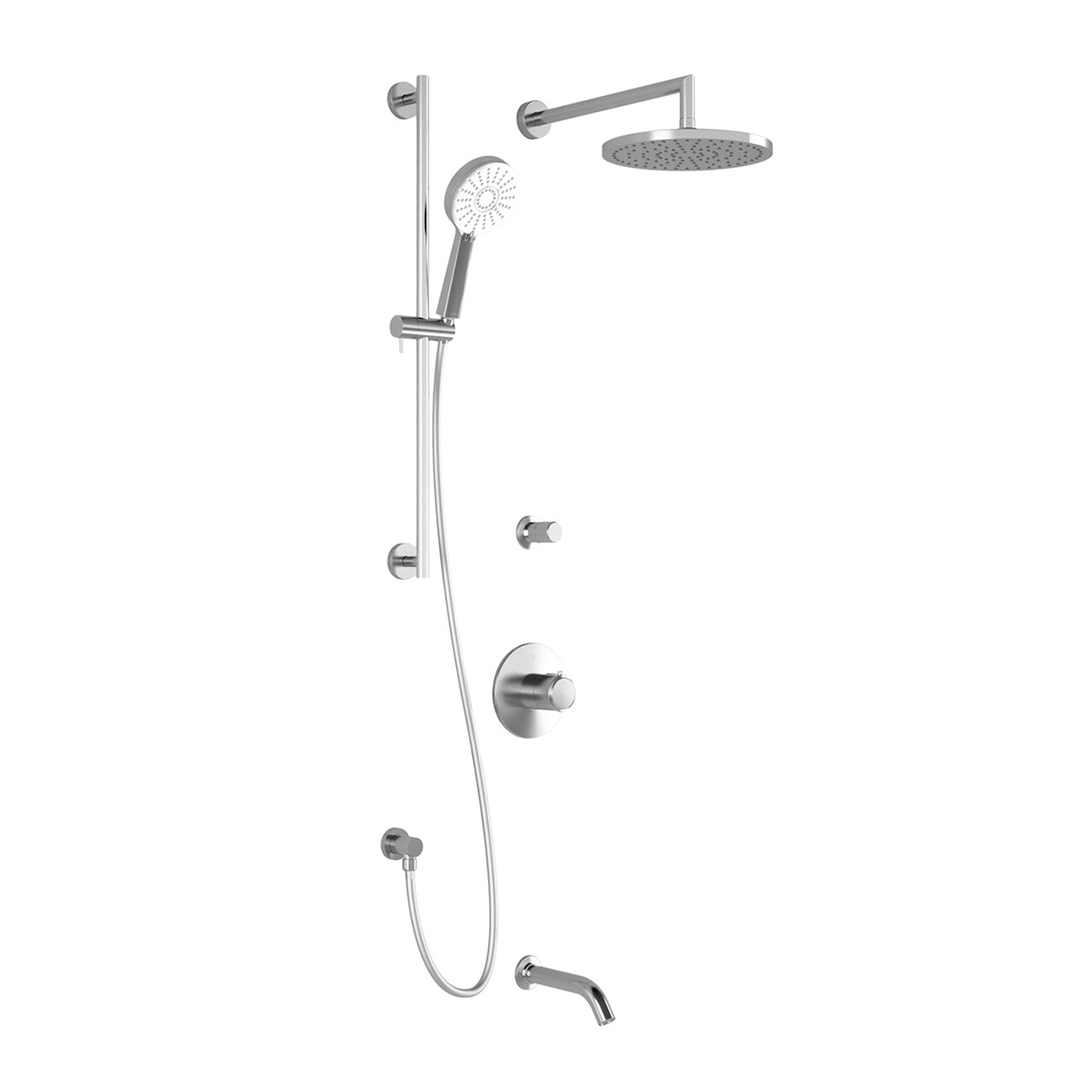

The Kalia CITÉ TD3 PLUS AQUATONIK T/P shower system with wallarm is offered in Chrome and BRUSHED NICKEL. In Chrome (BF1602-110-100), it is a PLUS TD3 Thermostatic Shower System with these components included: an AQUATONIK type T/P 1/2” valve and decorative trim, a 3-way 1/2” diverter and decorative trim, a rainhead and 90° wallarm, a 2-jet handshower, a wallbar, a wall outlet, a 60’’ flexible and soft PVC hose and a tub spout. The Chrome version meets or exceeds the ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Valve and trim (Chrome): solid brass construction, no visible screw and integrated service stops with check valve; maximum flow rate of 30 L/min (7.9 gpm) at 60 psi.
• 3-way diverter (Chrome): operates 1 or 2 components at a time; maximum flow rate of 22.5 L/min (6 gpm) for 1 outlet and 23.5 L/min (6.7 gpm) for 2 outlets, at 60 psi.
• Rainhead and 90° wallarm (Chrome): diameter of 254 mm (10”), anti-scale system with soft sprays, adjustable orientation swivel, solid brass arm and plastic rainhead construction; maximum flow rate of 7.6 L/min (2 gpm) at 80 psi.
• 2-jet handshower (Chrome): plastic construction, diameter of 121mm (4 3/4’’), 2 direct positions and 1 shared position; maximum flow rate of 7.6 L/min (2 gpm) at 80 psi.
• Wallbar (Chrome): total height of 762mm (30’’) with a locking system of 1/4 turn.
• Hose and wall outlet (Chrome): 60’’ flexible and soft PVC hose with integrated check valve; solid brass wall outlet with connector adjustable in depth.
• Tub spout (Chrome): solid brass construction, hidden water jet and high water flow.
• Warranty: Kalia Inc. guarantees its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.
• Installation requirement: install following the installation instructions provided; dimensions are approximate and subject to change.

Specifications

• Available finishes: Chrome, BRUSHED NICKEL
• System type (Chrome): PLUS TD3 Thermostatic Shower System
