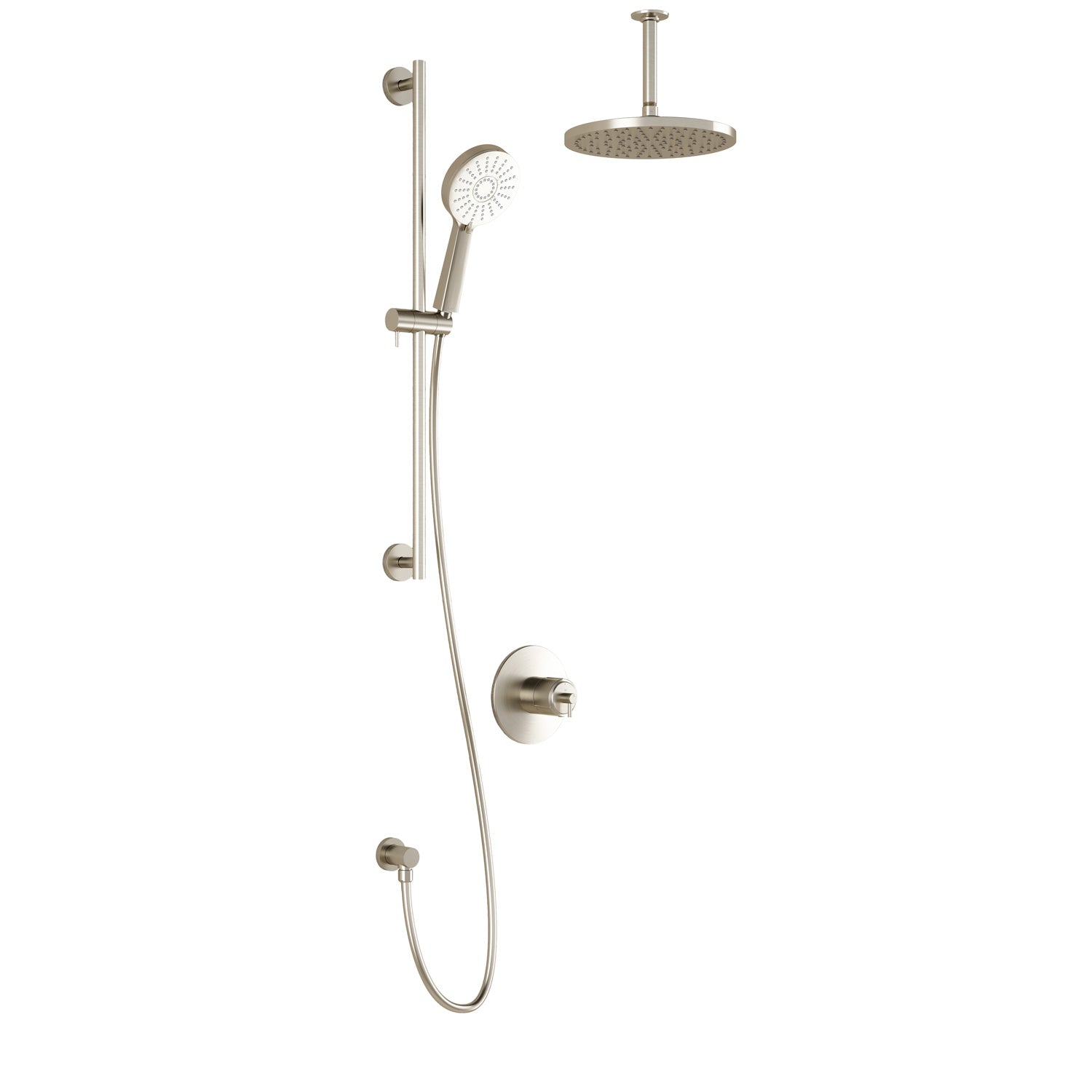

CIT TCD1 PLUS : AQUATONIK T/P Coaxial Shower System with Vertical Ceiling Arm

The Kalia Cité TCD1 Plus is a full AQUATONIK T/P coaxial thermostatic shower system with a vertical ceiling arm and the Plus trim, with the valve included. It is available in Chrome or Brushed Nickel. The Chrome version (BF1716-110-101) includes a 2-way AQUATONIK type T/P 1/2" coaxial valve with diverter and decorative trim, a rainhead and vertical ceiling arm, a 2-jet handshower, a wallbar, a wall outlet and a 60" flexible and soft PVC hose, and meets or exceeds ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Chrome version valve: solid brass, no visible screw, integrated service stops, optional lever included
• Chrome version valve: two male 1/2NPT water inlets and outlets, threaded or welded; 32 mm (1 1/4") total adjustment
• Chrome version valve: can be installed back-to-back, with a support for better stability during installation included
• Chrome version rainhead: 254 mm (10") diameter, anti-scale soft sprays, adjustable orientation swivel, solid brass arm with plastic rainhead
• Chrome version 2-jet handshower: plastic construction, 121 mm (4 3/4") diameter, anti-scale system with soft sprays, 2 direct positions and 1 shared position
• Chrome version wallbar: total height of 762 mm (30") with a 1/4-turn locking system
• Chrome version hose: 60" (1524 mm) with G1/2 female connection and integrated check valve
• Dimensions are approximate and subject to change

Specifications

• Valve maximum flow rate (Chrome version): 1 outlet = 25 L/min (6.6 gpm) at 60 psi; 2 outlets = 29 L/min (7.7 gpm) at 60 psi
• Rainhead/handshower maximum flow rate (Chrome version): 7.6 L/min (2 gpm) at 80 psi each
• Available finishes: Chrome, Brushed Nickel
