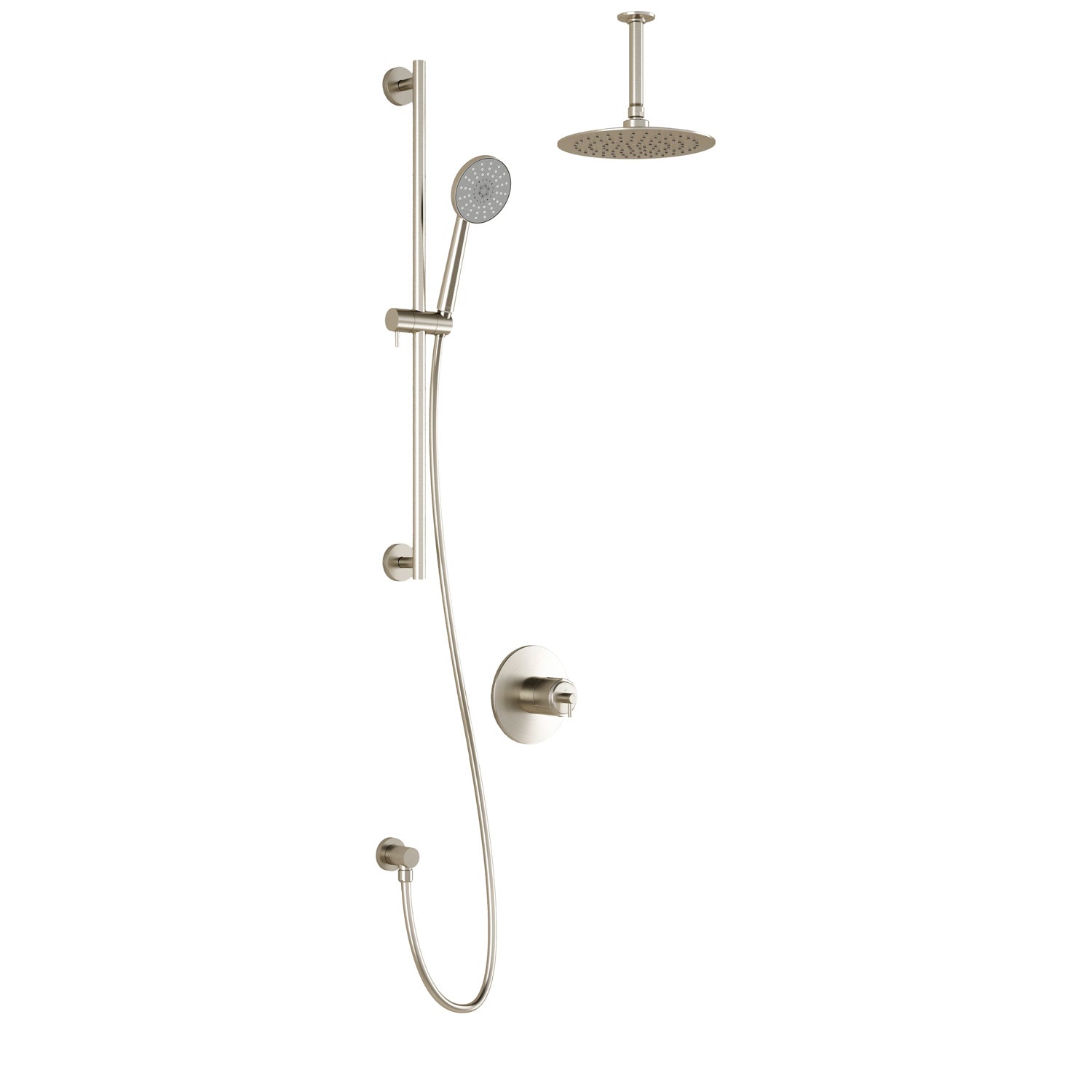

CIT TCD1 : AQUATONIK T/P Coaxial Shower System with Vertical Ceiling Arm

The Kalia CITÉ TCD1 is an AQUATONIK T/P coaxial thermostatic shower system with a vertical ceiling arm that drops the showerhead from above. It is offered in Chrome or Brushed Nickel, and the system includes the valve. The Chrome version (BF1716-110-001) comes with a 2-way AQUATONIK™ type T/P 1/2” coaxial valve with diverter and decorative trim, a rainhead and vertical ceiling arm, a 3-jet handshower, a wallbar, a wall outlet and a 60’’ flexible and soft PVC hose.

Features

• Chrome version valve: solid brass construction, no visible screw and integrated service stops
• Chrome version valve: maximum flow rate of 25 L/min (6.6 gpm) at 60 psi with 1 outlet and 29 L/min (7.7 gpm) at 60 psi with 2 outlets
• Chrome version rainhead: 229 mm (9’’) diameter, anti-scale system with soft sprays, maximum flow rate of 7.6 L/min (2 gpm) at 80 psi
• Chrome version handshower: 100 mm (4’’) diameter with 3 direct positions and 2 shared positions, maximum flow rate of 7.6 L/min (2 gpm) at 80 psi
• Chrome version wallbar: 762mm (30’’) total height with a 1/4 turn locking system

Specifications

• Collection: CITÉ
• System: TCD1 Thermostatic Coaxial Shower System
• Available finishes: Chrome, Brushed Nickel
• Standards (Chrome version): Meets or exceeds ADA, CSA B125.1 and ASME A112.18.1
• Warranty (Chrome version): Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use. Refer to the warranty included with the Kalia products for details.
• Note: Dimensions are approximate and subject to change
