Real Rain® 19" two-function overhead shower panel, 1.75 gpm

Experience the gentle buildup of a warm summer rainstorm in your shower. The KOHLER® Real Rain overhead panel is designed with a water reservoir that relies on gravity to shape individual drops that replicate rainfall. When the reservoir fills, water spills into the remainder of the ceiling-mount rainhead showerhead, covering over 605 nozzles, and raindrops begin to fall softly and slowly then grow in strength and speed until the shower feels, sounds, and looks like a warm summer rain. Push a button and the Deluge feature releases a reservoir of water in one powerful instant to simulate an energetic burst of heavy rain.

Features

• 605 silicone concave nozzles produce a full-coverage rain experience

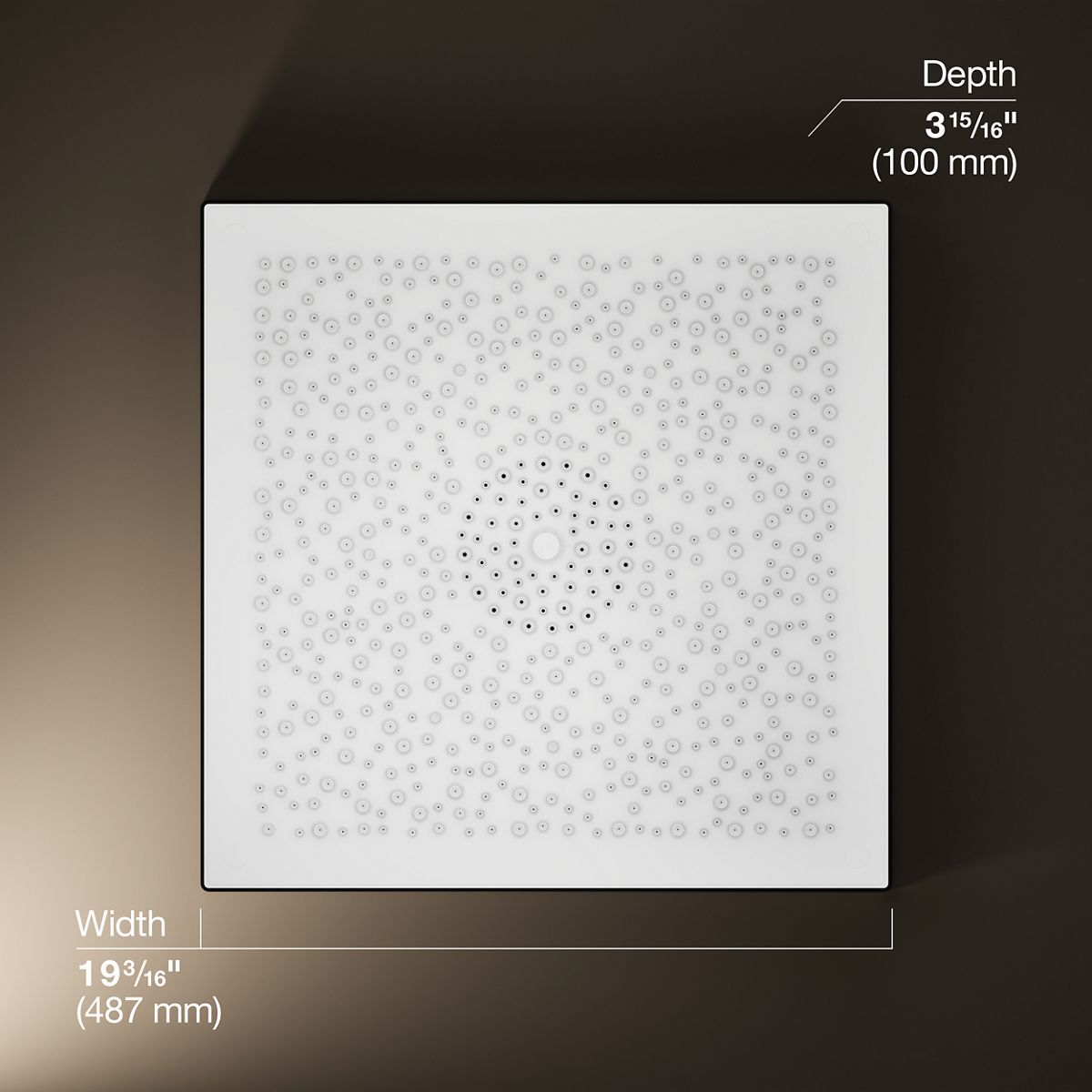

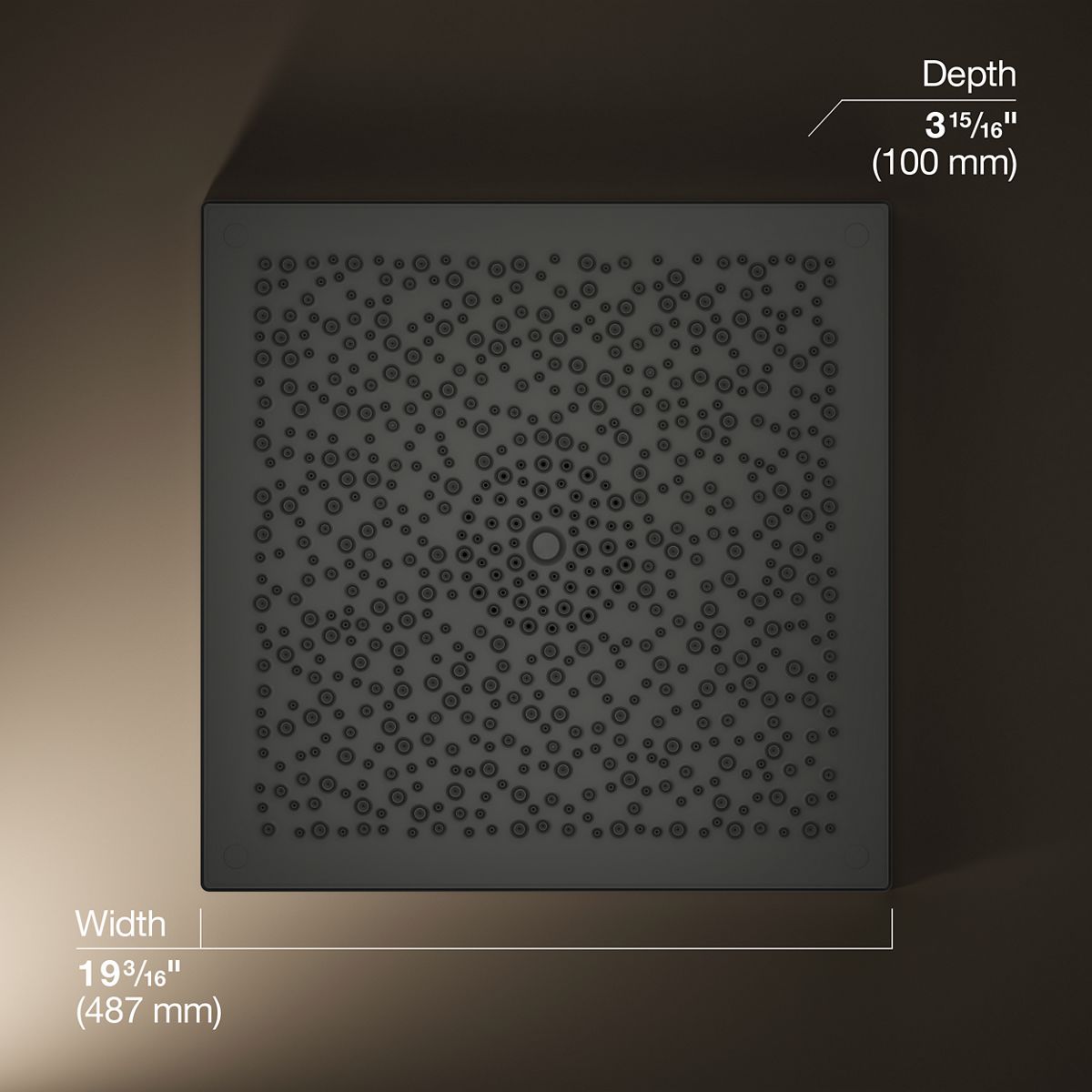

• 19" x 19" (483 x 483 mm) silicone panel provides wide coverage area with easy-to-clean nozzles
• 1.75 gpm (6.6 lpm) maximum flow rate
• Deluge function delivers a downpour of water at the push of a button
• Deluge™ function is actuated with Real Rain diverter valve (in manual showers) or can be actuated directly with the DTV+™ system
• Center of the panel is designed as a rain-free zone to keep user's face dry and encourage easy breathing during regular use. Deluge™ function flows from center of the panel when actuated

Specifications

• Dimensions: 21.375 x 20 x 6.75 in
• Weight: 16 lb
• UPC: 885612847959

Installation

• Mounts flush to the surface of a drop ceiling
• Easy-mount bracket and two-panel system improve the installation process
• Z-bracket contains four leveling nuts to simplify installation
• Real Rain overhead panel has 1/2" NPT male water supply inlet
• If using DTV+™ system the user interface must be 99693-P-NA (99693-NA does not contain Real Rain software)
• If using DTV Prompt® system must include Real Rain diverter valve and trim (K-76746 and K-76748) to actuate Deluge™ function
• Requires K-31111 Real Rain overhead panel trim
