Rough Valve/trim 3-way Type T/p (Thermostatic/pressure Balance) Coaxial Valve Rough

The Riobel R45 is a 3-way Type T/P (thermostatic/pressure balance) coaxial valve rough, offered in three valve installation versions: Standard (R45), EX (R45-EX) and SPEX (R45-SPEX). Each version has a 1/2" inlet and three 1/2" outlets; the connection type depends on the version. This is the rough only: a TXX45XX or TXX47XX trim is required to complete it.

Features

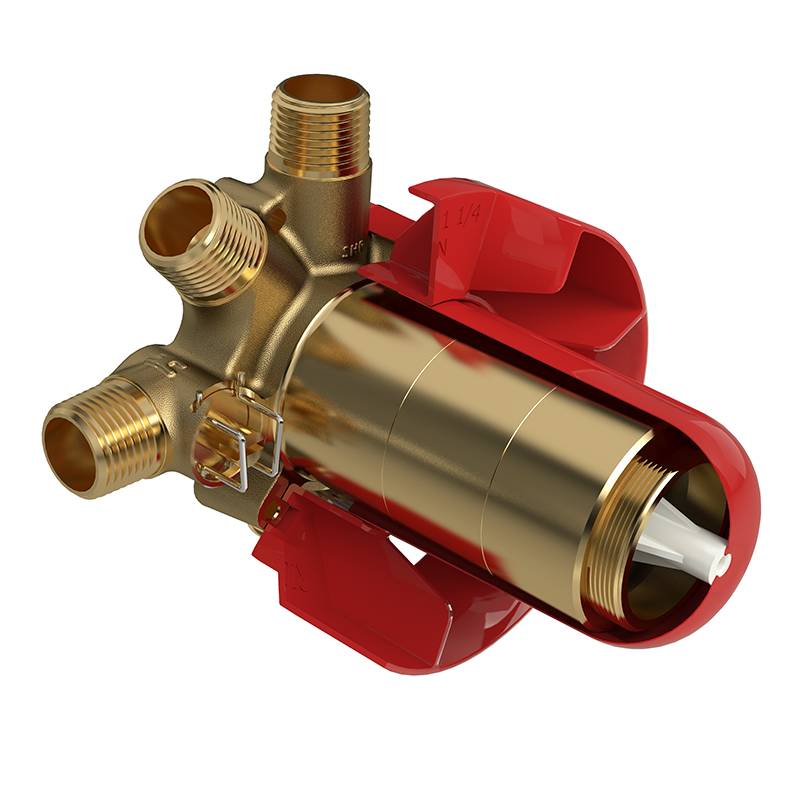

• R45 (Standard): 1/2" inlet and three 1/2" outlets, male NPT or sweat

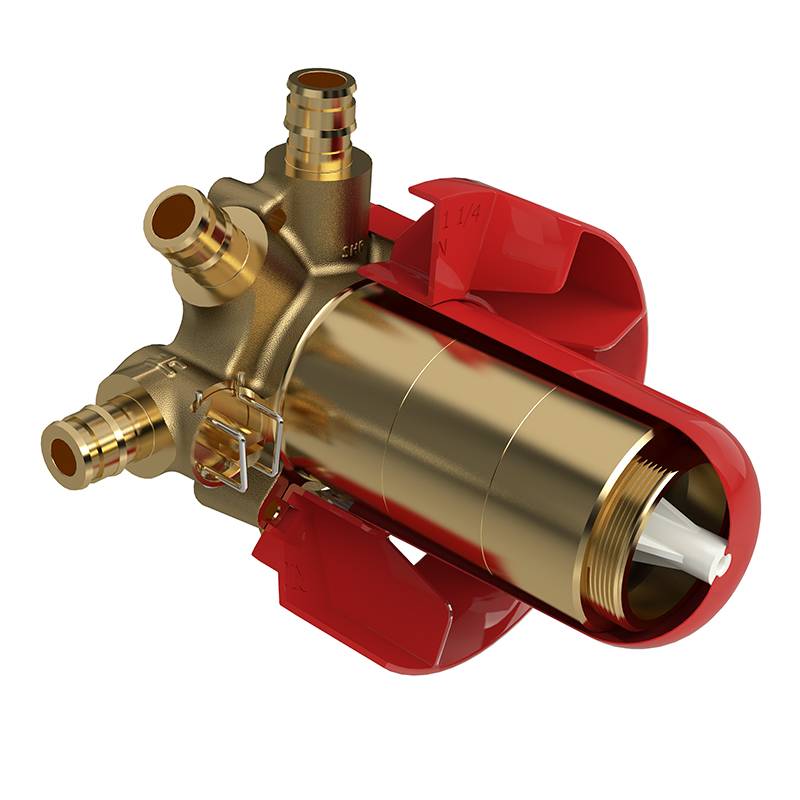

• R45-EX: 1/2" inlet and three 1/2" outlets, expansion PEX
• R45-SPEX: 1/2" inlet and three 1/2" outlets, PEX
• Service valves
• Test cap
• R45-EX: brass construction

Specifications

• Valve type: 3-Way Type T/P (thermostatic/pressure balance) coaxial valve rough
• Valve installation options: EX, Standard, SPEX
• Connection (R45): NPT or sweat
• Connection (R45-EX): Expansion PEX
• Connection (R45-SPEX): PEX
• Trim required: TXX45XX or TXX47XX
• Material (R45-EX): Brass
• Country of origin (R45-EX): Canada
