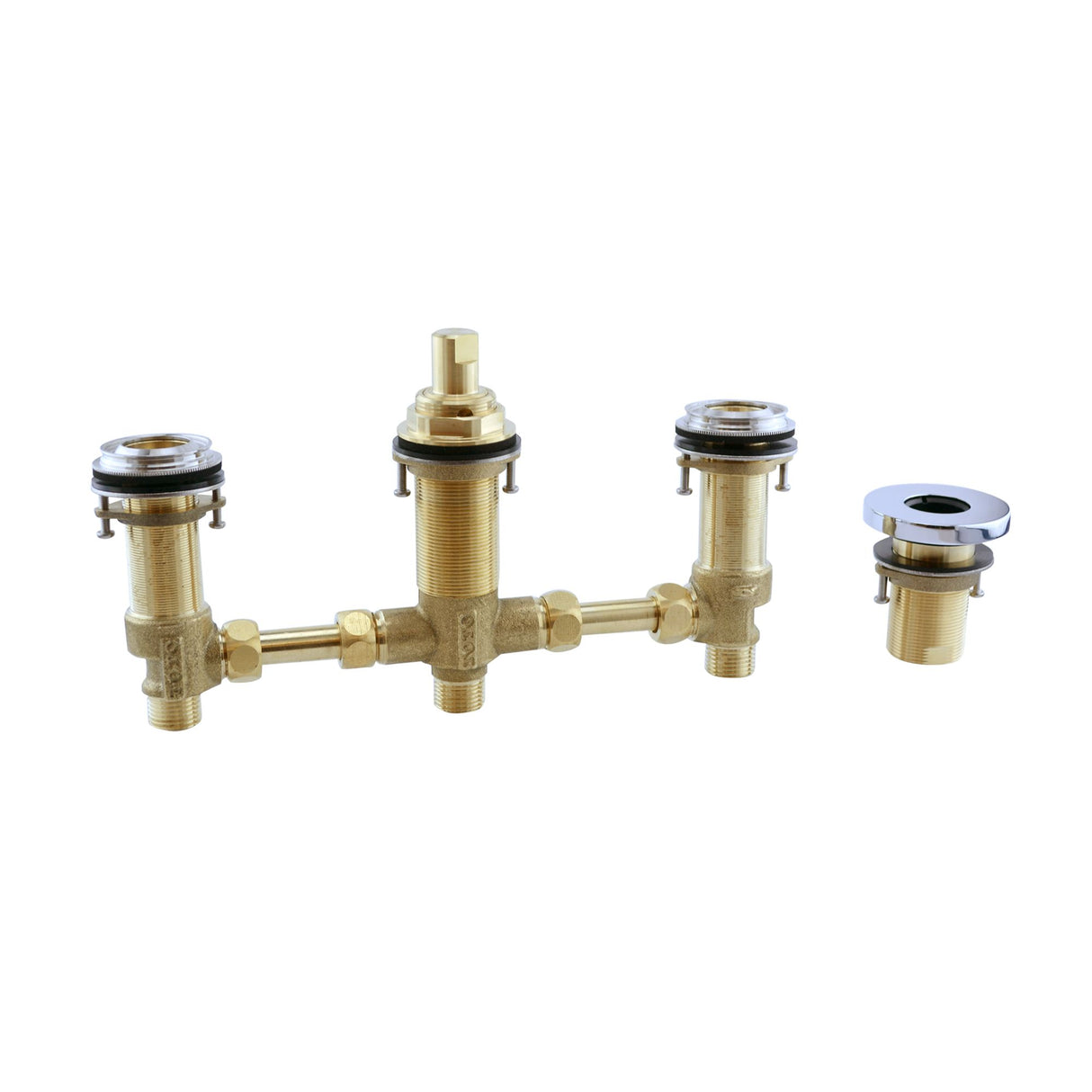

Four-Hole Roman Tub Filler Rough-in

The TOTO TBN01202U Four-Hole Roman Tub Filler Rough-In is matched for all new four holed Global tub fillers. It has a solid brass valve body, is corrosion resistant and meets California water efficiency CEC leakage regulations. It is offered without rough-in tubes or paired with one connecting tube, and a connecting tube model is required for installation.

Features

• Solid brass valve body
• Forged brass body
• Corrosion resistant
• For use with four-hole roman tub filler trim
• Meets California water efficiency CEC leakage regulations
• Installation note: a connecting tube model is required for installation
• Installation note: check local codes for requirements on installing an ASSE 1070/ASME A112.1070/CSA B125.70 compliant device in series with the tub filler

Specifications

• Available finishes: Polished Chrome, Polished Nickel, BRUSHED NICKEL
• Rough-in tube options: None, 7-1/2, 8-1/4, 9-1/16, 9-13/16, 10-5/8, 11-3/8
• Connecting tube by spread: 7-1/2"~8-1/4" (200 ± 10 mm): TBN01011U; 8-1/4"~9-1/16" (220 ± 10 mm): TBN01012U; 9-1/16"~9-13/16" (240 ± 10 mm): TBN01013U; 9-13/16"~10-5/8" (260 ± 10 mm): TBN01014U; 10-5/8"~11-3/8" (280 ± 10 mm): TBN01015U; 11-3/8"~12-3/16" (300 ± 10 mm): TBN01016U
• Deck thickness: Max 1-3/4" (45mm)
• Standards: Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of Massachusetts and others
• Code compliance: UPC, IPC, NSPC, CEC, NPC Canada, and others
• Warranty: Lifetime Limited Warranty (Residential Use); One Year (Commercial Use)
• Note: Rough-in dimensions are approximate and subject to change without notice
