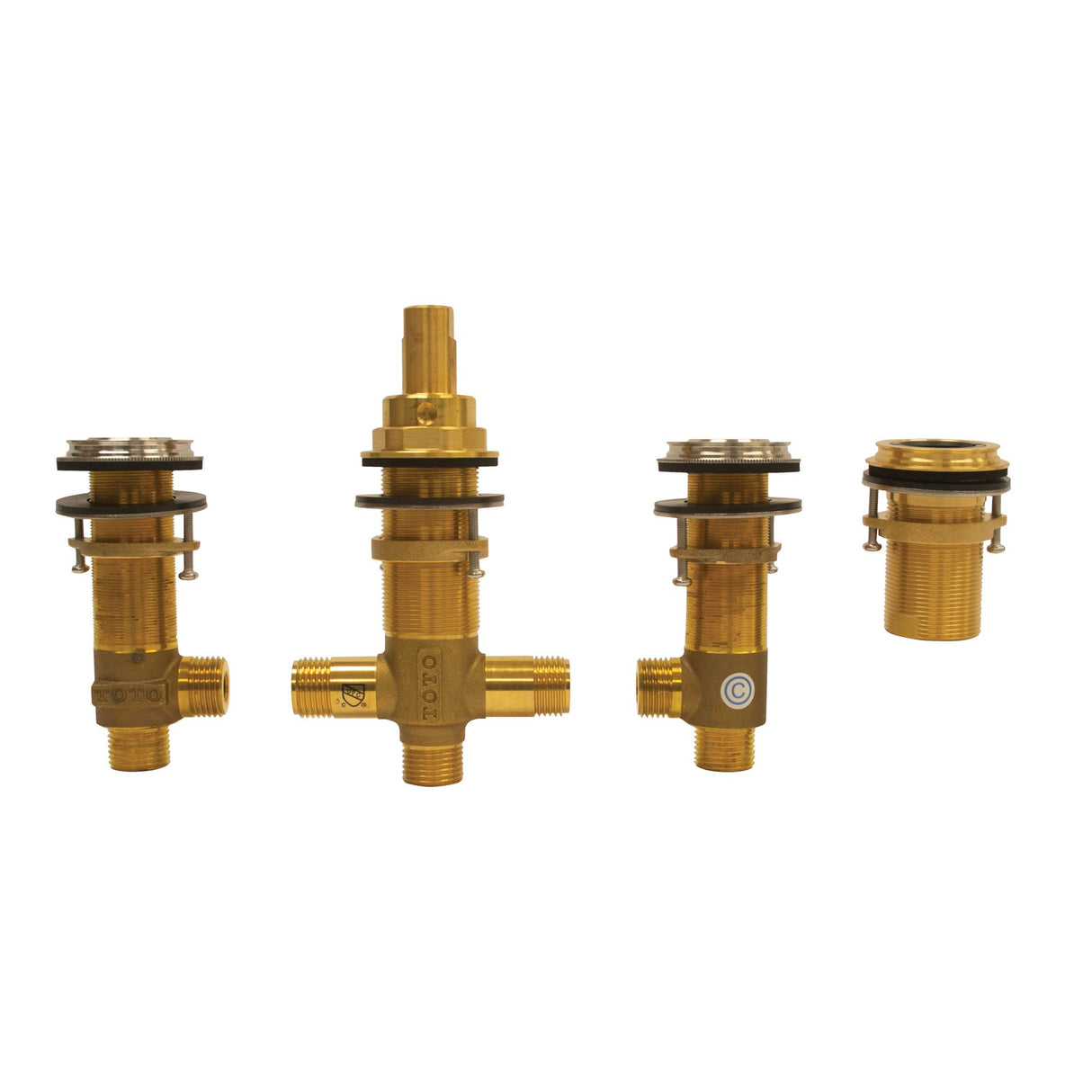

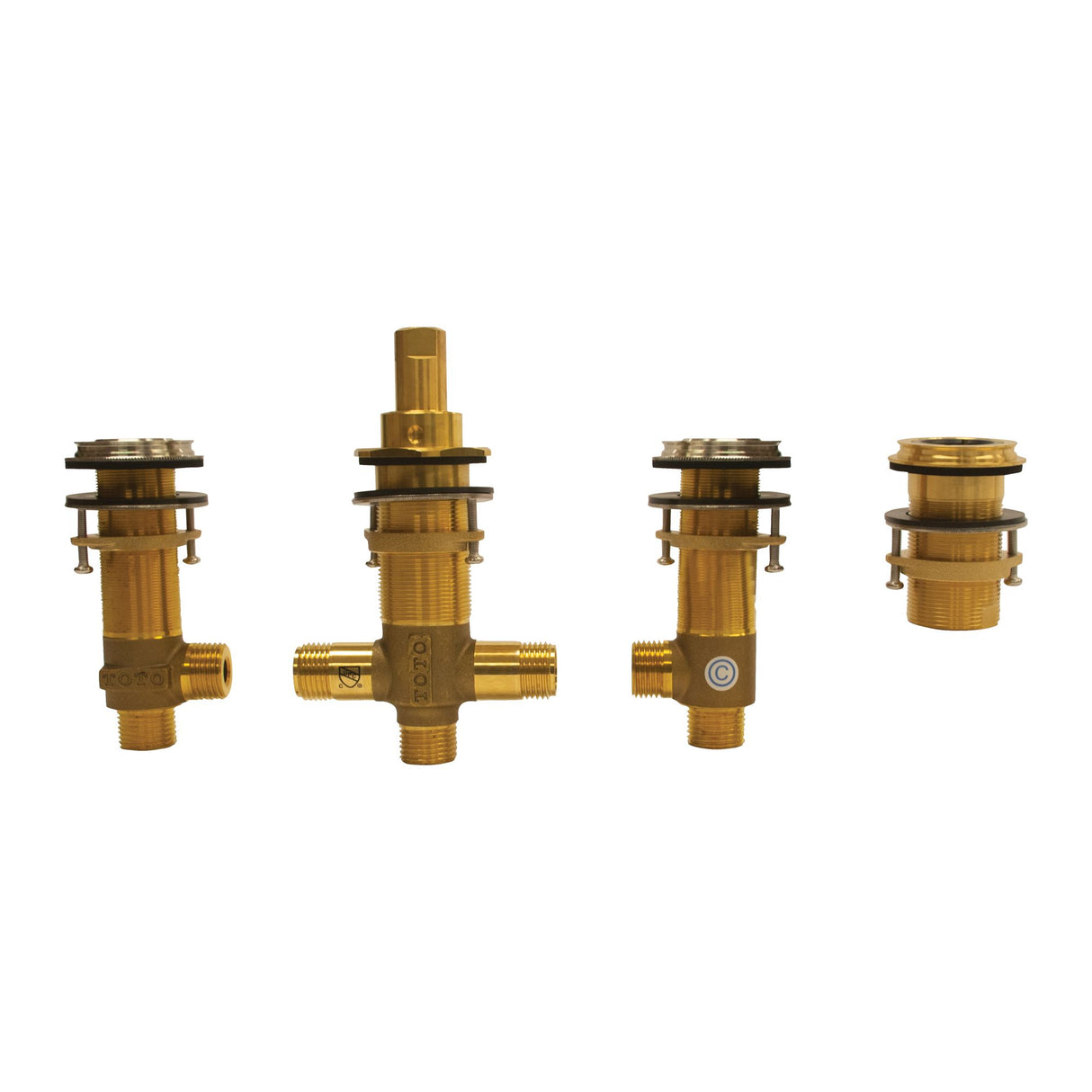

Four-Hole Roman Tub Filler Rough

The TOTO TBN02204U four-hole Roman tub filler rough-in is matched for the GC series tub-filler trim. It has a corrosion-resistant brass body and is offered on its own or with a connecting rough-in tube in a choice of lengths. A connecting tube model is required for installation.

Features

• Corrosion resistant
• Brass body
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO (cUPC), State of Massachusetts and others
• Code compliance: UPC, IPC, NSPC, NPC Canada and others
• Complies with California Proposition 65 warning requirements
• Installation note: check local codes for requirements on installing an ASSE 1070/ASME A112.1070/CSA B125.70 compliant device in series with the tub filler

Specifications

• Finishes: Polished Chrome, Brushed Nickel, Polished Nickel (made to order)
• Rough-in tube options: None, 7-1/2, 8-1/4, 9-1/16, 9-13/16, 10-5/8, 11-3/8
• Deck thickness: Max 1-3/4" (45 mm)
• Required hole: ø 1-1/4"~1-7/16" (ø 33~37 mm)
• Note: Rough-in dimensions are approximate
• Warranty: Lifetime Limited Warranty (residential use); one year (commercial use)
