Duofit In-Wall Tank System 1.28 GPF & .09 GPF - Copper Supply

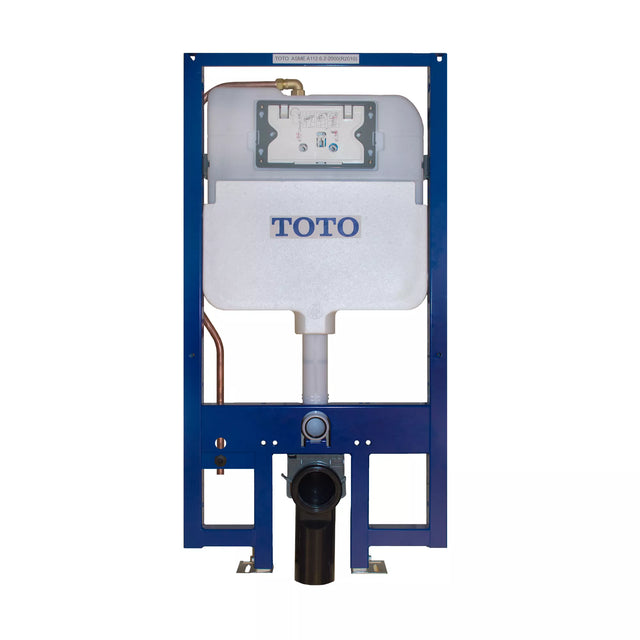

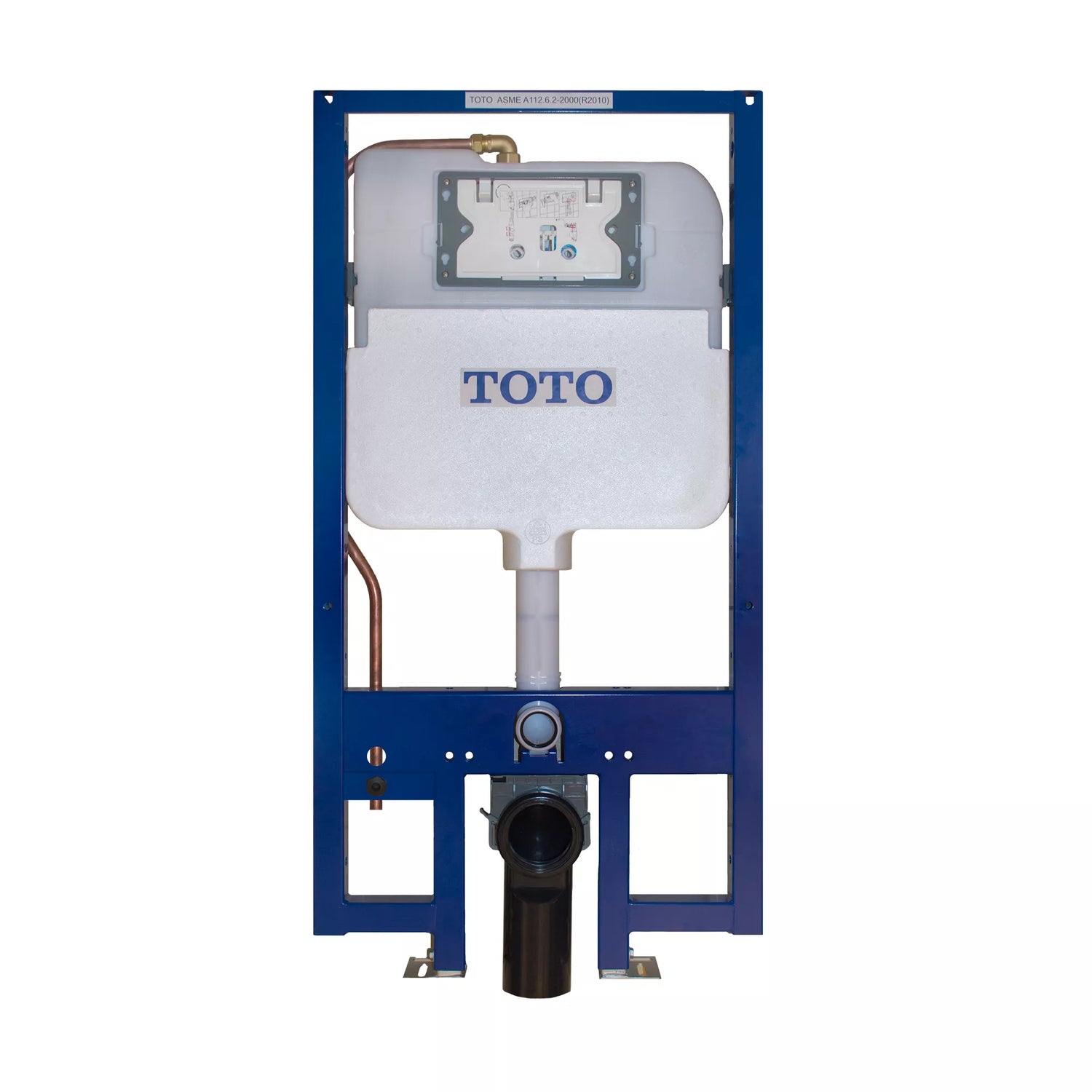

The TOTO DUOFIT WT172M in-wall tank unit is a dual flush system with low consumption of 1.28 GPF/4.8 LPF and 0.9 GPF/3.4 LPF, supplied with a copper WASHLET supply line. It is pre-plumbed for a WASHLET+ connection, supports up to 880 lbs and offers an adjustable 15"-19" mounting height. The system requires TOTO toilet model CT447CFG, CT449CFG or CT437FG, and a push plate sold separately.

Features

• Dual-Max flushing system
• Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
• 1-pc blow molded, insulated polyethylene tank to prevent leaks and sweating
• 2" x 6" polyethylene outlet included
• Push plates (sold separately): YT970 in Stainless Steel, Black, White or Nickel
• Wall-hung toilet bowls (sold separately): CT447CFG RP, CT449CFG SP and CT437FG MH
• Installation requirement: adequate structural bracing is required, and framing support should be capable of supporting 880 lbs load without damage to the wall

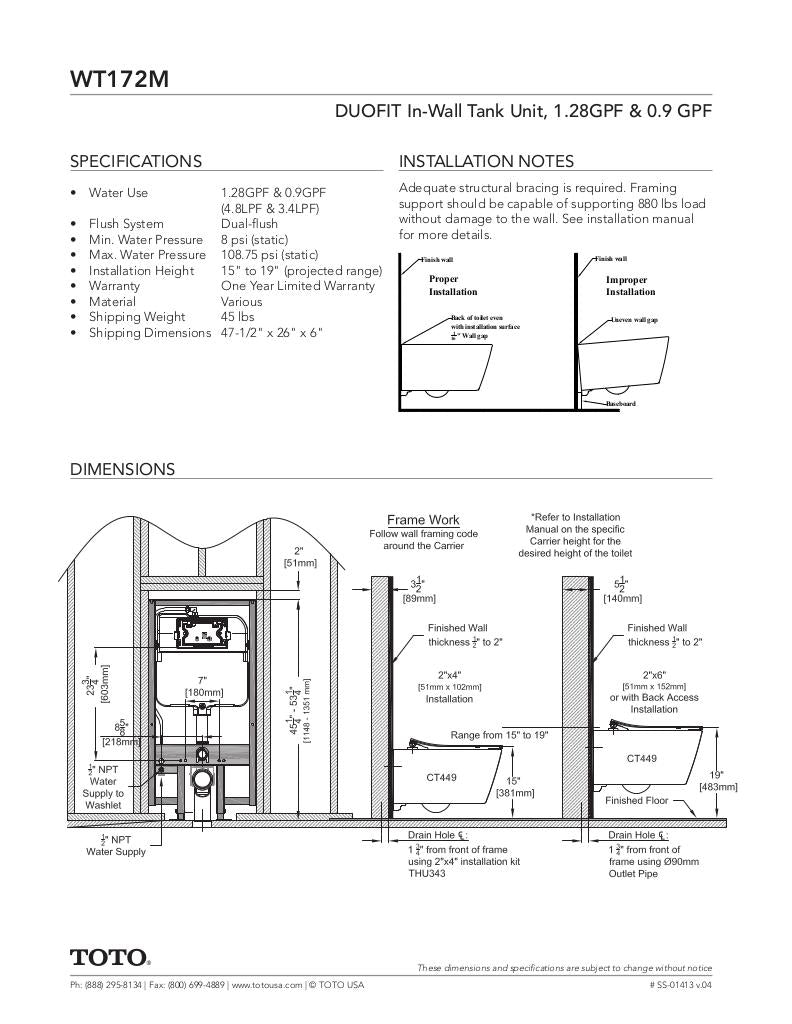

Specifications

• Water use: 1.28 GPF & 0.9 GPF (4.8 LPF & 3.4 LPF)
• Flush system: Dual-flush
• Min. water pressure: 8 psi (static)
• Max. water pressure: 108.75 psi (static)
• Installation height: 15" to 19" (projected range)
• Material: Various
• Warranty: One Year Limited Warranty
• Codes/standards: Carrier system: ASME A112.6.2; tank trim: IAPMO PS50, CSA B125.3, ASSE1002
• Certifications: IAPMO (cUPC), EPA WaterSense, State of Massachusetts, City of Los Angeles and others; WaterSense certification only applies to WT172M when combined with CT447CFG, CT449CFG or CT437FG toilet bowls
• Code compliance: UPC, IPC, NSPC, NPC Canada and others
• Supply line: Copper WASHLET supply line
